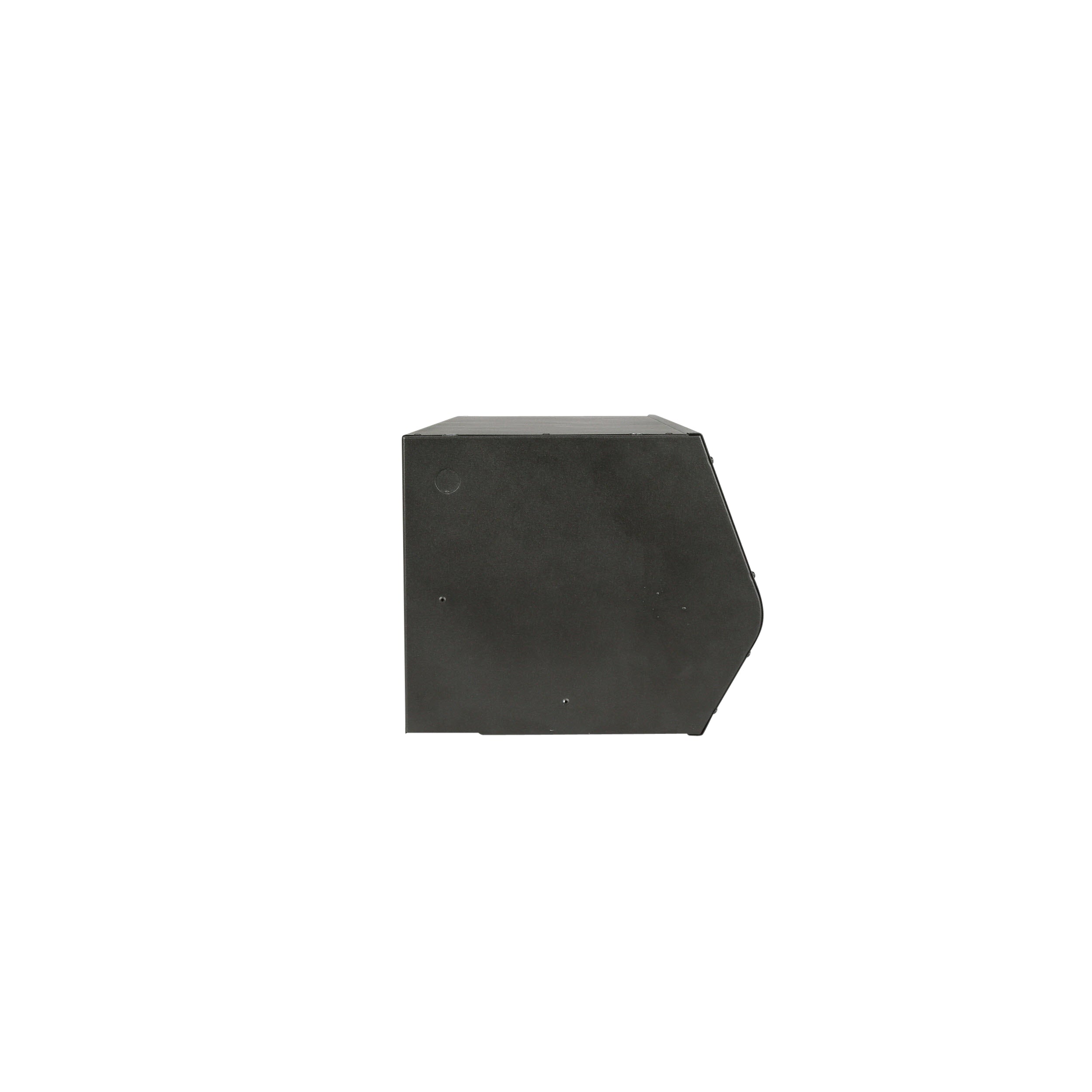

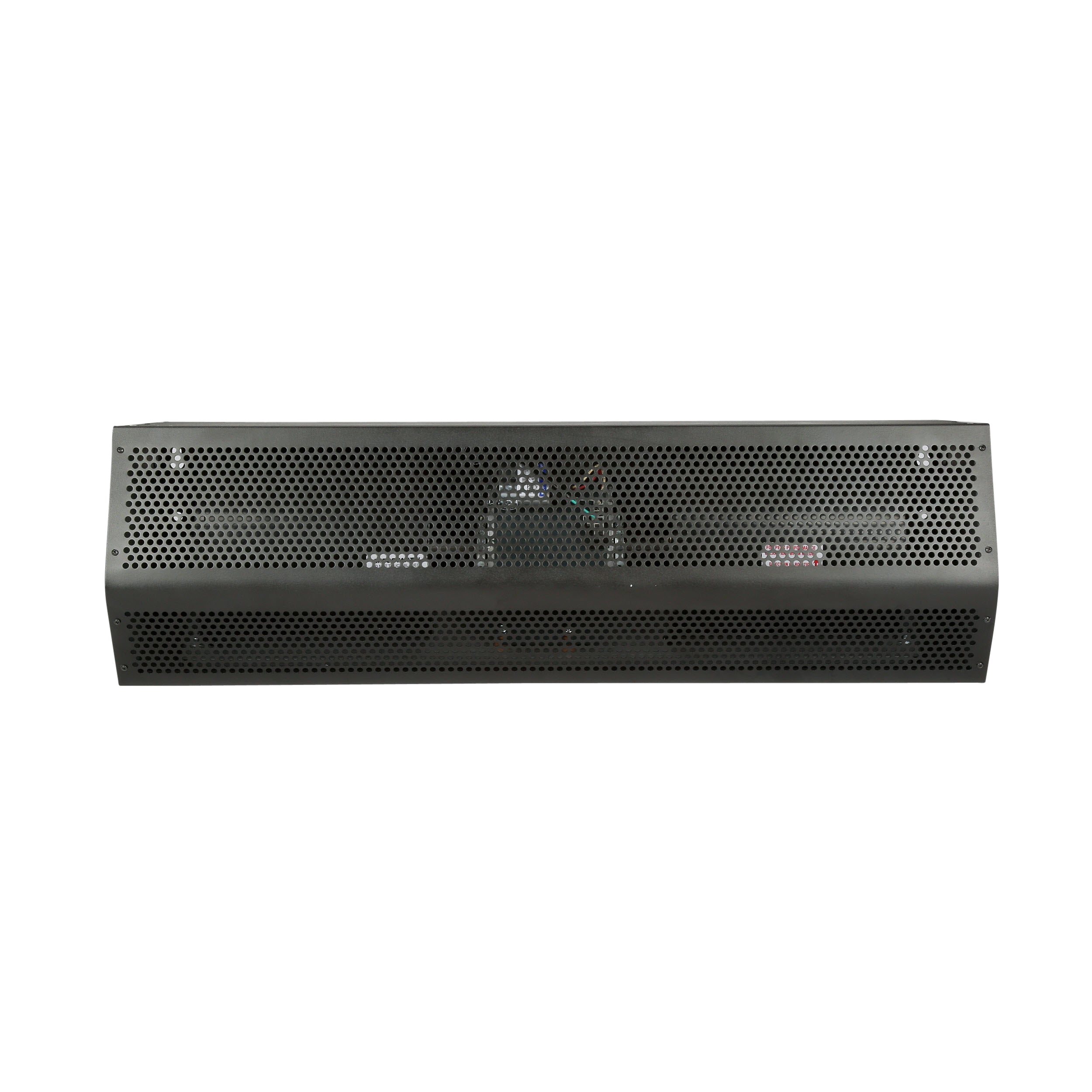

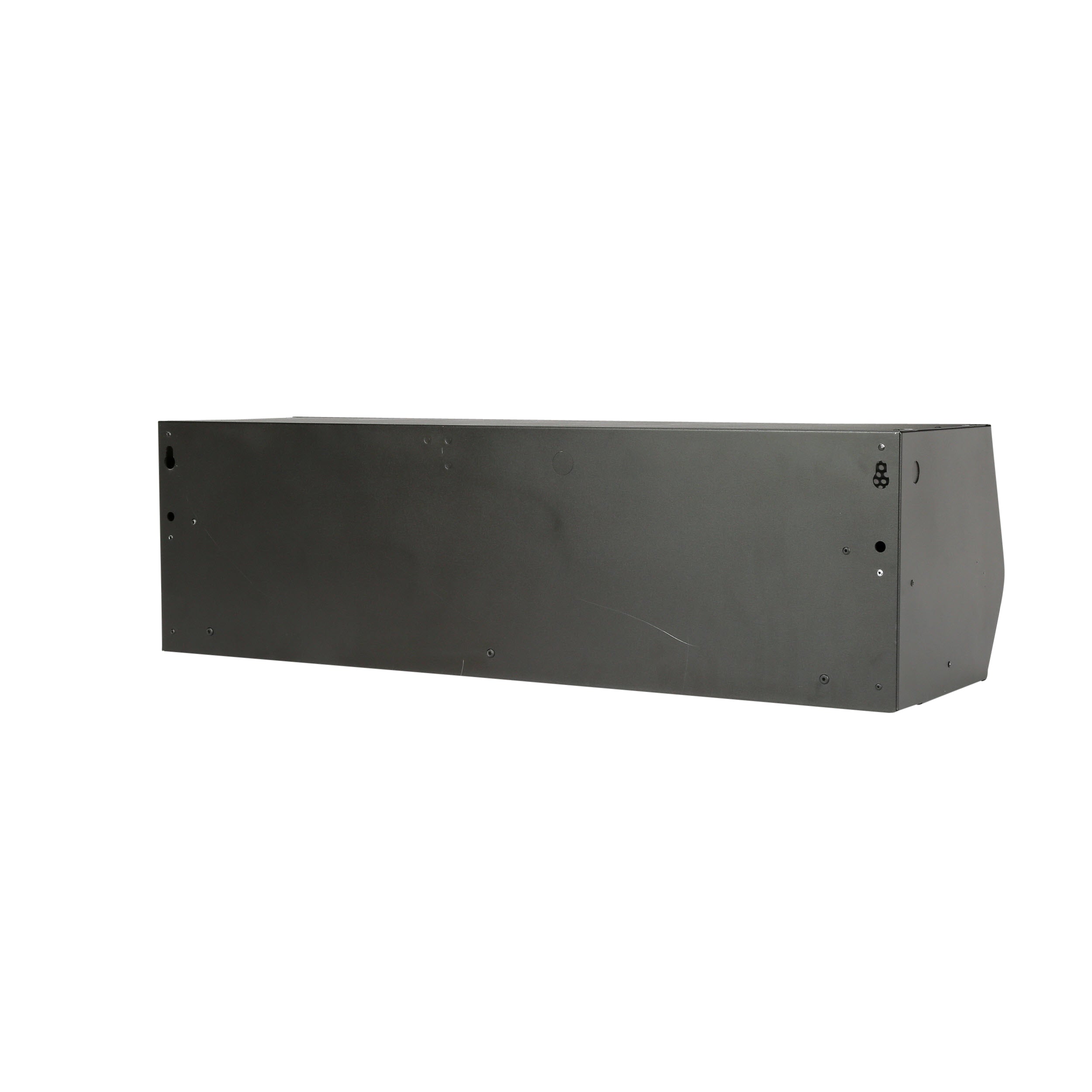

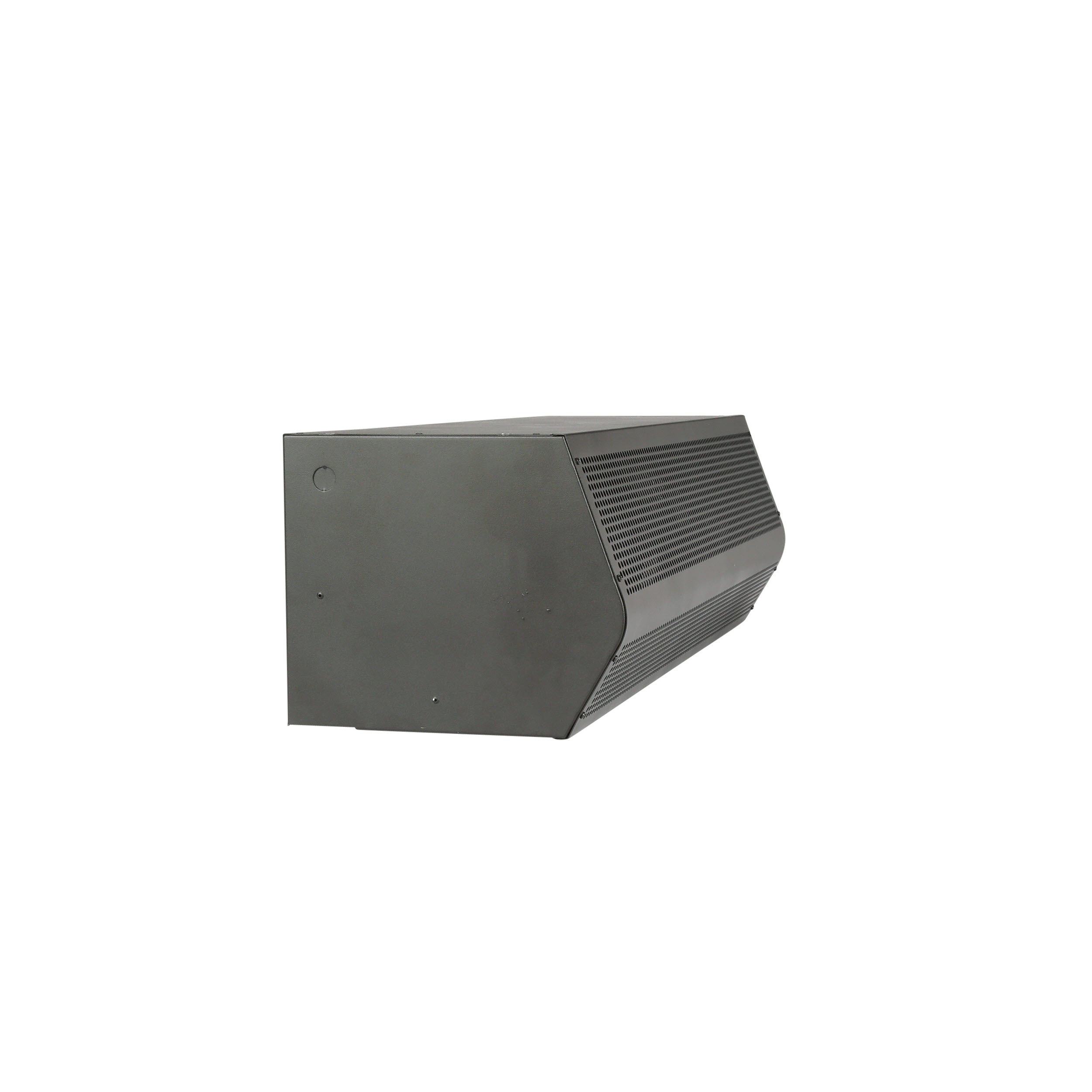

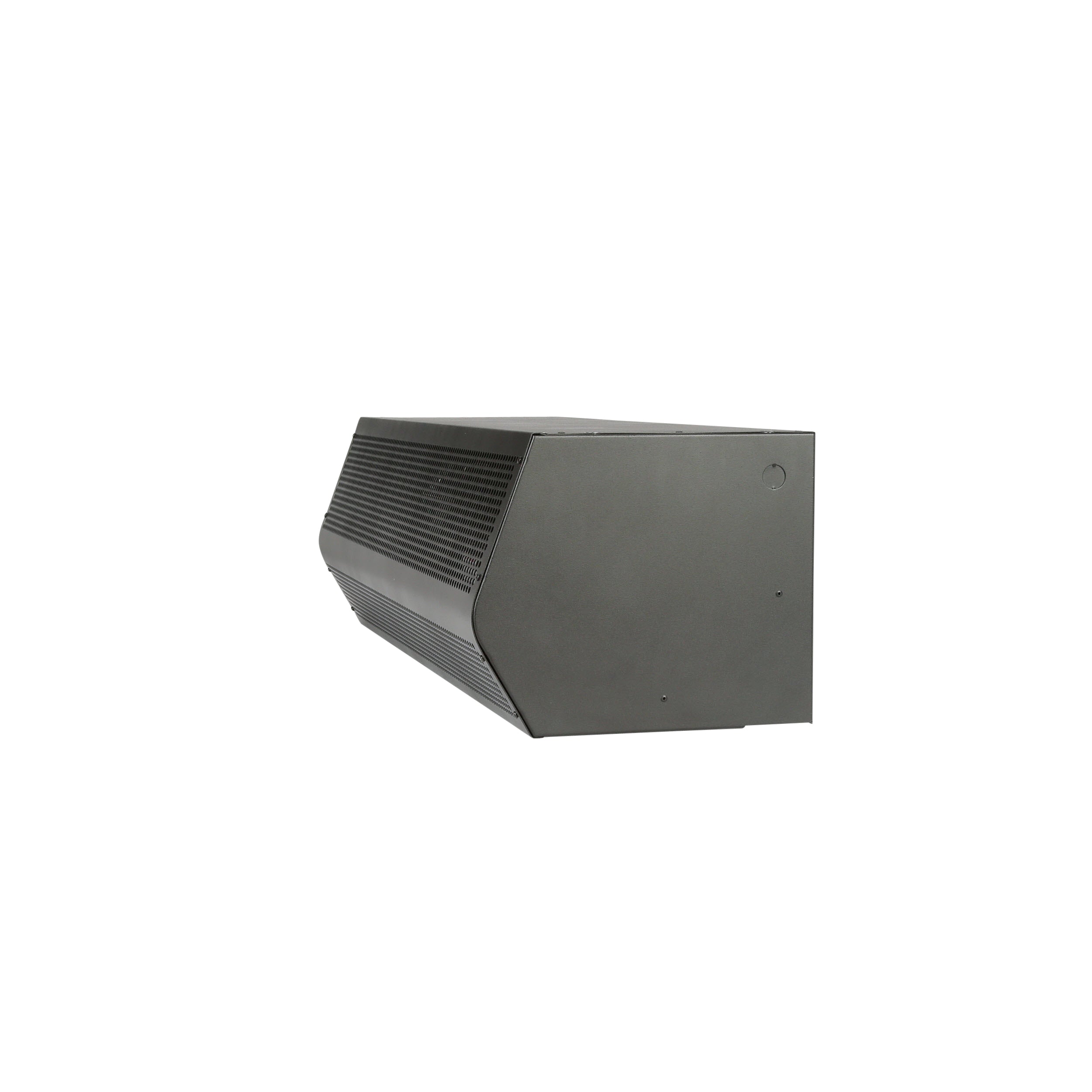

Product Description
The MARS STD248-1UD-OB is a multipurpose 48-inch air curtain. It is designed for frame openings up to 4 ft wide and can be mounted up to 12 ft for temperature control or 10 ft for insect control. The air curtain features a 1/2 hp motor and provides a maximum air volume of 1,442 cfm.
- Maximum air velocity of 4,247 fpm
- Nameplate voltage of 208/230V AC
- Sound level @ 10 ft of 66 dBA
Product Highlights
This air curtain is ideal for maintaining a constant internal temperature and preventing the entry of insects in commercial and industrial settings.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: STD248-1UD-OB
-
Country of Origin: United States
Technical Specifications
-
Item: Air Curtain
-
Depth: 12 5/8 in
-
Phase: 1
-
Width: 48 in
-
Finish: Galvanized, Powder Coated
-
Height: 10 5/8 in
-
Series: STD2 (Standard 2)
-
Voltage: 208/230
-
Max. RPM: 1,750 RPM
-
Motor HP: 1/2 hp
-
Requires: Door Limit Switch
-
Washdown: No
-
Frequency: 60 Hz
-
Max. Amps: 2.5/2.5
-
Standards: ETL
-
Drive Type: Direct Drive
-
Motor Type: Permanent Split Capacitor
-
Nozzle Width: 48 in
-
Profile Type: Standard Profile
-
Housing Color: Black
-
Maximum Speed: 1,750 RPM
-
For Outdoor Use: Not Available
-
Grille Material: Steel
-
Motor Enclosure: Totally Enclosed Air Over
-
Nominal Voltage: 208/230V AC
-
Air Curtain Item: Air Curtain
-
Air Curtain Type: Ambient Air
-
Number of Motors: 1
-
Number of Speeds: 3
-
Heated/Not Heated: Not Heated
-
Nameplate Voltage: 208/230V AC
-
Power Consumption: 550 W
-
Air Curtain Finish: Galvanized
-
Air Curtain Heated: No
-
Maximum Air Volume: 1,442 cfm
-
Sound Level @ 10 ft: 66 dBA
-
Air Temperature Rise: Not Applicable
-
Max. Mounting Height: 10 ft
-
Maximum Air Velocity: 4,247 fpm
-
Sanitation Certified: No
-
Air Curtain Air Volume: 1442 cfm
-
For Frame Opening Width: 4 ft
-
Nameplate Voltage/Phase: 208/230V AC - 1 Ph
-
Nominal Voltage - Phase: 208/230V AC - 1 Phase
-
Air Curtain Air Velocity: 2550 fpm
-
Heater Power Consumption: Not Applicable
-
Ultraviolet Air Cleaning: No
-
Air Curtain dBA @ 10 Feet: 66
-
Motor Horsepower per Motor: 1/2 hp
-
Air Curtain Max. Door Width: 4 ft
-
Air Curtain Housing Material: Steel
-
Maximum Operating Temperature: Not Available
-
Minimum Operating Temperature: Not Available
-
Hazardous Location Specification: Class I Group D
-
Mounting Height for Insect Control: 10 ft
-
Country of Origin (subject to change): United States
-
Max. Mounting Height Environment/Insect: 12 ft / 10 ft
-
Mounting Height for Temperature Control: 12 ft
-
Hz: 60
-
Environmental - Max Height (feet): 12
-
Insect - Max Height (feet): 10
-
Voltage Rating: 208-230/1/60
-
Voltage Code: D
-
Amps: 2.5
-
Uniformity (%): 85
-
dBA: 66
-
Product Dimensions Height: 10.62"
-
Product Dimensions Width: 48.00"
-
Product Dimensions Depth: 12.75"
-
Weight: 70.00 lbs
-
Door width: 48 in.
-
Mounting height: 10 – 12 ft.
-
Air velocity: 1730 fpm
-
Motors: (1) 1/2 hp
-
Electrical: 208-230V, 1 phase, 2.5A
