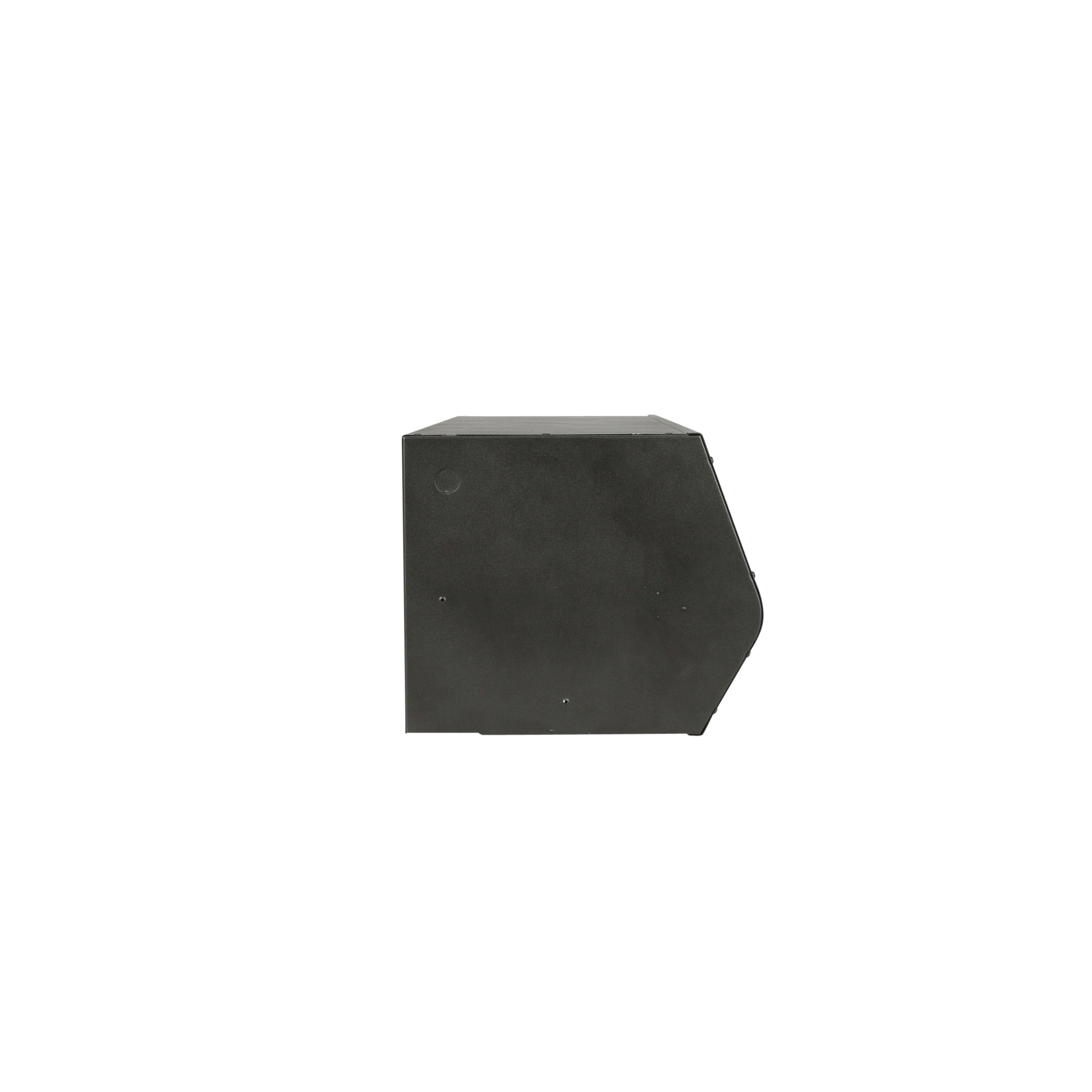

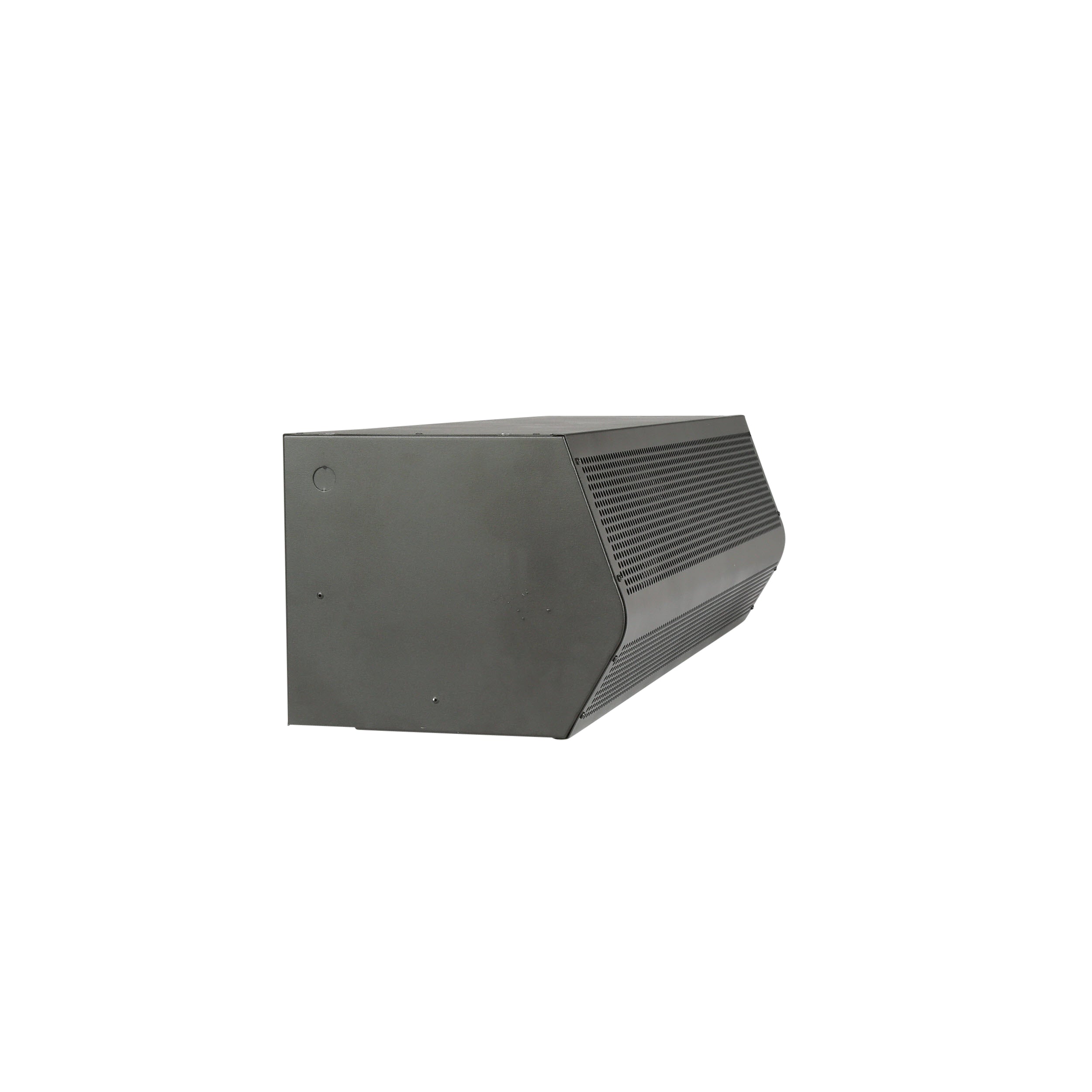

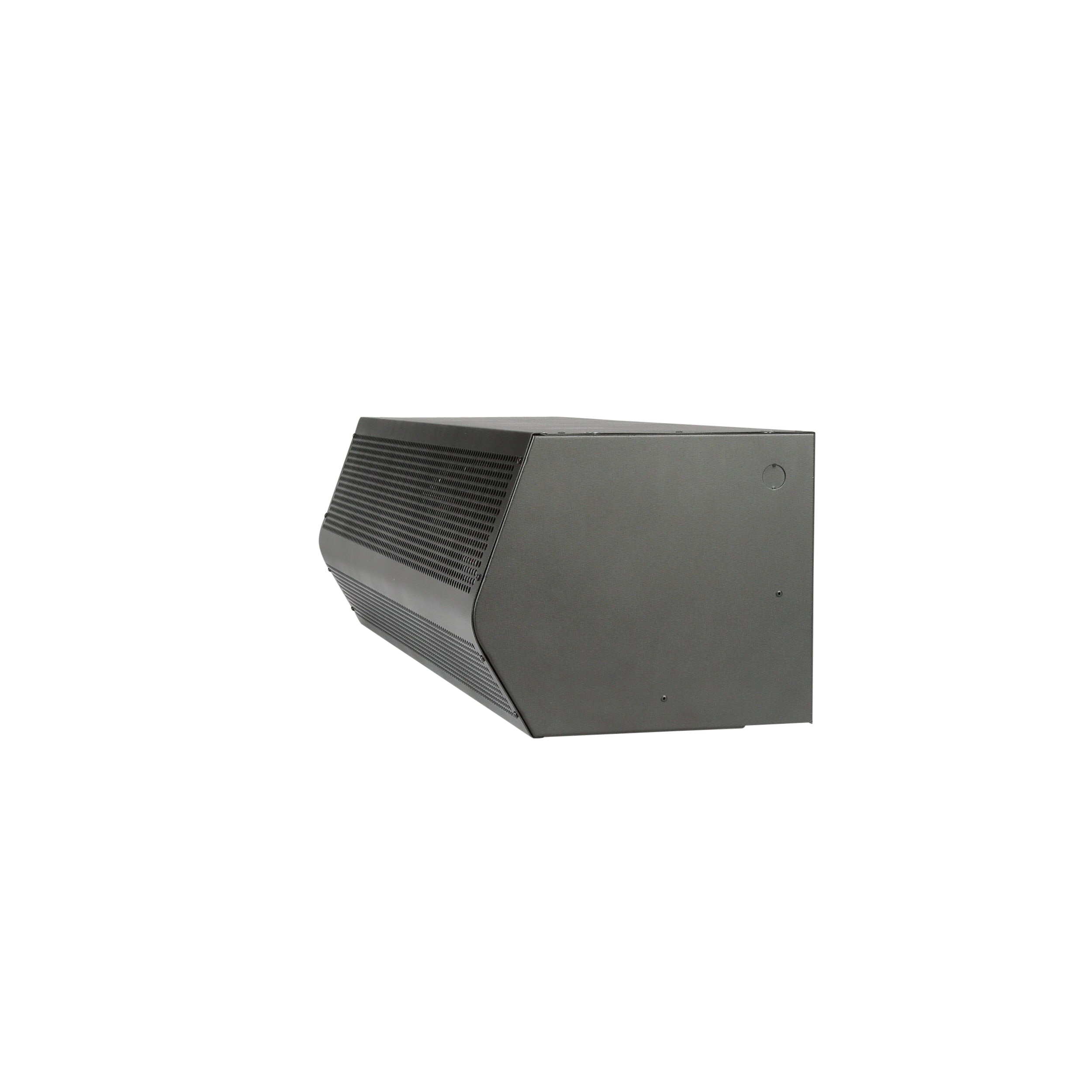

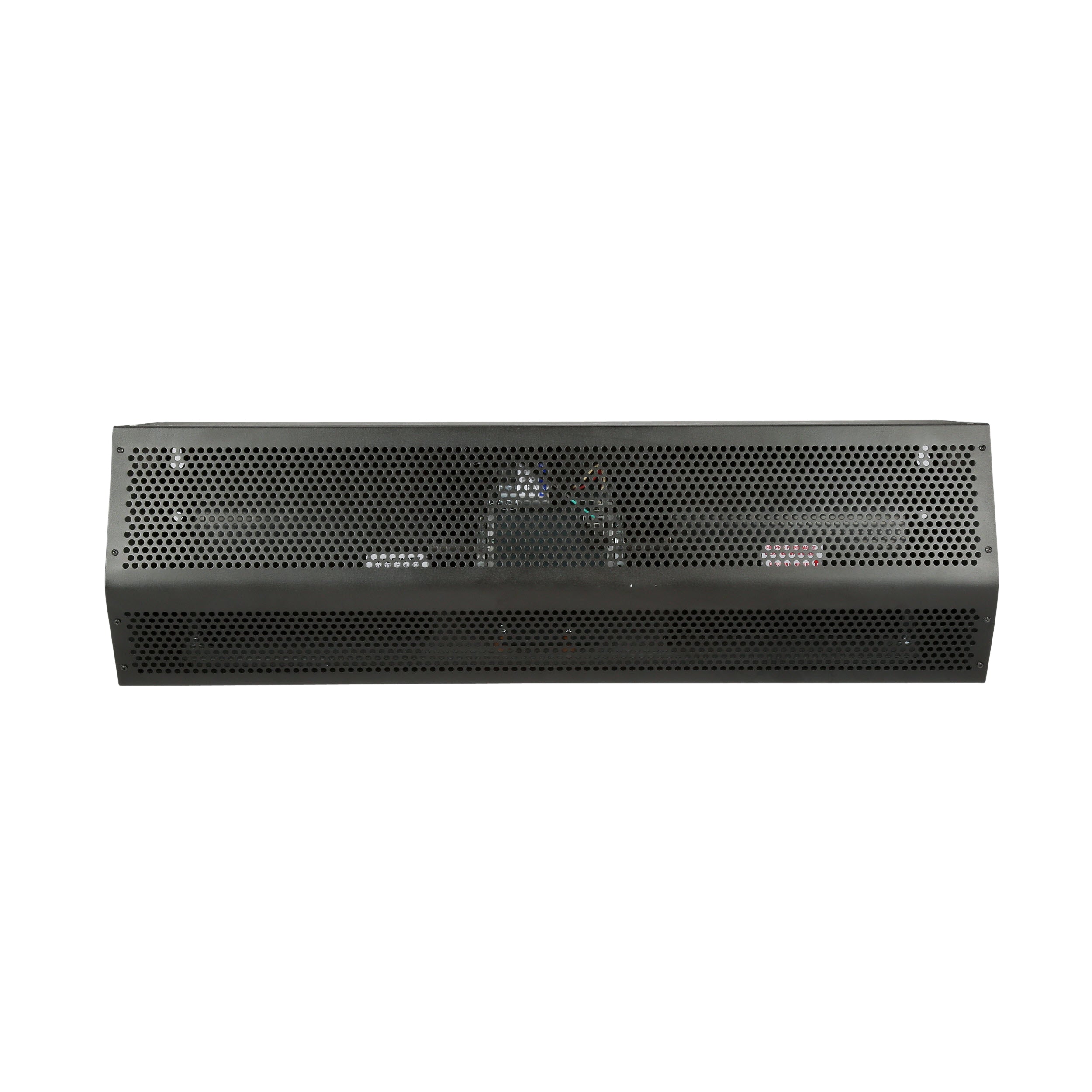

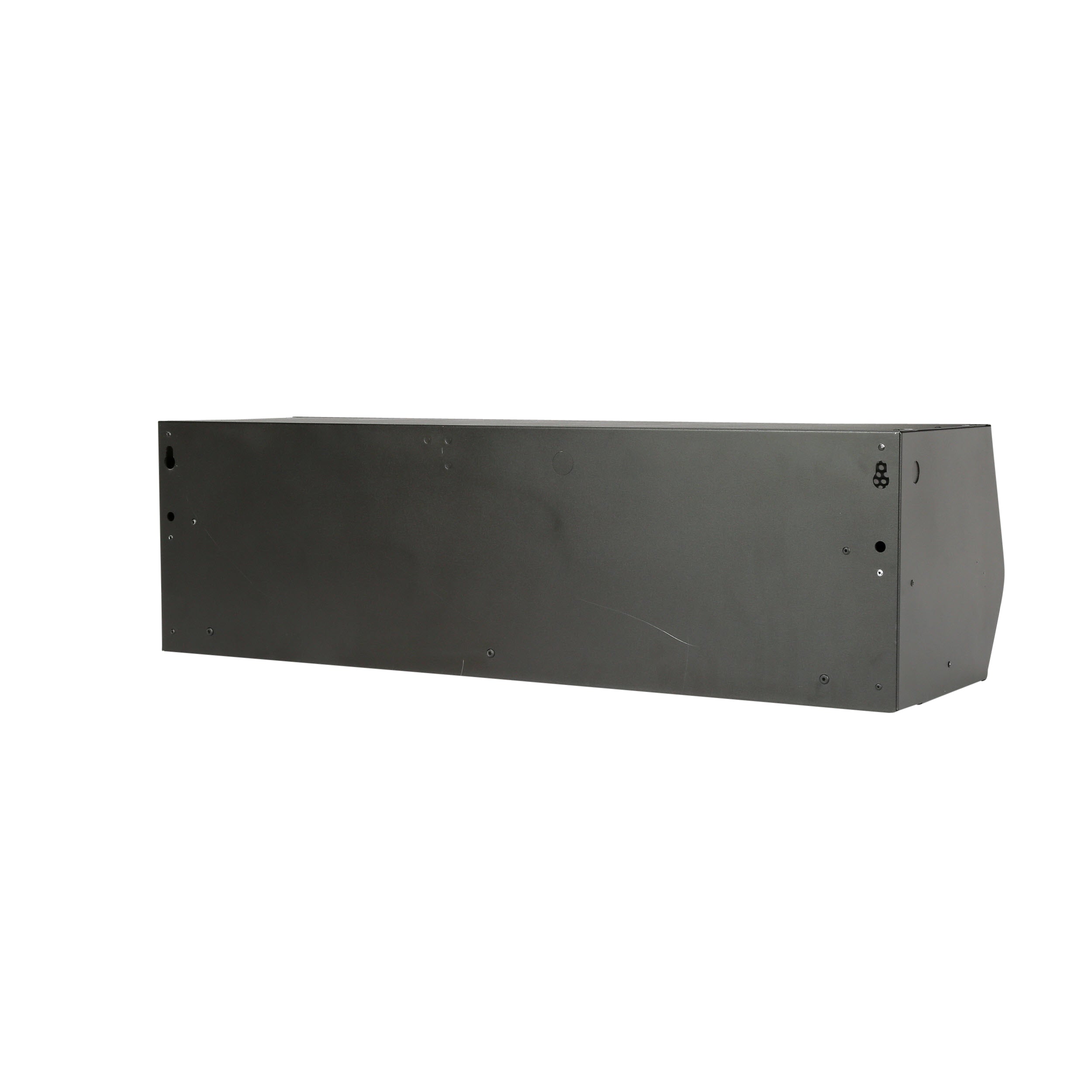

Mars STD242-1UH-OB Standard Series 2 Air Curtain 42IN 1/2 hp

Product Description

The MARS STD242-1UH-OB air curtain from the Standard Series 2 is designed for commercial and industrial use. It features a 1/2 HP motor and is suitable for openings up to 12 ft, protecting spaces from insects up to 10 ft. Constructed from galvanized steel with an obsidian black powder coat finish, this unheated air curtain provides an environmental barrier.

• Reduces energy costs and consumption
• Creates effective environmental separation
• Maintains interior building temperature

Product Highlights

This 42-inch air curtain is ideal for shipping/receiving doors, customer entrances, and cold storage rooms, offering a cost-efficient barrier with a low noise level.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: STD242-1UH-OB
• Country of Origin: United States

Technical Specifications

• Hz: 60
• Depth: 12.75 in
• Phase: 3
• Width: 42 in
• Voltage: 460V
• Max. RPM: 1,750 RPM
• Motor HP: 1/2 hp
• Max. Amps: 0.8
• Standards: ETL
• Motor Type: 3 Phase
• Motor Enclosure: Totally Enclosed Air Over
• Number of Motors: 1
• Number of Speeds: 1
• Max. Mounting Height: 10 ft
• Construction: Galvanized Steel
• CFM High: 2550
• Heating Option: Unheated
• Series: Standard 2
• Decibels (DB): 66
• Size: 42"
• Material: Galvanized Steel
• Horse Power: 1/2
• Type: Unheated
• Max Volume (CFM): 2550
• MPN: STD242-1UH-OB
• Environmental - Max Height (feet): 12
• Insect - Max Height (feet): 10
• Nozzle Width (inches): 42
• Unit Width (inches): 42
• Unit Height (inches): 10.625
• Wind Stopping Capability (MPH): 12
• Motors: 1
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 460/3/60
• Voltage Code: H
• Air Curtain Air Volume (CFM): 1418
• Uniformity (%): 87
• dBA: 66
• Horsepower (per motor): 1/2
• CFMs: 1418
• Length (in.): 42
• Depth (in.): 12.75
• Height (in.): 10.625
• Certifications: ETL Listed, AMCA
