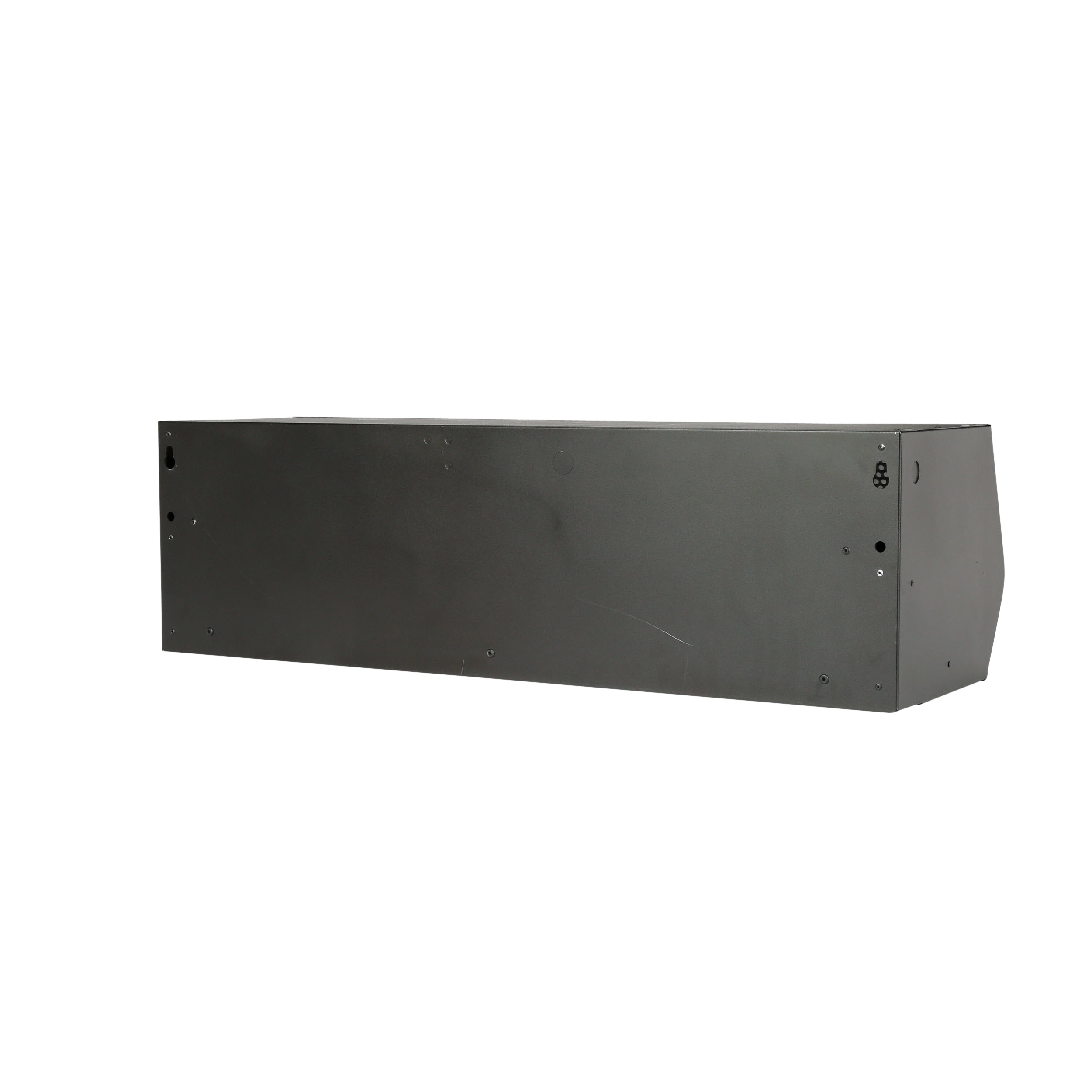

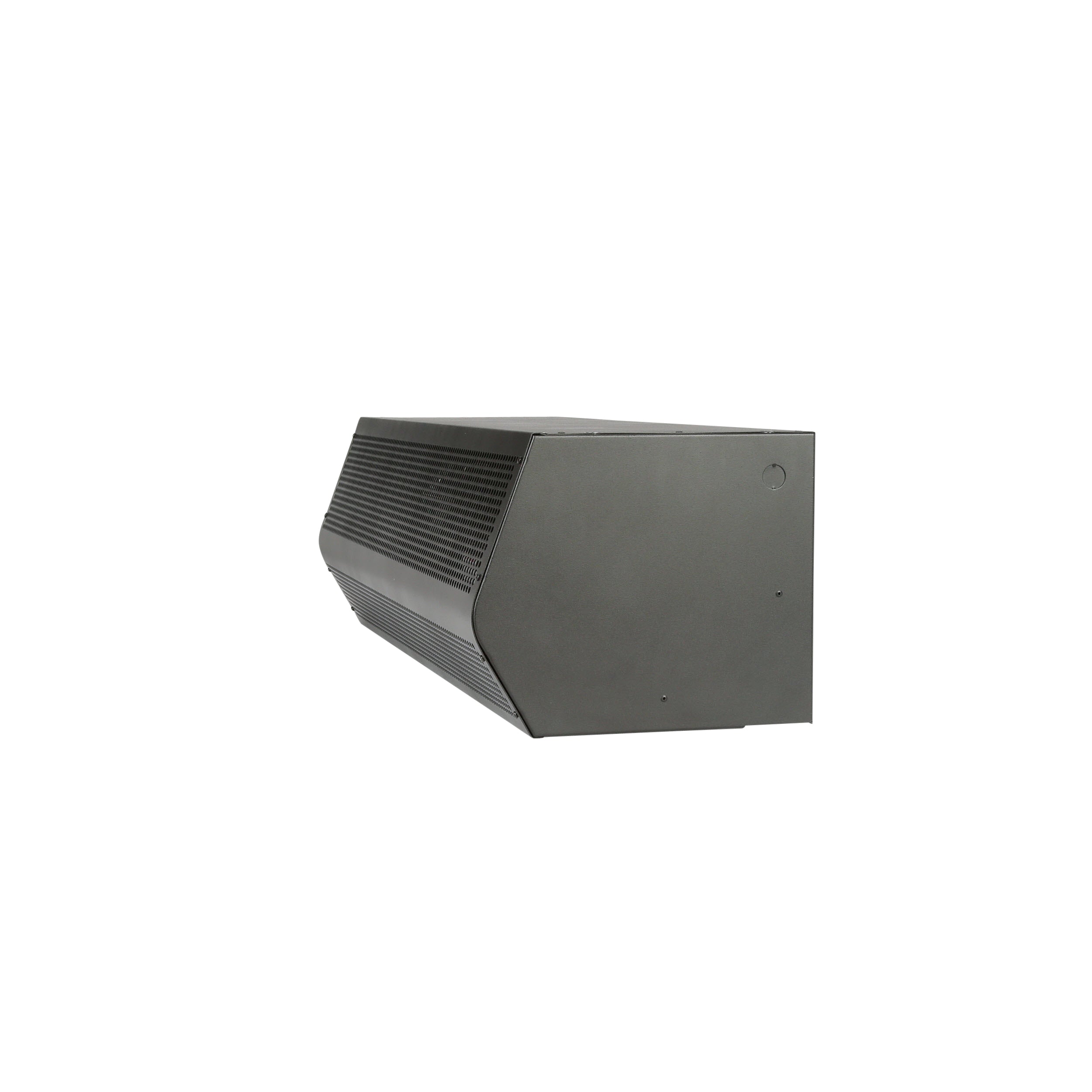

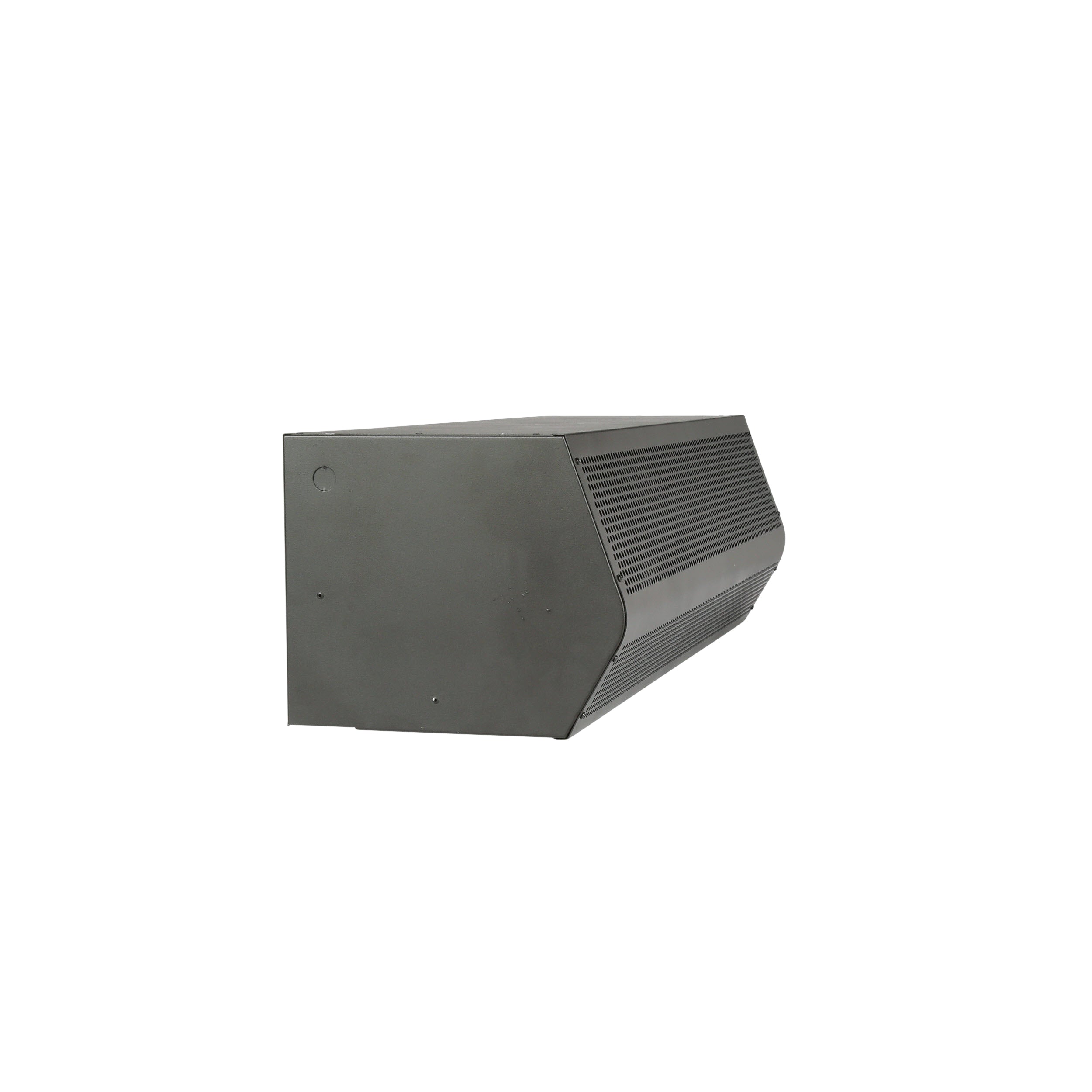

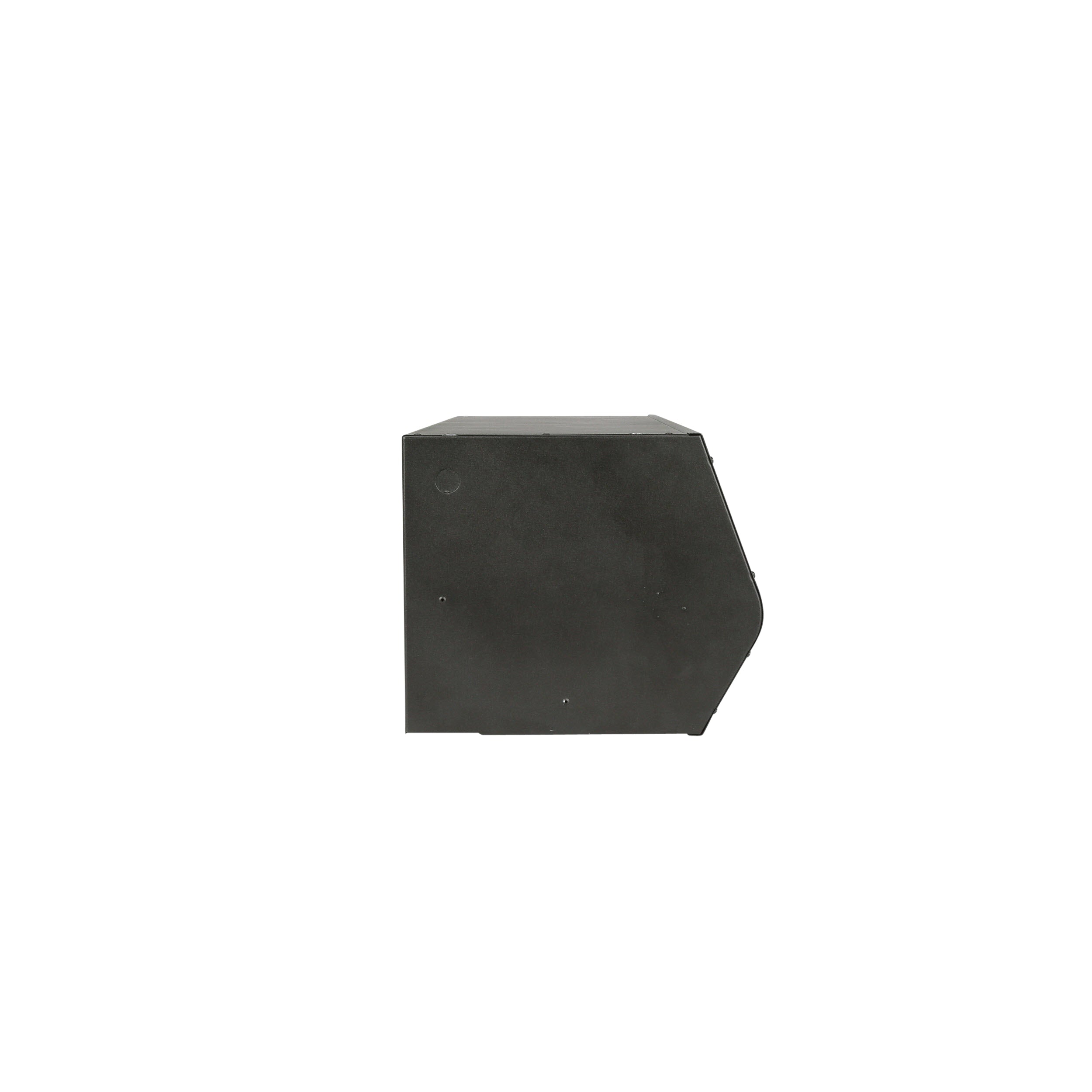

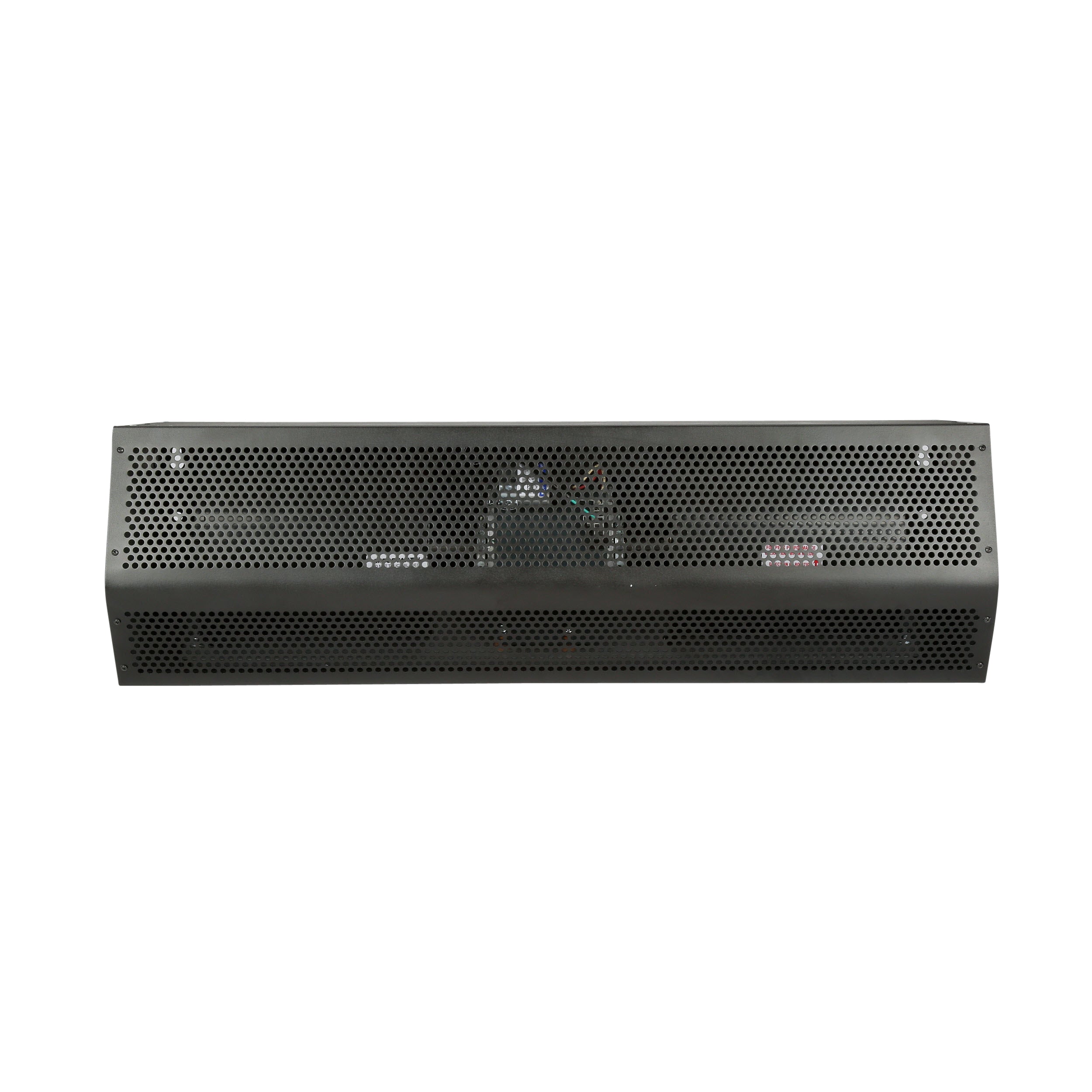

Mars STD242-1UD-OB Standard Series 2 Unheated Air Curtain W/ 42 inches Wide 230V

Product Description

The MARS STD242-1UD-OB Standard Series 2 is a popular energy-saving air curtain suitable for commercial and industrial use. Featuring a 1/2 horsepower motor, this unheated air curtain is designed for environmental separation up to 12 feet and insect control up to 10 feet. It has adjustable air directional vanes with a 40° sweep and a rust-preventative electrostatic polyurethane powder coating.

• 1/2 HP Continuous Duty TEAO Motors
• Sleek self-contained one piece heavy gauge corrosion proof paint lock metal design
• ETL Certified to conform to UL 507 (US) and CSA 22.2 (Canada) Standards

Product Highlights

This 42-inch wide air curtain helps maintain interior temperature, minimizes dust and fumes, and allows unobstructed views.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: STD242-1UD-OB
• Country of Origin: USA

Technical Specifications

• CFM: 2550 CFM
• Type: Standard
• Brand: Mars
• Hertz: 60 Hz
• Phase: 1
• Series: Standard
• Voltage: 208 V
• Amperage: 2.7 A
• Decibels: 66
• Material: Galvanized Steel
• Horsepower: 1/2 HP
• Depth: 12.75 in
• Width: 42 in
• Height: 10.625 in
• Heating Option: Unheated
• Door Width: 42 in
• Door Height: 10 ft
• Max Door Height: 10 ft
• Number of Speeds: 3
• Manufacturers Part Number: STD242-1UD-OB
• Certifications: CE, UL Listed
• Max. RPM: 1,750 RPM
• Motor Type: Permanent Split Capacitor
• Motor Enclosure: Totally Enclosed Air Over
• Air Curtain Air Volume: 1418 cfm
• Air Curtain Air Velocity: 2925 fpm
• Max Environmental Separation Height: 12 Feet
• Max Insect Blocking Height: 10 Feet
• Motors: 1
• Power: Electric
• Wattage: 510 Watts
• Application: Walk-In Coolers
• Air Volume (CFM): 1418
• Volts: 208/230 Volts
• Frequency: 60 Hz
• Full Load Current: 2.5 A
• Sound Level @ 10 ft: 66 dBA
• Air Curtain dBA @ 10 Feet: 66
• Voltage Rating: 208-230/1/60
• Air Curtain Max. Door Width: 3.5 ft
• Uniformity (%): 87
• dBA: 66
• 1 Phase 208V/230V FLA: 2.5 / 2.5 A
• 1 Phase 115V FLA: 5.1 A
• 3 Phase 460V FLA: 0.8 A
