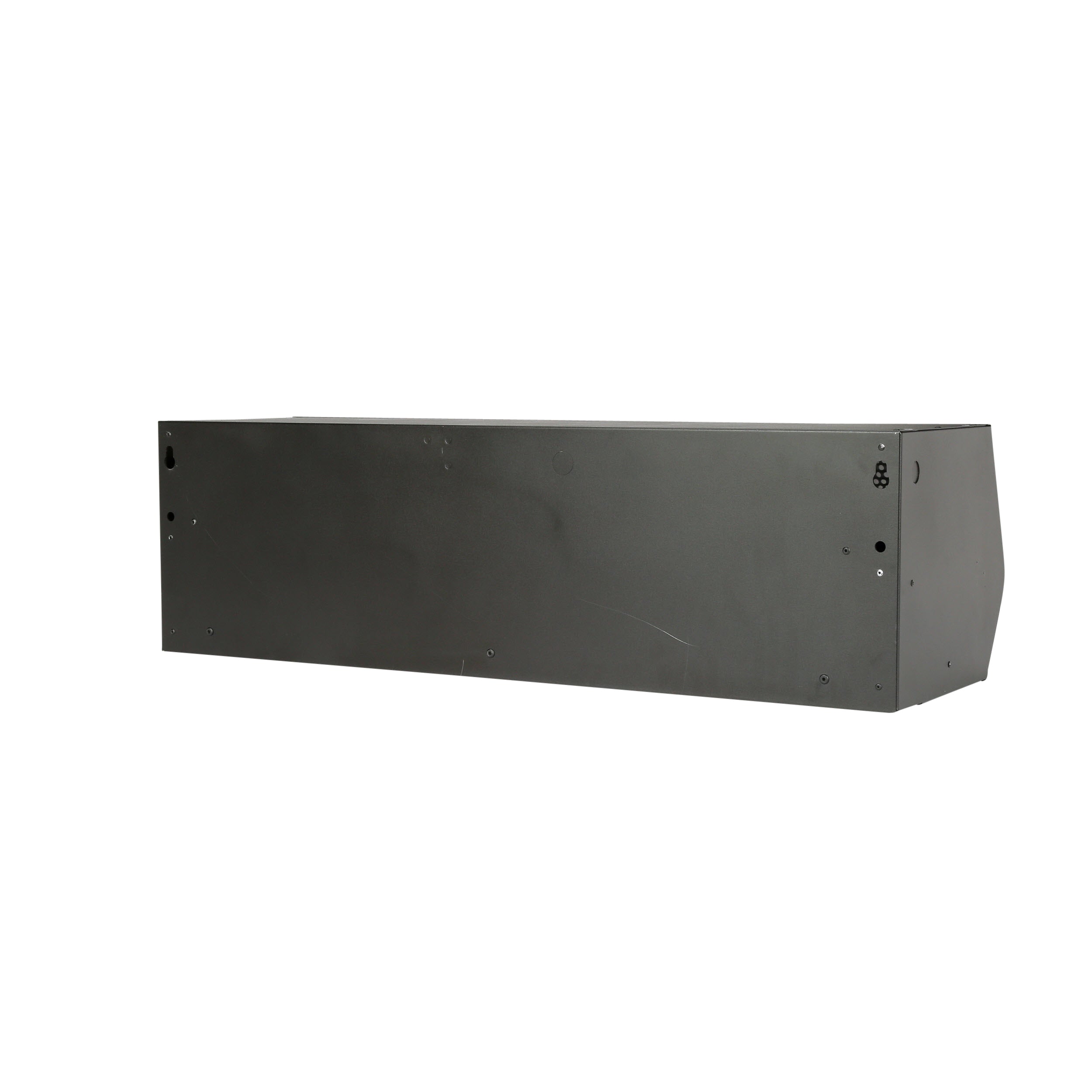

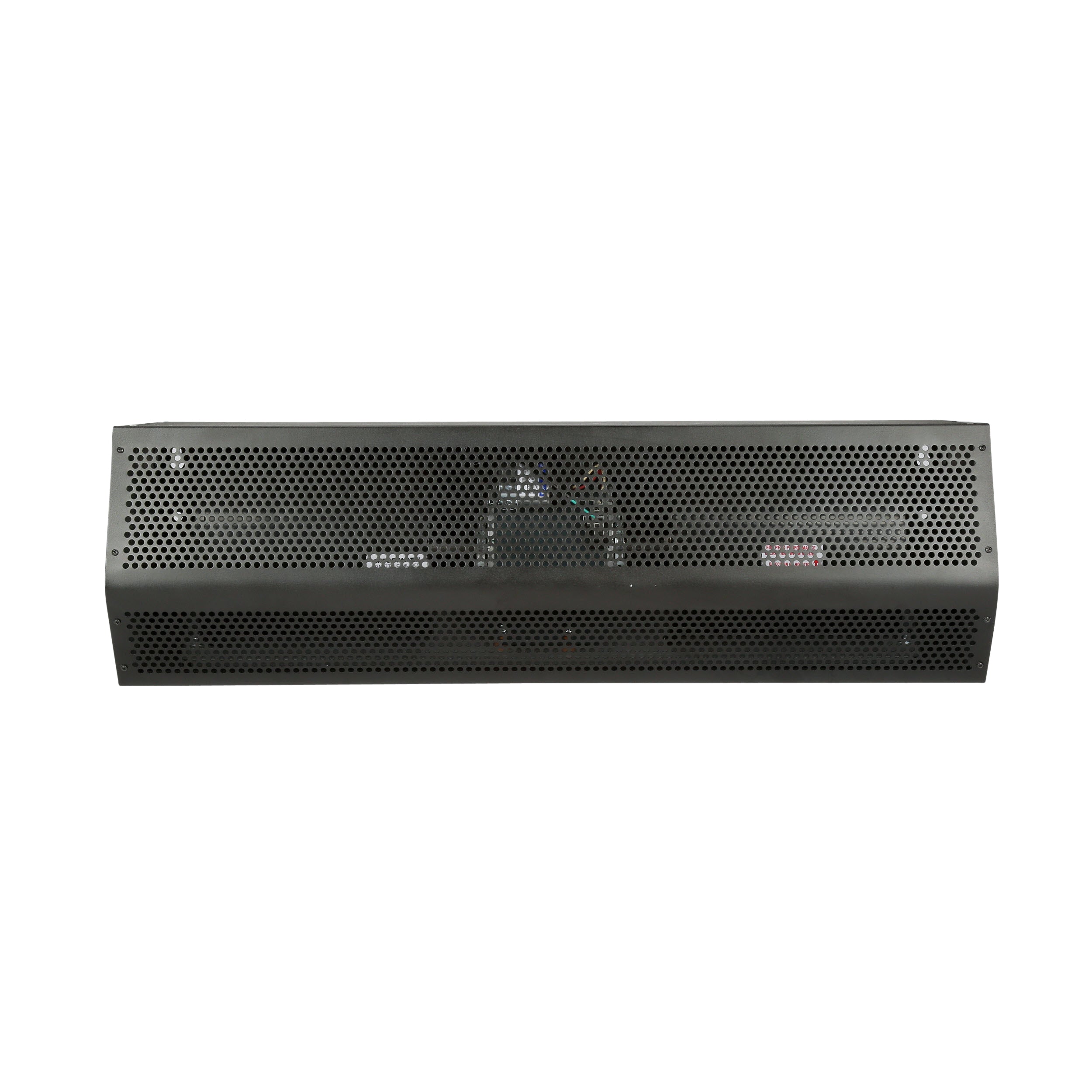

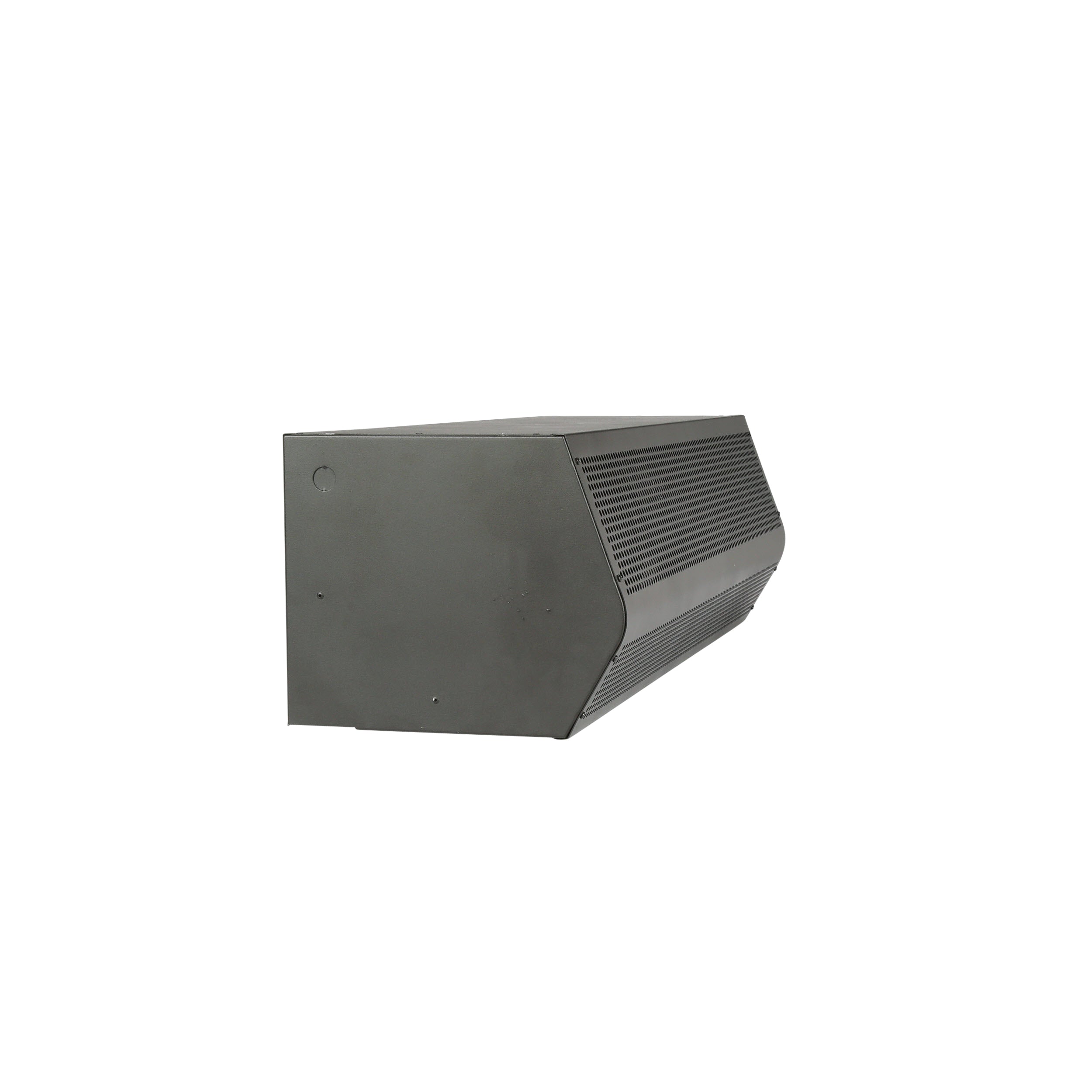

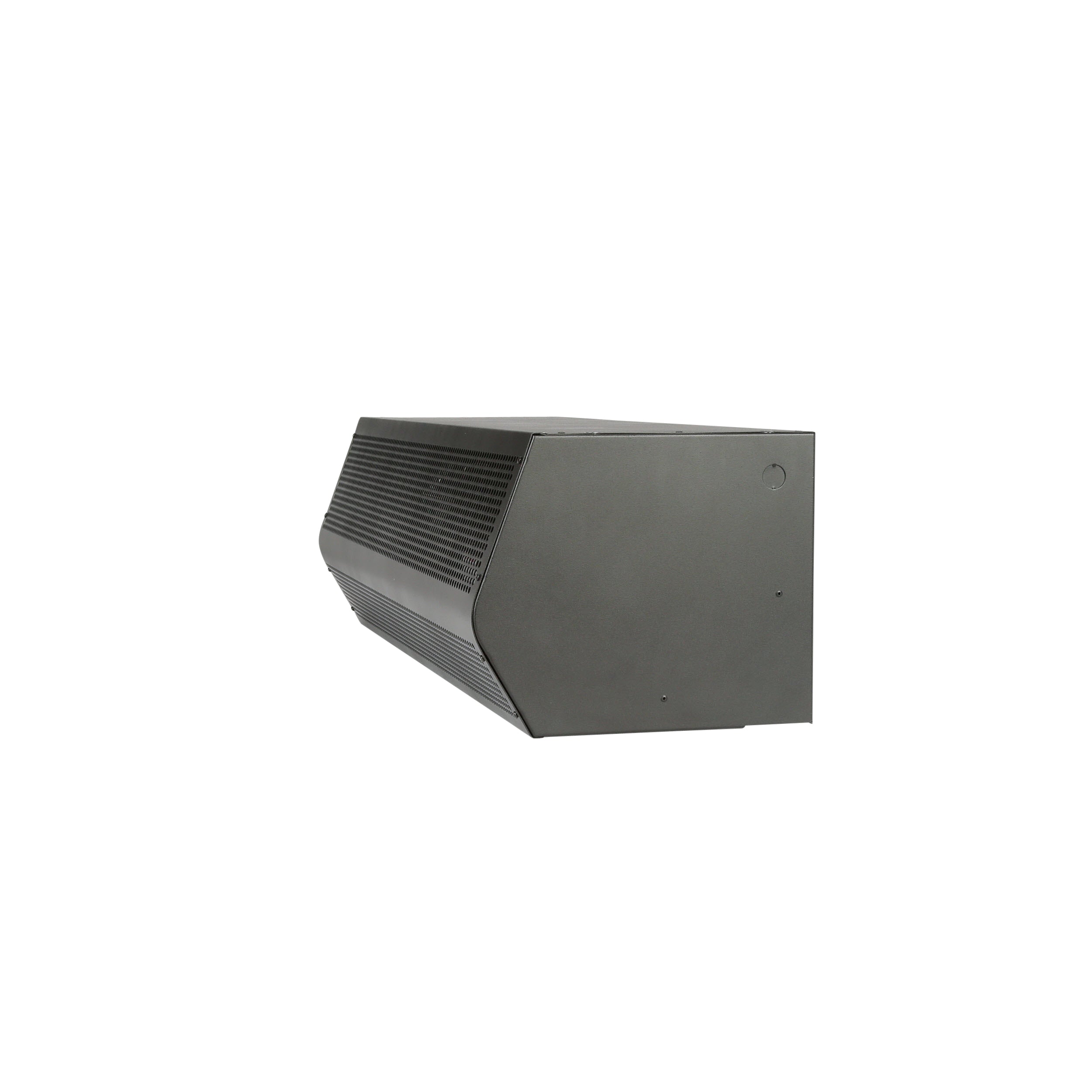

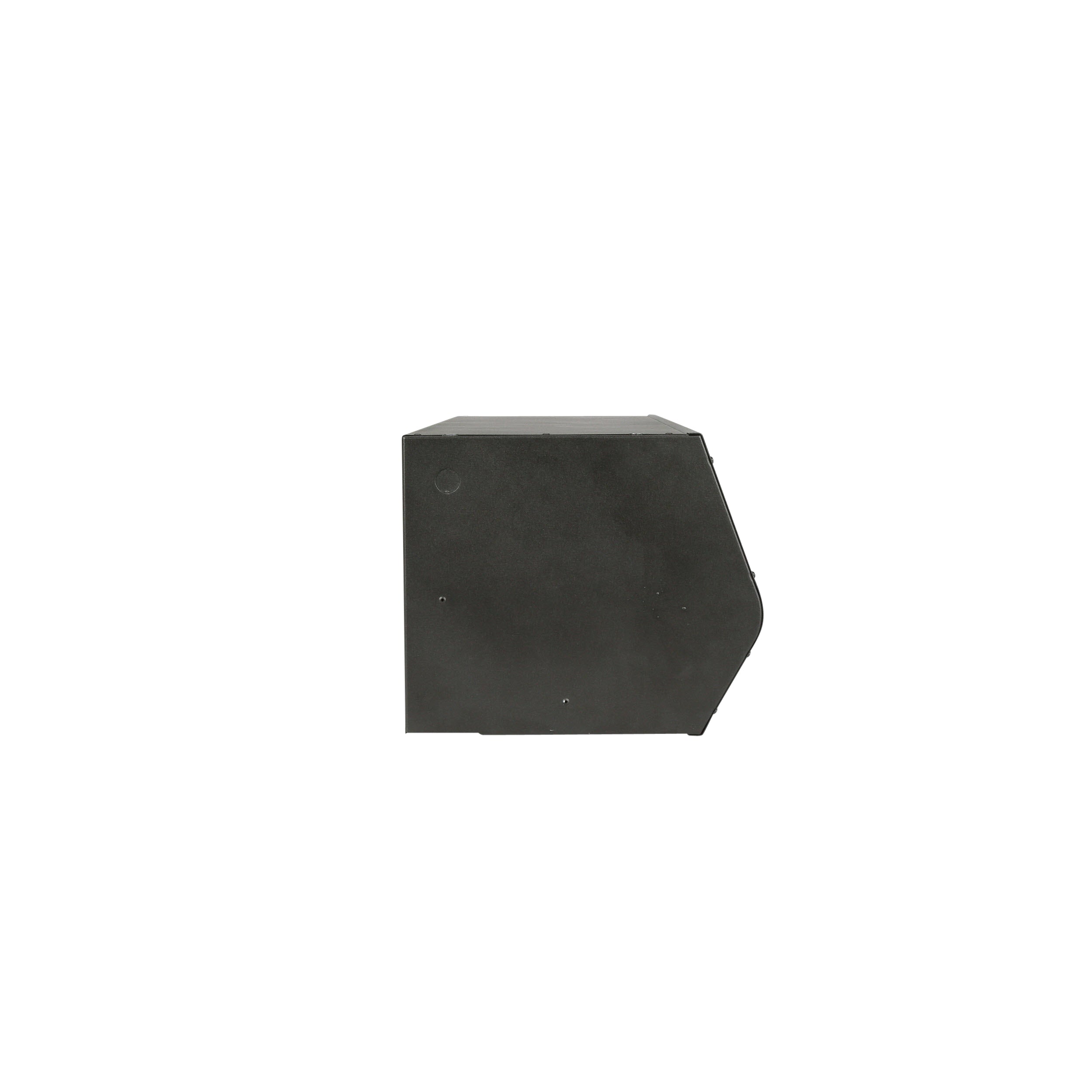

Mars STD2144-3UH-OB Standard Series 2 Air Curtain 1/2 HP (144 inch)

Product Description

The MARS STD2144-3UH-OB Standard Series 2 air curtain reduces energy costs and consumption by creating an effective environmental separation. Designed for a 144" wide door, this unheated air curtain maintains interior building temperature and minimizes dirt, dust, fumes, and prevents flying insects from entering. It features durable metal construction with a corrosion-resistant powder-coated finish.

• Reduces energy costs and consumption
• Maintains interior building temperature
• Prevents flying insects from intruding

Product Highlights

The STD2144-3UH-OB air curtain is easy to install, requires low maintenance, and provides an unobstructed view, enhancing safety.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: STD2144-3UH-OB

Technical Specifications

• Door width (inches): 144
• Max. door height: 10'
• Max. doorway height (feet): 10
• Color finish: Obsidian Black
• Construction: Galvanized Steel
• Voltage: 460v
• Horsepower: 1/2
• Heating option: Unheated
• Series: STD2 (Standard 2) Series
• Decibels (DB): 71
• Size: 144"
• Color: Obsidian Black
• Material: Galvanized Steel
• Phase: 3PH
• Hertz: 60Hz
• Horse Power: 1/2 HP
• Type: Unheated
• Max Volume (CFM): 4326
• MPN: STD2144-3UH-OB
• Environmental - Max Height (feet): 12
• Insect - Max Height (feet): 10
• Heating Mode: Unheated
• Nozzle Width (inches): 144
• Unit Width (inches): 144
• Unit Height (inches): 10.625
• Wind Stopping Capability (MPH): 12
• Motors: 3 motors
• ETL sanitation certified to ANSI/NSF 37 standards: No
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 460/3/60
• Voltage Code: H
• Air Curtain Air Volume (CFM): 4326
• Amps: 2.4
• Uniformity (%): 85
• dBA: 71
• Manufacturer: Mars Air Systems
• Model Number: STD2144-3UH-OB
• Width: 144
• Depth: 12.75
• Height: 12.13
• Horse Power Per Motor: 1/2 hp
• Max Opening Height Window Door: 12 ft
• Certifications: cETLus
• Max. Door/Window Height (ft.): 12
• Max. Height Insect Block (ft.): 10
• Heat: No
• Length (in.): 144
• Product Type: Unheated
• Standard Color: Obsidian Black (matte)
• Motor: 3 Motor
• Heating: Unheated
