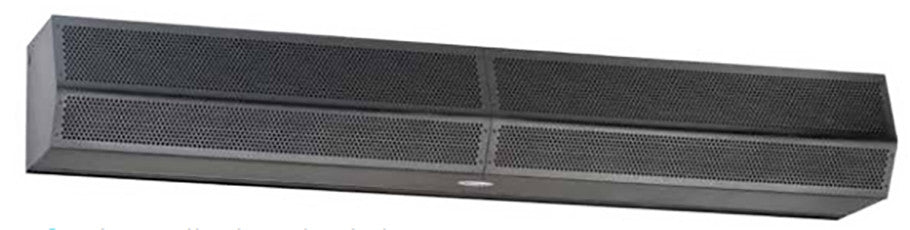

MARS STD2120-3UD-OB Standard Series Unheated Air Curtain 120 Inches

Product Description

The Mars Air Systems STD2120-3UD-OB Standard Series Unheated Air Curtain provides an effective barrier for openings up to 12 feet. This unit features three motors, each with a half horsepower, operating at 208/230 volts in single-phase configuration. With a length of 120 inches, it is designed to keep your indoor environment comfortable and free of insects.

• Ideal for cold storage, customer entrances, and shipping/receiving areas.
• Includes three 1/2 HP motors for strong performance.
• Powder-coated obsidian black finish for durability and aesthetic appeal.

Product Highlights

This air curtain operates quietly with an output of 4341 CFM, offering a uniform air distribution. The recommended installation height ranges from 8 to 12 feet for optimal performance.

Product Information

Standard Information

• Voltage: 208/230
• Type: Unheated Air Curtain

Technical Specifications

• Length: 120 inches
• Motors: 3 Motors, 1/2 HP each
• Full Load Amps: 7.5 amps
• Sound Level: 71 dBA
• Air Flow: 4341 CFM
• Power Rating: 1570 watts
• Weight: 185 lbs
• Installation Height: 8 to 12 feet
