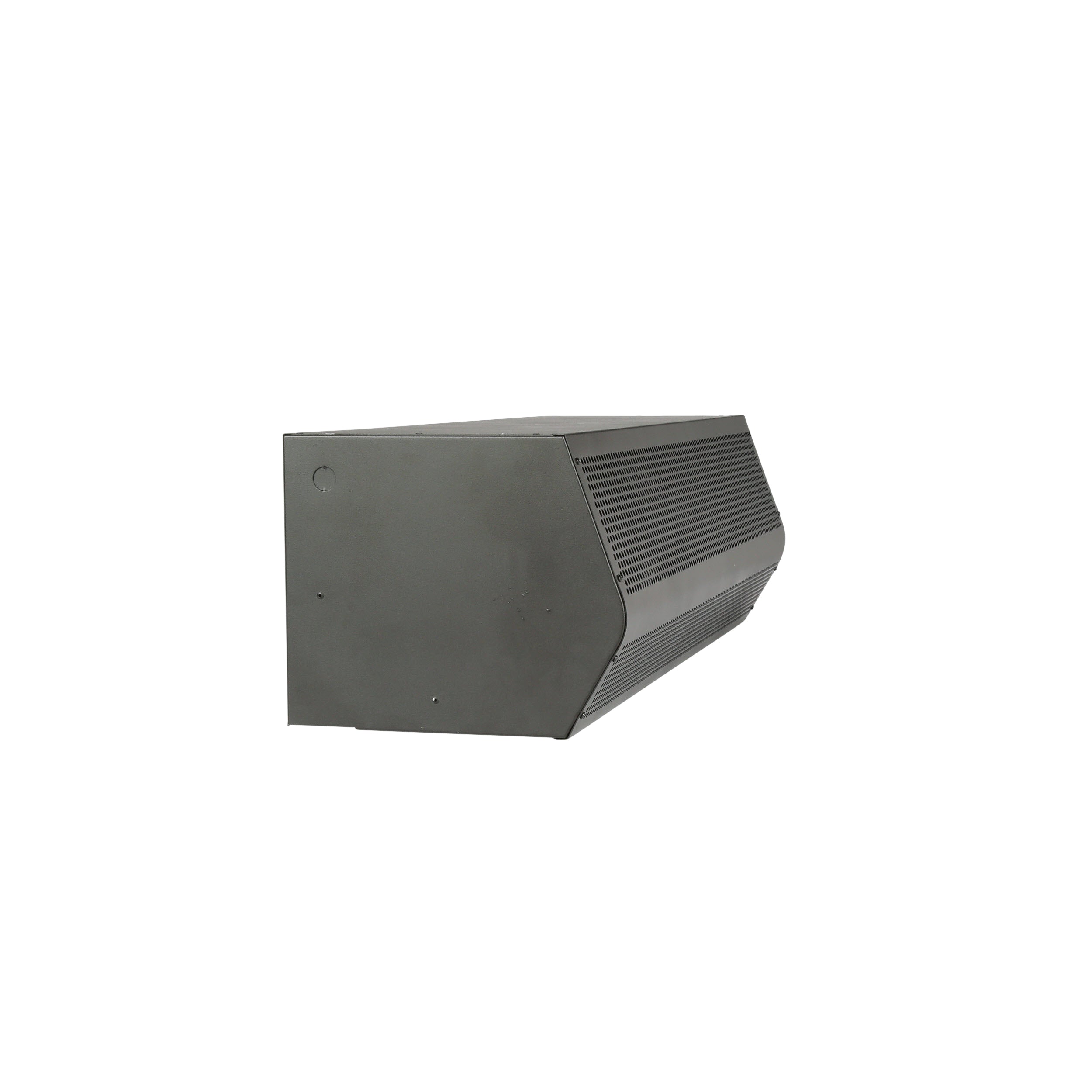

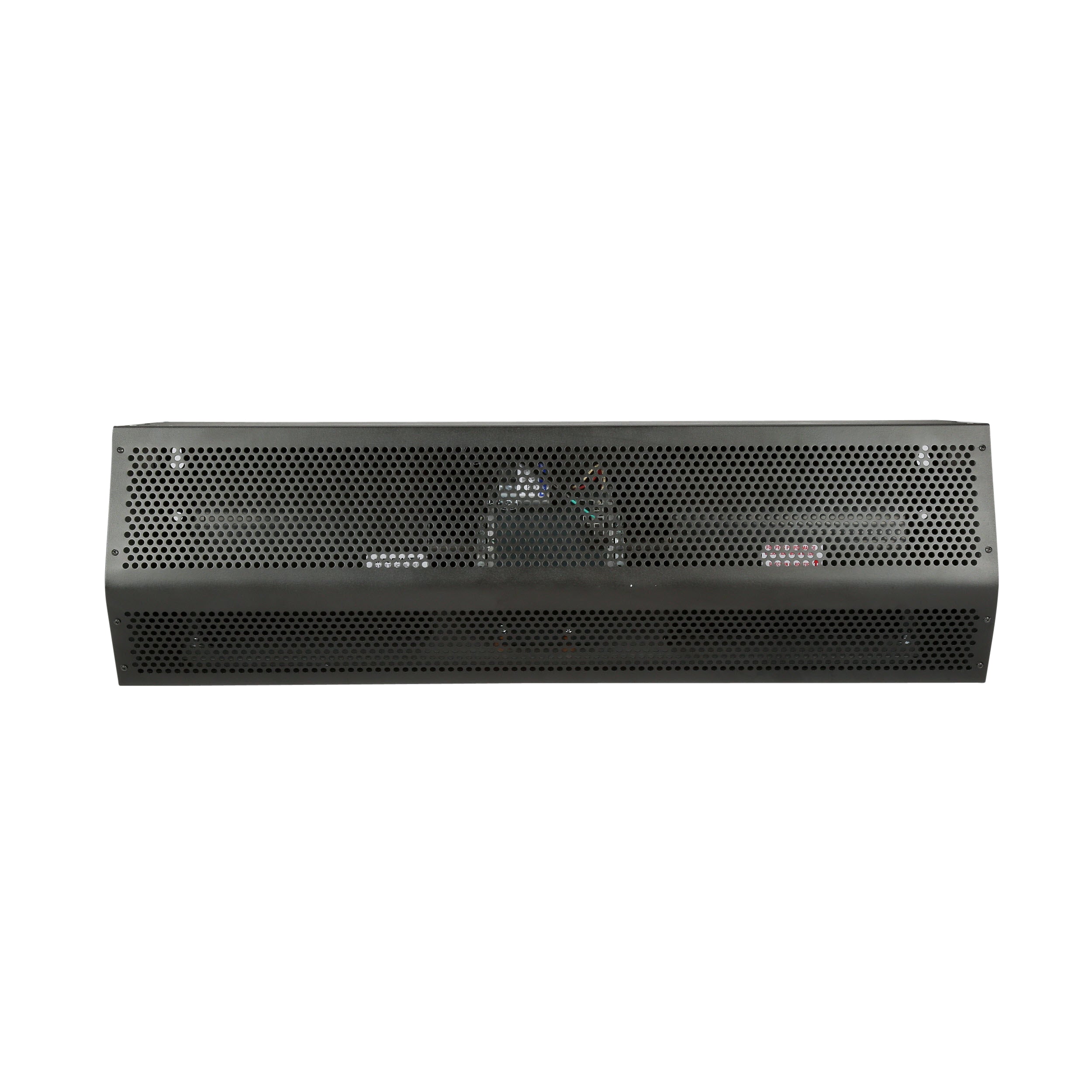

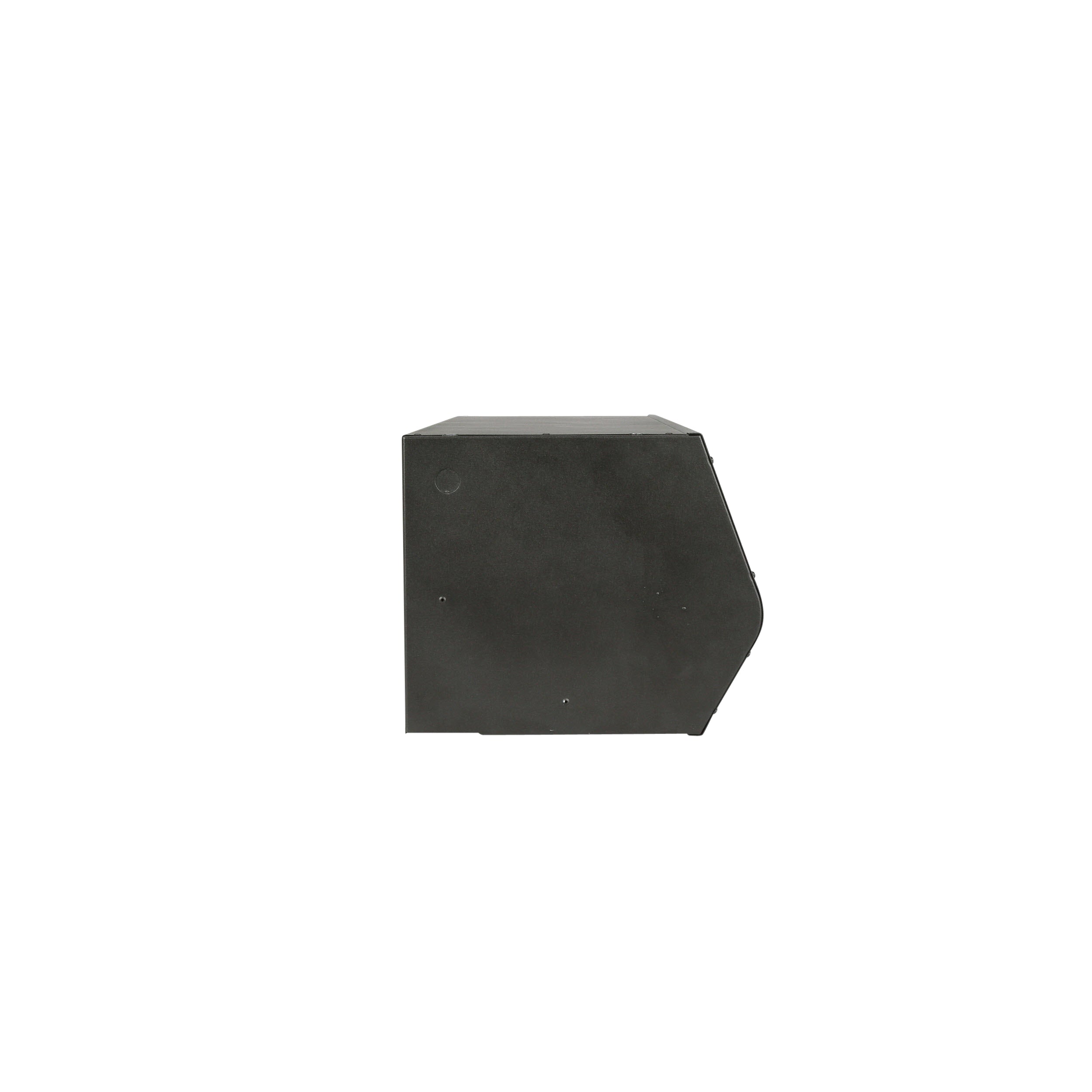

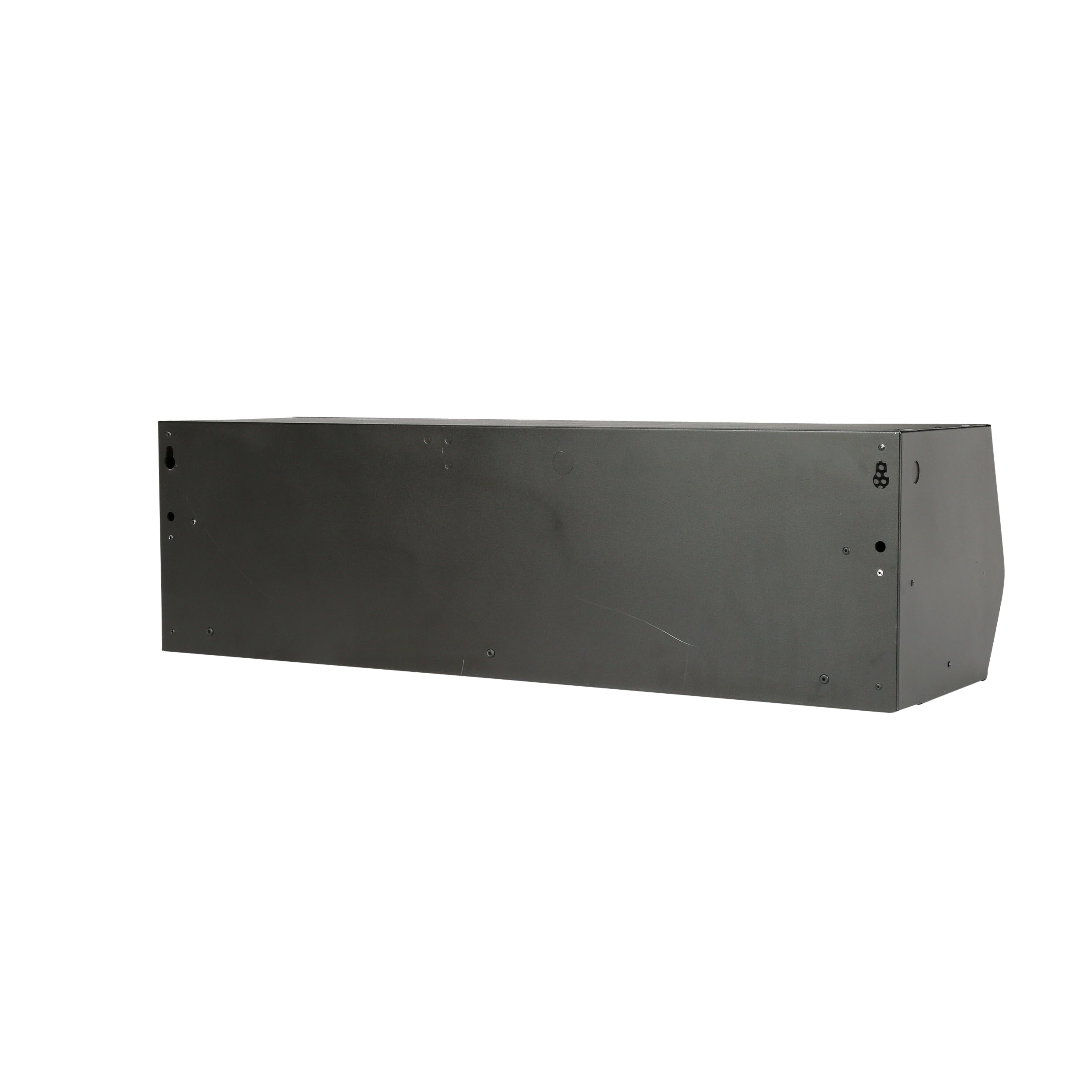

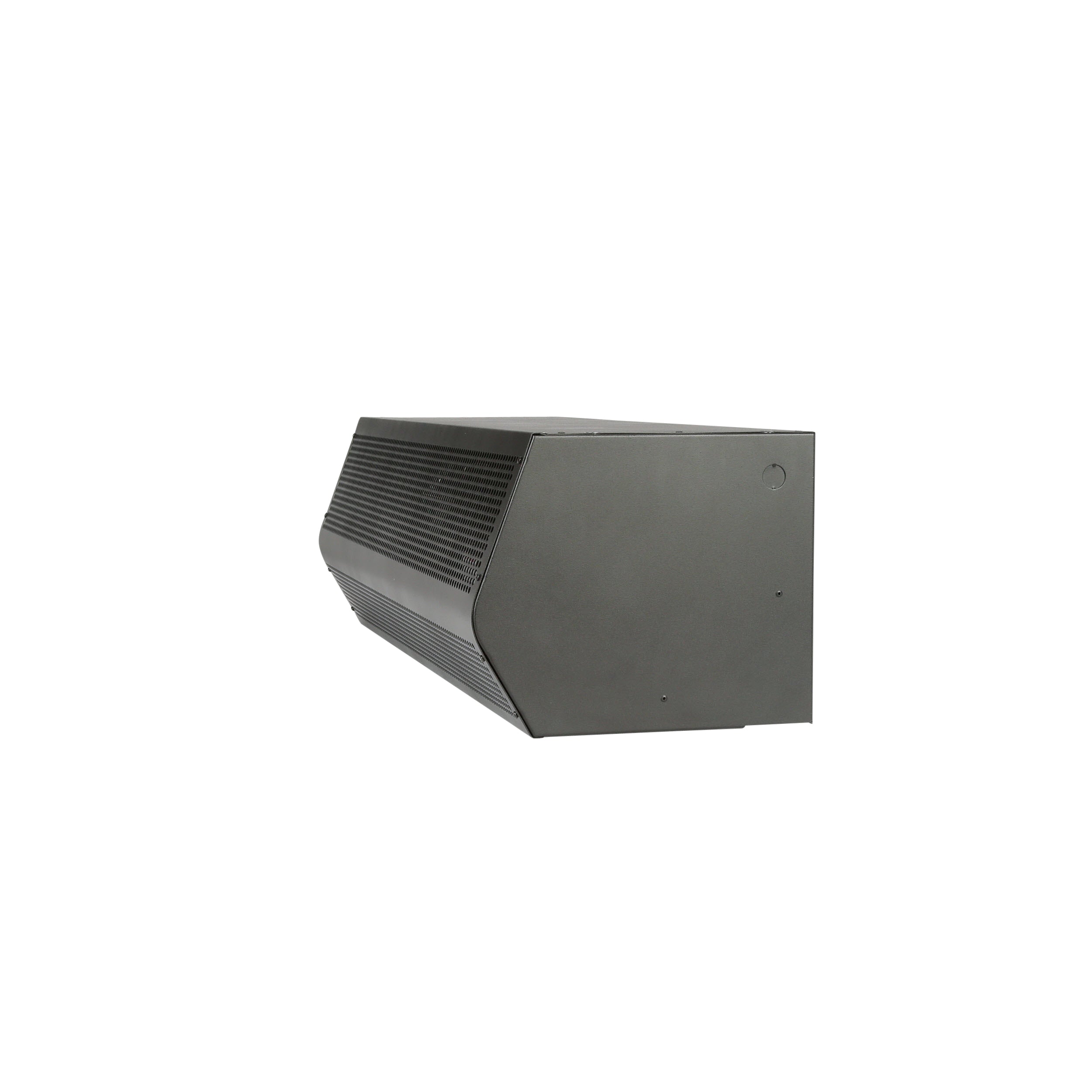

Mars STD2120-3UA-OB Standard 2 Air Curtains 120 inch REPLACEMENT MPN

Product Description

The MARS STD2120-3UA-OB Standard 2 series is an energy-saving commercial and industrial hybrid air curtain. Featuring a 0.5 horsepower motor, it's suitable for various applications and heights up to 10 ft for insect control and 12 ft for environmental separation. The 120-inch wide air curtain maintains interior temperature and minimizes dirt, dust, and fumes.

• Energy-saving series
• Suitable for commercial and industrial applications
• Available in ETL Sanitation Certified versions
• Suitable for heights up to 10 ft (ETL Sanitation rated for 7 ft heights)

Product Highlights

Ideal for receiving and loading docks, customer entrances, and walk-in coolers, this air curtain offers unobstructed views and contributes to LEED points with its durable metal construction.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: STD2120-3UA-OB
• Country of Origin: USA

Technical Specifications

• MPN: STD2120-3UA-OB
• Environmental - Max Height (feet): 12
• Insect - Max Height (feet): 10
• Series: STD2 (Standard 2) Series
• Heating Mode: Unheated
• Nozzle Width (inches): 120
• Unit Width (inches): 120
• Unit Height (inches): 10.625
• Wind Stopping Capability (MPH): 12
• Horsepower: 0.5
• Motors: 3
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 115/1/60
• Voltage Code: A
• Air Volume (CFM): 4341
• Amps: 15.3
• Uniformity (%): 60
• dBA: 71
• Phase: Single Phase
• Wattage: 1,570 Watts
• Application: Walk-In Coolers
• ETL Listed: Yes
• Overall Height: 10-5/8 in
• Overall Width: 120 in
• Overall Depth: 12-3/4 in
• Max. Air Volume: 4,341 cfm
• Max. Air Velocity: 2,084 fpm
• Sound Level @ 10 ft: 71 dBA
• Number of Speeds: 1
• Motor Horsepower per Motor: 1/2 hp
• Standards: CSA; ETL Listed; UL Indoor; UL Outdoor
• Hertz: 60Hz
• Depth: 12 3/4"
• Height: 10 5/8"
• Door Width (Inches): 120
• Door Height: 8' - 10'
• Frequency (Hertz): 60
• Max. Door/Window Height (ft.): 12
• Max. Height Insect Block (ft.): 10
• Voltage: 110-120V
• Length (in.): 120
• Certifications: ETL Listed, AMCA
• FLA (Ampacity): 15.3Amps
