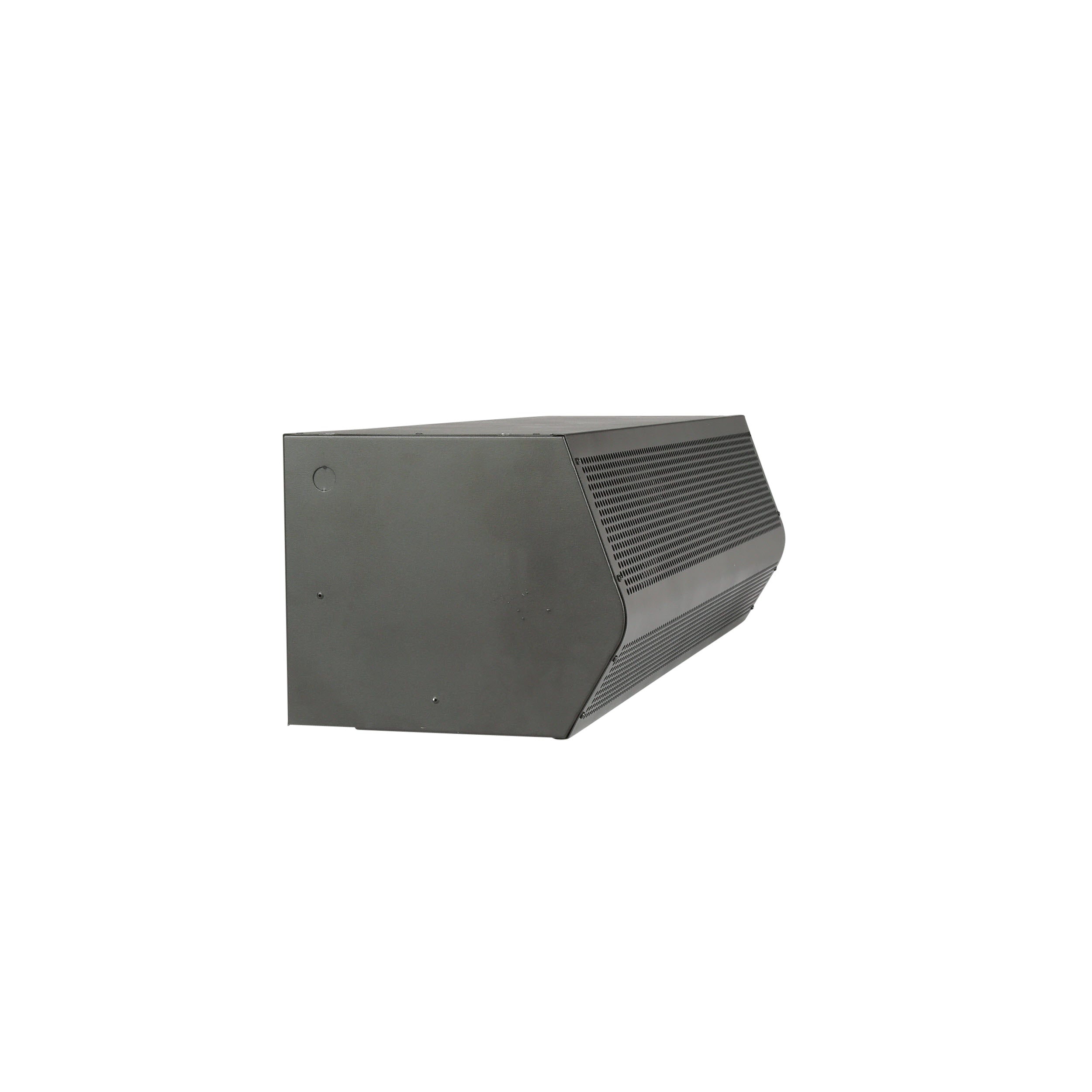

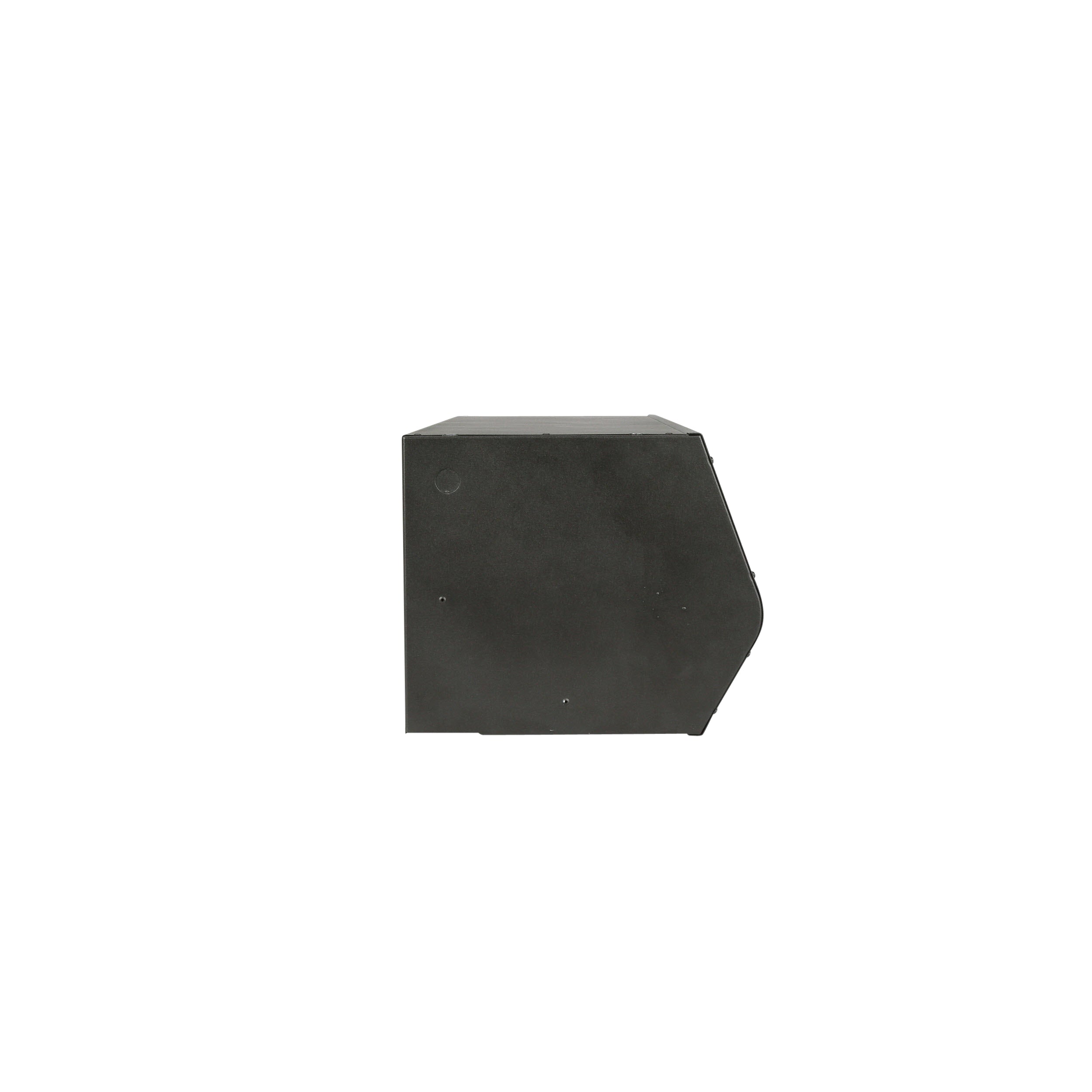

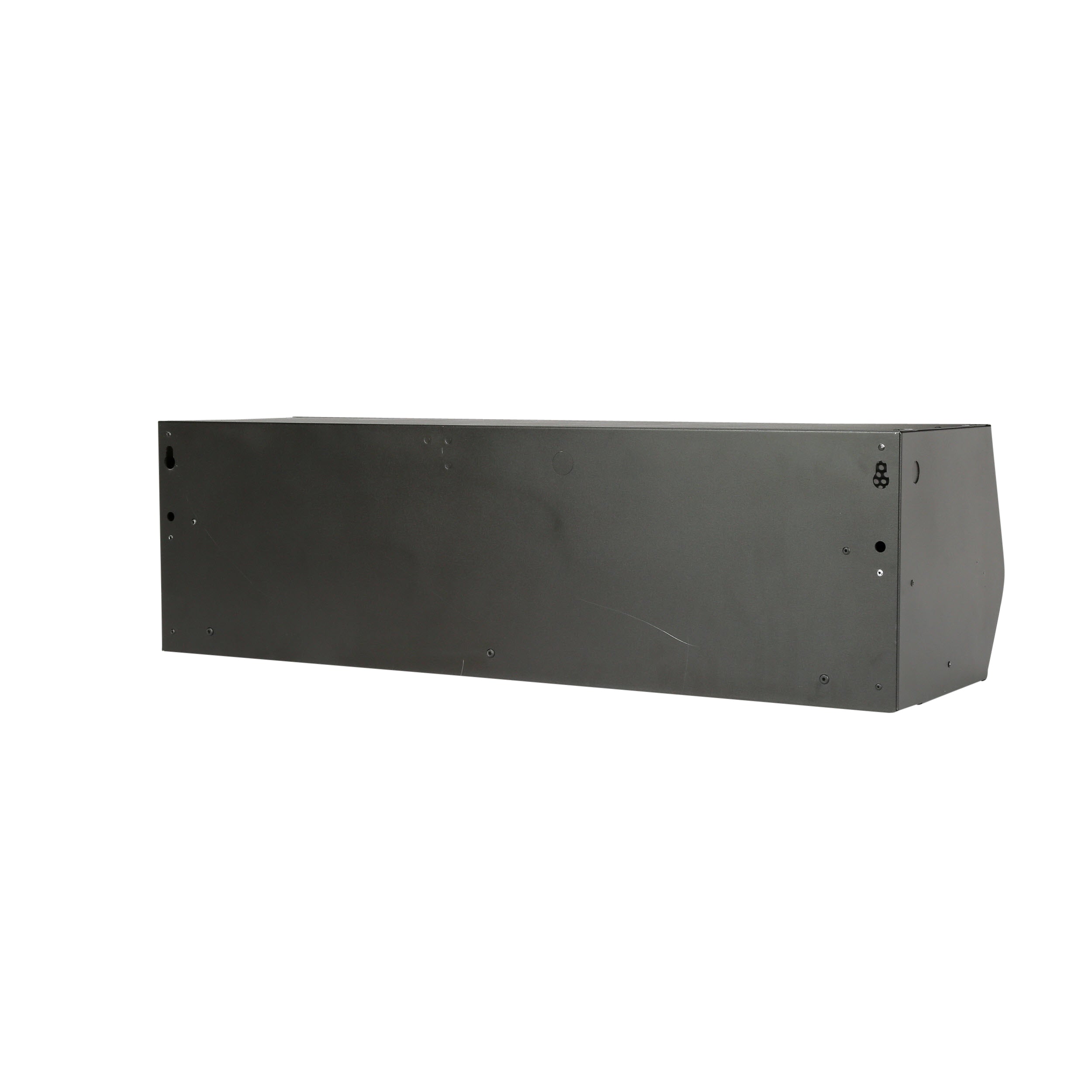

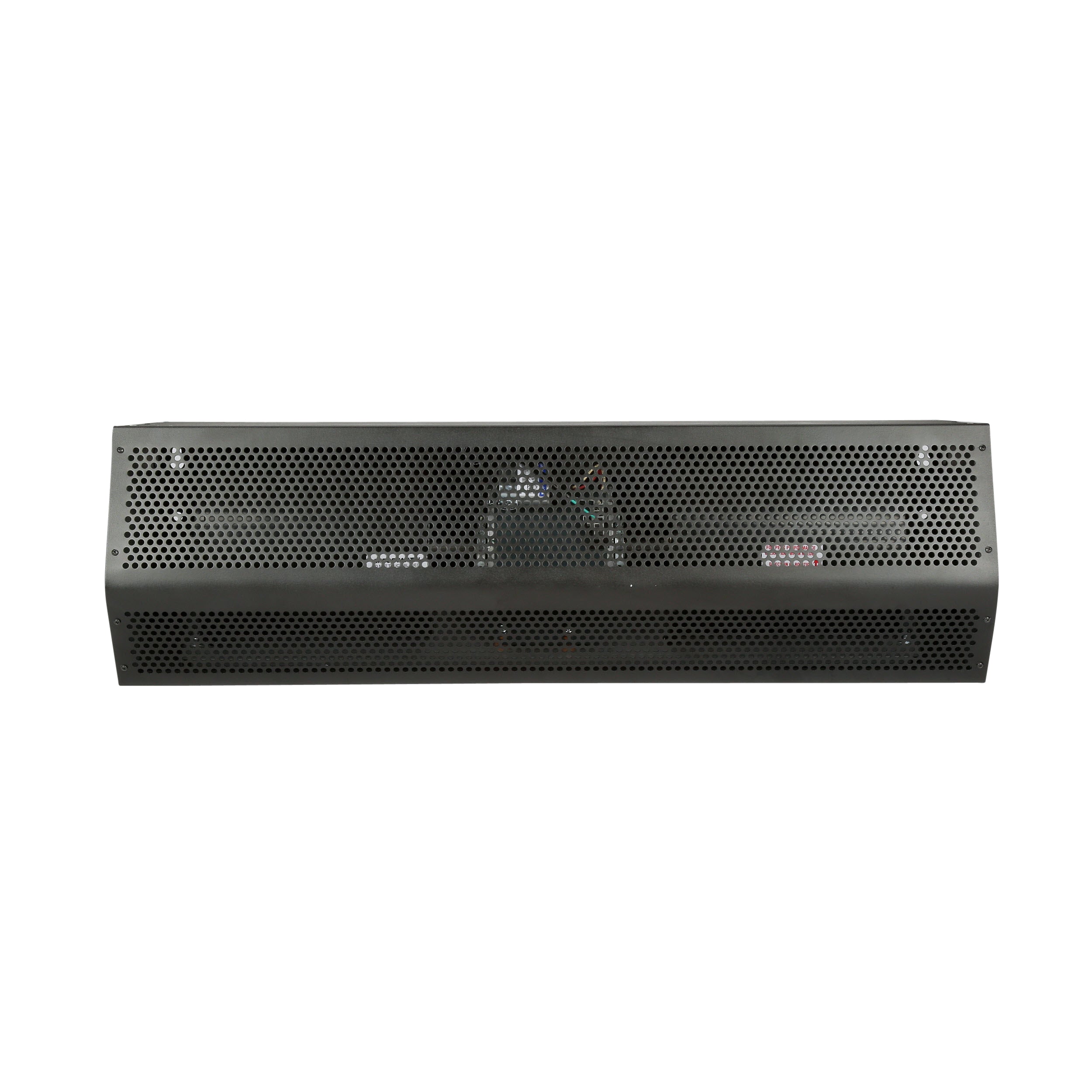

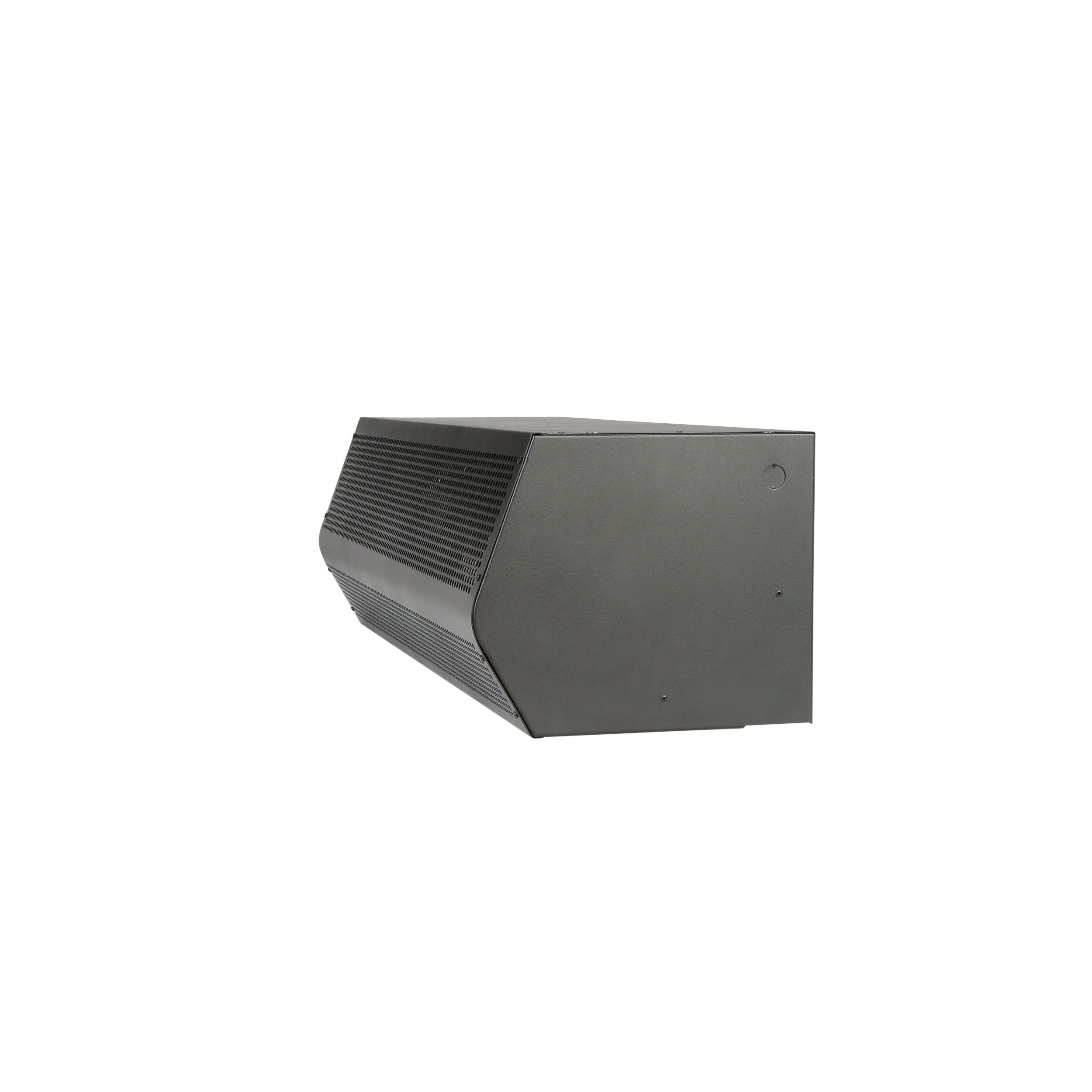

Mars STD2108-3UG-OB Standard 2 Air Curtains 108 inch

Product Description

The MARS STD2108-3UG-OB Standard 2 series is a popular energy-saving commercial and industrial hybrid air curtain. Featuring a 0.5 horsepower motor, it's suitable for customer-facing and industrial applications, providing an environmental barrier up to 12 feet and insect protection up to 10 feet. It has a durable metal construction with powder-coated obsidian black finish.

• Commercial and industrial hybrid
• Energy-saving series
• 0.5 horsepower motor(s)

Product Highlights

The STD2 series is designed for insect control and temperature/environmental separation. Ideal for shipping/receiving doors, customer entrances and cold storage rooms.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: STD2108-3UG-OB

Technical Specifications

• MPN: STD2108-3UG-OB
• Environmental - Max Height (feet): 12
• Insect - Max Height (feet): 10
• Series: STD2 (Standard 2) Series
• Heating Mode: Unheated
• Nozzle Width (inches): 108
• Unit Width (inches): 108
• Unit Height (inches): 10.625
• Wind Stopping Capability (MPH): 12
• Horsepower: 0.5
• Motors: 3
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 208-230/3/60
• Voltage Code: G
• Air Curtain Air Volume (CFM): 4137
• Amps: 5.4/4.8
• Uniformity (%): 65
• dBA: 71
• Product Dimensions Height: 10.62"
• Product Dimensions Width: 108.00"
• Product Dimensions Depth: 12.75"
• Max. Door/Window Height (ft.): 12
• Max. Height Insect Block (ft.): 10
• Heat: No
• Voltage: 208-230V
• Depth (in.): 12.75
• Height (in.): 10.625
• Length (in.): 108
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Horse Power Per Motor: 1/2 hp
• Width: 108
• Phase: 3-Ph
• Hertz: 60Hz
• Application: insect control up to 10 feet and temperature/environmental separation up to 12 feet
