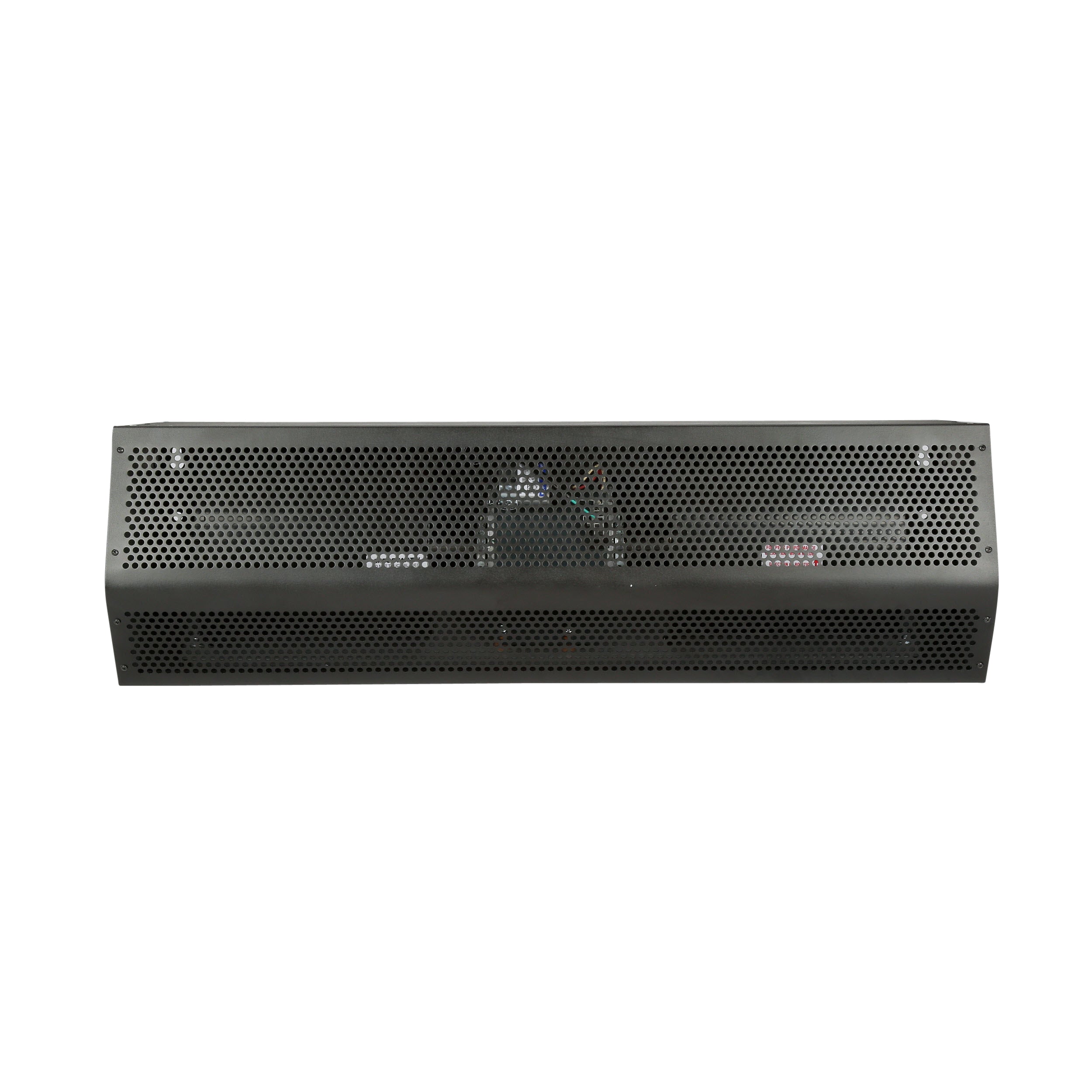

Mars STD2108-3UD-OB Standard 2 Air Curtains 0.5 Horsepower (108 inch)

Product Description

The MARS STD2108-3UD-OB Standard series is a commercial and industrial hybrid, energy-saving series. It features a 0.5 horsepower power motor(s) that is ideal for customer-facing and industrial applications. Suitable for heights up to 10 ft, it is available in ETL Sanitation Certified versions. The standard color on all models is Obsidian Black and heated options are available.

• Commercial and industrial hybrid
• Energy-saving series
• 0.5 horsepower power motor(s)

Product Highlights

Suitable for customer-facing and industrial applications, the Standard series is available in ETL Sanitation Certified versions and heated options.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: STD2108-3UD-OB

Technical Specifications

• MPN: STD2108-3UD-OB
• Environmental - Max Height (feet): 12
• Insect - Max Height (feet): 10
• Series: STD2 (Standard 2) Series
• Heating Mode: Unheated
• Nozzle Width (inches): 108
• Unit Width (inches): 108
• Unit Height (inches): 10.625
• Wind Stopping Capability (MPH): 12
• Horsepower: 0.5
• Motors: 3
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 208-230/1/60
• Voltage Code: D
• Air Curtain Air Volume (CFM): 4137
• Amps: 7.5
• Uniformity (%): 65
• dBA: 71
• Max. Door/Window Height (ft.): 12
• Max. Height Insect Block (ft.): 10
• Heat: No
• Length (in.): 108
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Manufacturer: Mars
• Model Number: STD2108-3UD-OB
• Horse Power Per Motor: 1/2 hp
