Mars PH1296-2UG-PW Phantom 12 96 inches 1 HP

Product Description

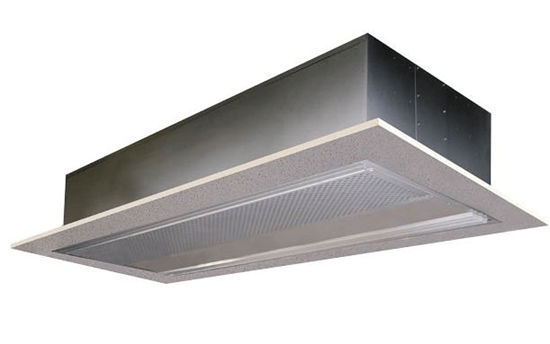

The MARS PH1296-2UG-PW Phantom 12 series is designed for architects needing a high-performance air curtain that blends seamlessly with the building's aesthetics. Featuring top-performing internal components, this unit can be recess-mounted into the ceiling for a less conspicuous appearance. It maintains interior temperature and minimizes dirt, dust, and fumes.

• Designed to blend in with building aesthetics
• Can be recess-mounted into the ceiling
• Controls flying insects up to 14' max height
• Effective environmental control up to 16' max height

Product Highlights

The Phantom 12 series provides effective environmental separation with a seamless design. It features durable aluminum construction and is proudly made in the USA.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1296-2UG-PW
• Country of Origin: USA

Technical Specifications

• MPN: PH1296-2UG-PW
• Environmental - Max Height (feet): 16
• Insect - Max Height (feet): 14
• Series: PH (Phantom) Series
• Heating Mode: Unheated
• Nozzle Width (inches): 96
• Unit Width (inches): 96
• Unit Height (inches): 17
• Wind Stopping Capability (MPH): 12
• Horsepower: 1
• Motors: 2
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 208-230/3/60
• Voltage Code: G
• Air Curtain Air Volume (CFM): 5068
• Amps: 6.6/6.4
• Uniformity (%): 89
• dBA: 73
• Air Volume (CFM): 5068
• Application: Main Entrances
• ETL Listed: Yes
• Exterior Summary: Aluminum
• Phase: Three Phase
• Power: Electric
• Type: Unheated Air Curtains
• Volts: 208/230 Volts
• Wattage: 2,690 Watts
• Depth (in.): 26
• Length (in.): 96
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
