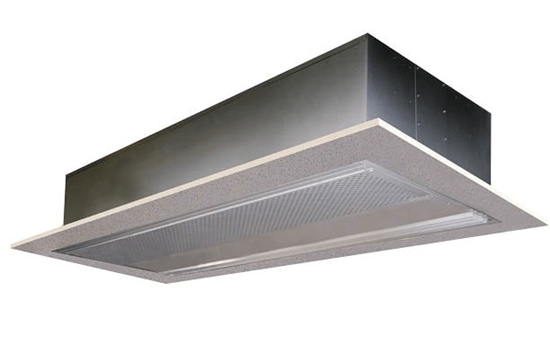

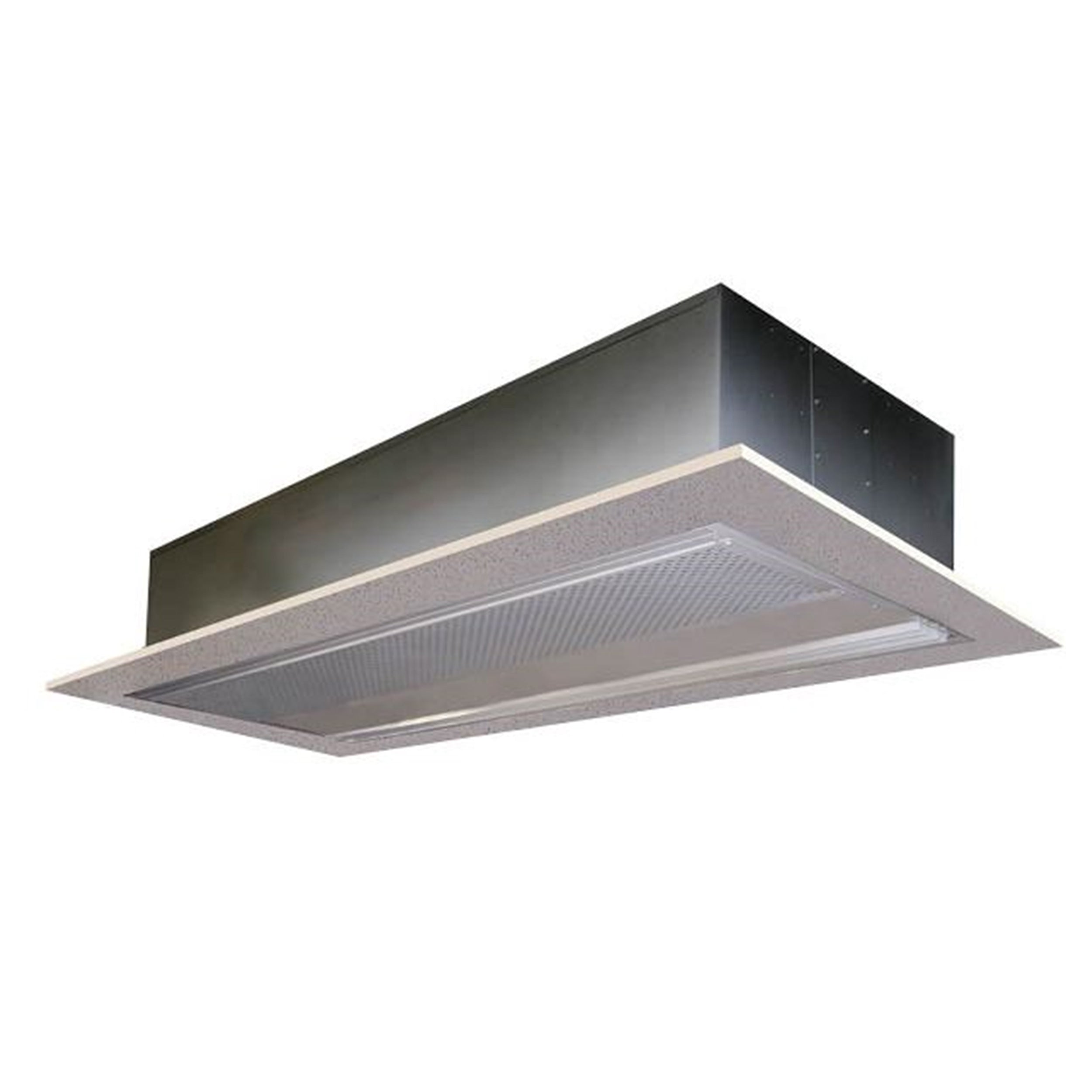

Mars PH1296-2UD-PW Phantom 12 Air Curtain 96 inch 1 HP

Product Description

The MARS PH1296-2UD-PW Phantom 12 Series air curtain is designed for architects and designers needing performance and protection while blending with the building's aesthetics. This unit features internal components like the 1 HP HV units, concealed in a housing for recess-mounting into the ceiling. It maintains interior temperature and minimizes dirt, dust, and fumes.

• Designed for recess-mounting into the ceiling.
• Maintains consistent interior temperature.
• Controls flying insects up to 14' max height.

Product Highlights

This commercial air curtain provides effective environmental separation with a seamless appearance. It features durable aluminum construction with a powder-coated finish.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1296-2UD-PW
• Country of Origin: USA

Technical Specifications

• MPN: PH1296-2UD-PW
• Environmental - Max Height (feet): 16
• Insect - Max Height (feet): 14
• Series: PH (Phantom) Series
• Heating Mode: Unheated
• Nozzle Width (inches): 96
• Unit Width (inches): 96
• Unit Height (inches): 17
• Wind Stopping Capability (MPH): 12
• Horsepower: 1
• Motors: 2
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 208-230/1/60
• Voltage Code: D
• Air Volume (CFM): 5068
• Amps: 10
• Uniformity (%): 89
• dBA: 73
• Phase: 1PH
• Frequency: 60Hz
• Application: Main Entrances
• ETL Listed: Yes
• Exterior Summary: Aluminum
• Power: Electric
• Type: Unheated Air Curtains
• Volts: 208/230 Volts
• Wattage: 2,690 Watts
• MAX. OPENING HEIGHT (WINDOW/DOOR): 12 Ft
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
