Mars PH1296-2UA-PW Phantom 12 96 inch Unheated

Product Description

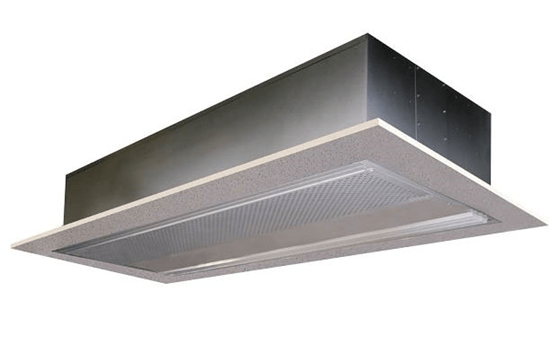

The MARS PH1296-2UA-PW Phantom Series air curtain is designed for architects needing performance and protection that blends with building aesthetics. Featuring the same internal components as 1 HP HV Units, it's concealed in a housing for recess-mounting into the ceiling. This 96 inch unheated unit includes 2 motors and operates at 115/1/60 voltage.

• Designed to blend in with building aesthetics
• Recess-mountable into the ceiling
• Quieter operation

Product Highlights

The Phantom Series provides effective performance while remaining less conspicuous. Ideal for environments needing both functionality and a clean aesthetic.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1296-2UA-PW

Technical Specifications

• MPN: PH1296-2UA-PW
• Environmental - Max Height (feet): 16
• Insect - Max Height (feet): 14
• Series: PH (Phantom) Series
• Heating Mode: Unheated
• Nozzle Width (inches): 96
• Unit Width (inches): 96
• Unit Height (inches): 17
• Wind Stopping Capability (MPH): 12
• Horsepower: 1
• Motors: 2
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 115/1/60
• Voltage Code: A
• Air Curtain Air Volume (CFM): 5068
• Amps: 18
• Uniformity (%): 89
• dBA: 73
• Voltage: 115v
• Phase: 1PH
• Hertz: 60Hz
• MAX. OPENING HEIGHT (WINDOW/DOOR): 12 Ft
• HORSEPOWER PER MOTOR: 1
• TYPE: Un-heated
• Depth (in.): 26
• Length (in.): 96
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
