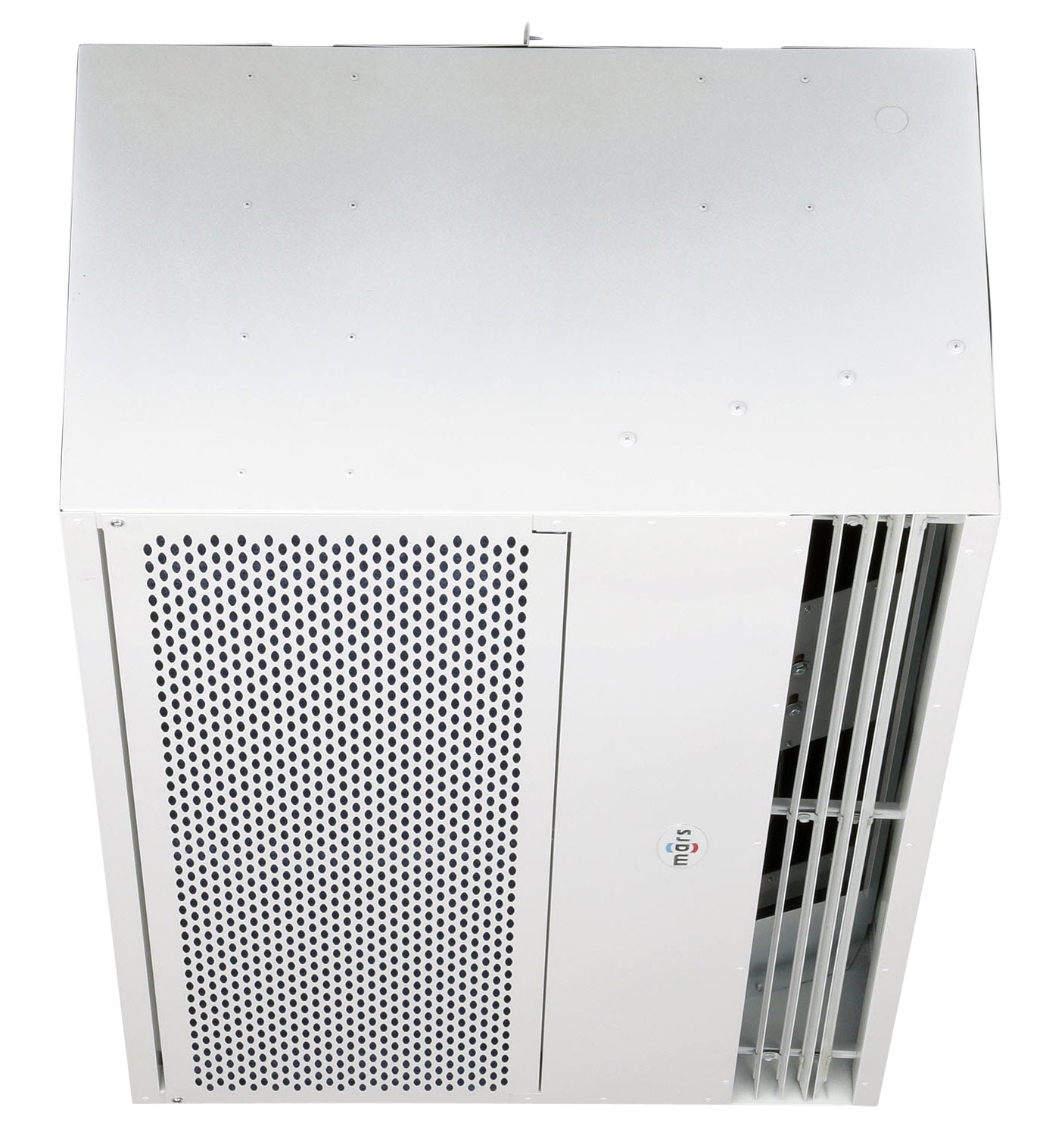

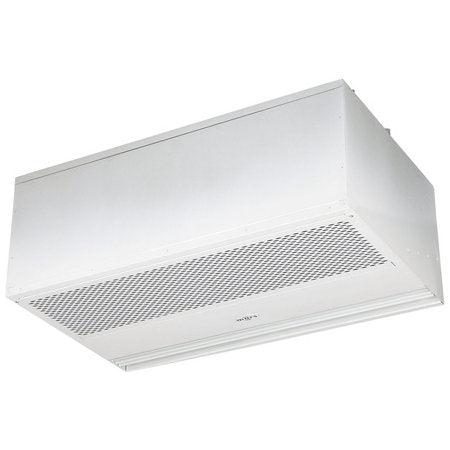

Mars PH1284-2UG-PW Phantom 12 Unheated 84 inch

Product Description

The MARS PH1284-2UG-PW Phantom 12 Series is designed for architects needing a high-performance air curtain that blends seamlessly with the building's aesthetics. This unheated air curtain features the same components as the 1 HP HV units, concealed in a housing for recess mounting. It maintains interior temperature and minimizes dirt, dust, and fumes.

• Designed for seamless integration with building aesthetics.

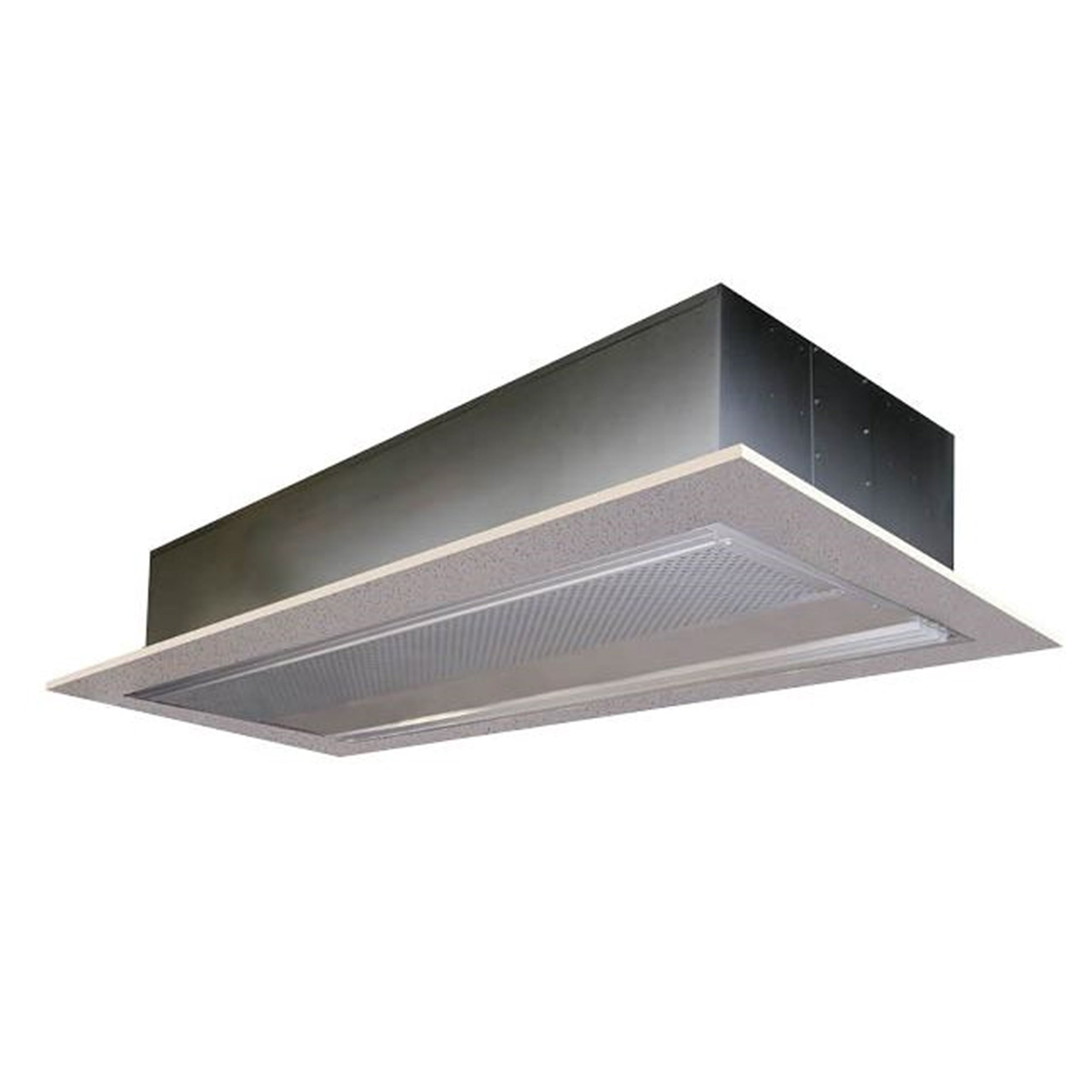

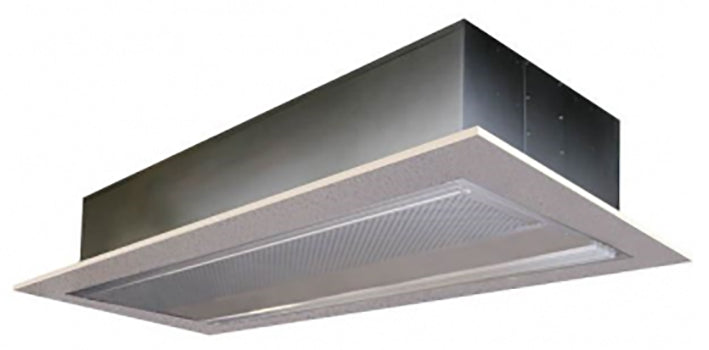

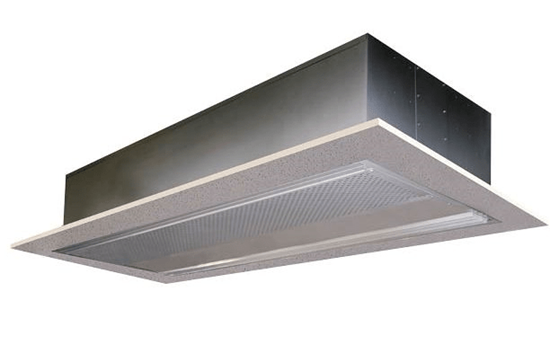

• Recess mountable for concealed installation.
• Provides environmental separation and insect control.

Product Highlights

The Phantom 12 series provides effective environmental separation with a seamless design. It is ideal for maintaining temperature and minimizing contaminants.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1284-2UG-PW
• Country of Origin: USA

Technical Specifications

• MPN: PH1284-2UG-PW
• Environmental - Max Height (feet): 16
• Insect - Max Height (feet): 14
• Series: PH (Phantom) Series
• Heating Mode: Unheated
• Nozzle Width (inches): 84
• Unit Width (inches): 84
• Unit Height (inches): 17
• Wind Stopping Capability (MPH): 12
• Horsepower: 1
• Motors: 2
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 208-230/3/60
• Voltage Code: G
• Air Curtain Air Volume (CFM): 4942
• Amps: 6.6/6.4
• Uniformity (%): 90
• dBA: 73
• Application: Main Entrances
• ETL Listed: Yes
• Exterior Summary: Aluminum
• HP: 1 HP
• Max Environmental Separation Height: 16 Feet
• Max Insect Blocking Height: 14 Feet
• Phase: Three Phase
• Power: Electric
• Type: Unheated Air Curtains
• Volts: 208/230 Volts
• Wattage: 2,520 Watts
• Max. Door/Window Height (ft.): 16
• Heat: No
• Depth (in.): 26
• Length (in.): 84
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Size: 84"
• Heating: Unheated
• Voltage: 208-230/3/60
• Motor: 2 Motor
