Mars PH1284-2UD-PW Phantom 12 Air Curtain 84 inches 1 HP

Product Description

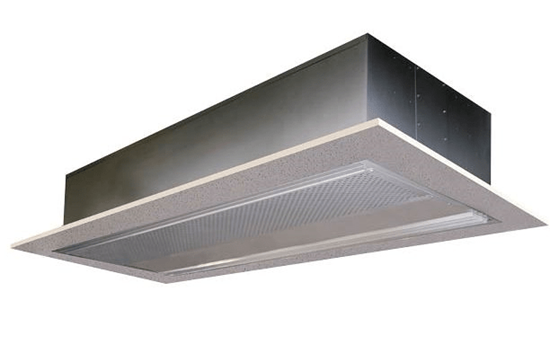

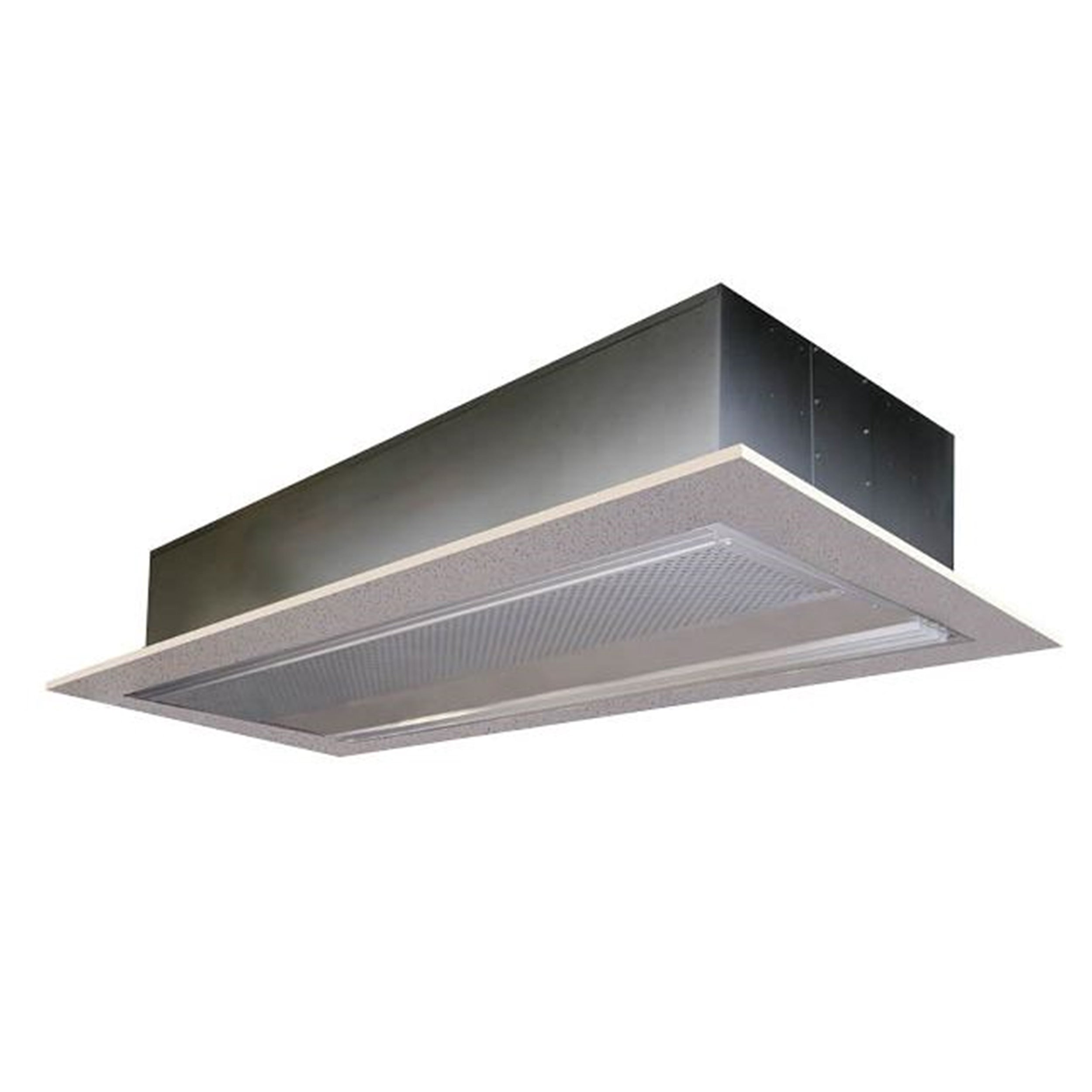

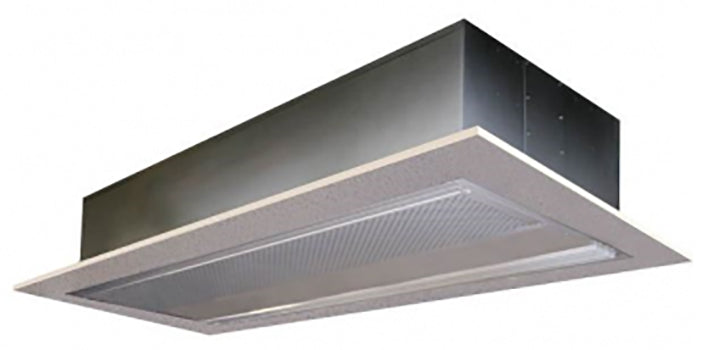

The MARS PH1284-2UD-PW Phantom 12 air curtain is designed for architects needing a unit that blends with the building's aesthetics. It features the same internal components as the 1 HP HV Units, concealed in a housing for recess-mounting into the ceiling. It provides environmental separation up to 16 feet and insect control up to 14 feet.

• Designed to blend in with building aesthetics
• Recess-mountable into the ceiling
• Quieter operation

Product Highlights

This 84" unheated air curtain has two 1 HP motors and operates at 208-230V. Ideal for restaurants, retail, healthcare, and transportation facilities.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1284-2UD-PW
• Country of Origin: USA

Technical Specifications

• MPN: PH1284-2UD-PW
• Series: PH (Phantom) Series
• Heating Mode: Unheated
• Nozzle Width (inches): 84
• Unit Width (inches): 84
• Unit Height (inches): 17
• Wind Stopping Capability (MPH): 12
• Horsepower: 1
• Motors: 2
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 208-230/1/60
• Voltage Code: D
• Air Curtain Air Volume (CFM): 4942
• Amps: 10
• Uniformity (%): 90
• dBA: 73
• Size: 84"
• Voltage: 208-230v
• Phase: 1PH
• Hertz: 60Hz
• Motor: 2 Motor
• Horse Power: 1 HP
• WIDTH (SIDE - SIDE): 84"
• TYPE: Un-heated
• MAX. OPENING HEIGHT (WINDOW/DOOR): 12 Ft
• HORSEPOWER PER MOTOR: 1
• Application: Main Entrances
• ETL Listed: Yes
• Exterior Summary: Aluminum
• HP: 1 HP
• Max Environmental Separation Height: 16 Feet
• Max Insect Blocking Height: 14 Feet
• Power: Electric
• Type: Unheated Air Curtains
• Volts: 208/230 Volts
• Wattage: 2,520 Watts
• Max. Door/Window Height (ft.): 16
• Max. Height Insect Block (ft.): 14
• Heat: No
• Depth (in.): 26
• Length (in.): 84
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
