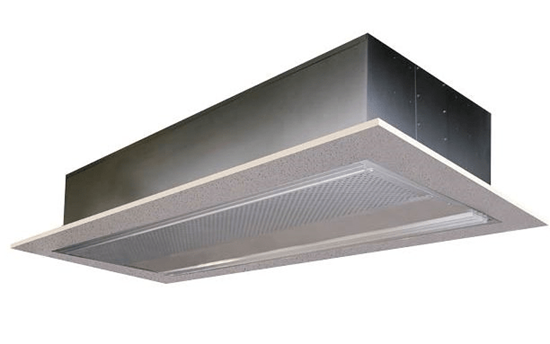

Mars PH1272-2UD-PW Phantom 12 Air Curtain 72 inch

Product Description

The MARS PH1272-2UD-PW Phantom 12 Series air curtain is designed for architects and designers needing performance and protection that blends with the building's aesthetics. It features internal components like the 1 HP HV units, concealed in a housing for recess-mounting into the ceiling. Operates at 208-230/1/60 voltage and has an air volume of 4646 CFM.

• Designed for architects and designers
• Can be recess-mounted into the ceiling
• Quieter and less conspicuous

Product Highlights

Ideal for temperature/environmental separation and insect control in restaurants, retail, healthcare, and transportation facilities. Features a durable construction with a Pearl White finish.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1272-2UD-PW

Technical Specifications

• MPN: PH1272-2UD-PW
• Environmental - Max Height (feet): 16
• Insect - Max Height (feet): 14
• Series: PH (Phantom) Series
• Heating Mode: Unheated
• Nozzle Width (inches): 72
• Unit Width (inches): 72
• Unit Height (inches): 17
• Wind Stopping Capability (MPH): 12
• Horsepower: 1
• Motors: 2
• Voltage Rating: 208-230/1/60
• Voltage Code: D
• Air Curtain Air Volume (CFM): 4646
• Amps: 10
• Uniformity (%): 84
• dBA: 73
• Model Number: MRS-PH1272-2UD-PW
• HORSEPOWER PER MOTOR: 1
• TYPE: Un-heated
• MAX. OPENING HEIGHT (WINDOW/DOOR): 12 Ft
• Max. Height Insect Block (ft.): 14
• Heat: No
• Voltage: 208-230V
• Length (in.): 72
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
