Mars PH1272-2UA-PW Phantom 12 72 inches 1 HP

MARS
Brand: MARS
SKU: PH1272-2UA-PW
Availability: Out Of Stock
Free shipping
$5,306.99
$5,306.99
LTL Delivery

This product weighs 155 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

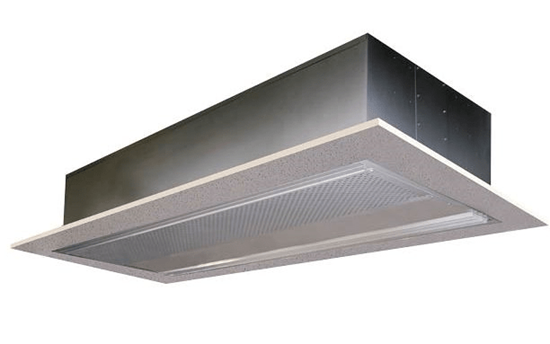

The MARS PH1272-2UA-PW Phantom 12 Series is designed for architects needing a high-performing air curtain that blends seamlessly with the building's aesthetics. Featuring the same internal components as the 1 HP HV units, this air curtain can be recess-mounted into the ceiling. It provides environmental separation up to 16 feet and insect control up to 14 feet.

  • Recess-mountable into the ceiling
  • Quieter and less conspicuous
  • Same top-performing internal components as our 1 HP HV Units

Product Highlights

This 72" unheated air curtain features two 1-horsepower motors, durable aluminum construction, and a washable polyester filter for effective and discreet performance.

Product Information

Standard Information

  • Brand: MARS
  • Manufacturer Part Number: PH1272-2UA-PW
  • Country of Origin: USA
Technical Specifications
MPN
PH1272-2UA-PW
Environmental - Max Height (feet)
16
Insect - Max Height (feet)
14
Series
PH (Phantom) Series
Heating Mode
Unheated
Nozzle Width (inches)
72
Unit Width (inches)
72
Unit Height (inches)
17
Wind Stopping Capability (MPH)
12
Horsepower
1
Motors
2
Air Flow Certified (AMCA)
Yes
Voltage Rating
115/1/60
Voltage Code
A
Air Curtain Air Volume (CFM)
4646
Amps
18
Uniformity (%)
84
dBA
73
Air Volume (CFM)
4646
Application
Main Entrances
ETL Listed
Yes
Exterior Summary
Aluminum
Phase
Single Phase
Power
Electric
Type
Unheated Air Curtains
Volts
115 Volts
Wattage
2,316 Watts
Max. Door/Window Height (ft.)
16
Max. Height Insect Block (ft.)
14
Heat
No
Voltage
110-120V
Depth (in.)
26
Length (in.)
72
Certifications
ETL Listed, AMCA
Product Type
Unheated
