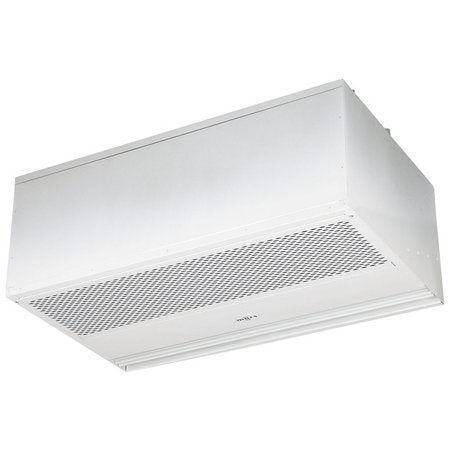

Mars PH1260-1UH-PW Air Curtain 60 inches Unheated

Product Description

The MARS PH1260-1UH-PW air curtain, measuring 60 inches, is part of the Phantom 12 Series. This unheated unit features a 1 HP motor and operates at 460v, 3PH, 60Hz. Designed for insect control up to 10 feet and temperature separation up to 12 feet, it offers a concealed design for seamless integration.

• Designed for insect control up to 10 feet
• Temperature/environmental separation up to 12 feet
• Concealed design

Product Highlights

Ideal for restaurants, retail, healthcare, and transportation, providing effective environmental separation with a discreet, recess-mounted design.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1260-1UH-PW
• Country of Origin: USA

Technical Specifications

• Brand: MARS
• Model: PH1260-1UH-PW
• Size: 60"
• Series: Phantom 12 Series
• Motor: 1
• Horse Power: 1 HP
• Heat: Unheated
• Voltage: 460V
• Phase: Three Phase
• Hertz: 60Hz
• Air Volume (CFM): 2759
• Application: Main Entrances
• ETL Listed: Yes
• Exterior Summary: Aluminum
• Max Environmental Separation Height: 16 Feet
• Max Insect Blocking Height: 14 Feet
• Power: Electric
• Wattage: 1,535 Watts
• Depth (in.): 26
• Height (in.): 17
• Length (in.): 60
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
