Mars PH1260-1UA-PW Phantom 12 60 inches 1 HP

Product Description

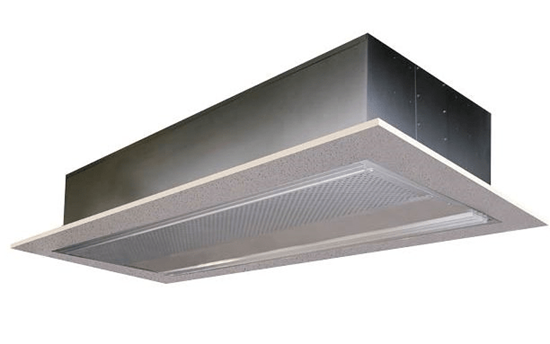

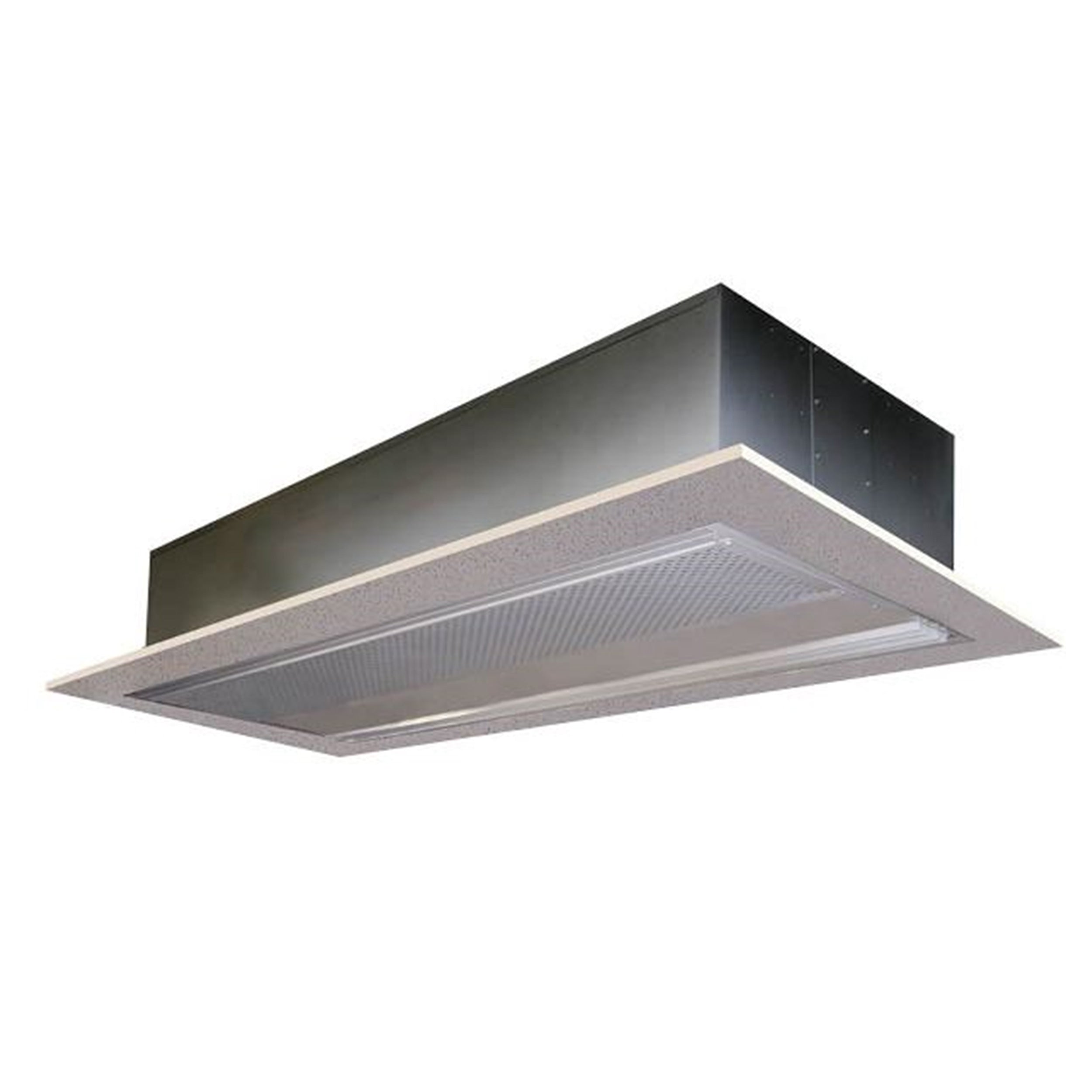

The MARS PH1260-1UA-PW Phantom 12 Series air curtain is designed for architects and designers needing a unit that blends with the building's aesthetics. Featuring high-performing internal components, this air curtain can be recess-mounted into the ceiling. It maintains interior temperature and minimizes dirt, dust, and fumes. The unit provides environmental separation up to 16 feet and insect control up to 14 feet.

• Designed for architects and designers
• Can be recess-mounted into the ceiling
• Maintains consistent interior temperature
• Minimizes dirt, dust, and fumes
• Allows for unobstructed views, enhancing safety

Product Highlights

The Phantom Series air curtain provides effective environmental separation with a seamless appearance. It is easy to install and has low maintenance and operational costs.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1260-1UA-PW
• Country of Origin: USA

Technical Specifications

• MPN: PH1260-1UA-PW
• Environmental - Max Height (feet): 16
• Insect - Max Height (feet): 14
• Series: PH (Phantom) Series
• Heating Mode: Unheated
• Nozzle Width (inches): 60
• Unit Width (inches): 60
• Unit Height (inches): 17
• Wind Stopping Capability (MPH): 12
• Horsepower: 1
• Motors: 1
• Voltage Rating: 115/1/60
• Voltage Code: A
• Air Curtain Air Volume (CFM): 2759
• Amps: 9
• Uniformity (%): 86
• dBA: 70
• Dimensions Width: 60 Inches
• Dimensions Depth: 26 Inches
• Dimensions Height: 15.5 Inches
• Air Volume (CFM): 2759
• Application: Main Entrances
• ETL Listed: Yes
• Exterior Summary: Aluminum
• Max Environmental Separation Height: 16 Feet
• Max Insect Blocking Height: 14 Feet
• Phase: 1PH
• Power: Electric
• Type: Unheated Air Curtains
• Volts: 115 Volts
• Wattage: 1,535 Watts
• Model Number: MRS-PH1260-1UA-PW
• TYPE: Un-heated
• MAX. OPENING HEIGHT (WINDOW/DOOR): 12 Ft
• HORSEPOWER PER MOTOR: 1
• WIDTH (SIDE - SIDE): 60"
• Motor: 1 Motor
• Heating: Unheated
• Voltage: 115v
• Hertz: 60Hz
• Max. Door/Window Height (ft.): 16
• Max. Height Insect Block (ft.): 14
• Heat: No
• Depth (in.): 26
• Height (in.): 17
• Length (in.): 60
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
