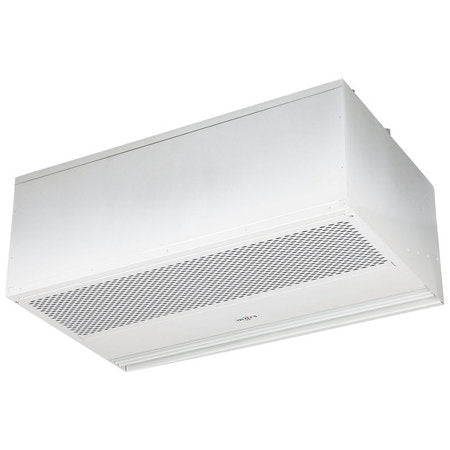

Mars PH1248-1UG-PW Air Curtain 48 inches Unheated

Product Description

The MARS PH1248-1UG-PW is a 48" Phantom 12 series air curtain with a 1 HP motor. This unheated unit operates at 208-230v, 3PH, 60Hz. Designed for insect control up to 10 feet and temperature/environmental separation up to 12 feet. It is suitable for restaurants, retail, healthcare, and transportation facilities.

• Designed for insect control up to 10 feet
• Designed for temperature/environmental separation up to 12 feet
• Available in Ambient, Electric, Steam and Hot Water configurations

Product Highlights

The PH12 series is an excellent choice for architects wanting to conceal the product in a ceiling without sacrificing the benefits of a traditional air curtain.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1248-1UG-PW
• Country of Origin: USA

Technical Specifications

• Brand: MARS
• Series: Phantom 12
• Motor: 1 Motor
• Horsepower: 1 HP
• Heating: Unheated
• Voltage: 208-230V
• Phase: 3PH
• Hertz: 60Hz
• Max. Door/Window Height (ft.): 12
• Max. Height Insect Block (ft.): 10
• Depth (in.): 26
• Height (in.): 15.5
• Length (in.): 48
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Air Volume (CFM): 2534
• Application: Main Entrances
• Exterior Color: White
• Exterior Summary: Aluminum
• Power: Electric
• Type: Unheated Air Curtains
• Wattage: 1345 Watts
