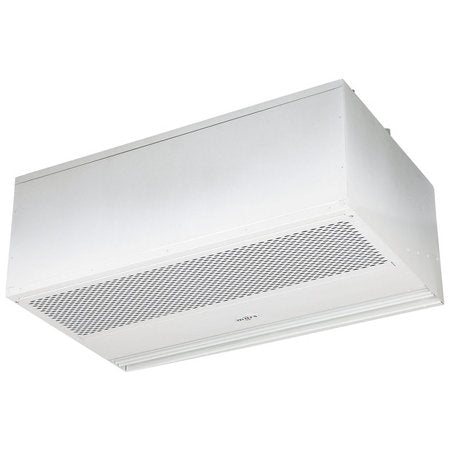

Mars PH1248-1UD-PW Phantom 12 Series Air Curtain 48 inches Unheated

Product Description

The MARS PH1248-1UD-PW Phantom 12 Series Air Curtain, 48", features a 1 HP motor and is designed for concealed ceiling installation. It provides insect control up to 10 feet and temperature separation up to 12 feet. This unheated air curtain operates at 208-230v, 1PH, 60Hz. Ideal for restaurants, retail, healthcare, and transportation facilities.

• Designed for insect control up to 10 feet
• Temperature/environmental separation up to 12 feet
• Concealed design for seamless integration

Product Highlights

The Phantom 12 Series is designed for concealed ceiling installation, providing effective environmental separation and insect control.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1248-1UD-PW
• Country of Origin: USA

Technical Specifications

• Brand: MARS
• Series: Phantom 12
• Size: 48"
• Voltage: 208-230V
• Phase: Single Phase
• Hertz: 60Hz
• Heating: Unheated
• Horse Power: 1 HP
• Air Volume (CFM): 2534
• Application: Main Entrances
• ETL Listed: Yes
• Exterior Summary: Aluminum
• Max Environmental Separation Height: 16 Feet
• Max Insect Blocking Height: 14 Feet
• Power: Electric
• Type: Unheated Air Curtains
• Wattage: 1,345 Watts
• Depth (in.): 26
• Height (in.): 17
• Length (in.): 48
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
