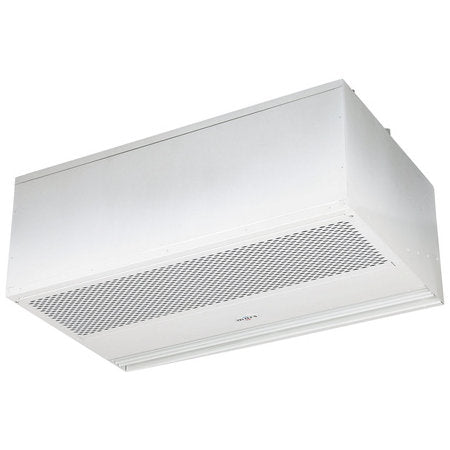

Mars PH1248-1UA-PW Phantom 12 Series Air Curtain 1 HP 48 inches

Product Description

The MARS PH1248-1UA-PW Phantom 12 Series Air Curtain, 48", features a 1 HP motor and is unheated, operating at 115v, 1PH, 60Hz. Designed for insect control up to 10 feet and temperature/environmental separation up to 12 feet. The PH12 Series is designed to be concealed in a ceiling without sacrificing the benefits of a traditional air curtain.

• Designed for insect control up to 10 feet
• Designed for temperature/environmental separation up to 12 feet
• Concealed design

Product Highlights

Ideal for maintaining interior temperature, minimizing dust, and controlling flying insects in restaurants, retail spaces, and healthcare facilities. Features durable aluminum construction and a washable polyester filter.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1248-1UA-PW
• Country of Origin: USA

Technical Specifications

• Brand: MARS
• Series: Phantom 12
• Motor: 1 Motor
• Horsepower: 1 HP
• Heating: Unheated
• Voltage: 115v
• Phase: 1PH
• Hertz: 60Hz
• Width: 48"
• Dimensions Depth: 26 Inches
• Dimensions Height: 15.5 Inches
• Air Volume (CFM): 2534
• Application: Main Entrances
• ETL Listed: Yes
• Exterior Color: White
• Exterior Summary: Aluminum
• Power: Electric
• Type: Unheated Air Curtains
• Wattage: 1,345 Watts
• Depth (in.): 26
• Height (in.): 17
• Length (in.): 48
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
