Mars PH1242-1UD-PW Phantom 12 Series Air Curtain 1 HP

Product Description

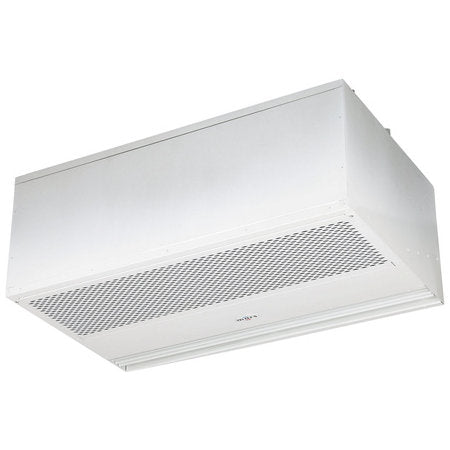

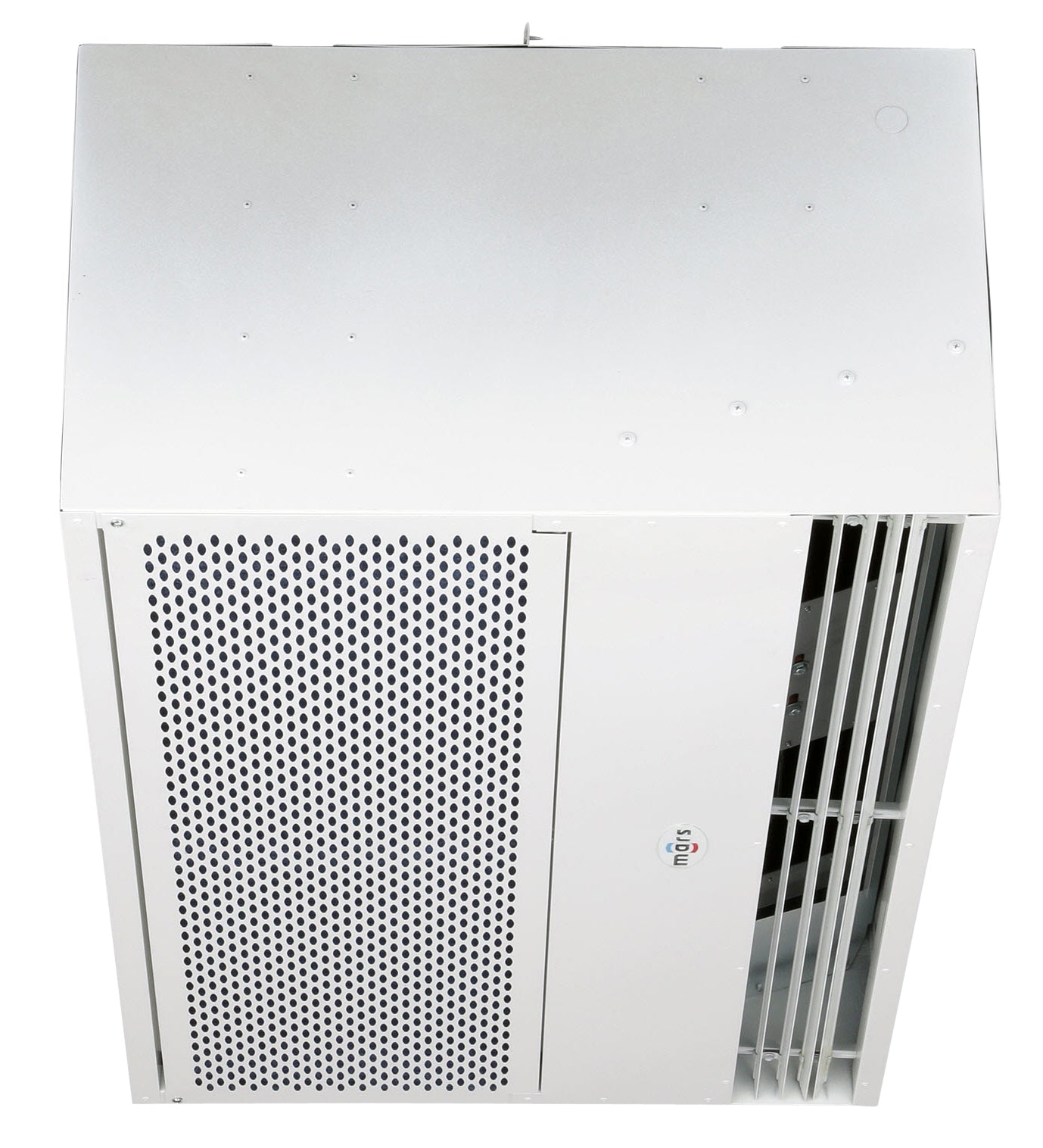

The MARS PH1242-1UD-PW Phantom Series air curtain is designed for architects needing performance and protection that blends with building aesthetics. Featuring the same components as the 1 HP HV units, it's concealed in a housing for recess-mounting into the ceiling. The unit operates quietly without sacrificing performance. Designed for environmental separation up to 16 feet and insect control up to 14 feet.

• Designed to blend in with building aesthetics

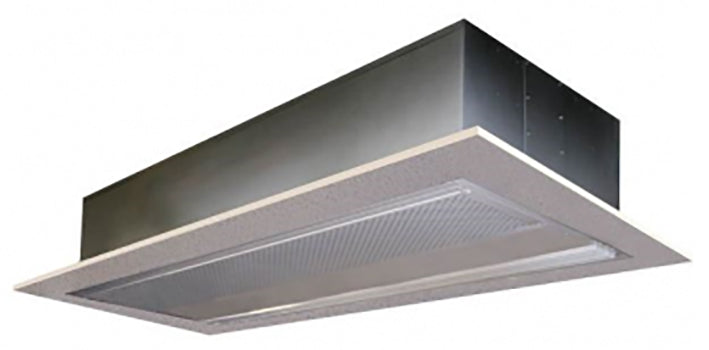

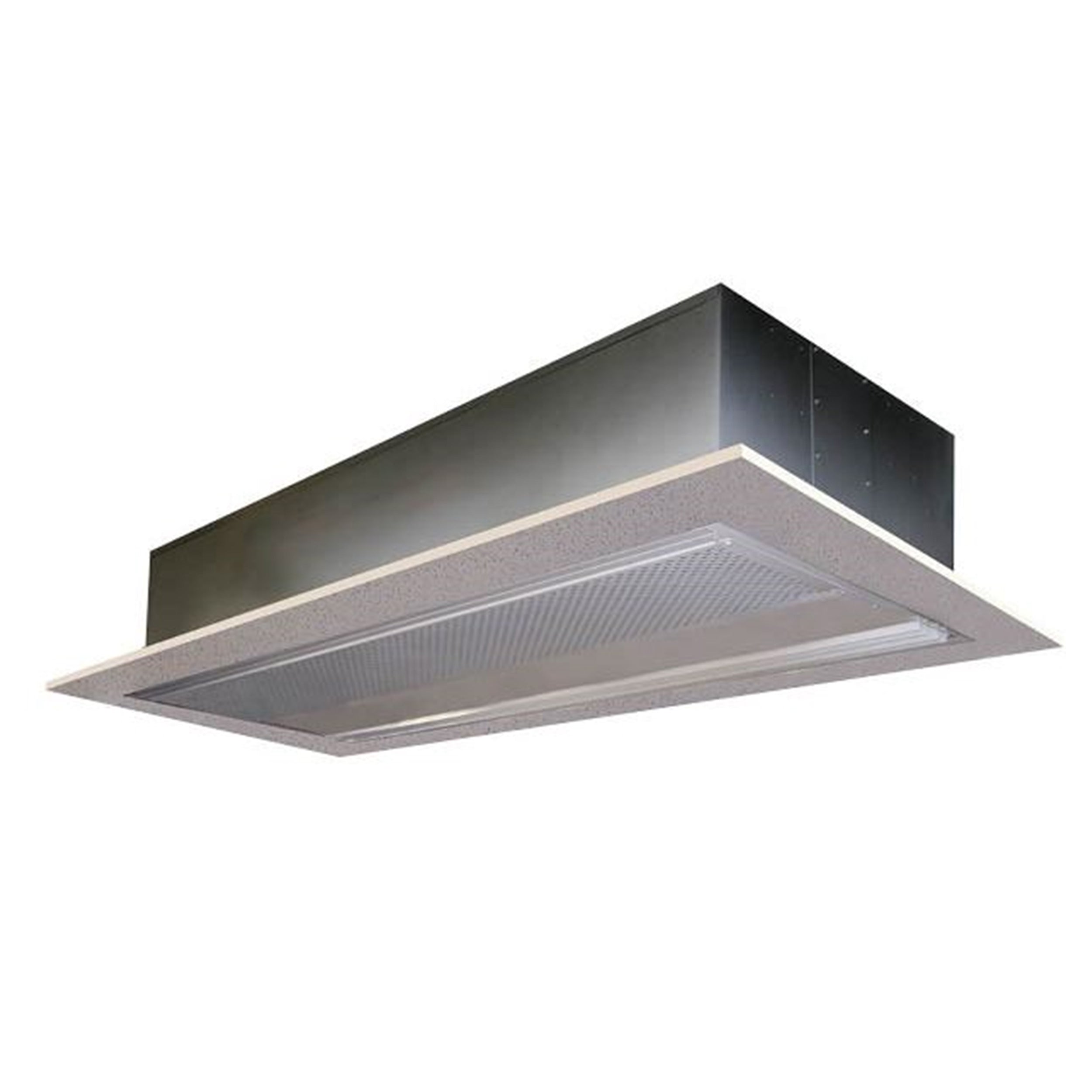

• Can be recess-mounted into the ceiling
• Quieter operation

Product Highlights

The Phantom Series air curtain provides effective environmental separation with a seamless appearance. It maintains consistent interior temperature, minimizes dirt and dust, and allows unobstructed views.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1242-1UD-PW
• Country of Origin: USA

Technical Specifications

• MPN: PH1242-1UD-PW
• Series: PH (Phantom) Series
• Heating Mode: Unheated
• Nozzle Width: 42 inches
• Unit Width: 42 inches
• Unit Height: 17 inches
• Wind Stopping Capability: 12 MPH
• Horsepower: 1
• Motors: 1
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 208-230/1/60
• Voltage Code: D
• Air Curtain Air Volume (CFM): 2471
• Amps: 5
• Uniformity (%): 87
• dBA: 70
• Motor: 1 Motor
• Voltage: 208-230v
• Phase: 1PH
• Hertz: 60Hz
• Width: 42"
• MAX. OPENING HEIGHT (WINDOW/DOOR): 12 Ft
• Product Dimensions Height: 15.50"
• Product Dimensions Width: 42.00"
• Product Dimensions Depth: 26.00"
• Air Volume (CFM): 2471
• Application: Main Entrances
• ETL Listed: Yes
• HP: 1 HP
• Max Environmental Separation Height: 16 Feet
• Max Insect Blocking Height: 14 Feet
• Power: Electric
• Type: Unheated Air Curtains
• Volts: 208/230 Volts
• Wattage: 1,260 Watts
• Max. Door/Window Height (ft.): 16
• Max. Height Insect Block (ft.): 14
• Depth (in.): 26
• Height (in.): 17
• Length (in.): 42
• Product Type: Unheated
• Door width: 42"
• Door height: 12'
• Full load amps: 5 A
• Sound pressure level: 70 dBA
• Average velocity: 2824 fpm
• Volume: 2471 cfm
• Net weight: 90 lbs
• Certifications: ETL Listed, AMCA
