Mars PH1242-1UA-PW Phantom 12 42 inch 1 HP

Product Description

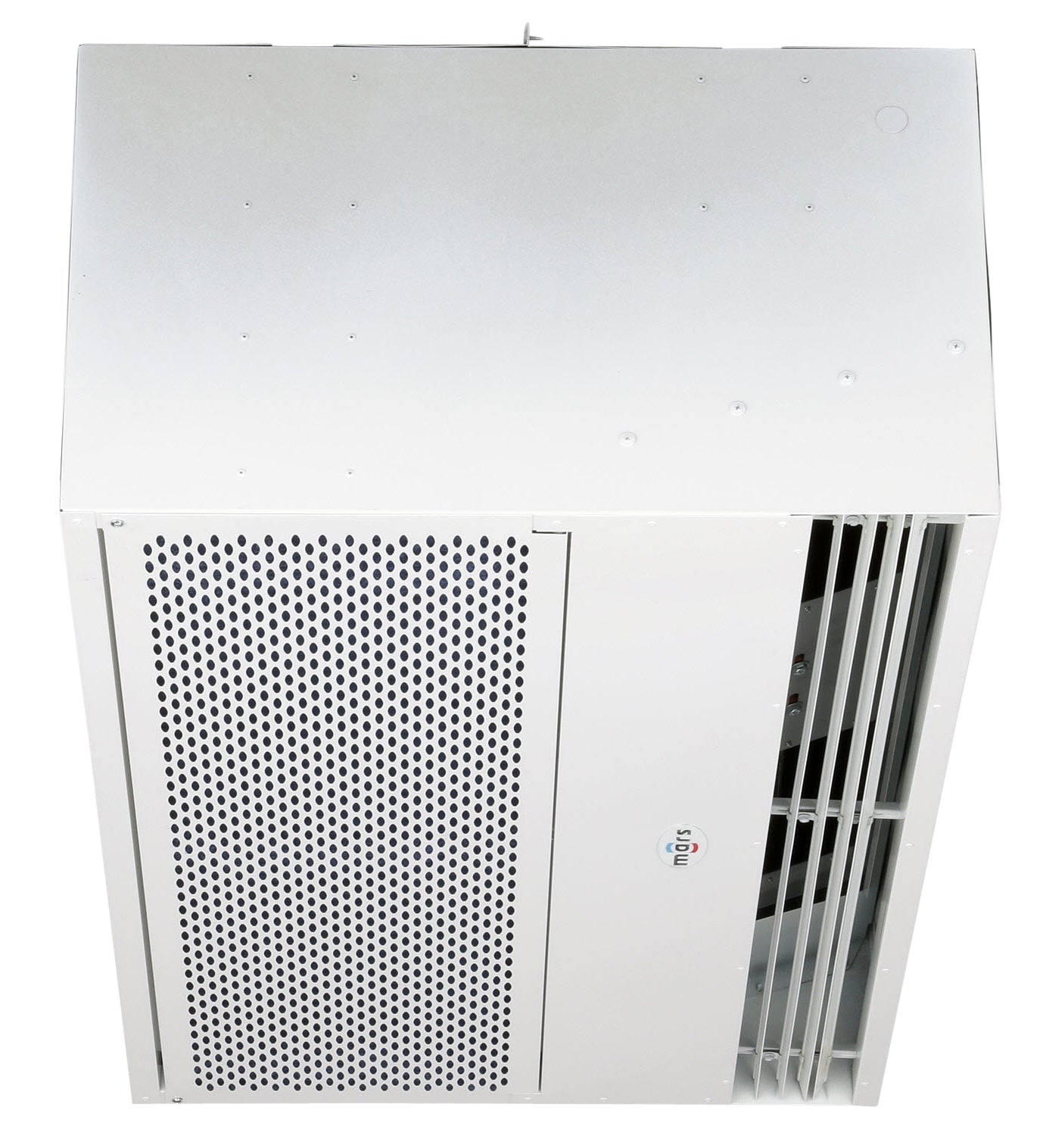

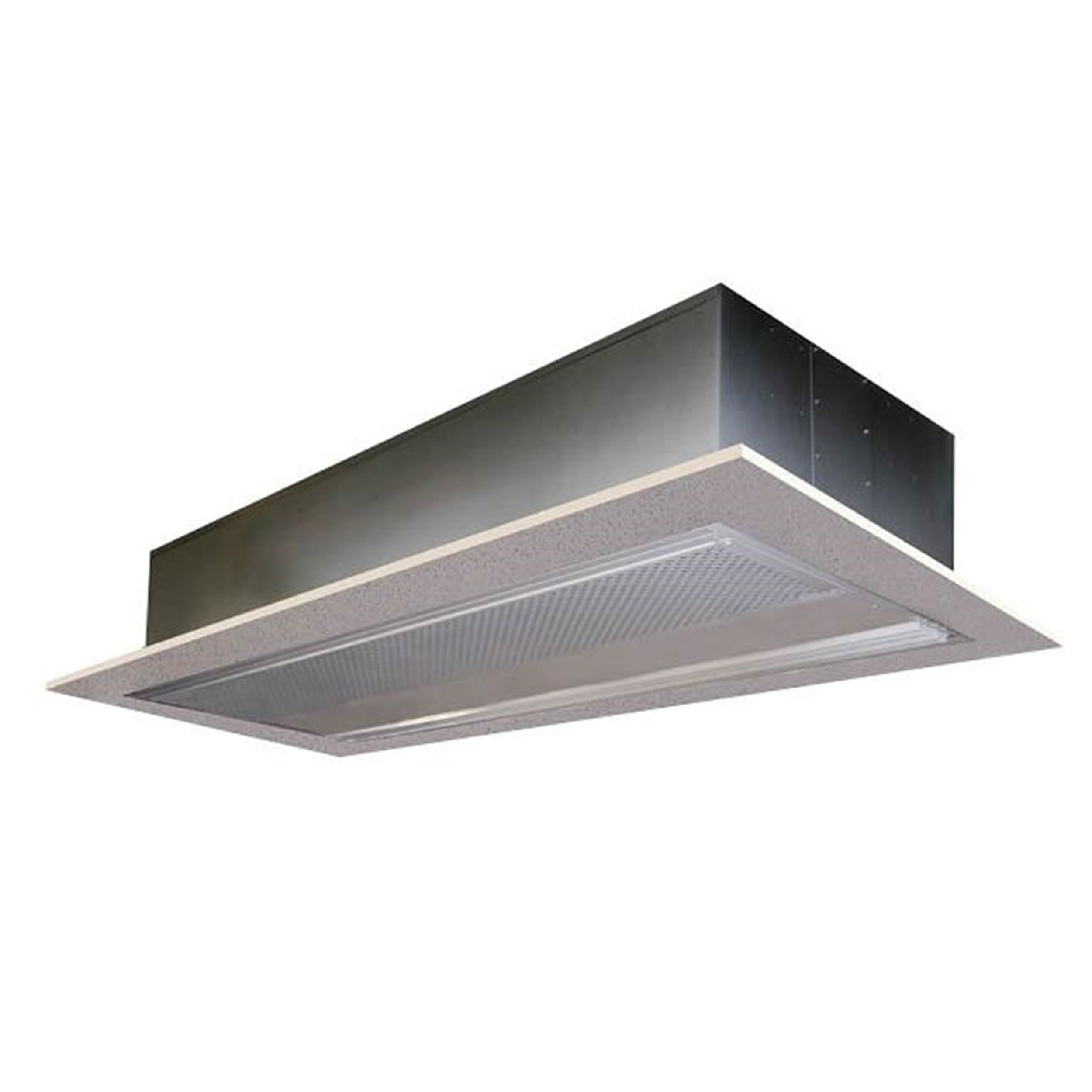

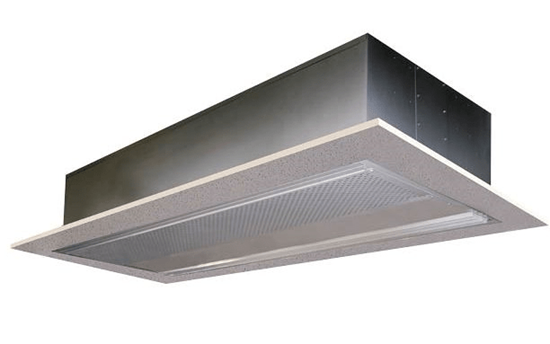

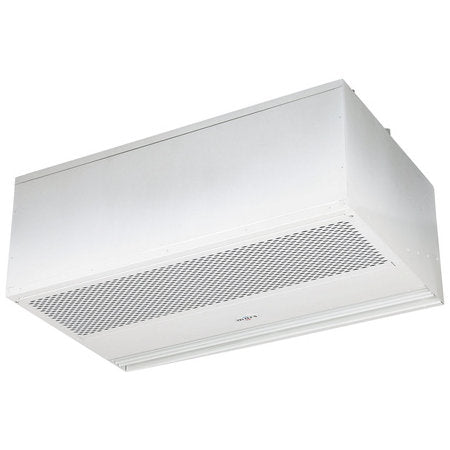

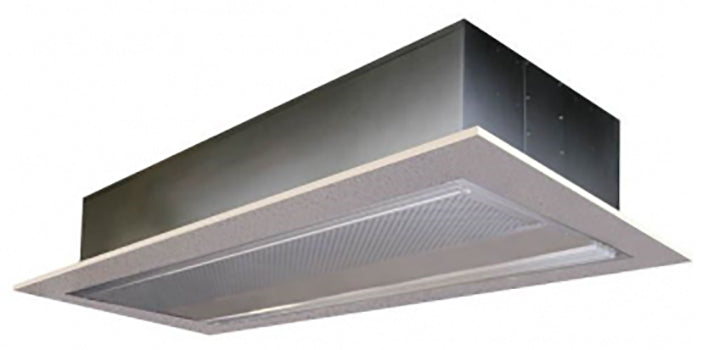

The MARS PH1242-1UA-PW Phantom 12 Series air curtain is designed for architects needing performance and protection while blending with building aesthetics. It features internal components like the 1 HP HV units, concealed in a recess-mountable ceiling housing. This unit operates quietly and effectively. It provides environmental separation up to 16 feet and insect control up to 14 feet.

• Designed for architects and designers
• Blends in with building aesthetics
• Recess-mountable into the ceiling
• Quieter and less conspicuous

Product Highlights

Ideal for maintaining interior temperatures, minimizing dust, controlling insects, and reducing energy consumption in restaurants, retail spaces, and healthcare facilities.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1242-1UA-PW
• Country of Origin: USA

Technical Specifications

• MPN: PH1242-1UA-PW
• Environmental - Max Height (feet): 16
• Insect - Max Height (feet): 14
• Series: PH (Phantom) Series
• Heating Mode: Unheated
• Nozzle Width (inches): 42
• Unit Width (inches): 42
• Unit Height (inches): 17
• Wind Stopping Capability (MPH): 12
• Horsepower: 1
• Motors: 1
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 115/1/60
• Voltage Code: A
• Air Curtain Air Volume (CFM): 2471
• Amps: 9
• Uniformity (%): 87
• dBA: 70
• Application: Main Entrances
• ETL Listed: Yes
• Exterior Summary: Aluminum
• Max Environmental Separation Height: 16 Feet
• Max Insect Blocking Height: 14 Feet
• Phase: Single Phase
• Power: Electric
• Type: Unheated Air Curtains
• Volts: 115 Volts
• Wattage: 1,260 Watts
• Max. Door/Window Height (ft.): 16
• Max. Height Insect Block (ft.): 14
• Heat: No
• Voltage: 110-120V
• Depth (in.): 26
• Length (in.): 42
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Door width: 42"
• Door height: 12'
• Full load amps: 9 A
• Sound pressure level: 70 dBA
• Average velocity: 2824 fpm
• Volume: 2471 cfm
• Net weight: 90 lbs
