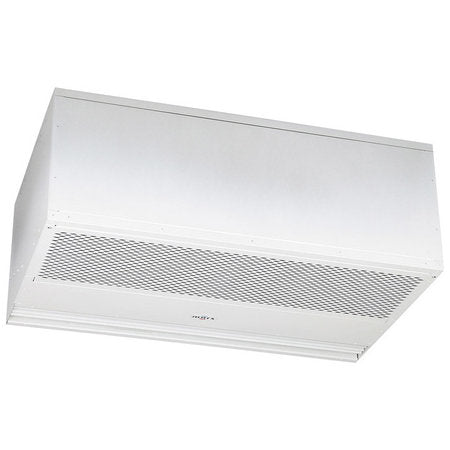

Mars PH12144-4UH-PW Air Systems 144 inches Unheated Air Curtain

Product Description

The MARS PH12144-4UH-PW is a 144" ceiling-mounted air curtain from the Phantom 12 Series, designed to provide an environmental barrier. This unheated air curtain features four 1 HP continuous-duty TEAO motors and is ETL certified to conform to UL 2021 (US) and CSA 22.2 (Canada) standards. It has adjustable air directional vanes with a 40° sweep and a rust-preventative electrostatic polyurethane powder coating.

• Equipped with (4) 1 HP Continuous Duty TEAO Motors
• Designed for recessed ceiling mounting
• ETL Certified to conform to UL 2021 (US) and CSA 22.2 (Canada) Standards

Product Highlights

This 460V, three-phase air curtain is ideal for creating an effective barrier against environmental elements and insects in doorways up to 14' high. Its durable aluminum construction and cleanable polyester filters ensure long-lasting performance.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH12144-4UH-PW

Technical Specifications

• Width: 144 Inches
• Depth: 26 Inches
• Height: 15.5 Inches
• Exterior Color: White
• HP: 1 HP
• Max Environmental Separation Height: 14 Feet
• Max Insect Blocking Height: 10 Feet
• Motors: 4
• Phase: Three Phase
• Power: Electric
• Series: Phantom 12
• Type: Unheated Air Curtains
• Volts: 460 Volts
• Wattage: 4,632 Watts
• Max. Door/Window Height (ft.): 16
• Max. Height Insect Block (ft.): 14
• Heat: No
• Horsepower: 1 (per motor)
• Voltage: 460V
• Length (in.): 144
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
