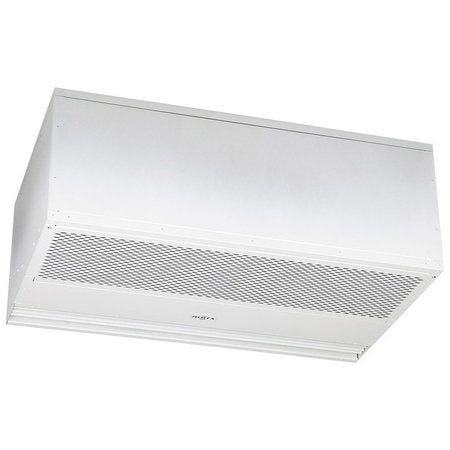

Mars PH12144-4UD-PW Phantom 12 Series Unheated Air Curtain - 144 inches

Product Description

The MARS PH12144-4UD-PW Phantom 12 Series air curtain provides an environmental barrier for spaces up to 16 feet and insect protection up to 14 feet. Designed for recessed ceiling installation, it features four 1-horsepower motors and durable aluminum construction with a powder-coated pearl white finish. It includes a washable polyester filter for easy maintenance. Ideal for shipping/receiving doors and customer entrances.

• Provides an environmental barrier up to 16 feet
• Protects your space from insects up to 14 feet
• Recessed into the ceiling for a pleasing aesthetic

Product Highlights

The PH12 series offers a cost-efficient barrier that blends into any environment with durable metal construction and a pearl white finish.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH12144-4UD-PW

Technical Specifications

• Max. Door/Window Height (ft.): 16
• Max. Height Insect Block (ft.): 14
• Heat: No
• Horsepower: 1 (per motor)
• Voltage: 208-230V
• Depth (in.): 26
• Height (in.): 17
• Length (in.): 144
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Exterior Color: White
• HP: 1 HP
• Max Environmental Separation Height: 14 Feet
• Motors: 4
• Phase: Single Phase
• Power: Electric
• Series: Phantom 12
• Type: Unheated Air Curtains
• Wattage: 4,632 Watts
• Door width: 144"
• Door height: 12'
• Full load amps: 20 A
• Sound pressure level: 75 dBA
• Average velocity: 3097 fpm
• Volume: 9292 cfm
