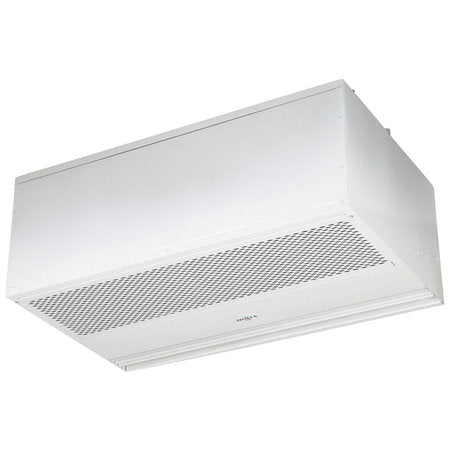

Mars PH12120-2UA-PW Phantom 12 Series Air Curtain 1 HP 120 Inches

Product Description

The MARS PH12120-2UA-PW Phantom Series air curtain is designed for effective environmental separation with a seamless appearance. This 1 HP electric air curtain can be recess-mounted into ceilings for concealed installation. It maintains interior temperature and minimizes dirt, dust, and fumes. Suitable for main entrances, it allows unobstructed views and enhances safety.

• Provides environmental separation while creating a seamless appearance.
• Recess mounts in ceilings for invisible coverage.
• Maintains consistent interior temperature and minimizes dirt, dust, and fumes.

Product Highlights

Designed for environmental separation, the Phantom Series air curtain offers concealed installation and maintains consistent interior temperature.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH12120-2UA-PW
• Country of Origin: USA

Technical Specifications

• Air Volume (CFM): 5518
• Application: Main Entrances
• ETL Listed: Yes
• Exterior Color: White
• Exterior Summary: Aluminum
• HP: 1 HP
• Max Environmental Separation Height: 16 Feet
• Max Insect Blocking Height: 14 Feet
• Motors: 2
• Phase: Single Phase
• Power: Electric
• Series: Phantom 12
• Type: Unheated Air Curtains
• Volts: 115 Volts
• Wattage: 3,070 Watts
• Width: 120 Inches
• Depth: 26 Inches
• Height: 15.5 Inches
• Voltage: 110-120V
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Horsepower: 1 (per motor)
• Length (in.): 120
