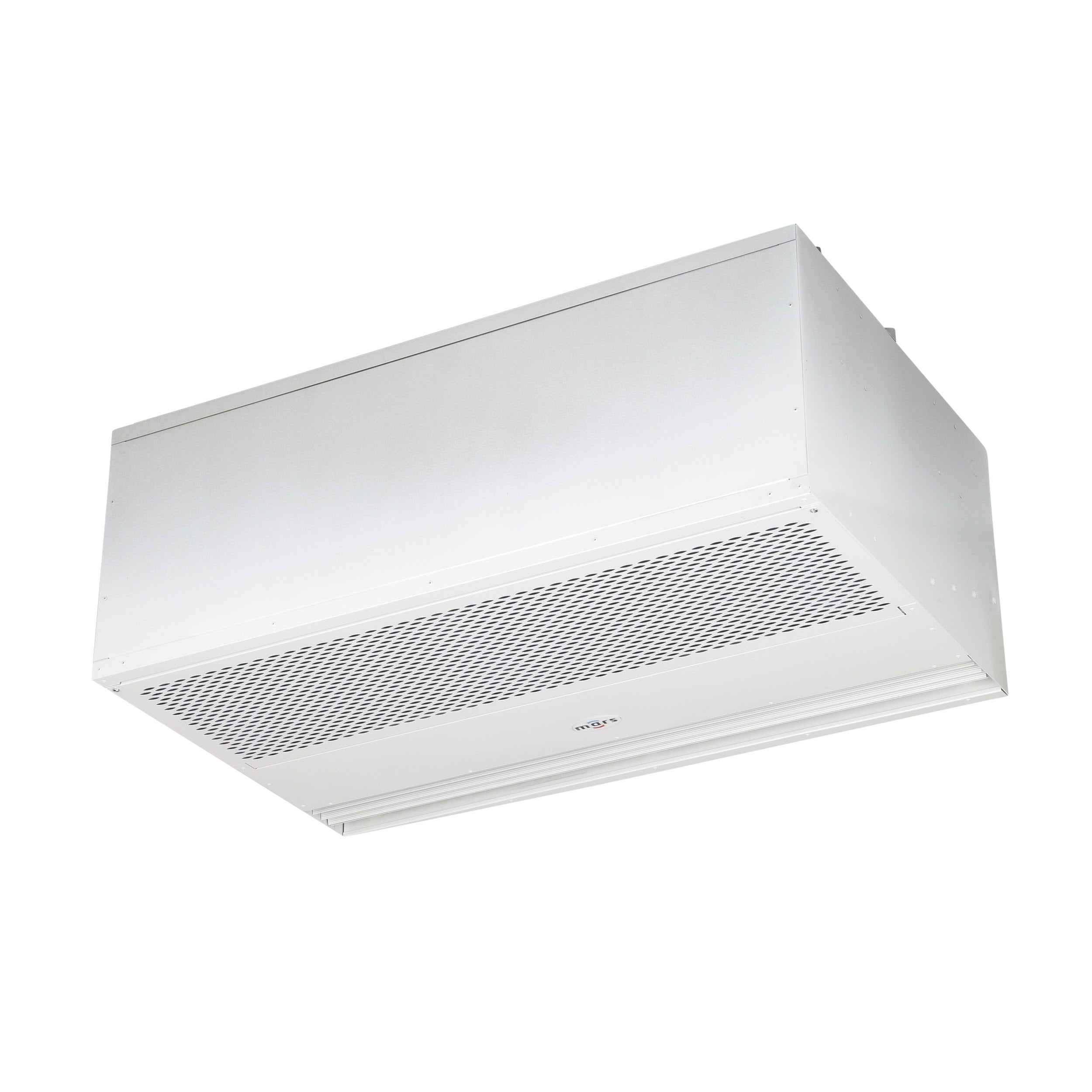

Mars PH1096-2UG-PW Phantom 10 Air Curtain For 96 inchesW Door, Unheated

Product Description

The MARS PH1096-2UG-PW Phantom 10 air curtain is designed for 96"W doors and is unheated. It features an aluminum cabinet with a Pearl White powder coat finish and is equipped with two 1/2 HP motors. Operating at 208-230v/60/3-ph, this air curtain is cETLus certified and provides an environmental barrier up to 12 feet and protects from insects up to 10 feet.

• Designed for 96"W door openings
• Features two 1/2 HP motors
• Recessed mounting for a less conspicuous aesthetic

Product Highlights

This unheated air curtain provides effective environmental separation while maintaining a consistent interior temperature and minimizing dirt, dust, and fumes.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1096-2UG-PW
• Country of Origin: USA

Technical Specifications

• Manufacturer: Mars Air Systems
• Model Number: PH1096-2UG-PW
• Width: 96 Inches
• Depth: 26 Inches
• Height: 15.5 Inches
• Type: un-heated
• Horse Power Per Motor: 1/2 hp
• Motors: 2
• Certifications: ETL Listed, AMCA
• Max. Door/Window Height (ft.): 12
• Max. Height Insect Block (ft.): 10
• Heat: No
• Voltage: 208-230V
• Phase: 3-Ph
• Hertz: 60
• Air Volume (CFM): 3264
• Application: Main Entrances
• Exterior Color: White
• Exterior Summary: Aluminum
• HP: 1/2 HP
• Max Environmental Separation Height: 12 Feet
• Max Insect Blocking Height: 10 Feet
• Power: Electric
• Series: Phantom 10
• Product Type: Unheated
• Volts: 208/230 Volts
• Wattage: 1,040 Watts
