Mars PH1096-2UD-PW Phantom 10 (PH10) 96 inch Unheated

Product Description

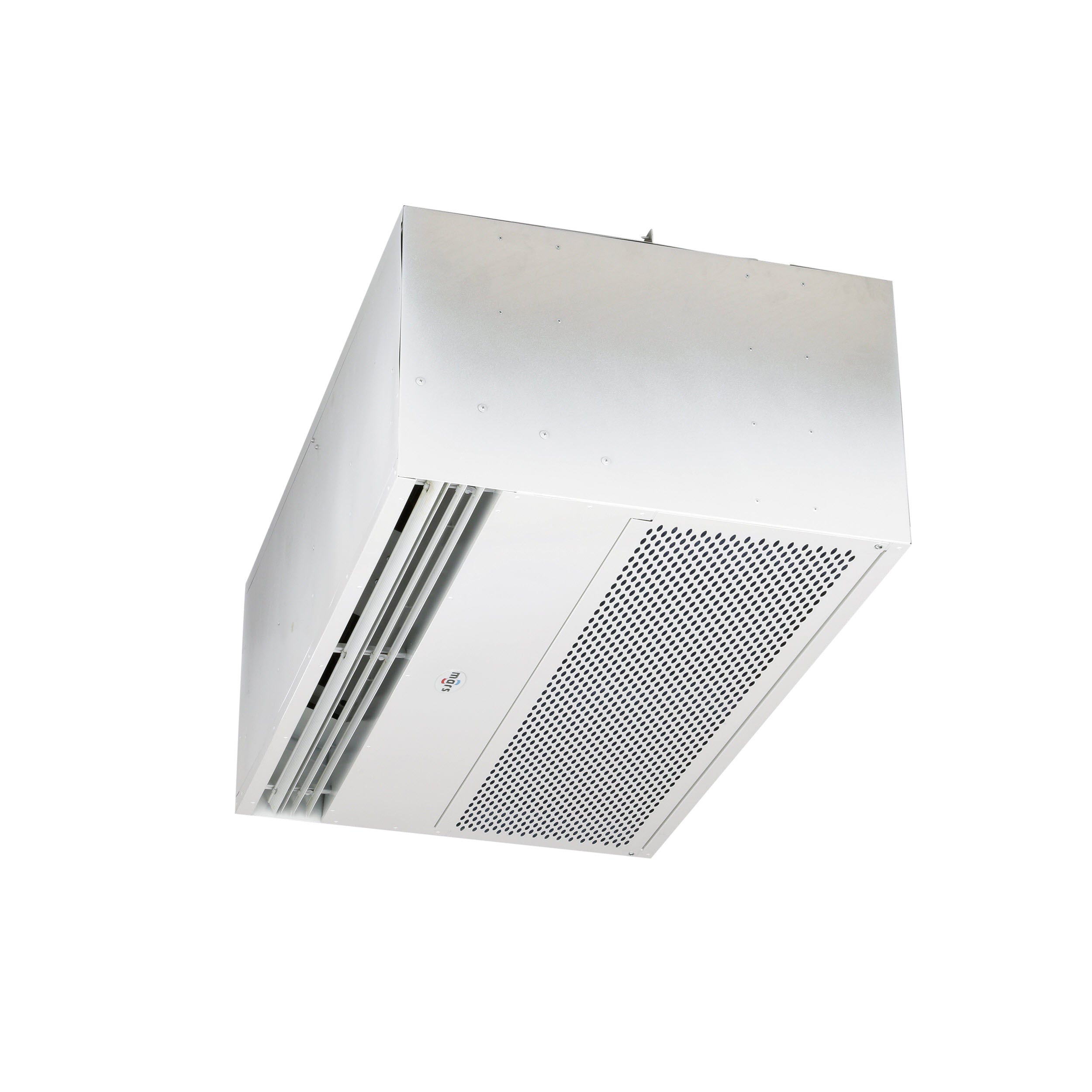

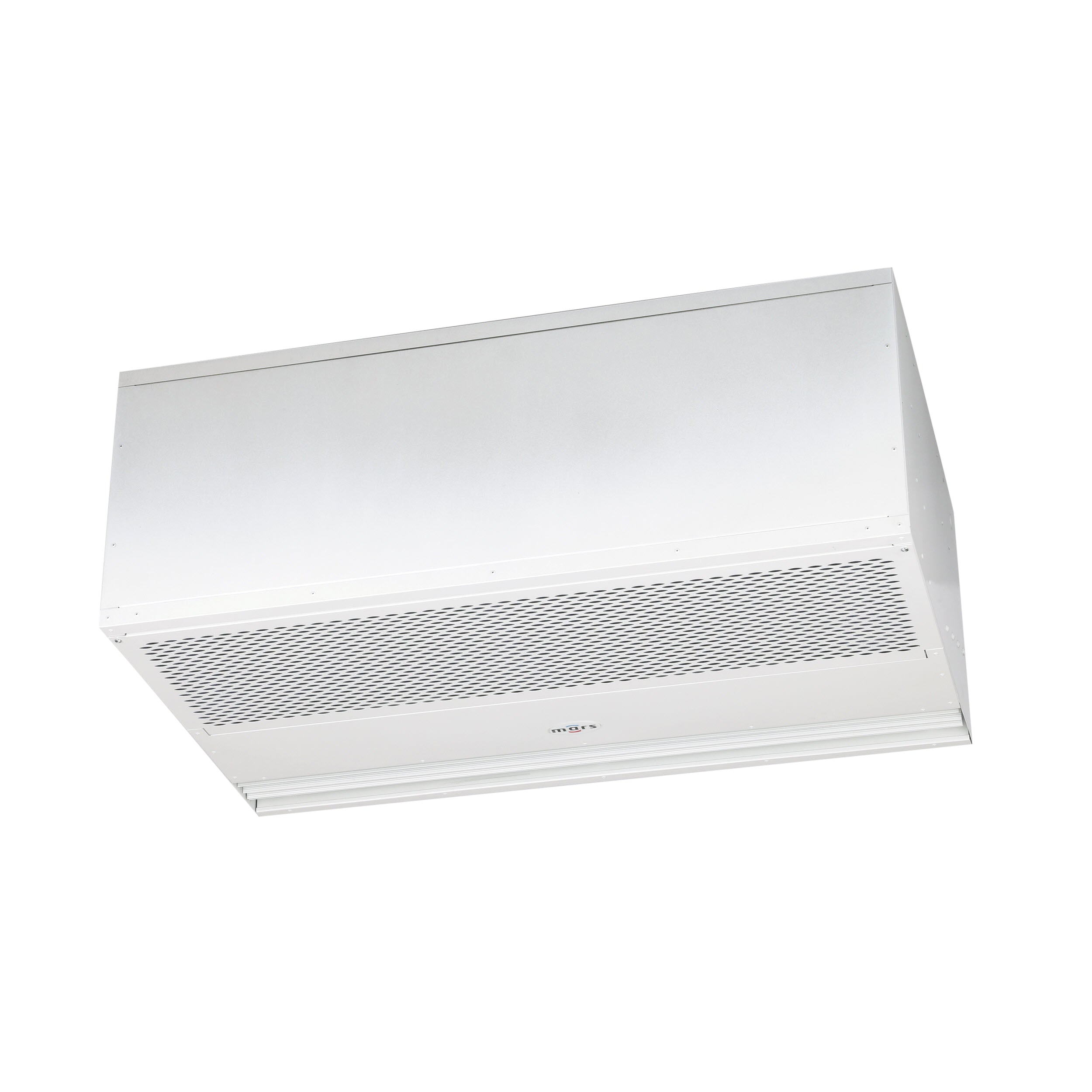

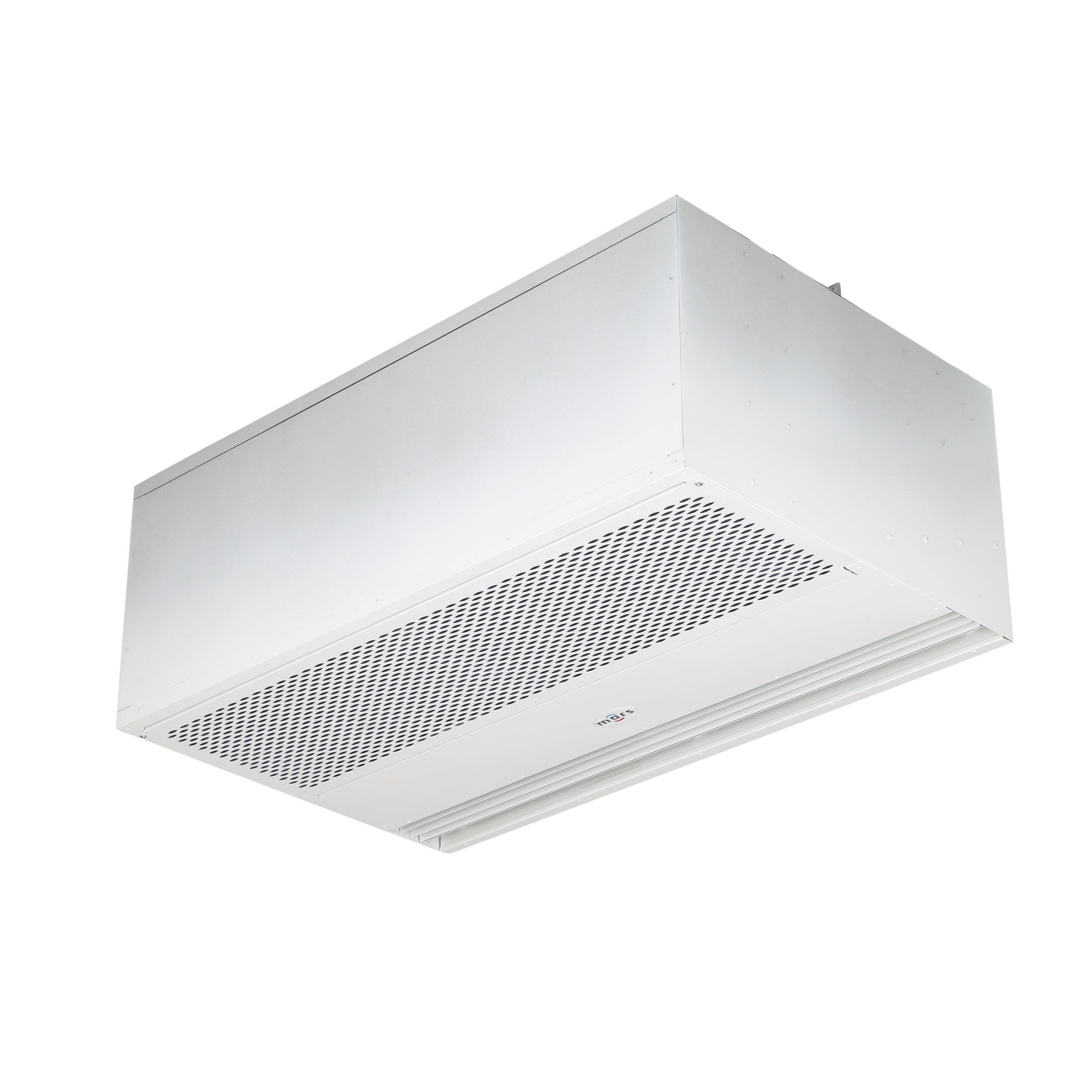

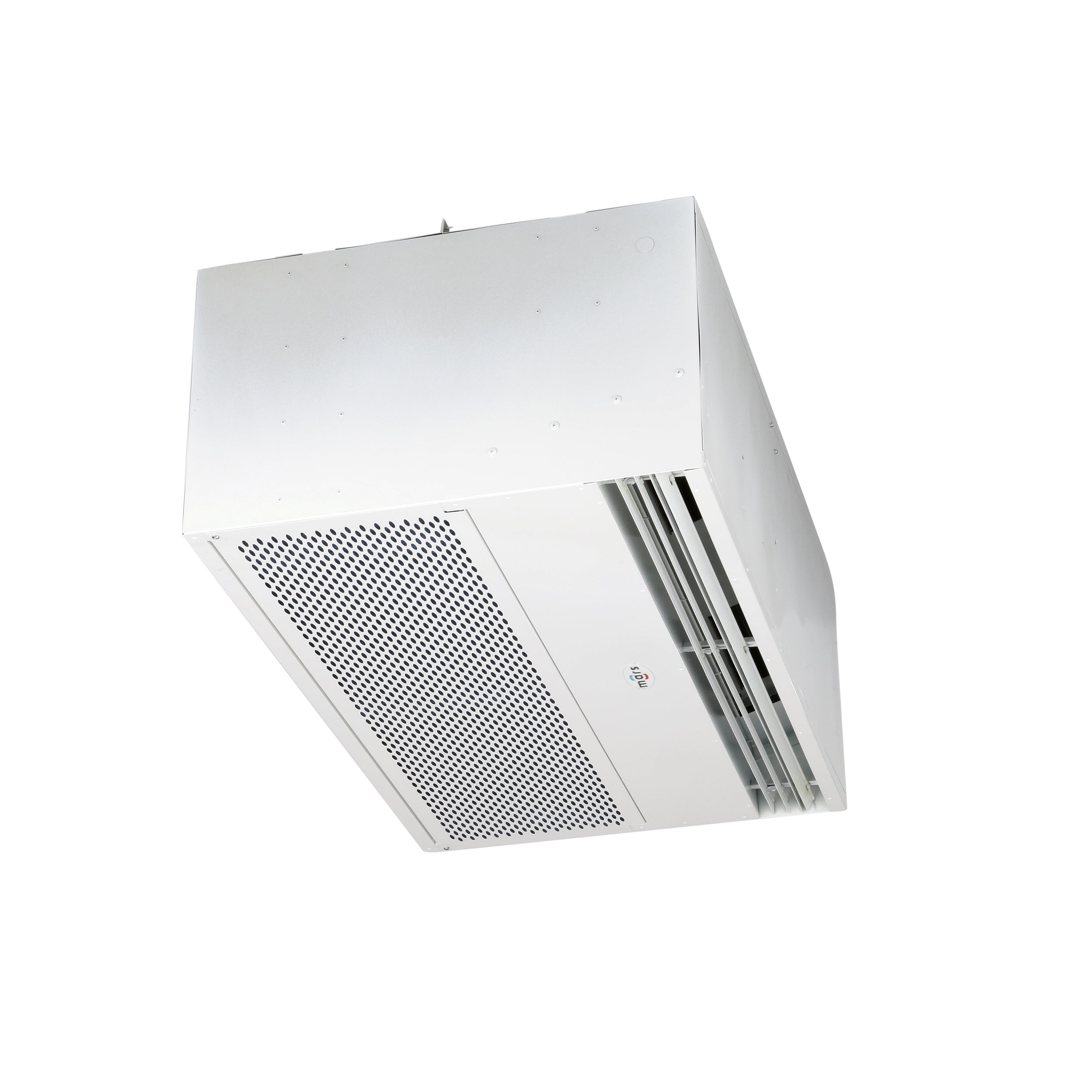

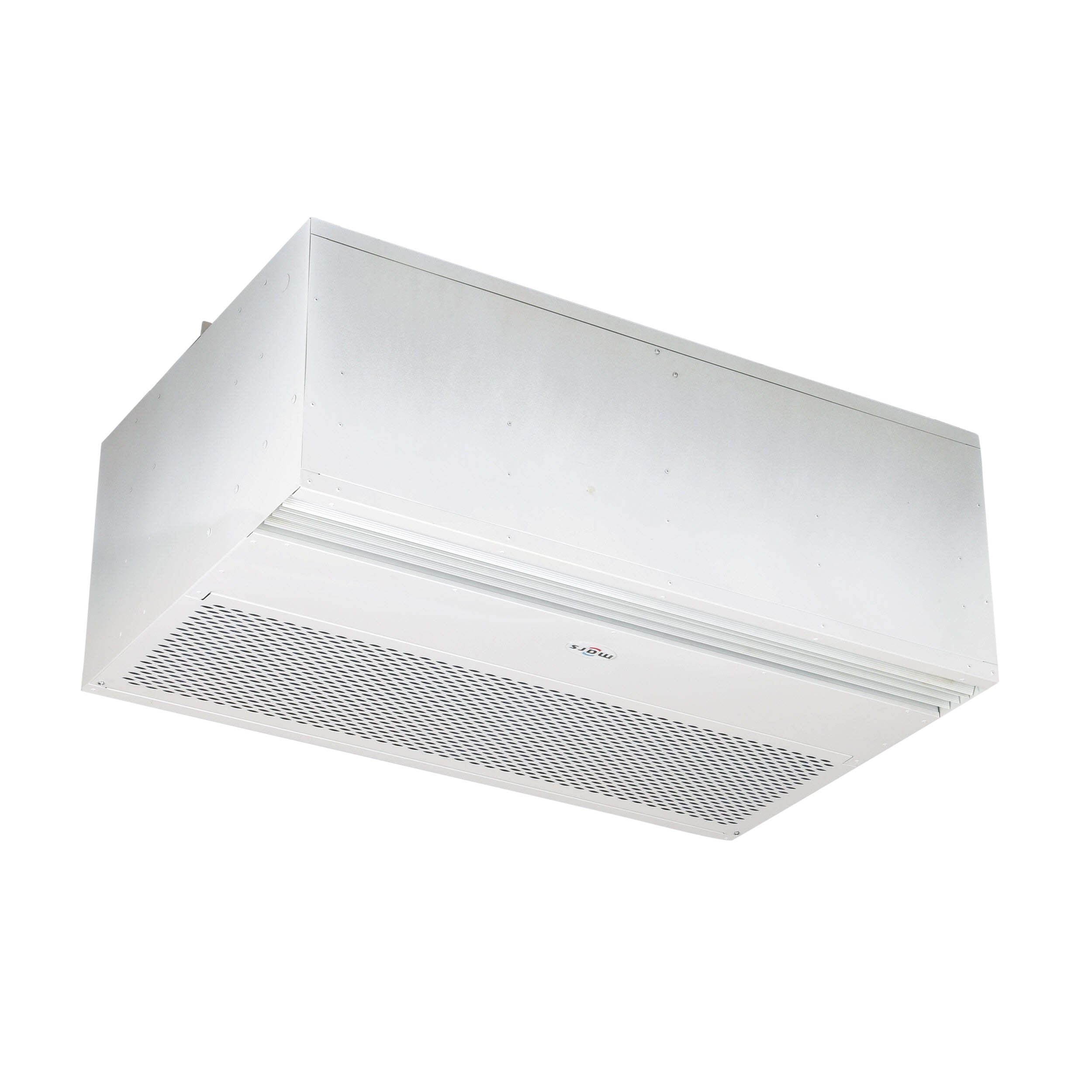

The MARS PH1096-2UD-PW Phantom Series air curtain is designed for architects, blending seamlessly with building aesthetics. Featuring the same high-performance internal components as the 1/2 HP Standard Units, it can be concealed and recess-mounted into a ceiling. This unit provides environmental separation up to 12 feet and insect control up to 10 feet.

• Designed for architects and designers
• Blends in with building aesthetics
• Can be concealed and recess-mounted
• Quieter and less conspicuous

Product Highlights

The Phantom series provides top performance with a concealed design. Ideal for environments needing both functionality and a seamless look.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1096-2UD-PW

Technical Specifications

• MPN: PH1096-2UD-PW
• Environmental - Max Height (feet): 12
• Insect - Max Height (feet): 10
• Series: PH (Phantom) Series
• Heating Mode: Unheated
• Nozzle Width (inches): 96
• Unit Width (inches): 96
• Unit Height (inches): 17
• Wind Stopping Capability (MPH): 12
• Horsepower: 1/2
• Motors: 2
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 208-230/1/60
• Voltage Code: D
• Air Curtain Air Volume (CFM): 3264
• Amps: 5
• Uniformity (%): 91
• dBA: 68
• Max. Door/Window Height (ft.): 12
• Max. Height Insect Block (ft.): 10
• Heat: No
• Voltage: 208-230V
• Depth (in.): 26
• Height (in.): 17
• Length (in.): 96
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Phase: 1-Ph
• Hertz: 60
