Product Description

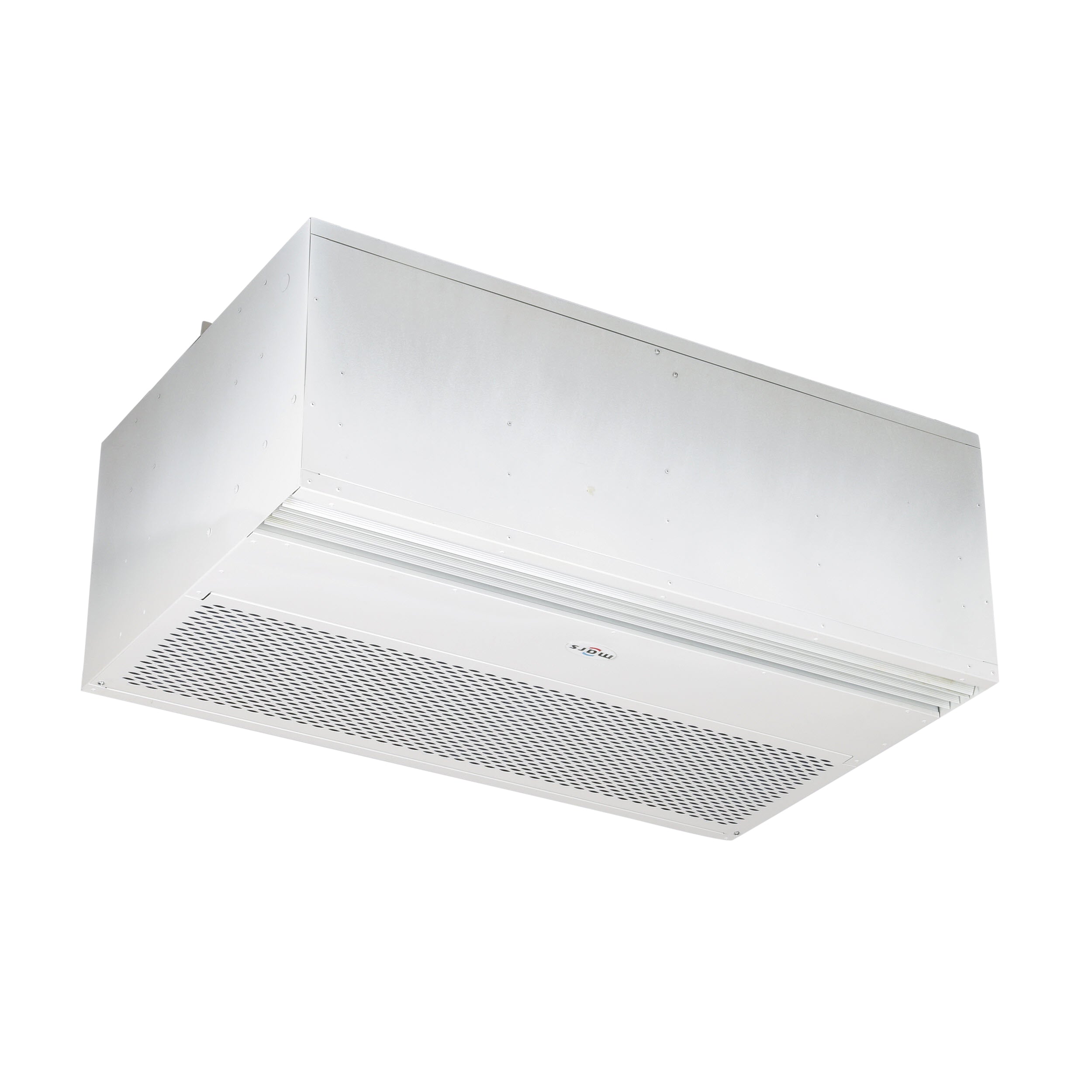

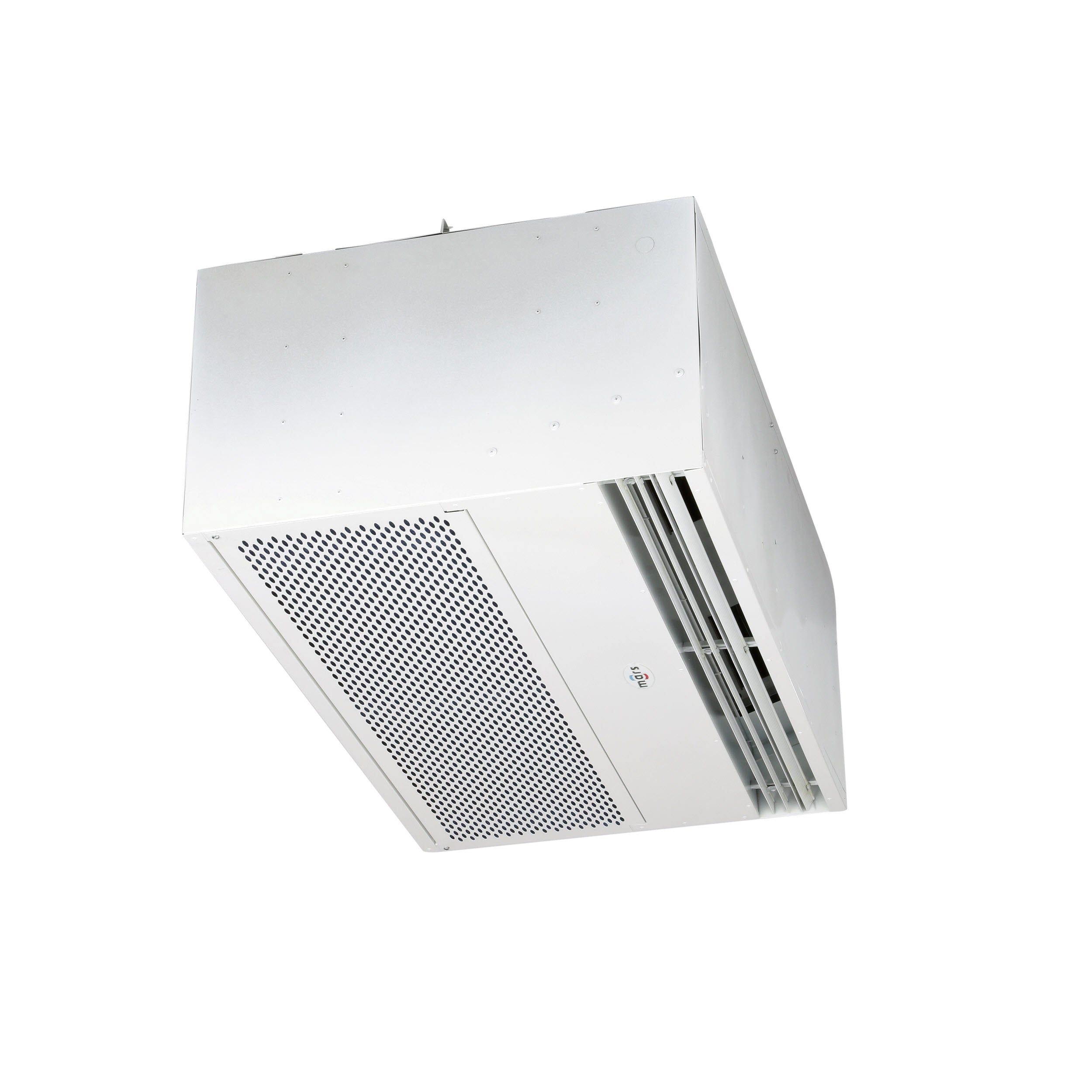

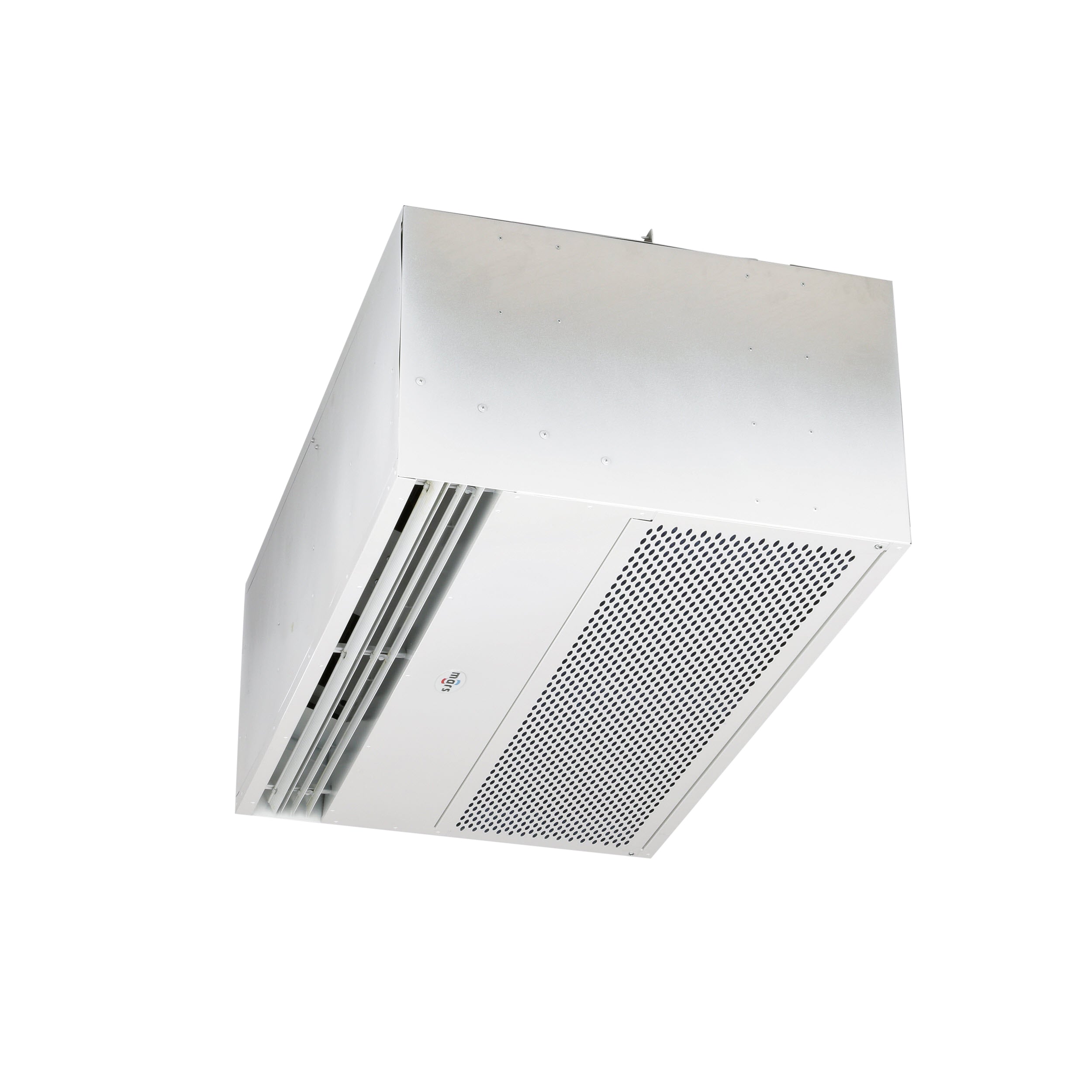

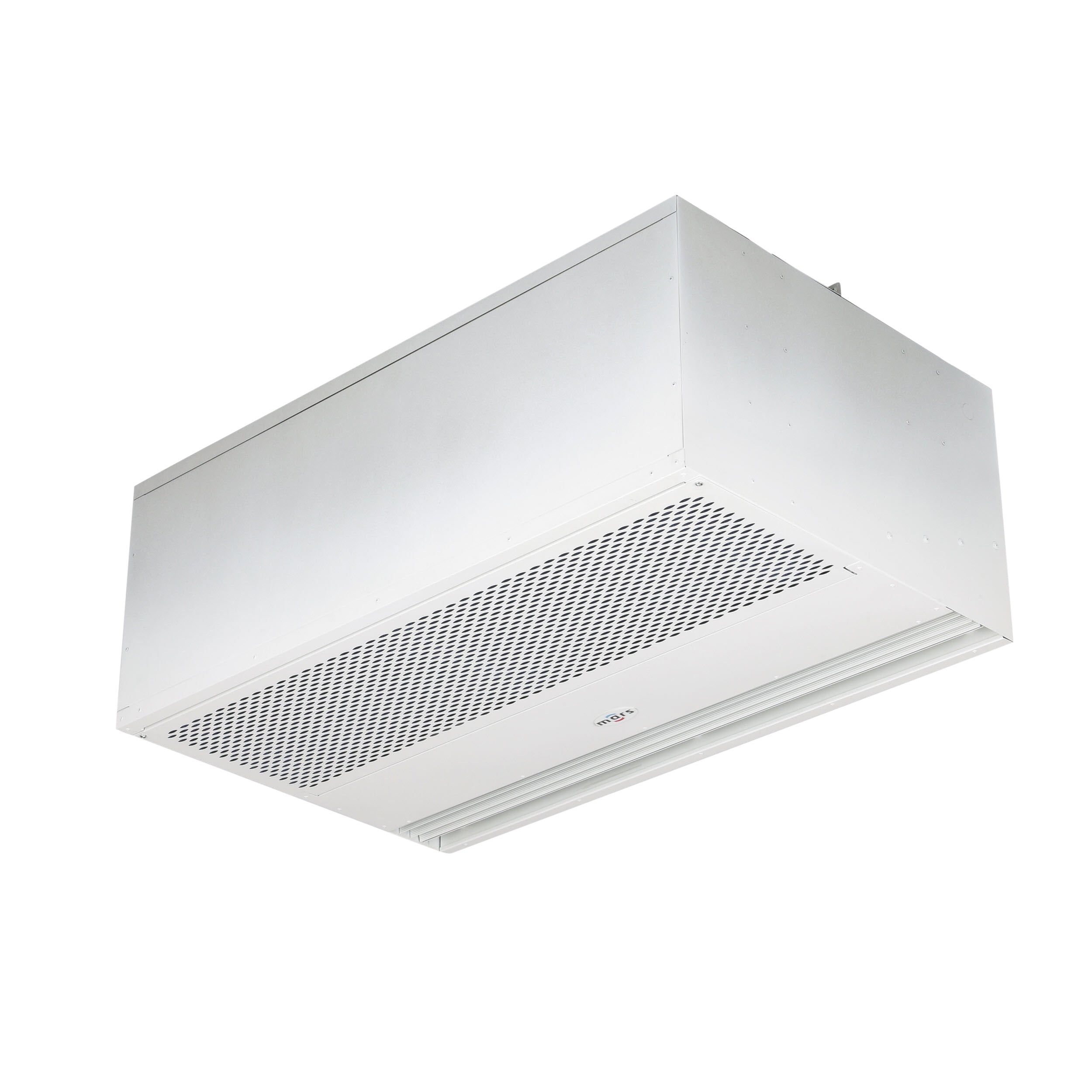

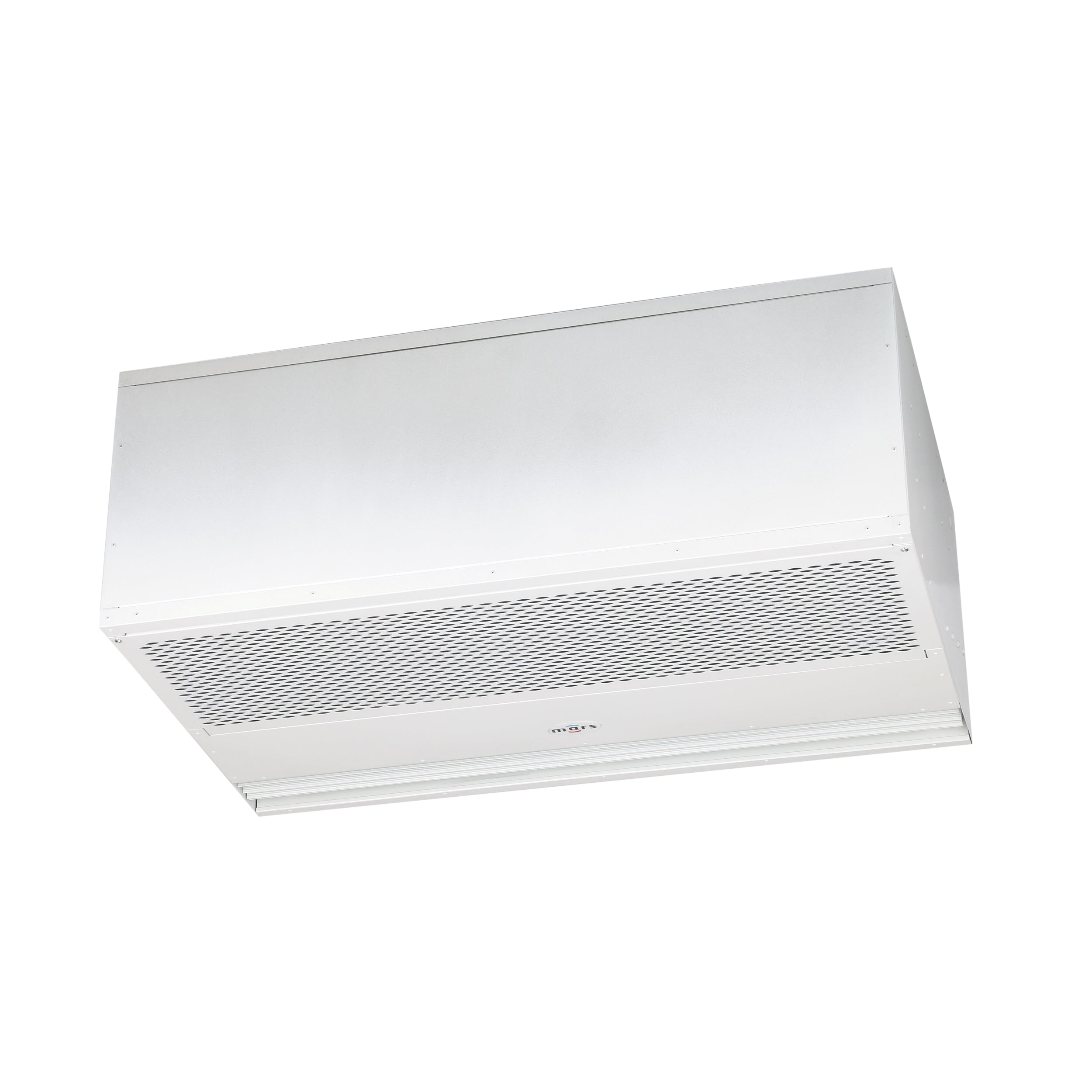

The MARS PH1096-2UA-PW Phantom Series air curtain is designed for architects needing both performance and aesthetic integration. Featuring top-performing internal components like 1/2 HP motors, this unit can be concealed and recess-mounted into a ceiling. It maintains interior temperature and minimizes dirt, dust, and fumes for 96" wide door openings.
- Designed to blend in with building aesthetics
- Can be concealed and recess-mounted into a ceiling
- Quieter and less conspicuous
Product Highlights
Ideal for environmental separation and insect control in restaurants, retail spaces, and healthcare facilities. Features durable aluminum construction and a pearl white finish.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: PH1096-2UA-PW
-
Country of Origin: USA
Technical Specifications
-
MPN: PH1096-2UA-PW
-
Environmental - Max Height (feet): 12
-
Insect - Max Height (feet): 10
-
Series: PH (Phantom) Series
-
Heating Mode: Unheated
-
Nozzle Width (inches): 96
-
Unit Width (inches): 96
-
Unit Height (inches): 17
-
Wind Stopping Capability (MPH): 12
-
Horsepower: 1/2
-
Motors: 2
-
Air Flow Certified (AMCA): Yes
-
Voltage Rating: 115/1/60
-
Voltage Code: A
-
Air Curtain Air Volume (CFM): 3264
-
Amps: 10.2
-
Uniformity (%): 91
-
dBA: 68
-
Model Number: MRS-PH1096-2UA-PW
-
MAX. OPENING HEIGHT (WINDOW/DOOR): 10 Ft
-
TYPE: Un-heated
-
Max. Door/Window Height (ft.): 12
-
Max. Height Insect Block (ft.): 10
-
Voltage: 110-120V
-
Depth (in.): 26
-
Length (in.): 96
-
Certifications: ETL Listed, AMCA
-
Product Type: Unheated
-
Phase: 1-Ph
-
Hertz: 60
-
Dimensions Width: 96 Inches
-
Dimensions Depth: 26 Inches
-
Dimensions Height: 15.5 Inches
-
Application: Main Entrances
-
ETL Listed: Yes
-
Exterior Summary: Aluminum
-
HP: 1/2 HP
-
Max Environmental Separation Height: 12 Feet
-
Max Insect Blocking Height: 10 Feet
-
Power: Electric
-
Wattage: 1,040 Watts
-
Volts: 115 Volts
