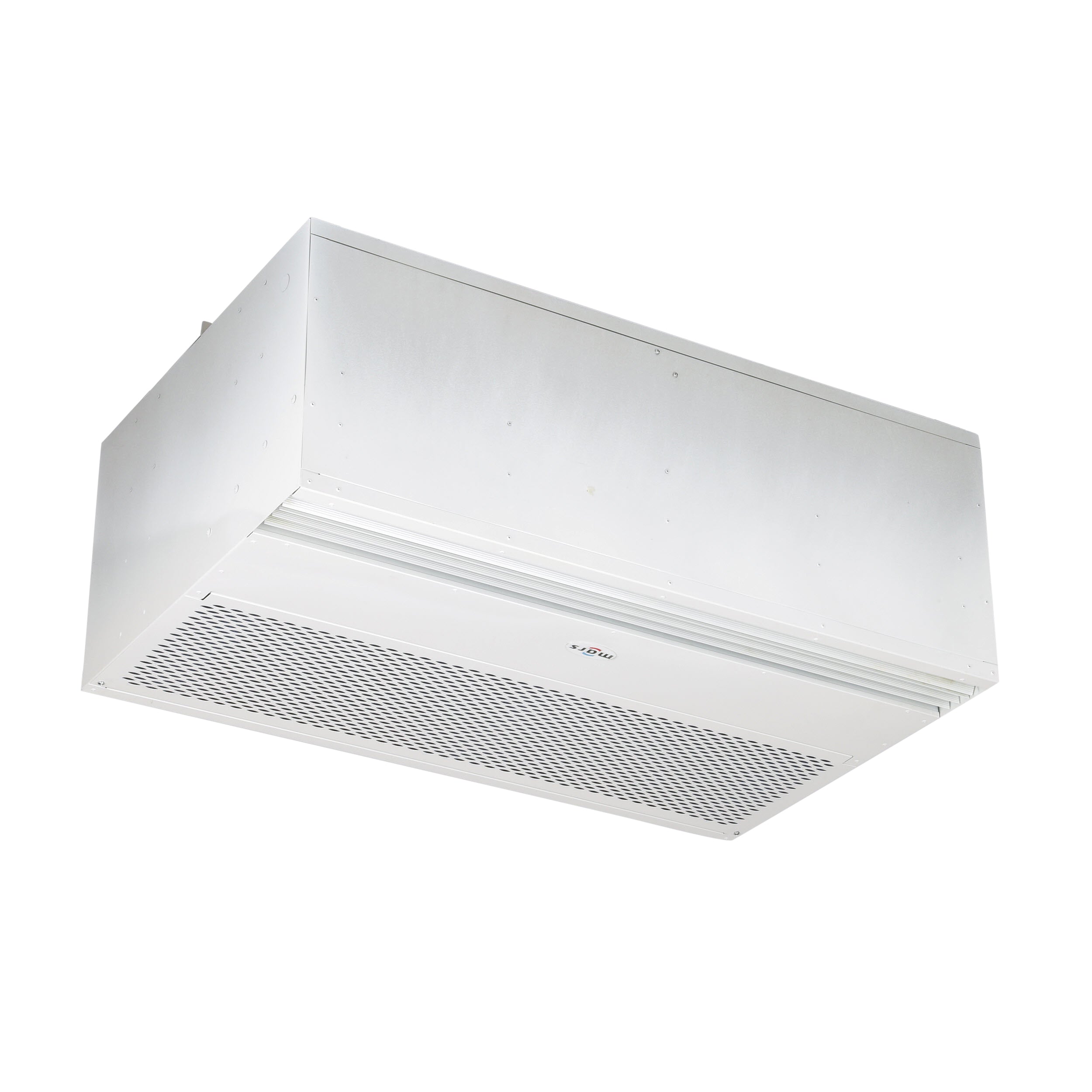

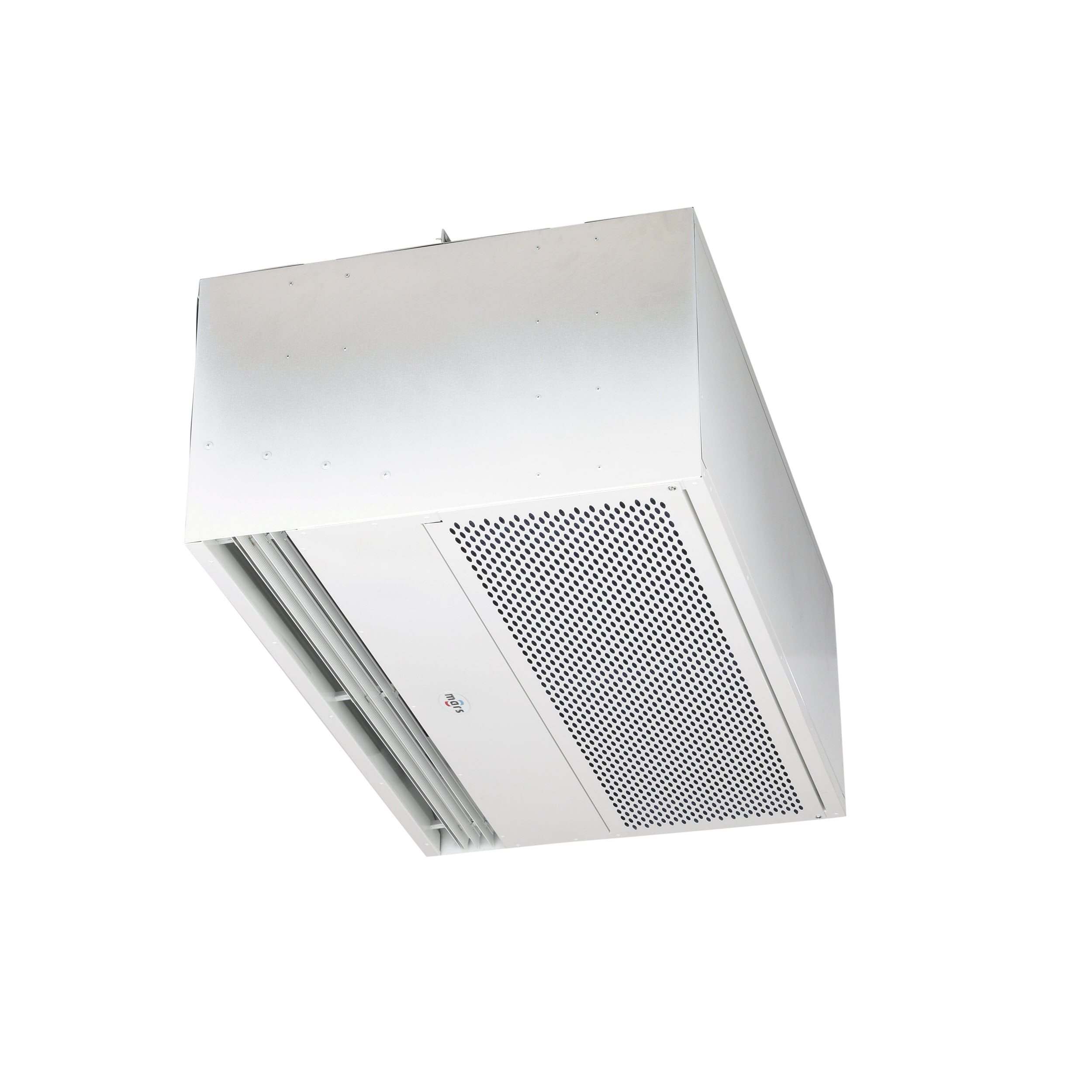

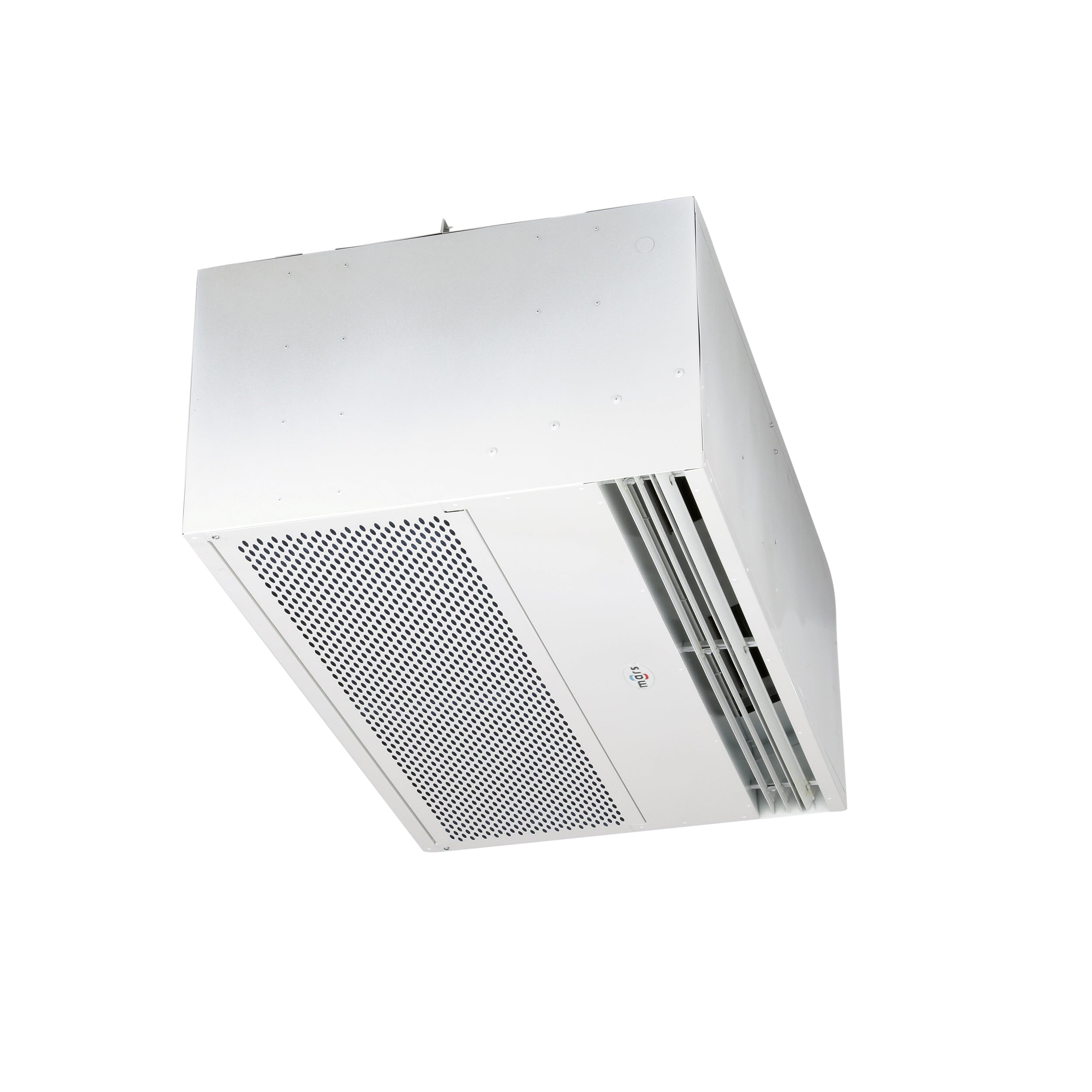

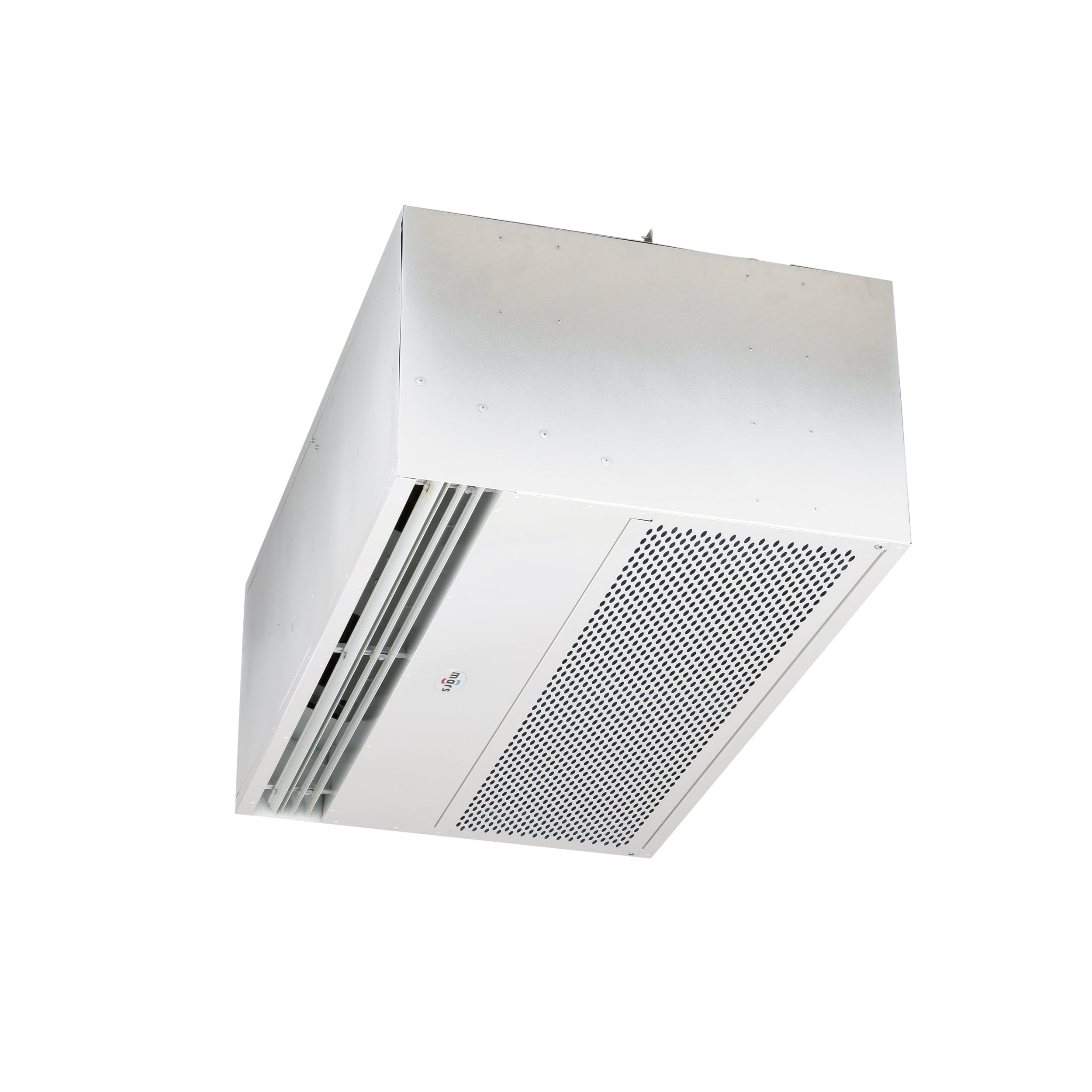

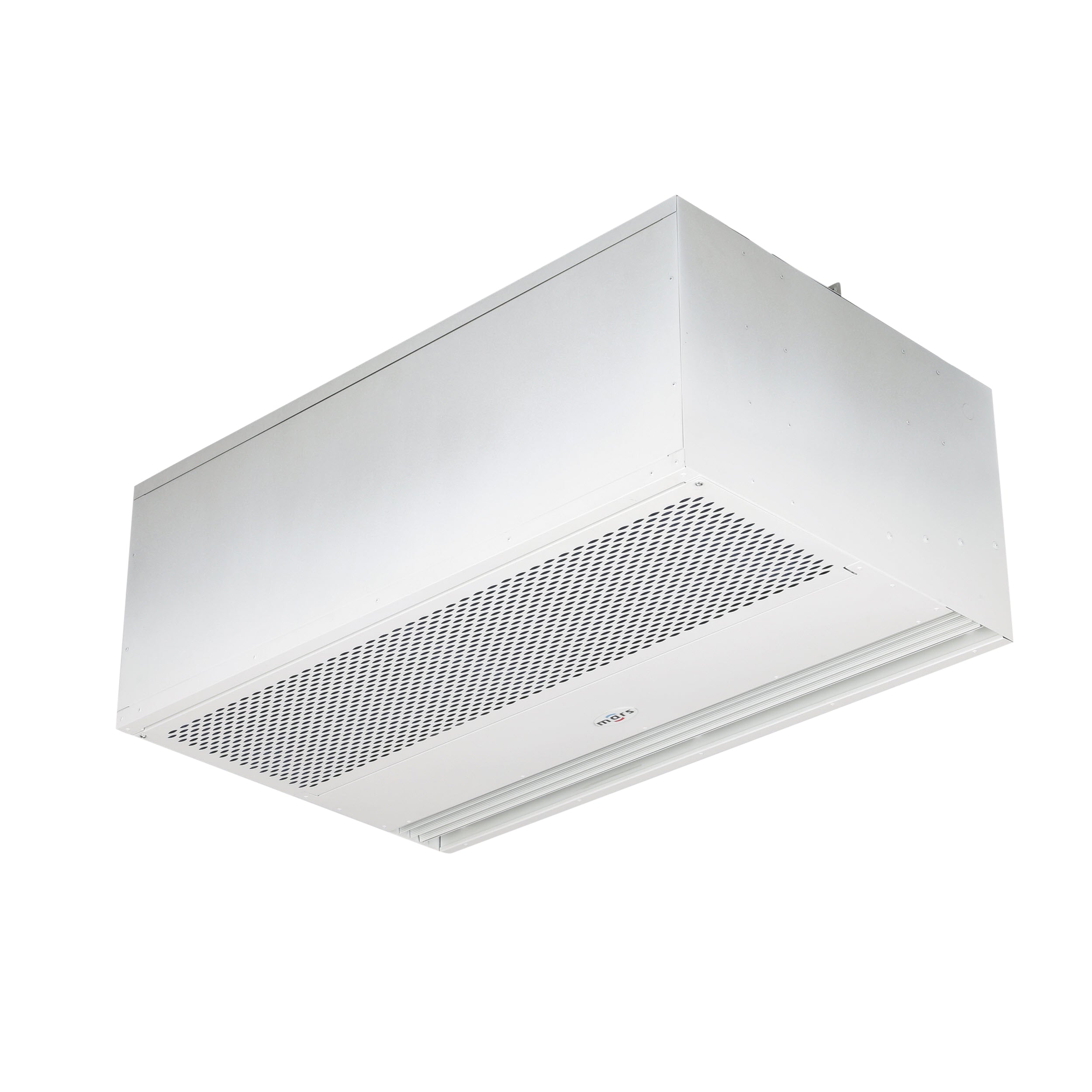

Mars PH1084-2UH-PW Phantom 10 Air Curtain 1/2 HP 84 inch

Product Description

The MARS PH1084-2UH-PW Phantom Series air curtain is designed for architects needing performance and protection while blending with the building's aesthetics. Featuring top-performing internal components like the 1/2 HP Standard Units, it is enclosed in a housing for concealed, recess-mounted ceiling installation. This unit maintains interior temperature and minimizes dirt, dust, and fumes.

• Recessed capabilities for blending into building aesthetic
• Quieter and less conspicuous
• Top-performing internal components as 1/2 HP Standard Units

Product Highlights

The Phantom series provides effective environmental separation with a seamless appearance. It is recess-mounted for invisible coverage, maintaining consistent interior temperature and minimizing contaminants.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1084-2UH-PW
• Country of Origin: USA

Technical Specifications

• MPN: PH1084-2UH-PW
• Environmental - Max Height (feet): 12
• Insect - Max Height (feet): 10
• Series: PH (Phantom) Series
• Heating Mode: Unheated
• Nozzle Width (inches): 84
• Unit Width (inches): 84
• Unit Height (inches): 17
• Wind Stopping Capability (MPH): 12
• Horsepower: 1/2 HP
• Motors: 2
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 460/3/60
• Voltage Code: H
• Air Volume (CFM): 3160
• Amps: 1.6
• Uniformity (%): 89
• dBA: 68
• Application: Main Entrances
• ETL Listed: Yes
• Exterior Summary: Aluminum
• Phase: Three Phase
• Power: Electric
• Type: Unheated Air Curtains
• Volts: 460 Volts
• Wattage: 1,000 Watts
• Hertz: 60Hz
• Configurations: Ambient, Electric, Steam and Hot Water
• Horse Power Per Motor: 1/2 hp
• Max Opening Height Window Door: 8 ft
• Certifications: ETL
