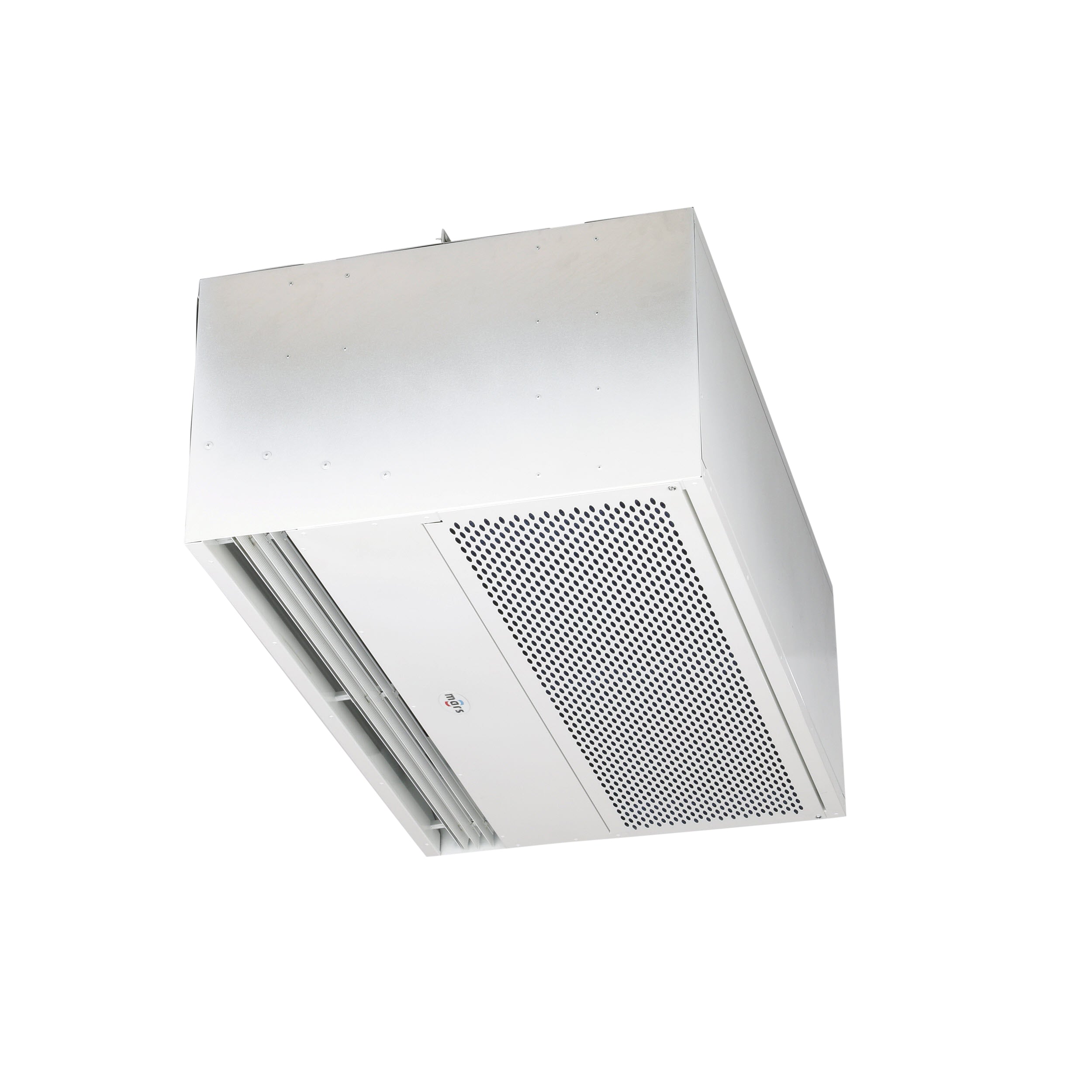

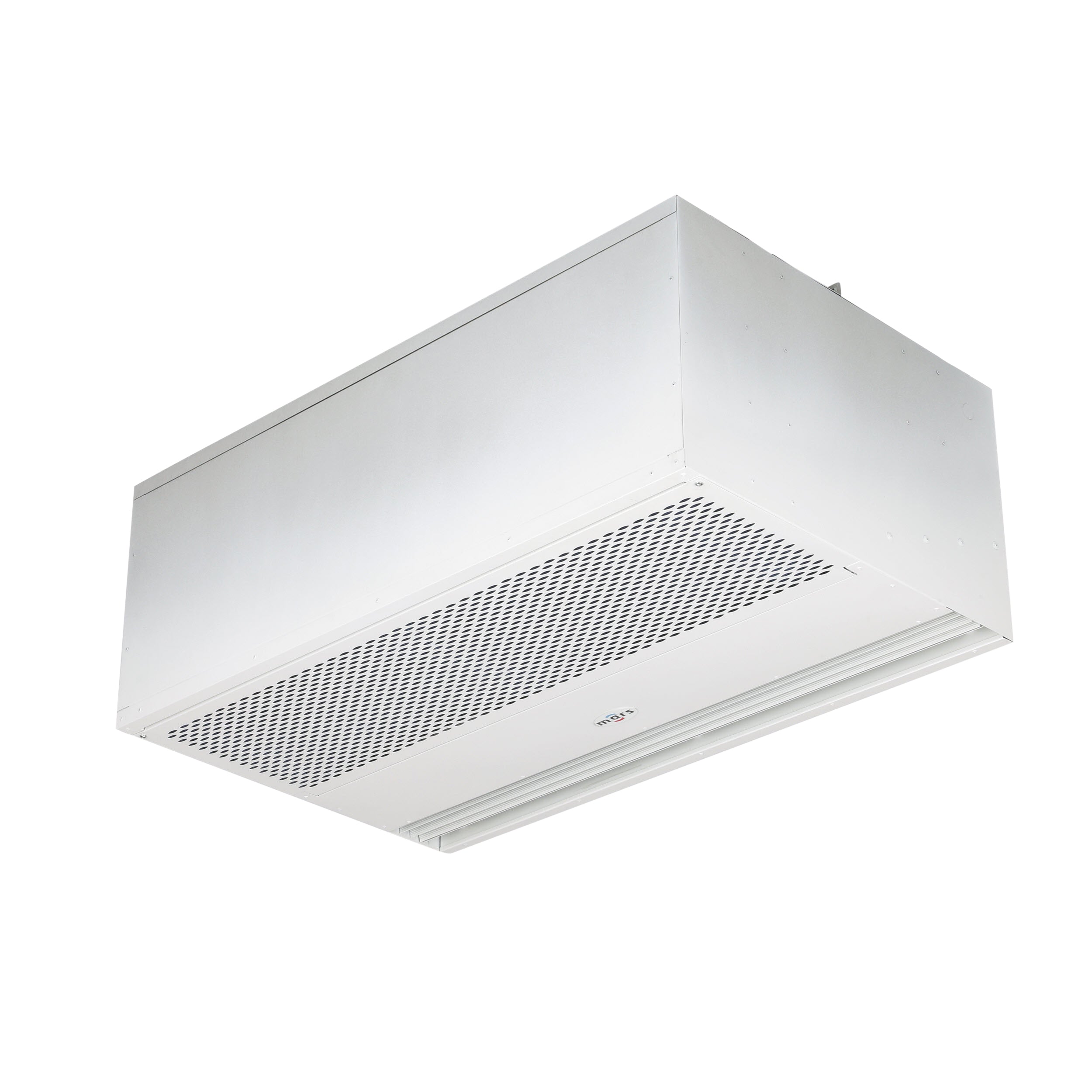

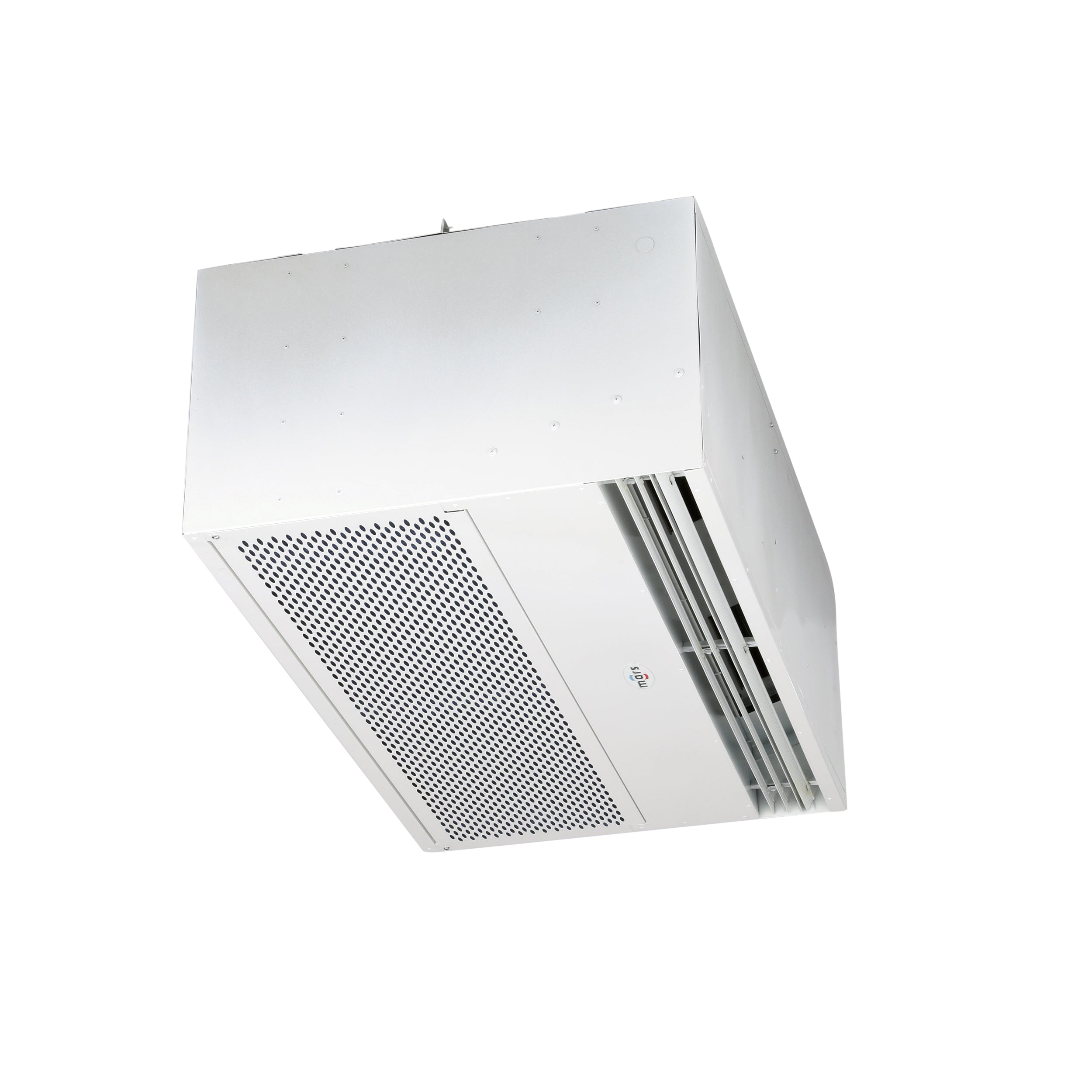

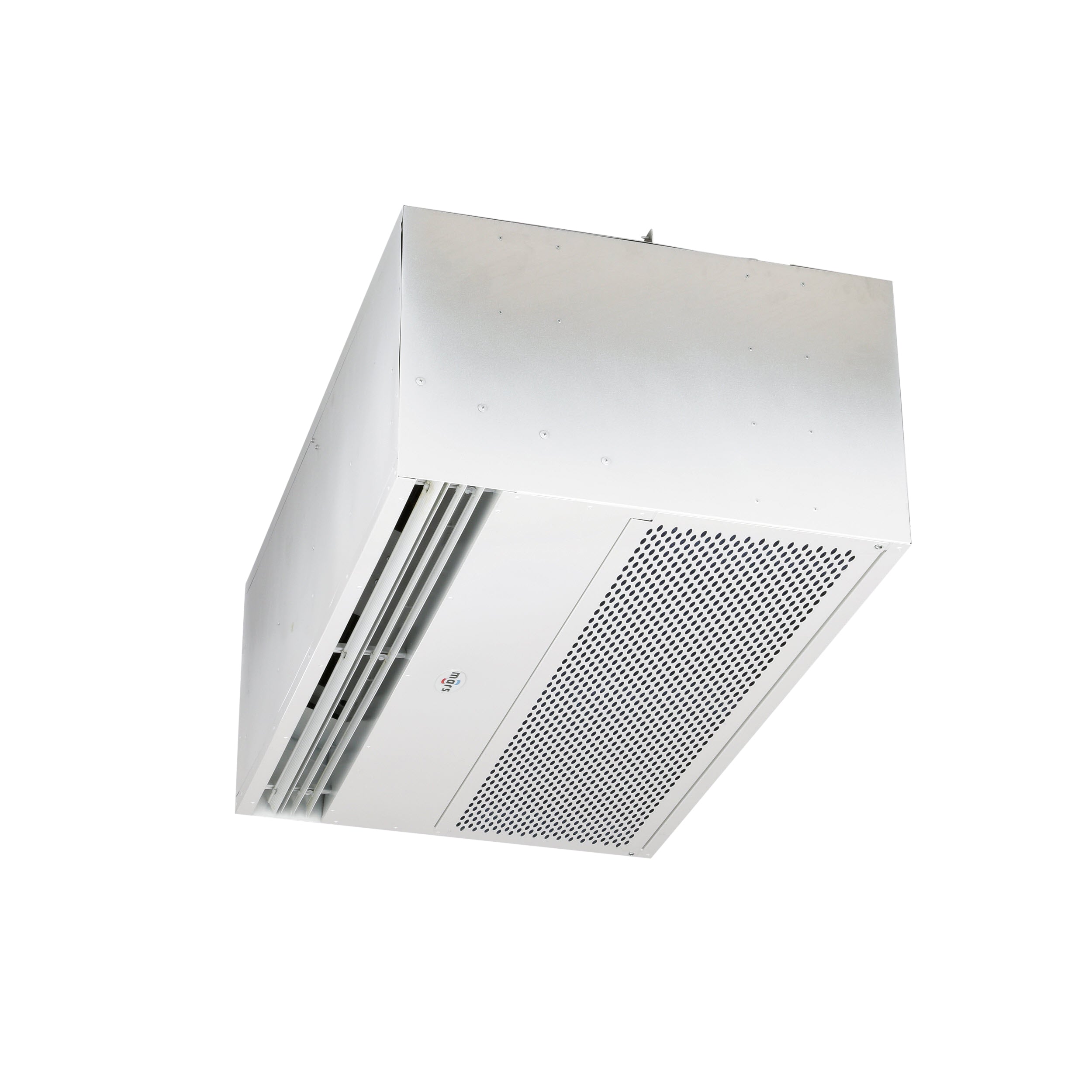

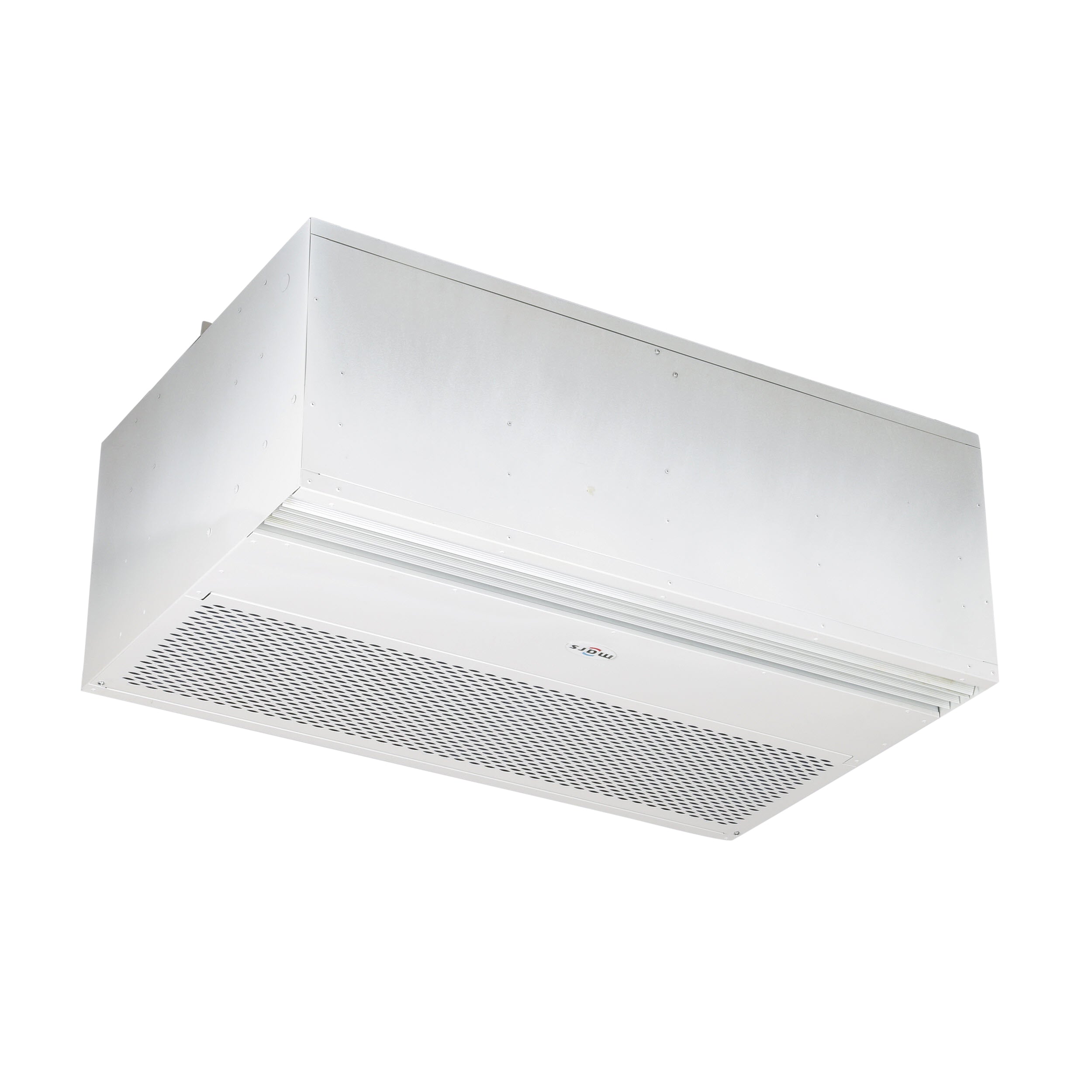

Mars PH1084-2UD-PW Phantom 10 Air Curtain 84 inch

Product Description

The MARS PH1084-2UD-PW Phantom Series air curtain is designed for architects needing a unit that blends with the building's aesthetics. Featuring top-performing internal components, this air curtain can be concealed and recess-mounted into a ceiling. It provides environmental separation up to 12 feet and insect control up to 10 feet. The unit operates at 208-230V.

• Recessed capabilities for blending into building aesthetics
• Quieter and less conspicuous operation
• Top-performing internal components

Product Highlights

This air curtain is ideal for restaurants, retail spaces, healthcare facilities, and transportation terminals, offering a cost-efficient barrier that integrates seamlessly into any environment.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1084-2UD-PW
• Country of Origin: USA

Technical Specifications

• MPN: PH1084-2UD-PW
• Environmental - Max Height (feet): 12
• Insect - Max Height (feet): 10
• Series: PH (Phantom) Series
• Heating Mode: Unheated
• Nozzle Width (inches): 84
• Unit Width (inches): 84
• Unit Height (inches): 17
• Wind Stopping Capability (MPH): 12
• Horsepower: 1/2 (per motor)
• Motors: 2
• Voltage Rating: 208-230/1/60
• Voltage Code: D
• Air Curtain Air Volume (CFM): 3160
• Amps: 5
• dBA: 68
• Phase: 1PH
• Hertz: 60Hz
• Voltage: 208-230v
• Max. Door/Window Height (ft.): 12
• Max. Height Insect Block (ft.): 10
• Depth (in.): 26
• Length (in.): 84
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Air Volume (CFM): 3160
• Application: Main Entrances
• ETL Listed: Yes
• Exterior Summary: Aluminum
• HP: 1/2 HP
• Max Environmental Separation Height: 12 Feet
• Max Insect Blocking Height: 10 Feet
• Power: Electric
• Type: Unheated Air Curtains
• Volts: 208/230 Volts
• Wattage: 1,000 Watts
• Model Number: PH1084-2UD-PW
