Mars PH1072-2UG-PW Phantom Series Air Curtain 72 inches Wide Unheated 208-230/3/60

Product Description

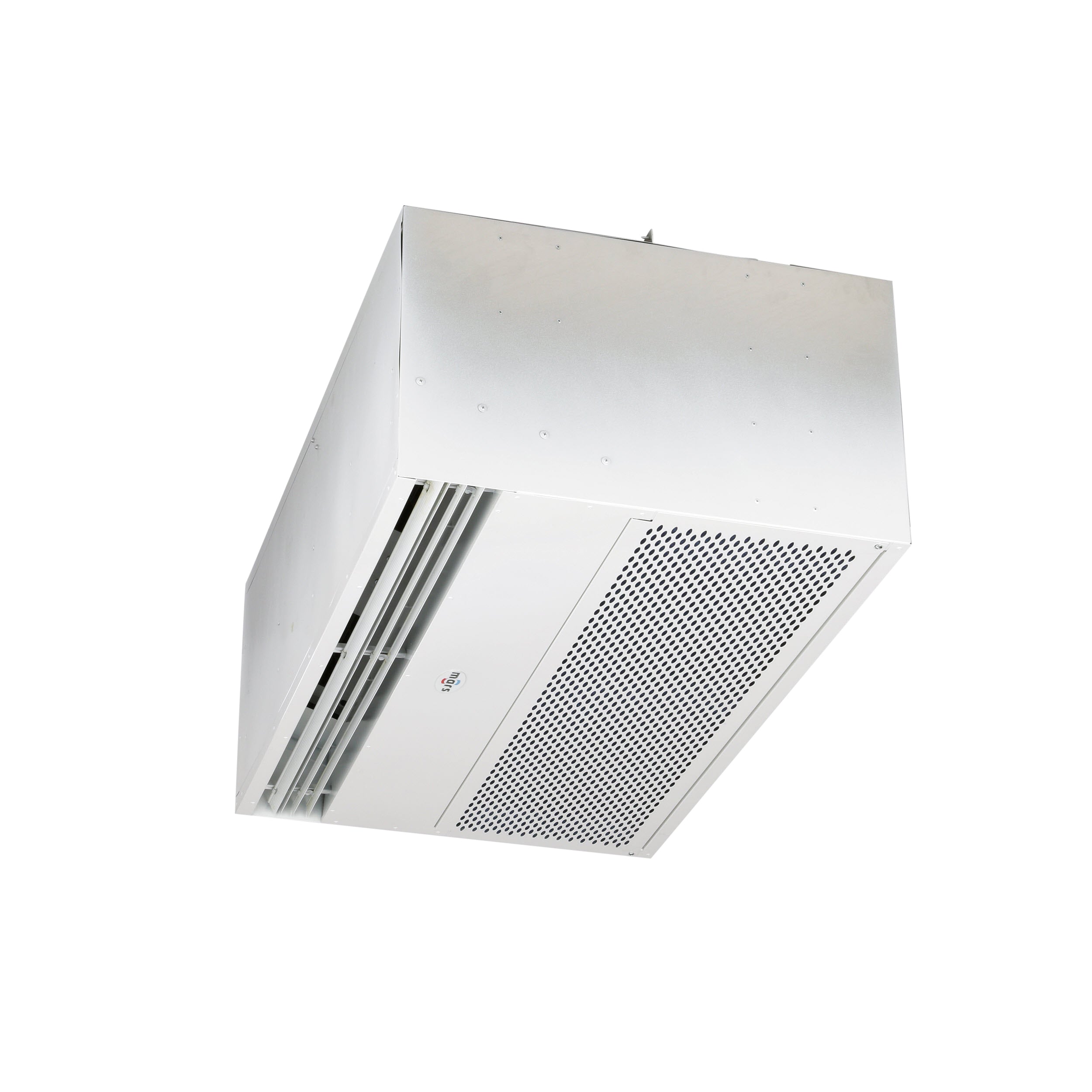

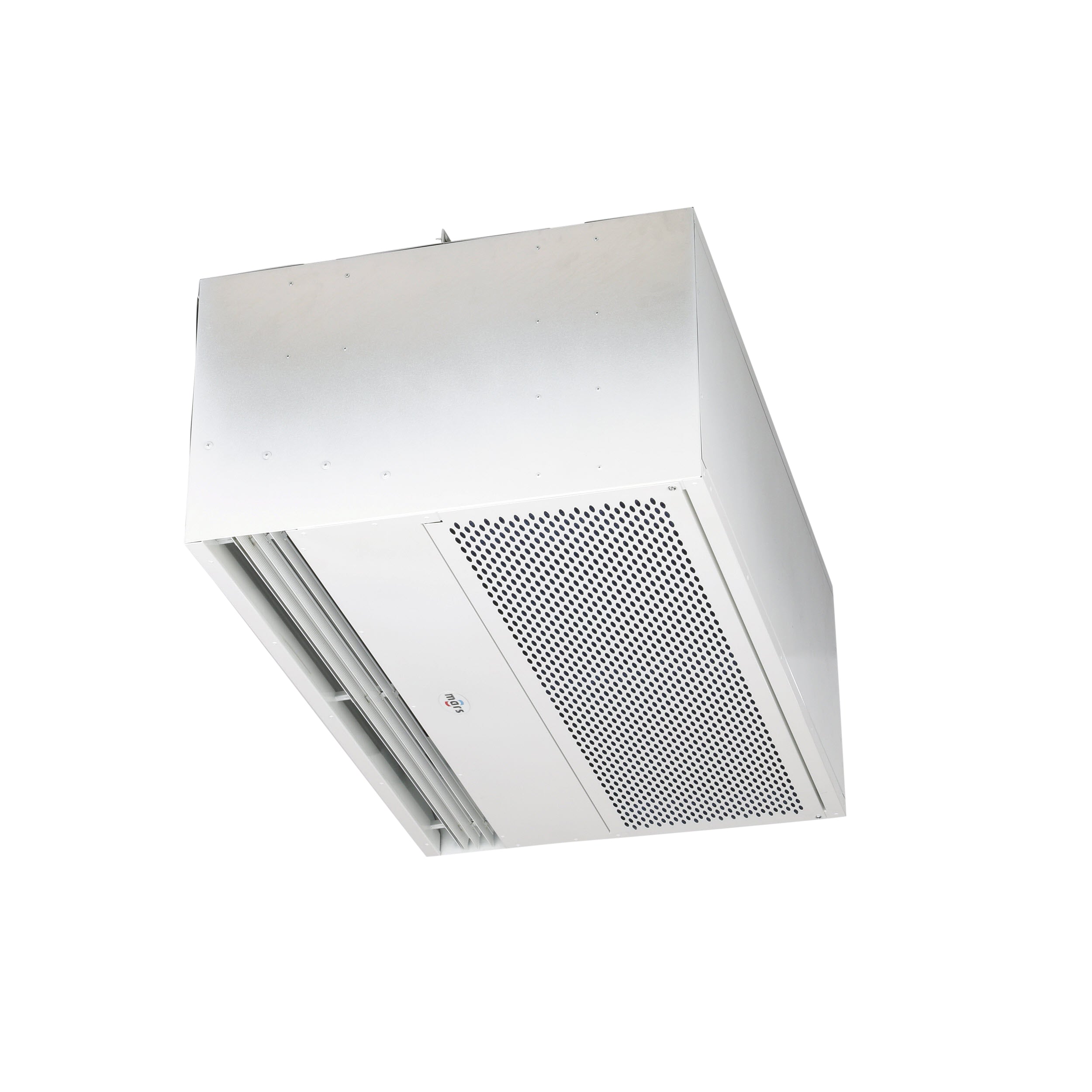

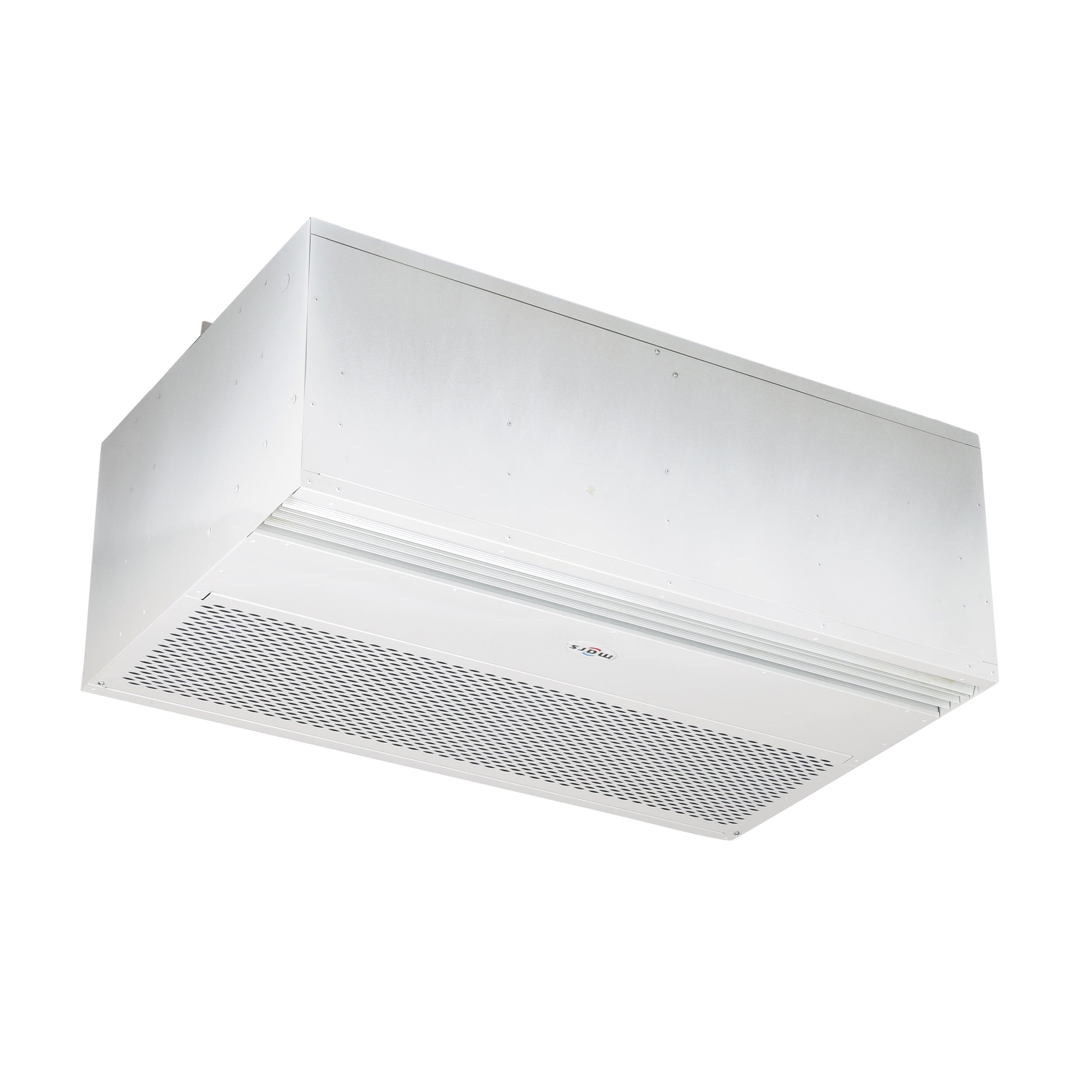

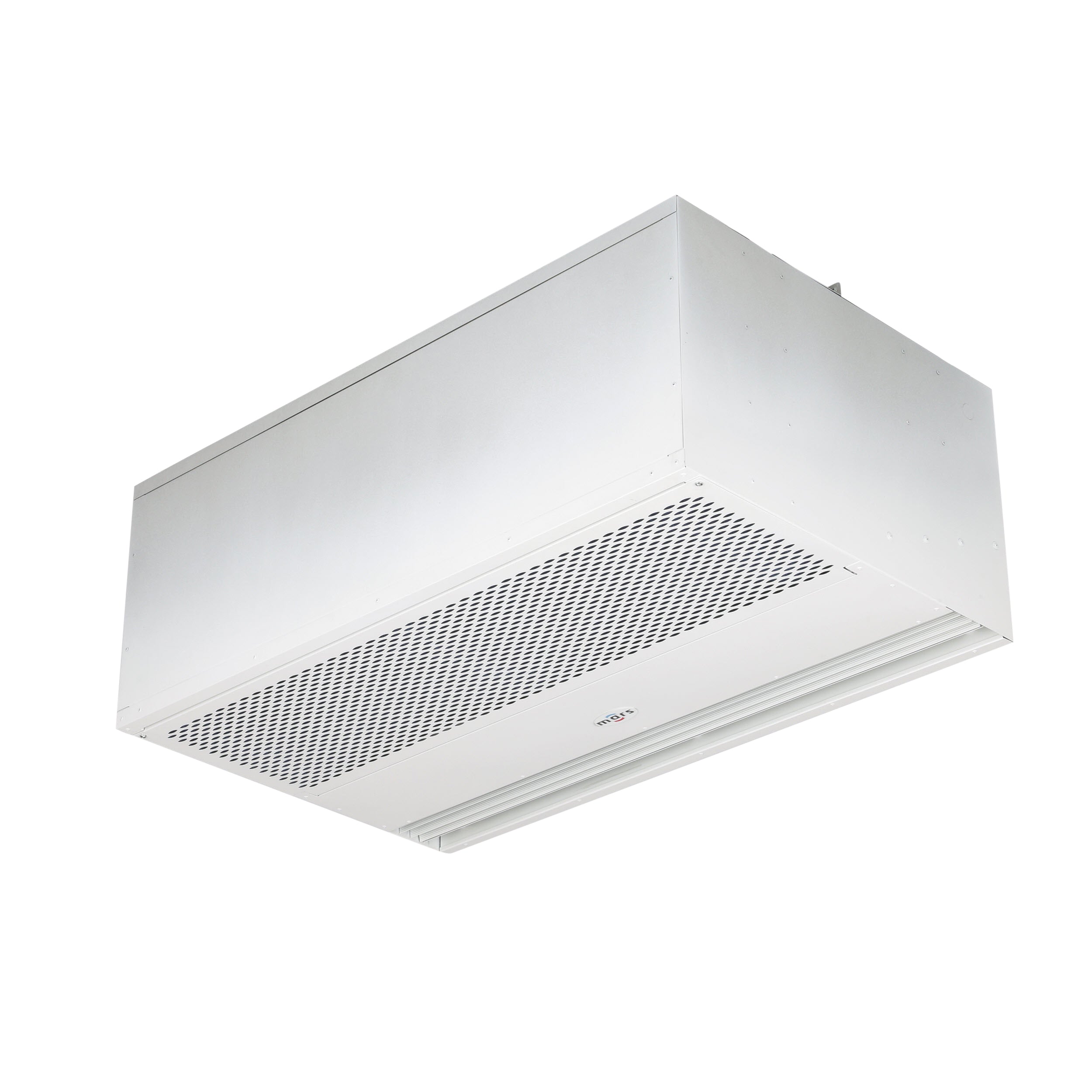

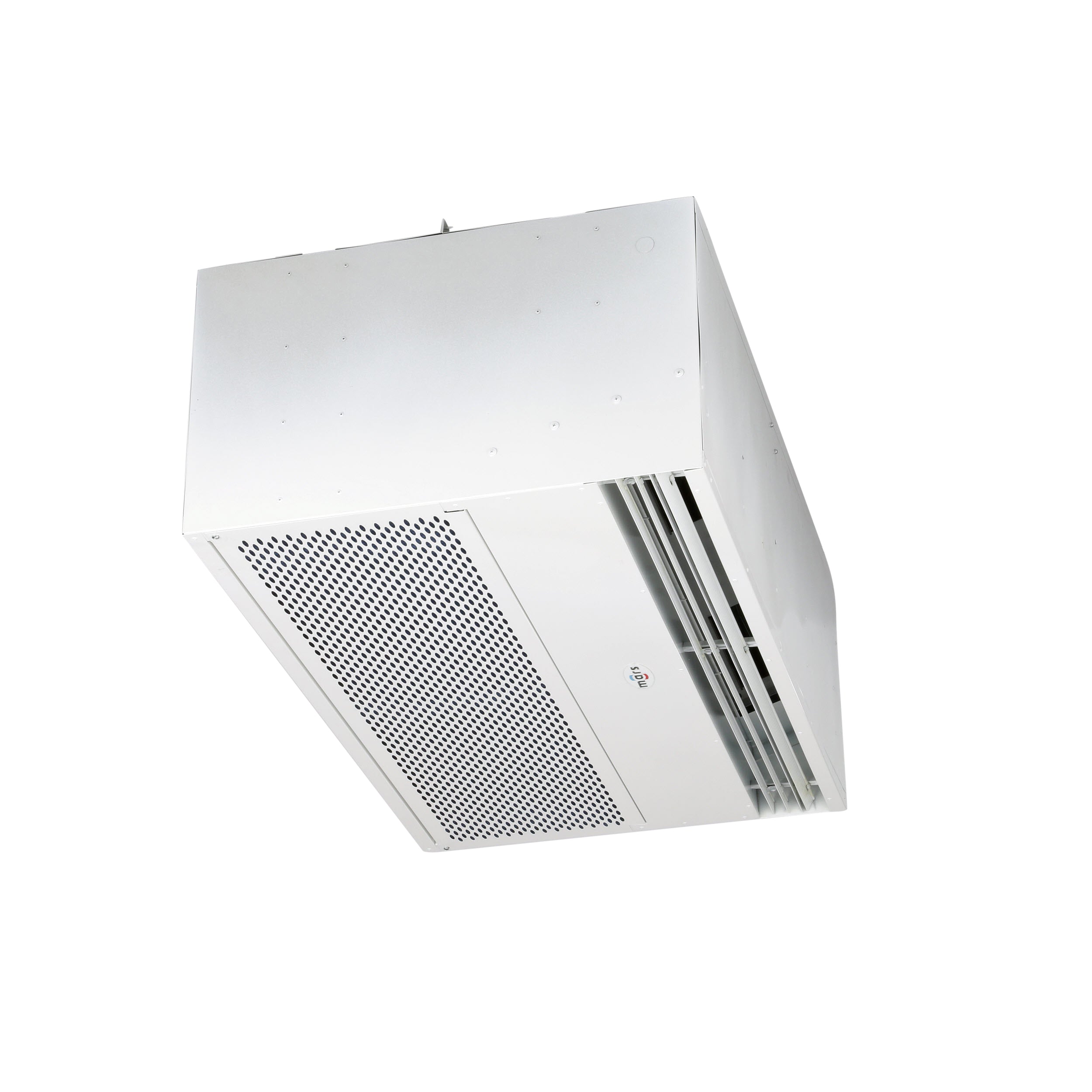

The MARS PH1072-2UG-PW Phantom Series Air Curtain is 72" wide and unheated, operating at 208-230V, 3-Phase. Designed for recessed ceiling mounting, it blends seamlessly into the building's aesthetics while providing effective environmental separation and insect control. It features top-performing internal components and a durable aluminum construction. Ideal for maintaining a comfortable environment.

• 1/2 HP Continuous Duty TEAO Motors
• Recessed mounted in ceiling for invisible coverage
• ETL Certified to conform to UL 2021 (US) and CSA 22.2 (Canada) Standards

Product Highlights

Provides environmental separation up to 12 feet and insect control up to 10 feet. Features a washable polyester filter and durable aluminum construction.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1072-2UG-PW
• Country of Origin: USA

Technical Specifications

• Width (Inches): 72
• Max Door Height: 12'
• Construction: Aluminum
• CFM High: 5100
• Voltage: 208-230/3/60
• FLA 1 Phase-208V/230V: 5.0 / 5.0
• FLA 3 Phase-208V/230V: 3.6 / 3.2
• FLA 3 Phase-460V: 1.6
• Horsepower: 1/2
• Heating Option: Unheated
• Series: Phantom
• Decibels (DB): 68
• Country of Origin: USA
• Material: Aluminum
• Phase: 3
• Horse Power: 1/2
• Type: Unheated
• Max Volume (CFM): 5100
• MPN: PH1072-2UG-PW
• Environmental - Max Height (feet): 12
• Insect - Max Height (feet): 10
• Nozzle Width (inches): 72
• Unit Width (inches): 72
• Unit Height (inches): 17
• Wind Stopping Capability (MPH): 12
• Motors: 2
• ETL sanitation certified to ANSI/NSF 37 standards: No
• Air Flow Certified (AMCA): Yes
• Voltage Code: G
• Air Curtain Air Volume (CFM): 2920
• Amps: 3.6/3.2
• Uniformity (%): 91
• dBA: 68
• Model Number: MRS-PH1072-2UG-PW
• HORSEPOWER PER MOTOR: 1/2
• MAX. OPENING HEIGHT (WINDOW/DOOR): 10 Ft
• Height: 15.50"
• Width: 72.00"
• Depth: 26.00"
• Max. Door/Window Height (ft.): 12
• Max. Height Insect Block (ft.): 10
• Heat: No
• Length (in.): 72
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Hertz: 60
• FLA (Ampacity): 3.6Amps
• Door Width (Inches): 72
• Door Height: 10'
• Number of Poles: 3
• Max Velocity: 3475
• Frequency (Hertz): 60
• # of Motors: 2
• Sound dBA: 68
• Weight (lbs): 105
