Product Description

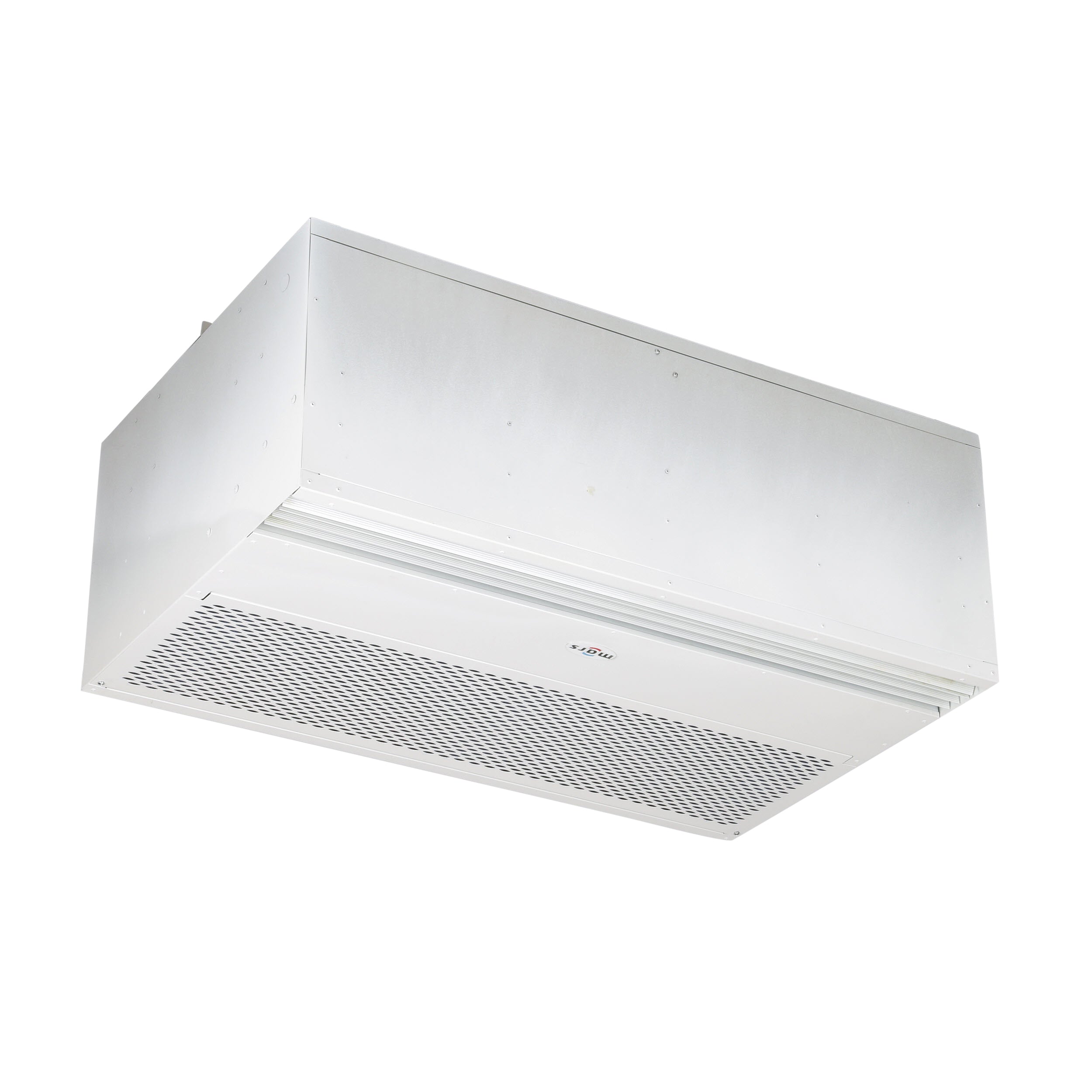

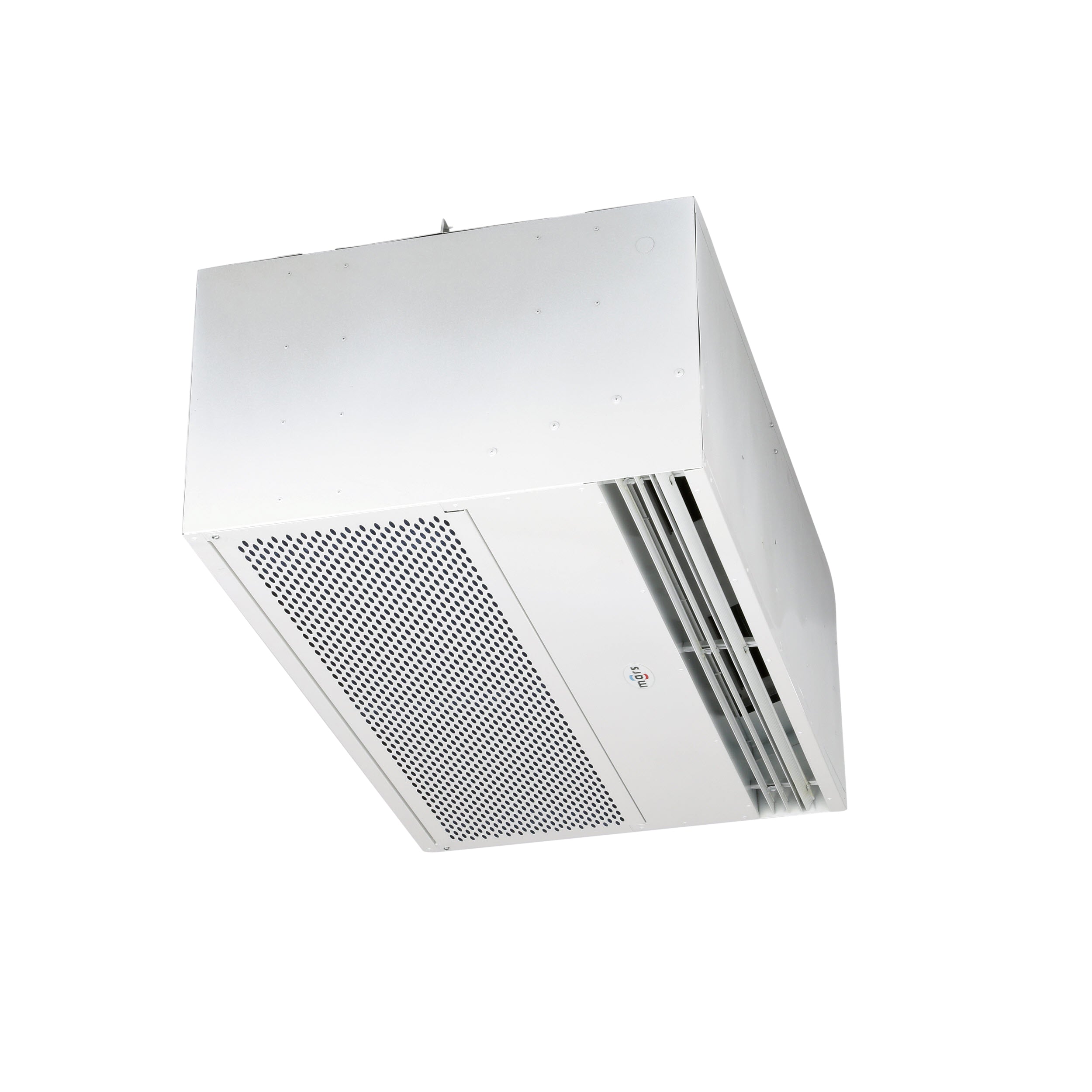

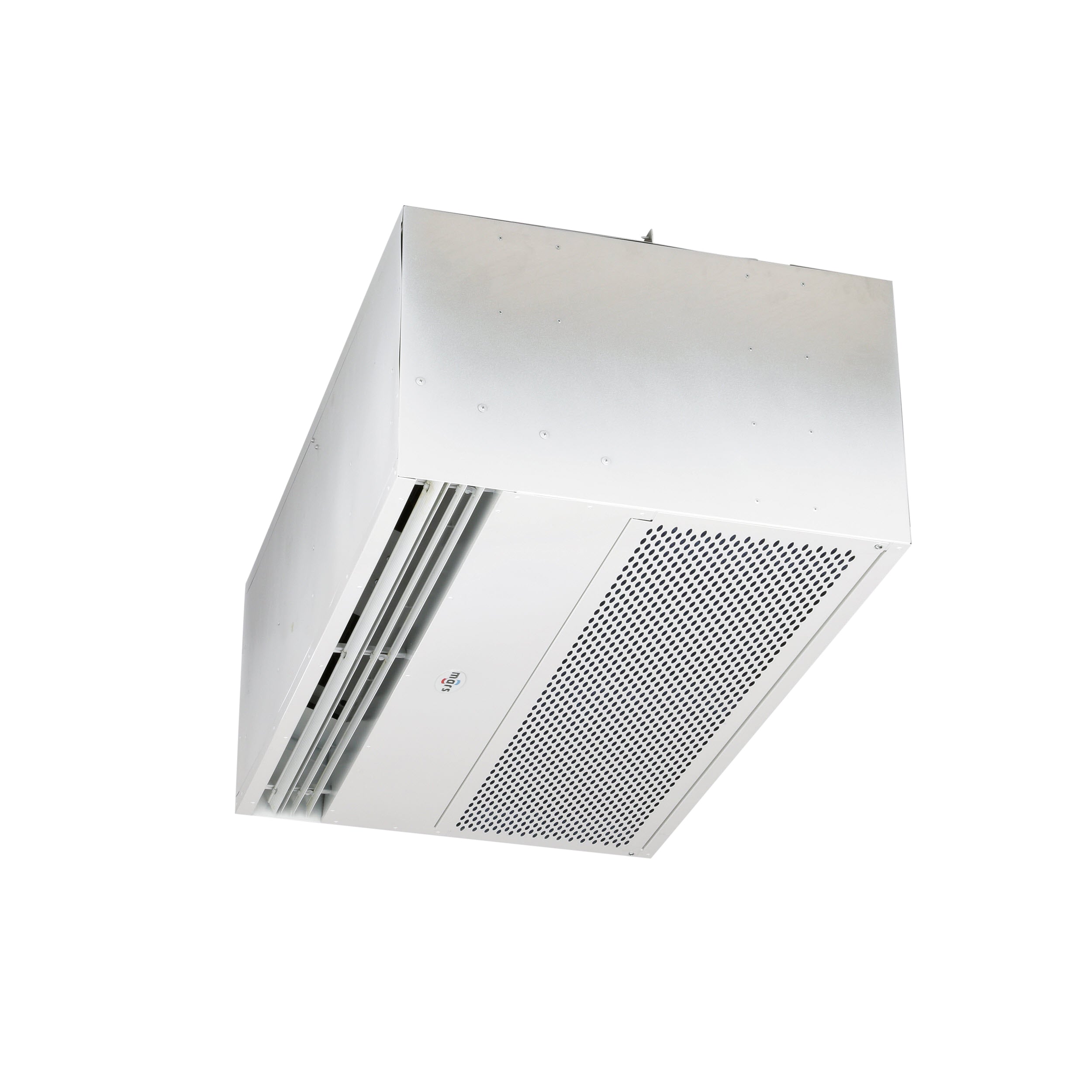

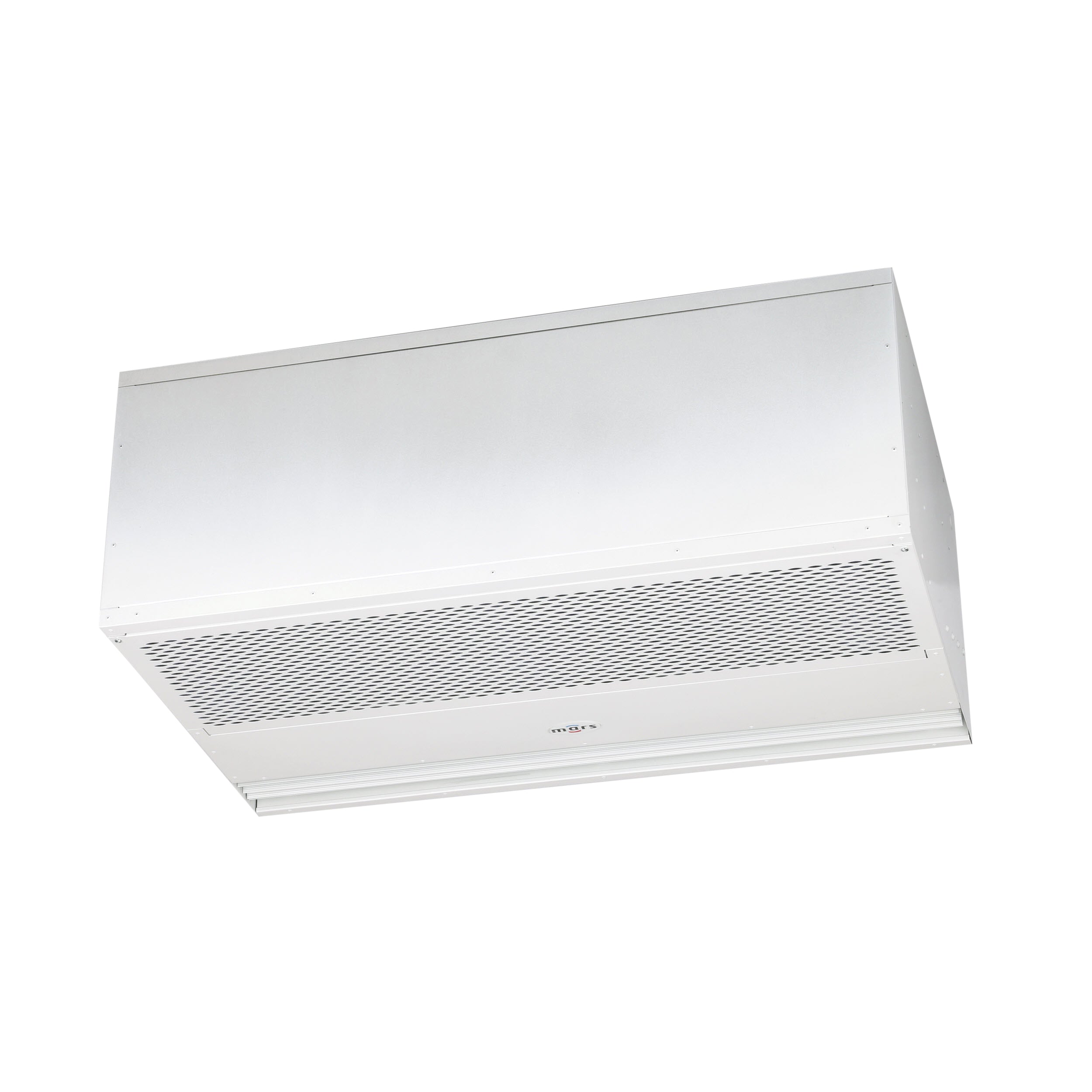

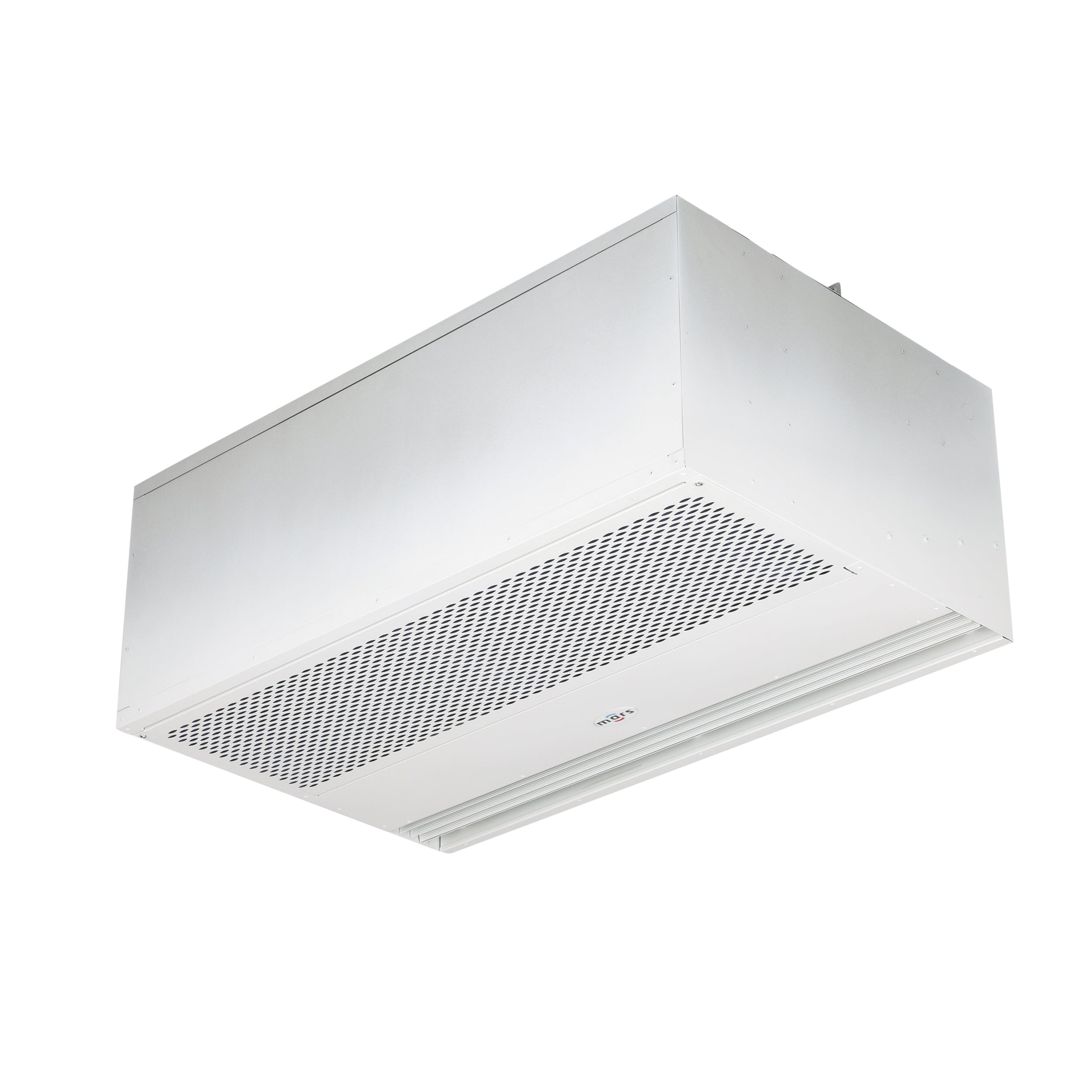

The MARS PH1072-2UA-PW recessed air curtain is designed for environmental separation while blending into the building's aesthetics. This unit features a 1/2 hp motor and is designed for recess mounting into a ceiling. It maintains interior temperature and minimizes dirt, dust, and fumes. The air curtain allows unobstructed views and enhances safety.
- Recessed design for seamless integration
- Maintains consistent interior temperature
- Durable aluminum construction with powder-coated finish
Product Highlights
This air curtain provides effective environmental separation with a discreet, recessed design.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: PH1072-2UA-PW
-
Country of Origin: United States
Technical Specifications
-
Item: Air Curtain
-
Depth: 26 in
-
Phase: 1
-
Width: 72 1/8 in
-
Finish: Powder Coated
-
Height: 16 1/2 in
-
Series: PH10
-
Voltage: 115
-
Included: Filters
-
Max. RPM: 1,750 RPM
-
Motor HP: 1/2 hp
-
Requires: Door Limit Switch, Motor Control Panel
-
Washdown: No
-
Frequency: 60 Hz
-
Max. Amps: 10.2
-
Standards: ETL
-
Drive Type: Direct Drive
-
Motor Type: Permanent Split Capacitor
-
Nozzle Width: 72 in
-
Profile Type: Recessed
-
Housing Color: White
-
Maximum Speed: 1,750 RPM
-
Grille Material: Aluminum
-
Motor Enclosure: Totally Enclosed Air Over
-
Voltage - Phase: 115V AC - 1 Phase
-
Air Curtain Item: Recessed Air Curtain
-
Air Curtain Type: Ambient Air
-
Number of Motors: 2
-
Number of Speeds: 1
-
Full Load Current: 10.2 A
-
Heated/Not Heated: Not Heated
-
Nameplate Voltage: 115V AC
-
Power Consumption: 920 W
-
Air Curtain Heated: No
-
Maximum Air Volume: 2,920 cfm
-
Sound Level @ 10 ft: 68 dBA
-
Air Temperature Rise: Not Applicable
-
Max. Mounting Height: 10 ft
-
Maximum Air Velocity: 3,950 fpm
-
Sanitation Certified: No
-
Air Curtain Air Volume: 2920 cfm
-
For Frame Opening Width: 6 ft
-
Air Curtain Air Velocity: 3475 fpm
-
Heater Power Consumption: Not Applicable
-
Air Curtain dBA @ 10 Feet: 68
-
Motor Horsepower per Motor: 1/2 hp
-
Air Curtain Max. Door Width: 6 ft
-
Air Curtain Housing Material: Aluminum
-
Overall Dimensions W x H x D: 72 in x 17 in x 26 in
-
Maximum Operating Temperature: Not Available
-
Minimum Operating Temperature: Not Available
-
Mounting Height for Insect Control: 10 ft
-
Max. Mounting Height Environment/Insect: 12 ft / 10 ft
-
Mounting Height for Temperature Control: 12 ft
-
Environmental - Max Height (feet): 12
-
Insect - Max Height (feet): 10
-
Heating Mode: Unheated
-
Nozzle Width (inches): 72
-
Unit Width (inches): 72
-
Unit Height (inches): 17
-
Wind Stopping Capability (MPH): 12
-
Motors: 2
-
Voltage Rating: 115/1/60
-
Voltage Code: A
-
Amps: 10.2
-
Uniformity (%): 91
-
dBA: 68
-
Application: Main Entrances
-
ETL Listed: Yes
-
Exterior Summary: Aluminum
-
HP: 1/2 HP
-
Max Environmental Separation Height: 12 Feet
-
Max Insect Blocking Height: 10 Feet
-
Power: Electric
-
Type: Unheated Air Curtains
-
Volts: 115 Volts
-
Wattage: 920 Watts
-
Hertz: 60Hz
-
Model: PH1072-2UA-PW
-
Compatible Brand: MARS
-
Manufacturer: Mars
-
Model Number: MRS-PH1072-2UA-PW
-
Heat: No
-
Depth (in.): 26
-
Height (in.): 17
-
Length (in.): 72
-
Certifications: ETL Listed, AMCA
-
Product Type: Unheated
