Mars PH1060-2UH-PW Phantom Series Air Curtain 60 inches Wide Unheated

Product Description

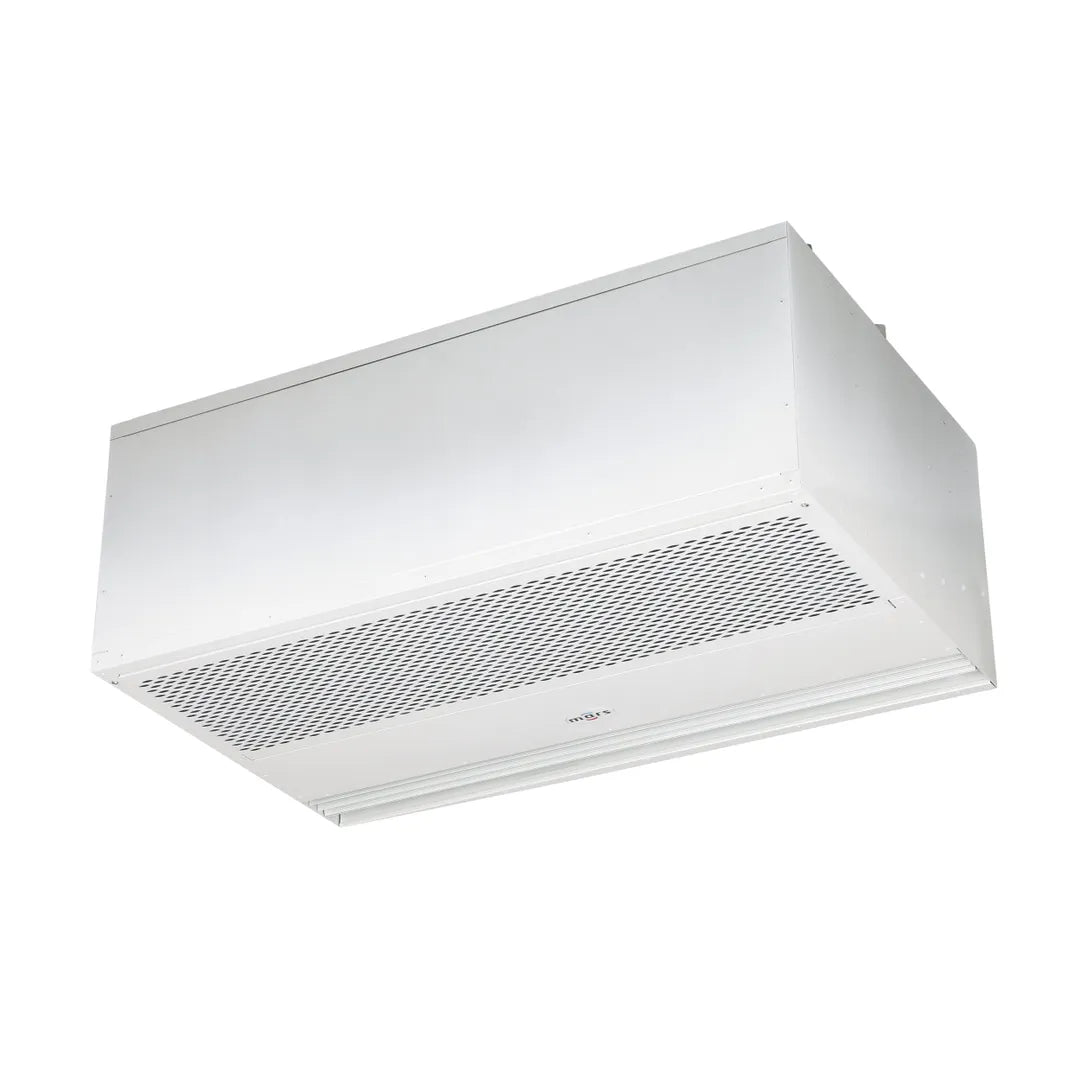

The MARS PH1060-2UH-PW Phantom Series Air Curtain is 60" wide and unheated, operating at 460V, 3 Phase. Designed for recessed ceiling mounting, it provides an environmental barrier up to 12 feet and insect control up to 10 feet. Constructed from durable aluminum, it features adjustable air directional vanes and a cleanable polyester filter.

• 1/2 HP Continuous Duty TEAO Motors
• Recessed mounted in ceiling for invisible coverage
• ETL Certified to conform to UL 2021 (US) and CSA 22.2 (Canada) Standards

Product Highlights

Ideal for restaurants, retail, and healthcare, this air curtain maintains temperature separation and controls insects in commercial environments. Proudly made in the USA.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1060-2UH-PW
• Country of Origin: USA

Technical Specifications

• Width (Inches): 60
• Max Door Height: 12'
• Construction: Aluminum
• CFM High: 5100
• Voltage: 460/3/60
• FLA 1 Phase-115V: 10.2
• FLA 1 Phase-208V/230V: 5.0 / 5.0
• FLA 3 Phase-208V/230V: 3.6 / 3.2
• FLA 3 Phase-460V: 1.6
• Horsepower: 1/2
• Heating Option: Unheated
• Series: Phantom
• Decibels (DB): 68
• Country of Origin: USA
• Material: Aluminum
• Phase: 3
• Type: Unheated
• Max Volume (CFM): 5100
• Max Opening Height Window Door: 8 ft
• Certifications: ETL
• Max. Height Insect Block (ft.): 10
• Depth (in.): 26
• Height (in.): 17
• Length (in.): 60
• Product Type: Unheated
• Hertz: 60 hz
• Door Height: 12 ft
• Door Width: 60 in
• Amperage: 0.8 A
