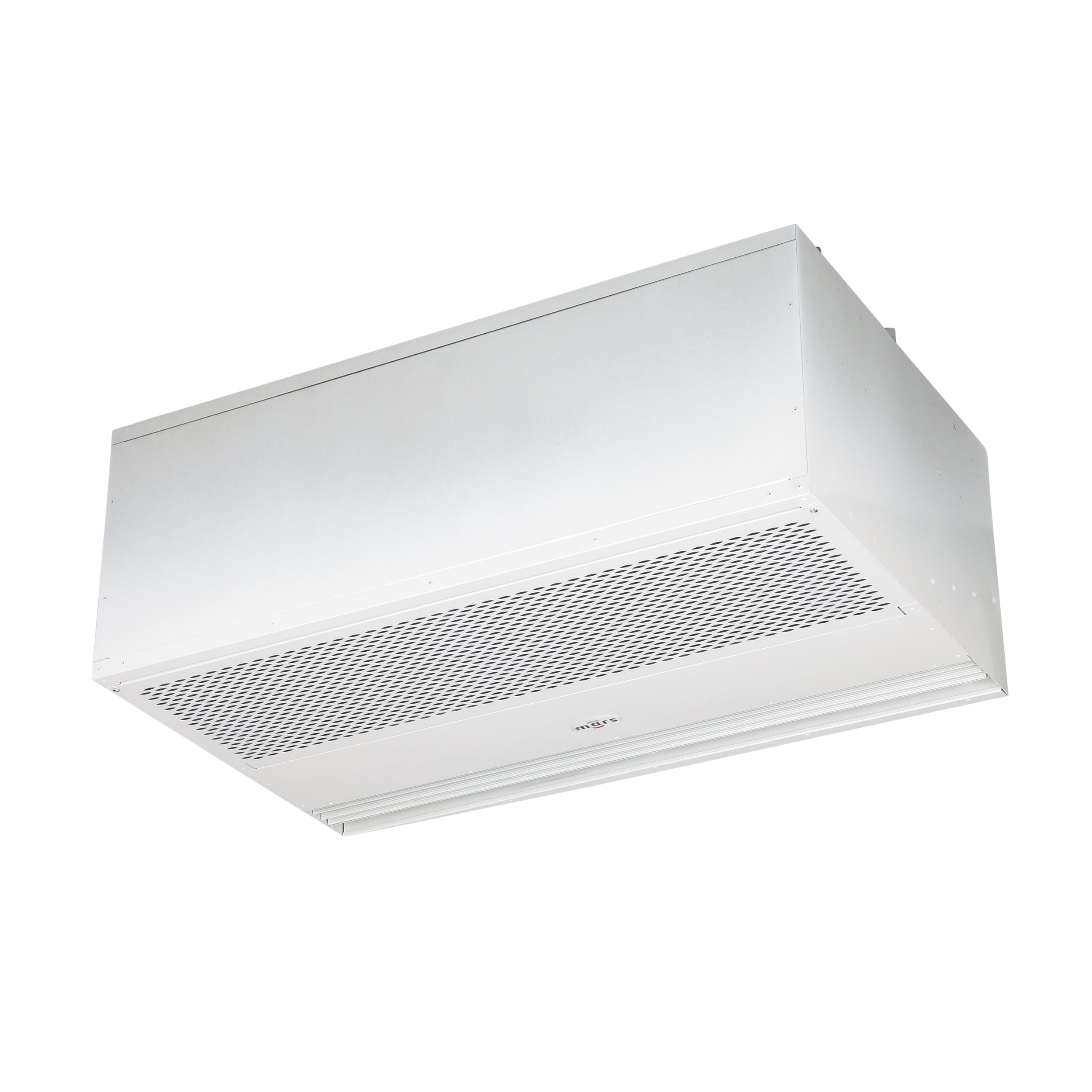

Mars PH1060-2UG-PW Phantom Series Air Curtain Unheated 60 inches

Product Description

The MARS PH1060-2UG-PW Phantom Series Air Curtain provides an environmental barrier for spaces. This 60" wide, unheated air curtain features a durable aluminum construction and is designed for recessed ceiling mounting. It includes cleanable polyester filters and adjustable air directional vanes. Operates on 208-230V 3-Phase power.

• Features 1/2 HP Continuous Duty TEAO Motors
• Recessed mounted in ceiling for invisible coverage
• ETL Certified to conform to UL 2021 (US) and CSA 22.2 (Canada) Standards

Product Highlights

The PH1060-2UG-PW air curtain is ideal for shipping/receiving doors, customer entrances, and cold storage rooms, providing both environmental separation and insect control.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1060-2UG-PW
• Country of Origin: USA

Technical Specifications

• Width (Inches): 60
• Max Door Height: 12'
• Construction: Aluminum
• CFM High: 5100
• Voltage: 208-230/3/60
• FLA 1 Phase-115V: 10.2
• FLA 1 Phase-208V/230V: 5.0 / 5.0
• FLA 3 Phase-208V/230V: 3.6 / 3.2
• FLA 3 Phase-460V: 1.6
• Horsepower: 1/2
• Heating Option: Unheated
• Series: Phantom
• Decibels (DB): 68
• Size: 60"
• Material: Aluminum
• Phase: 3
• Max Volume (CFM): 5100
• Manufacturer: Mars Air Systems
• Hertz: 60
• Designed for: up to 8 Ft. opening height
• Unheated air door for: 60"–71" openings
• Two: 1/2 HP motors for consistent airflow
• Depth (in.): 26
• Height (in.): 17
• Length (in.): 60
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Horse Power Per Motor: 1/2 hp
• Motors: 2 motors
• Max Opening Height Window Door: 8 ft
• WIDTH (SIDE - SIDE): 60"
• MAX. OPENING HEIGHT (WINDOW/DOOR): 10 Ft
