Mars PH1048-1UH-PW Phantom Series Air Curtain 48 inches Wide Unheated 460/3/60

Product Description

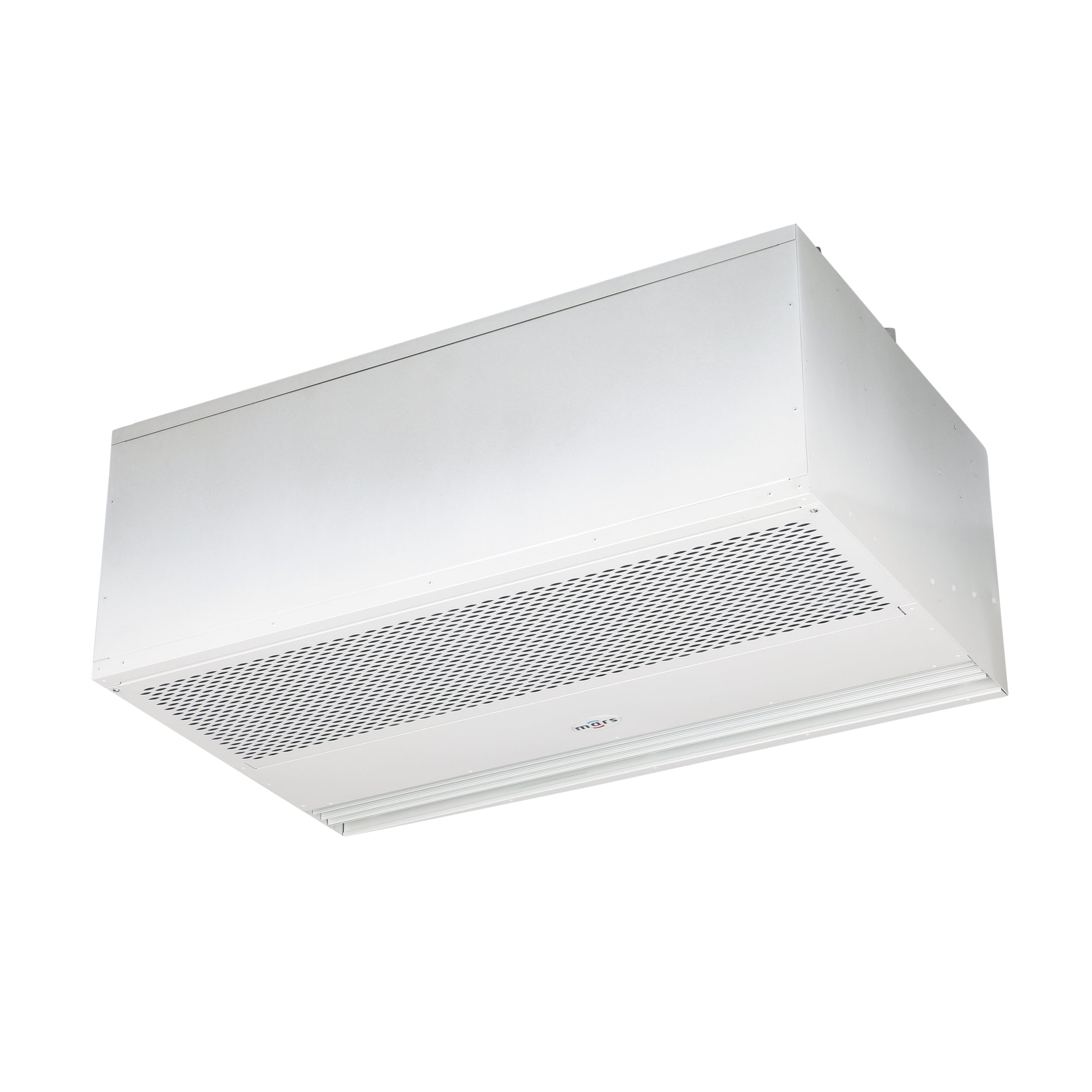

The MARS PH1048-1UH-PW Phantom Series Air Curtain is 48" wide and unheated, operating at 460V, 3 Phase. Designed for insect control up to 8 feet and temperature/environmental separation up to 10 feet. It features a 1/2 HP motor and durable aluminum construction. The unit can be recess mounted in ceilings for invisible coverage.

• 1/2 HP Continuous Duty TEAO Motors
• Recessed mounted in ceiling for invisible coverage
• ETL Certified to conform to UL 2021 (US) and CSA 22.2 (Canada) Standards

Product Highlights

The PH1048-1UH-PW air curtain provides effective environmental separation while creating a seamless appearance. It minimizes dirt, dust, and fumes, and allows for unobstructed views.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1048-1UH-PW
• Country of Origin: USA

Technical Specifications

• Width (Inches): 48
• Max Door Height: 12'
• Construction: Aluminum
• CFM High: 2550
• Voltage: 460/3/60
• FLA 1 Phase-115V: 5.1
• FLA 1 Phase-208V/230V: 2.5 / 2.5
• FLA 3 Phase-208V/230V: 1.8 / 1.6
• FLA 3 Phase-460V: 0.8
• Horsepower: 1/2
• Heating Option: Unheated
• Series: Phantom
• Decibels (DB): 66
• Material: Aluminum
• Phase: 3
• Type: Unheated
• Max Volume (CFM): 2550
• Model Number: MRS-PH1048-1UH-PW
• MAX. OPENING HEIGHT (WINDOW/DOOR): 10 Ft
• MOTORS: 1
• Horse Power Per Motor: 1/2 hp
• Max Opening Height Window Door: 8 ft
• Certifications: ETL
• Hertz: 60
• Motor: 1/2 HP
• Air Volume (CFM): 1632
• Application: Main Entrances
• ETL Listed: Yes
• HP: 1/2 HP
• Max Environmental Separation Height: 12 Feet
• Max Insect Blocking Height: 10 Feet
• Power: Electric
• Volts: 460 Volts
• Wattage: 520 Watts
