Product Description

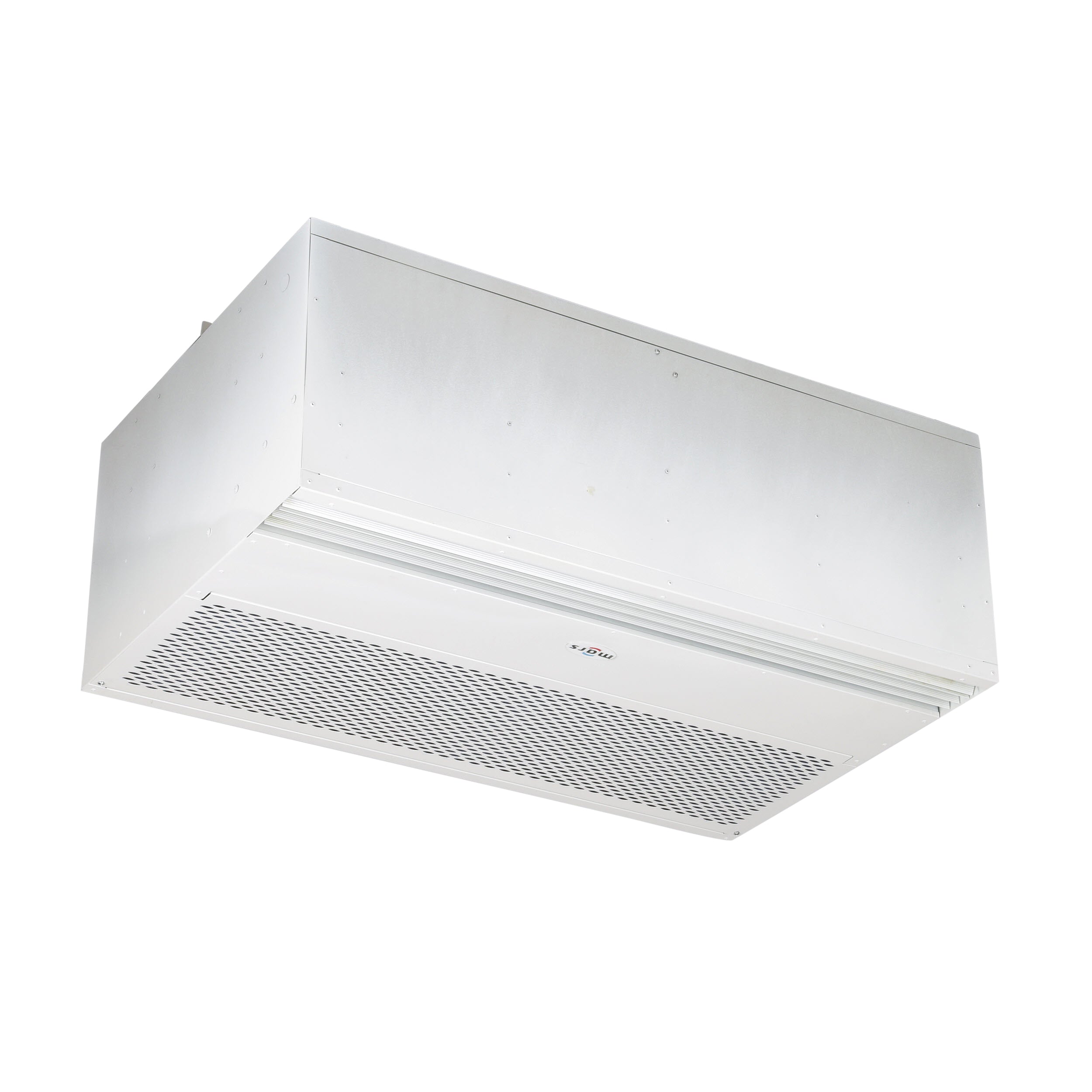

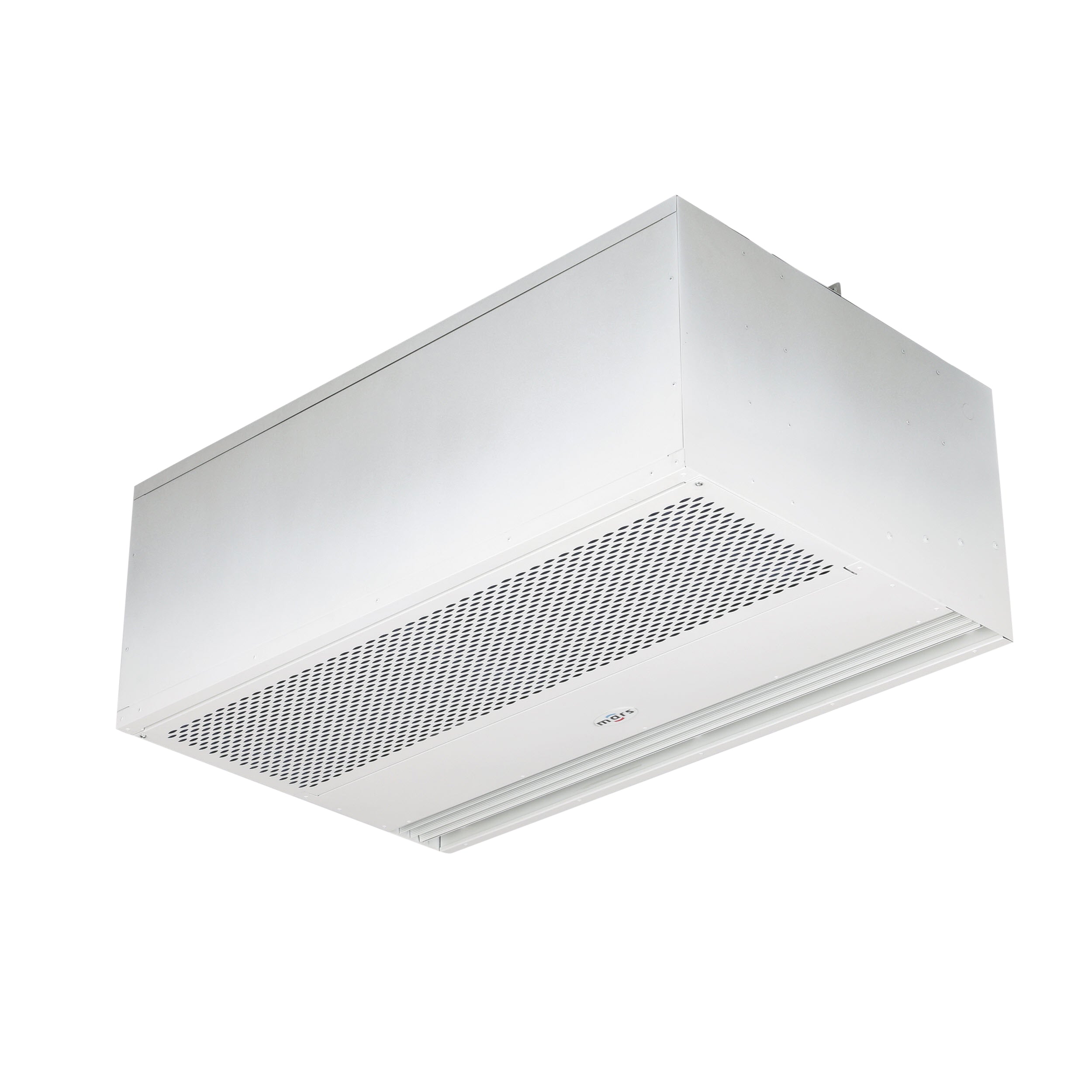

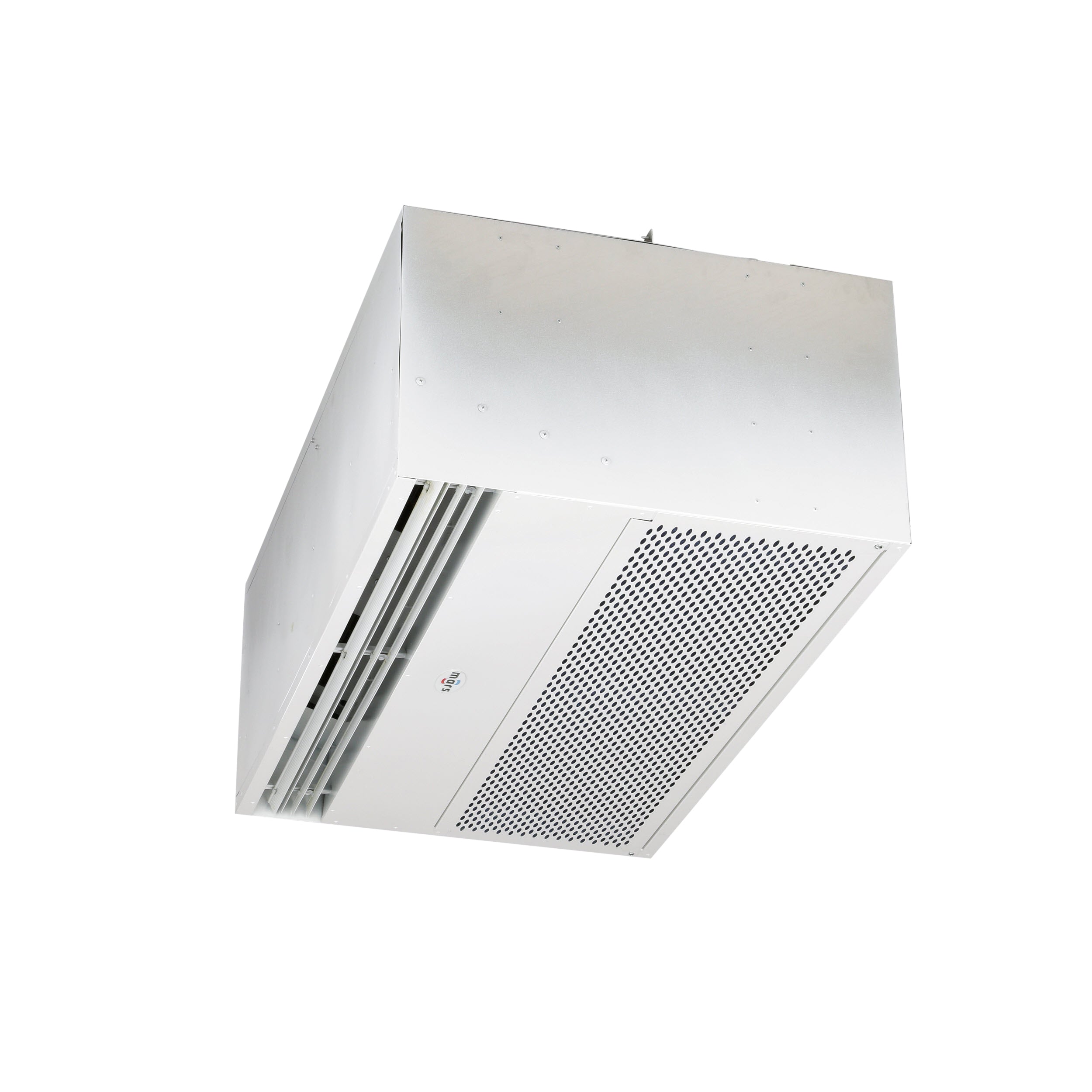

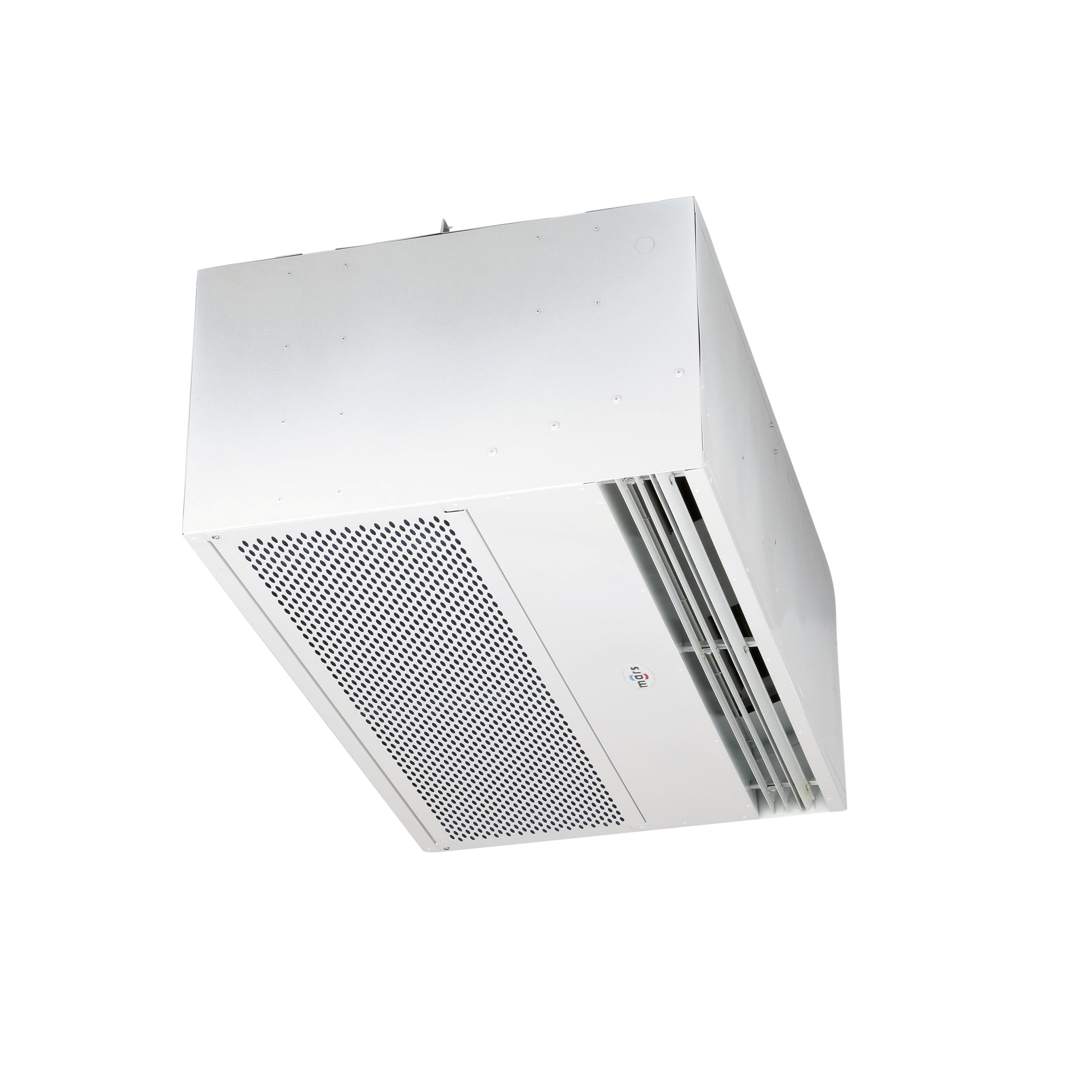

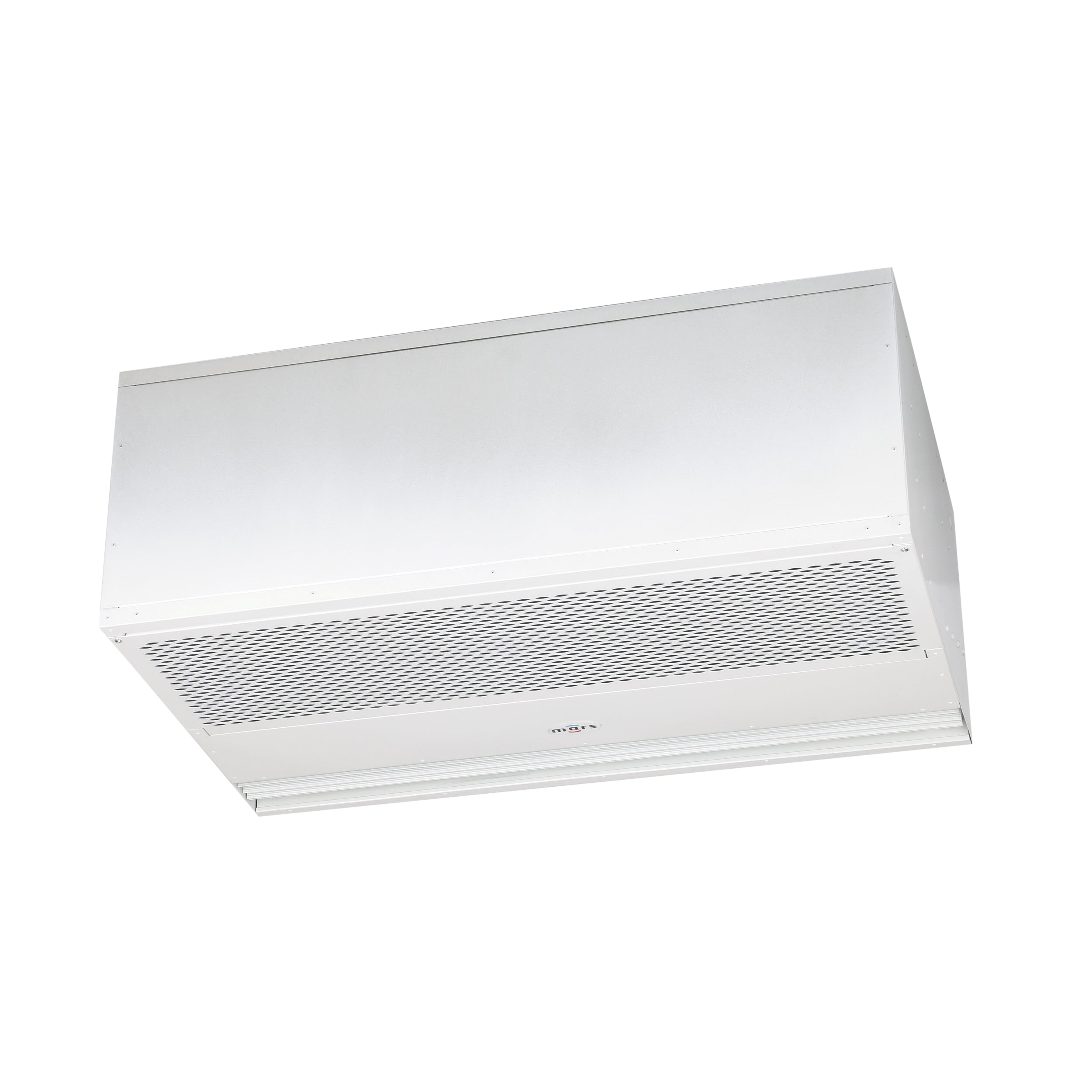

The MARS PH1048-1UG-PW Phantom Series Air Curtain is designed for 48" wide openings and features a 1/2 HP motor. This unheated air curtain is constructed from durable aluminum and is ETL certified. It is designed to be recess mounted in ceilings for invisible coverage, maintaining a consistent interior temperature.
- 1/2 HP Continuous Duty TEAO Motors
- Recessed mounted in ceiling for invisible coverage
- Durable aluminum construction
Product Highlights
The Phantom Series provides effective environmental separation while creating a seamless appearance. It minimizes dirt, dust, and fumes, and allows for unobstructed views.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: PH1048-1UG-PW
-
Country of Origin: USA
Technical Specifications
-
Width (Inches): 48
-
Max Door Height: 12'
-
Construction: Aluminum
-
CFM High: 2550
-
Voltage: 208-230/3/60
-
FLA 1 Phase-115V: 5.1
-
FLA 1 Phase-208V/230V: 2.5 / 2.5
-
FLA 3 Phase-208V/230V: 1.8 / 1.6
-
FLA 3 Phase-460V: 0.8
-
Horsepower: 1/2
-
Heating Option: Unheated
-
Series: Phantom
-
Decibels (DB): 66
-
MPN: PH1048-1UG-PW
-
Environmental - Max Height (feet): 12
-
Insect - Max Height (feet): 10
-
Nozzle Width (inches): 48
-
Unit Width (inches): 48
-
Unit Height (inches): 17
-
Wind Stopping Capability (MPH): 12
-
Motors: 1
-
Air Flow Certified (AMCA): Yes
-
Air Curtain Air Volume (CFM): 1632
-
Amps: 1.8/1.6
-
Uniformity (%): 91
-
dBA: 66
-
Horse Power Per Motor: 1/2 hp
-
Max Opening Height Window Door: 8 ft
-
Certifications: ETL Listed, AMCA
-
Air Volume (CFM): 1632
-
Application: Main Entrances
-
ETL Listed: Yes
-
HP: 1/2 HP
-
Max Environmental Separation Height: 12 Feet
-
Max Insect Blocking Height: 10 Feet
-
Phase: Three Phase
-
Power: Electric
-
Type: Unheated Air Curtains
-
Volts: 208/230 Volts
-
Wattage: 520 Watts
-
Depth: 26 Inches
-
Height: 15.5 Inches
-
Max. Door/Window Height (ft.): 12
-
Max. Height Insect Block (ft.): 10
-
Heat: No
-
Depth (in.): 26
-
Height (in.): 17
-
Length (in.): 48
-
Product Type: Unheated
-
Horse Power: 1/2 HP
-
Hertz: 60Hz
-
Width: 48"
-
Finish: Pearl white powder coat resists corrosion
-
Manufacturer: Mars Air Systems
