Mars PH1042-1UH-PW Phantom 42 inches Unheated 460V/3PH

Product Description

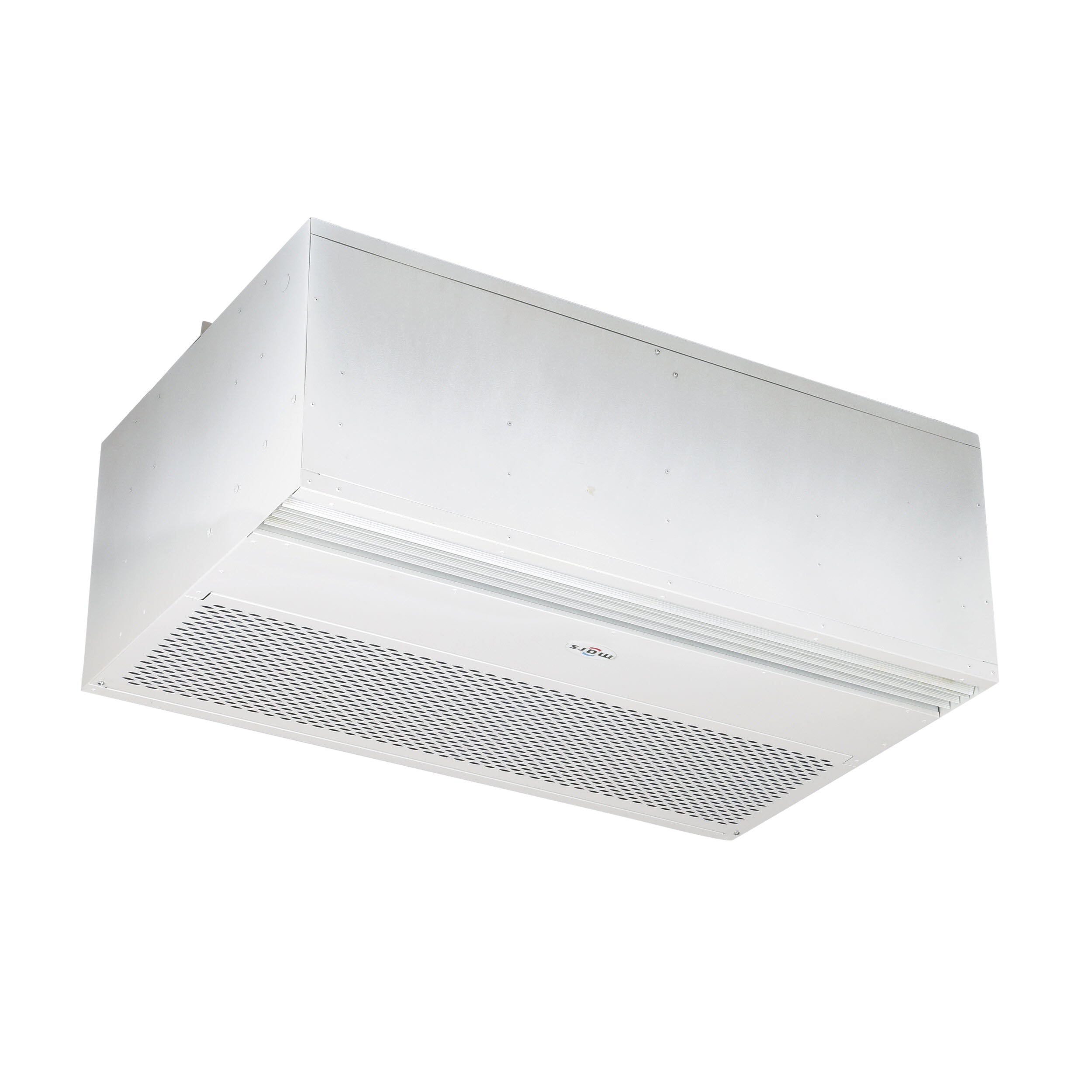

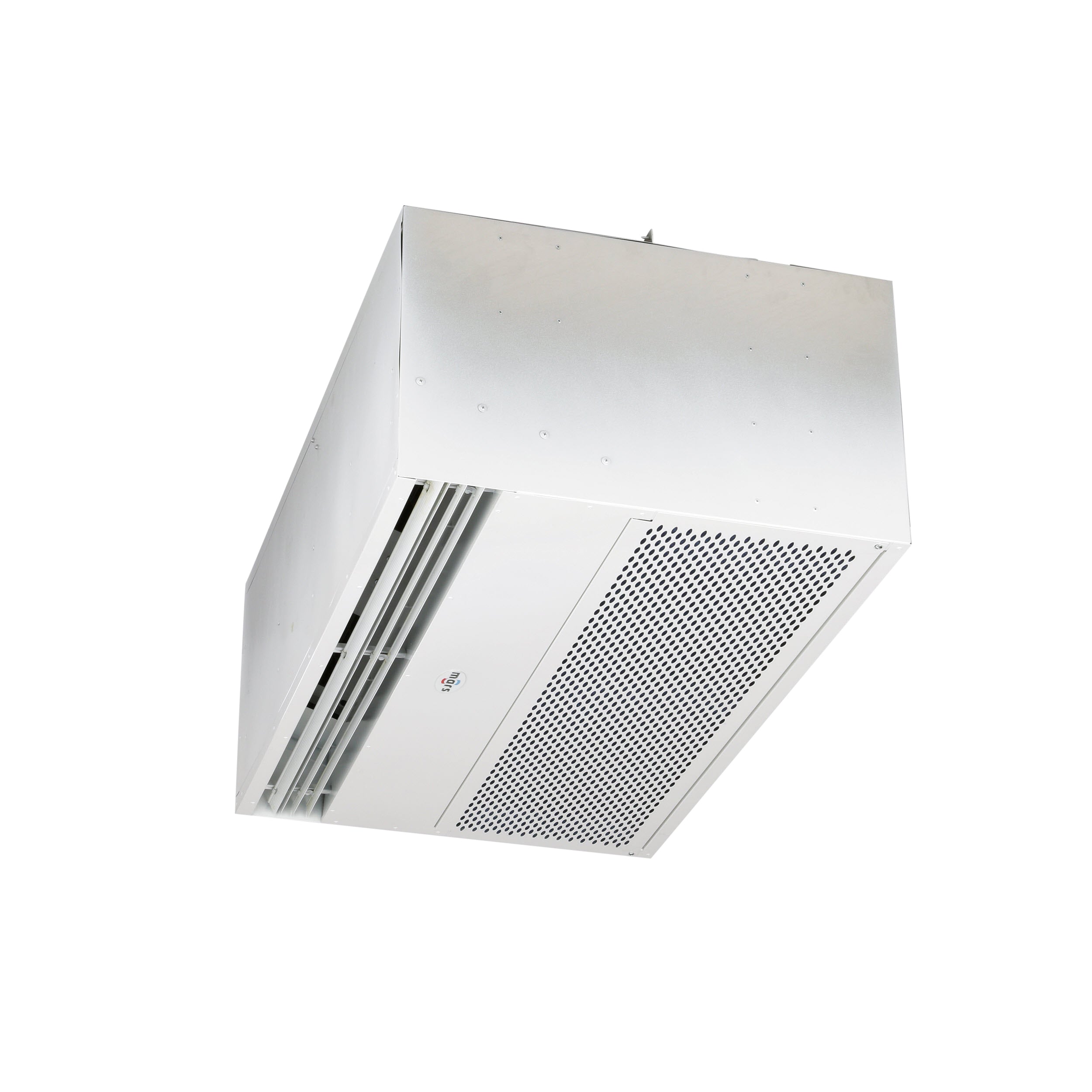

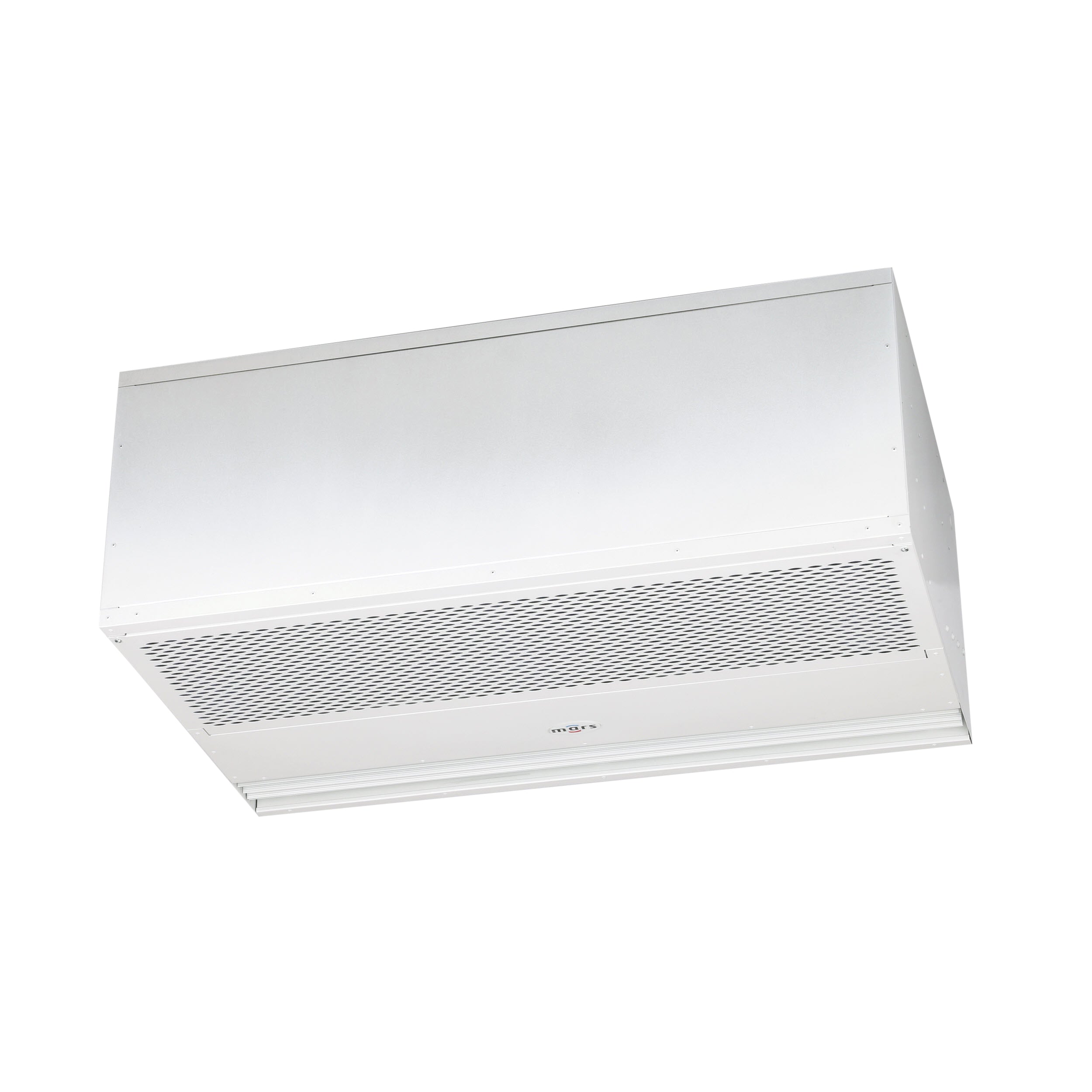

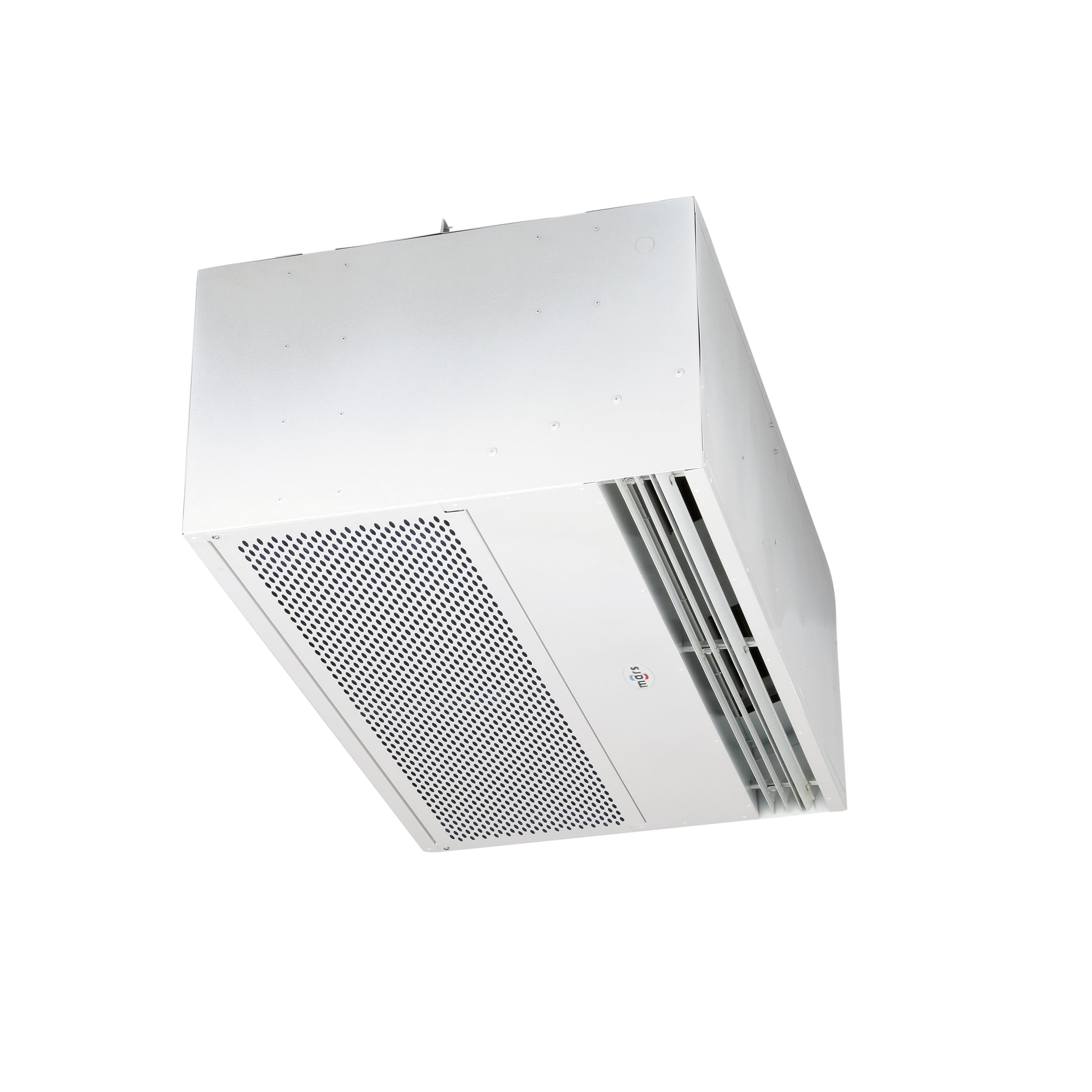

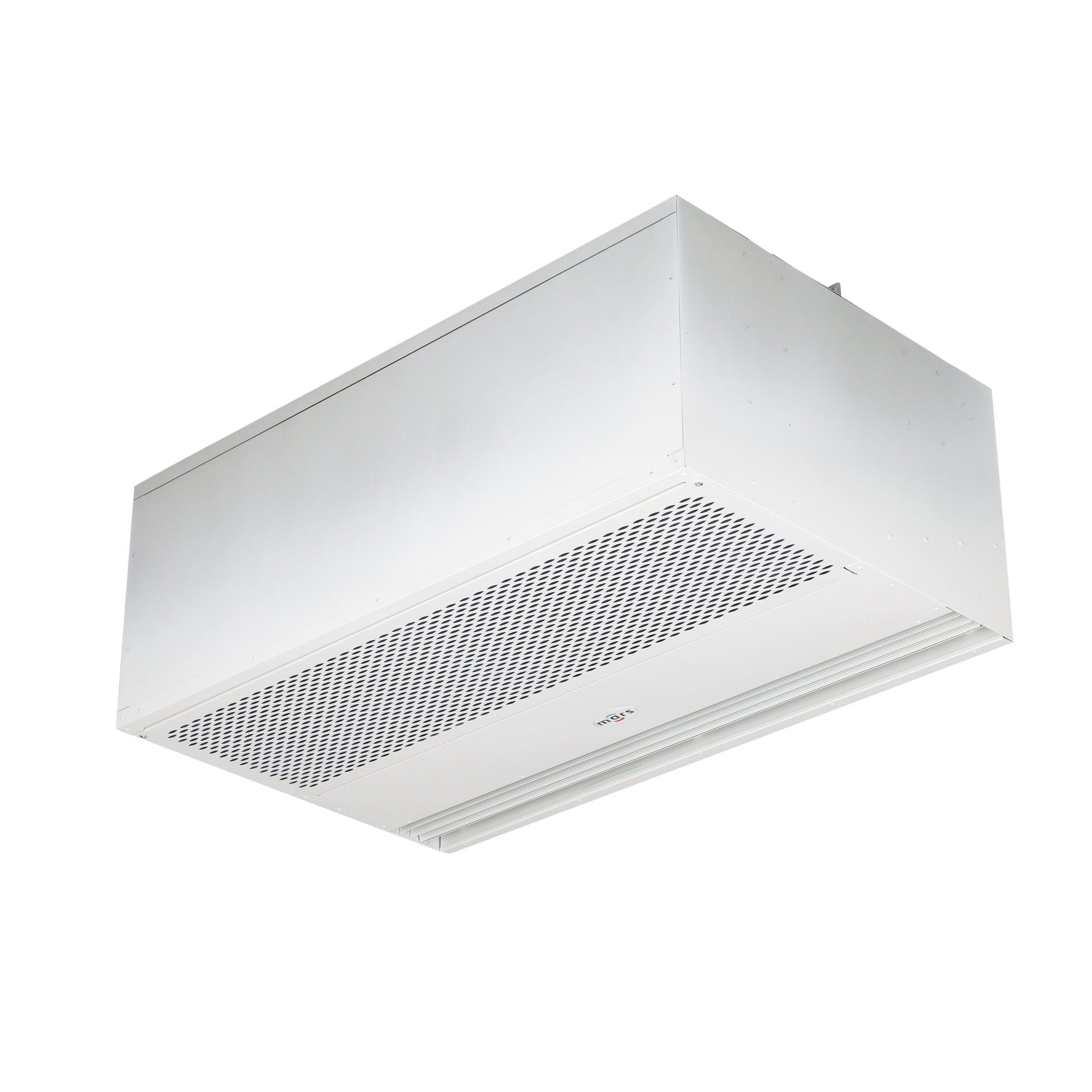

The MARS PH1042-1UH-PW Phantom Series air curtain is designed for concealed recess-mounting into a ceiling. It provides insect control up to 8 feet and temperature/environmental separation up to 10 feet. This unheated unit features the same internal components as the 1/2 HP Standard Units. It operates at 460V, 3PH, and 60Hz.

• Designed for insect control up to 8 feet
• Designed for temperature/environmental separation up to 10 feet
• Concealed design

Product Highlights

The Phantom series blends seamlessly into building aesthetics with quiet operation and top-performing components.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1042-1UH-PW
• Country of Origin: USA

Technical Specifications

• Series: Phantom 10 Series
• Motor: 1 Motor
• HP: 1/2 HP
• Unheated: Unheated
• Voltage: 460V
• Phase: 3PH
• Hertz: 60Hz
• FLA (Ampacity): 0.8Amps
• Door Width (Inches): 42
• Door Height: 10'
• Number of Poles: 3
• Max Volume: 2550
• Max Velocity: 2925
• Sound dBA: 66
• Weight (lbs): 60
• MOTORS: 1
• WIDTH (SIDE - SIDE): 42"
• MAX. OPENING HEIGHT (WINDOW/DOOR): 10 Ft
• TYPE: Un-heated
• HORSEPOWER PER MOTOR: 1/2
