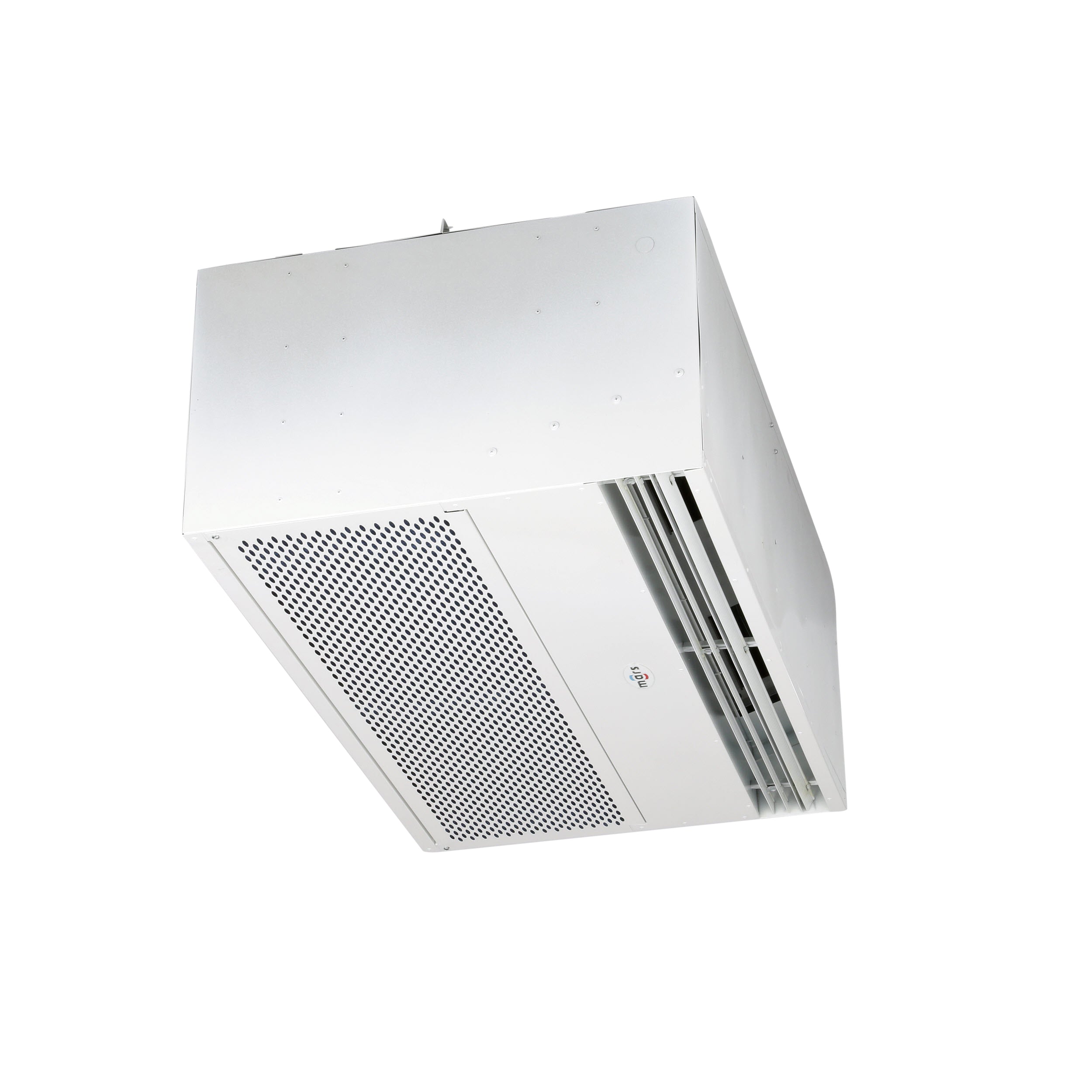

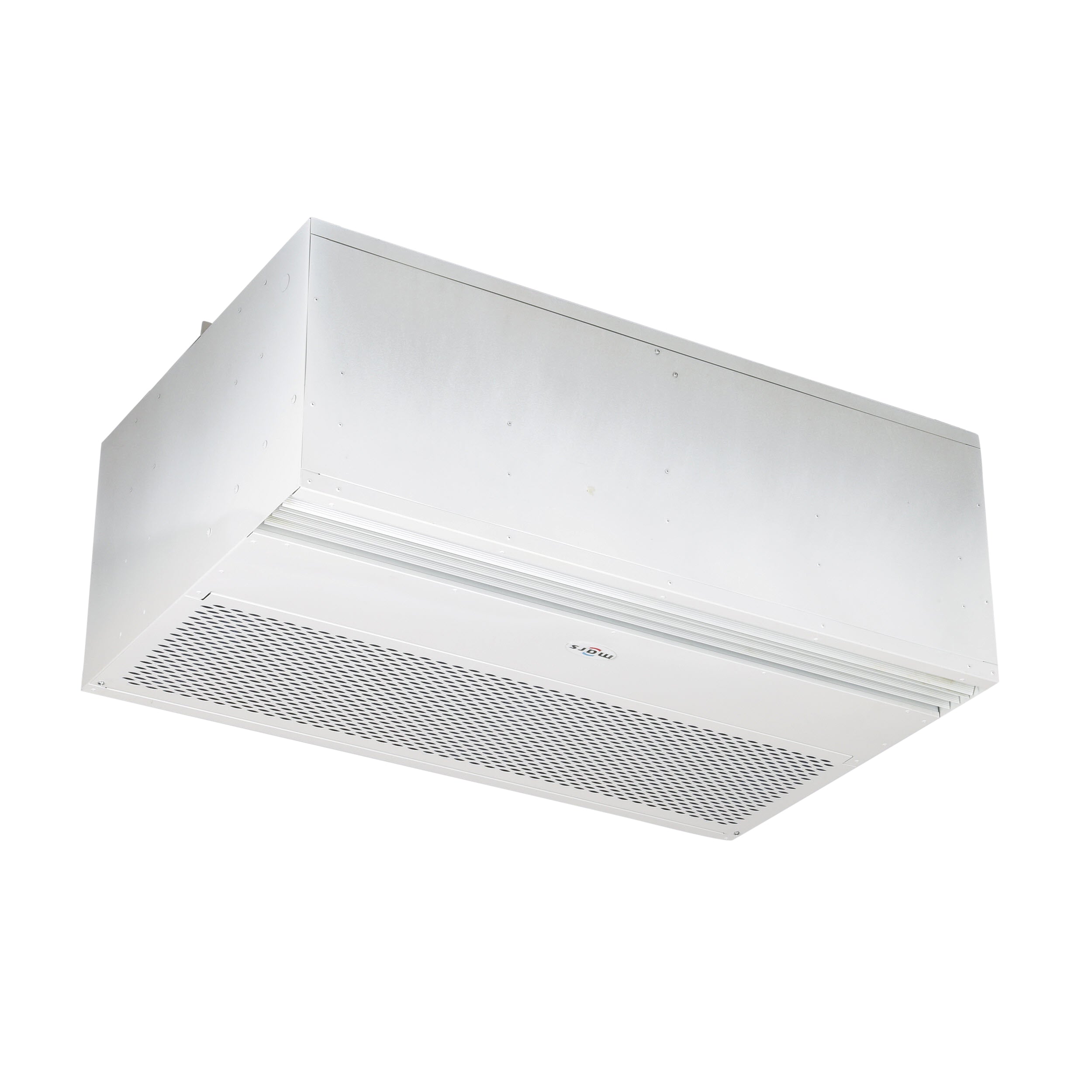

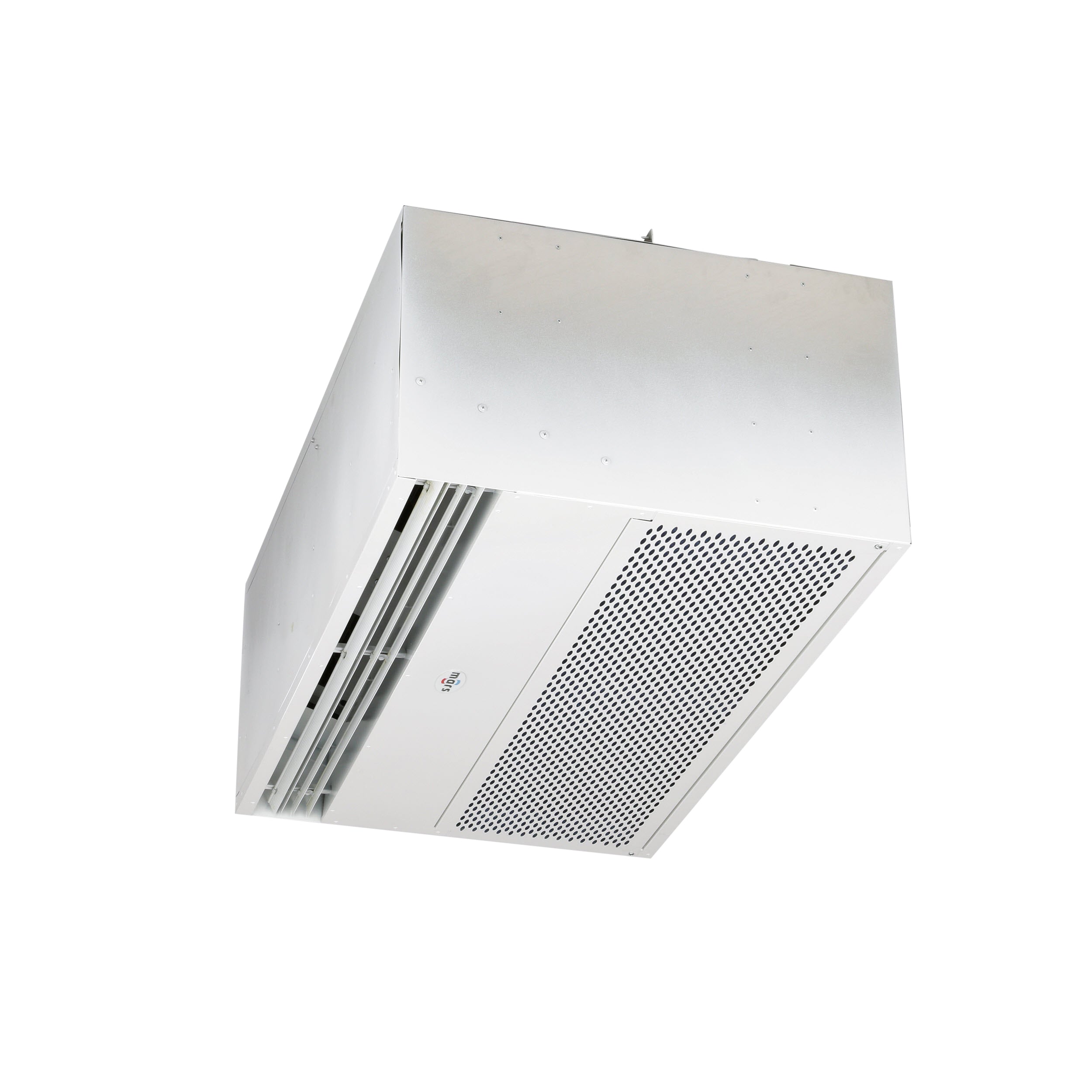

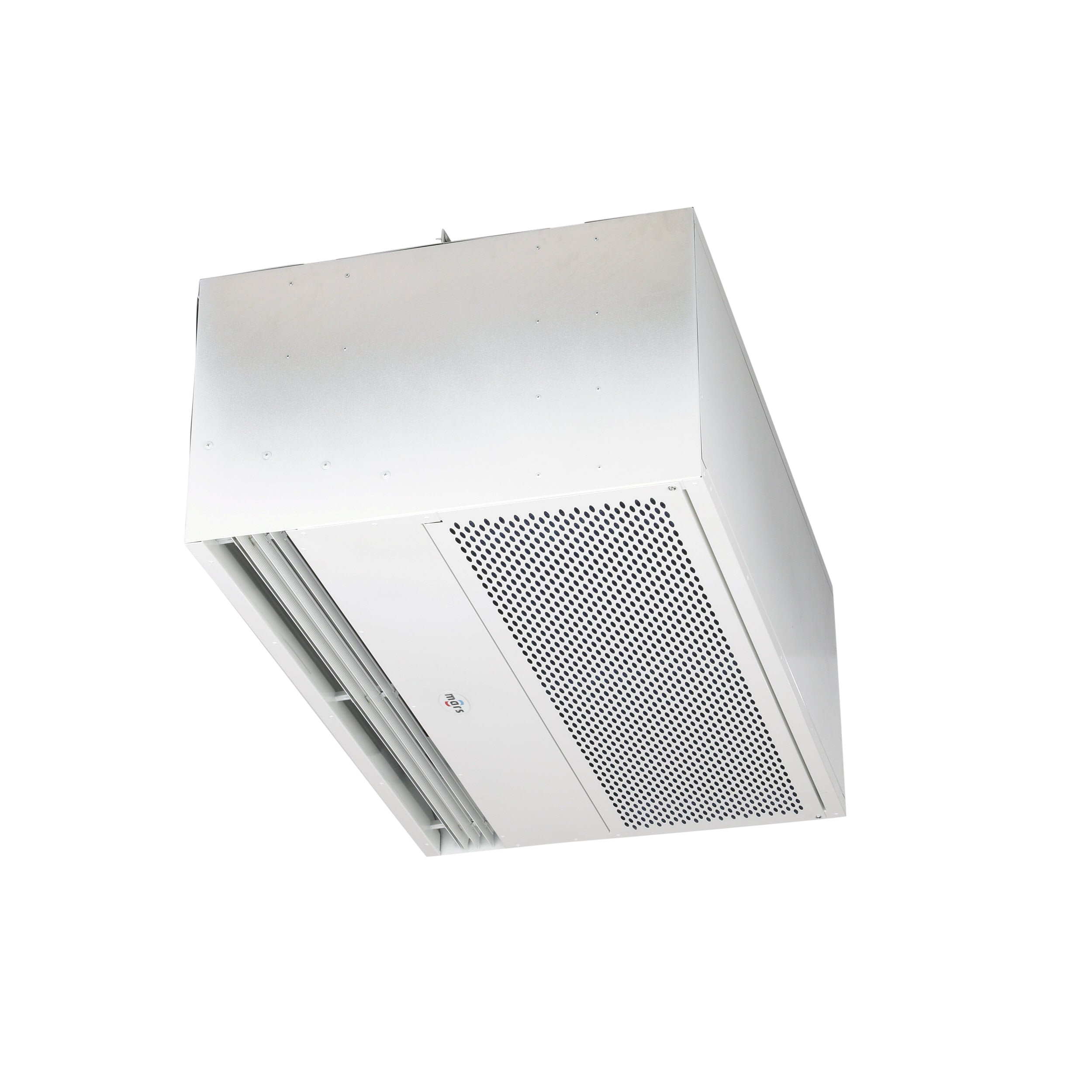

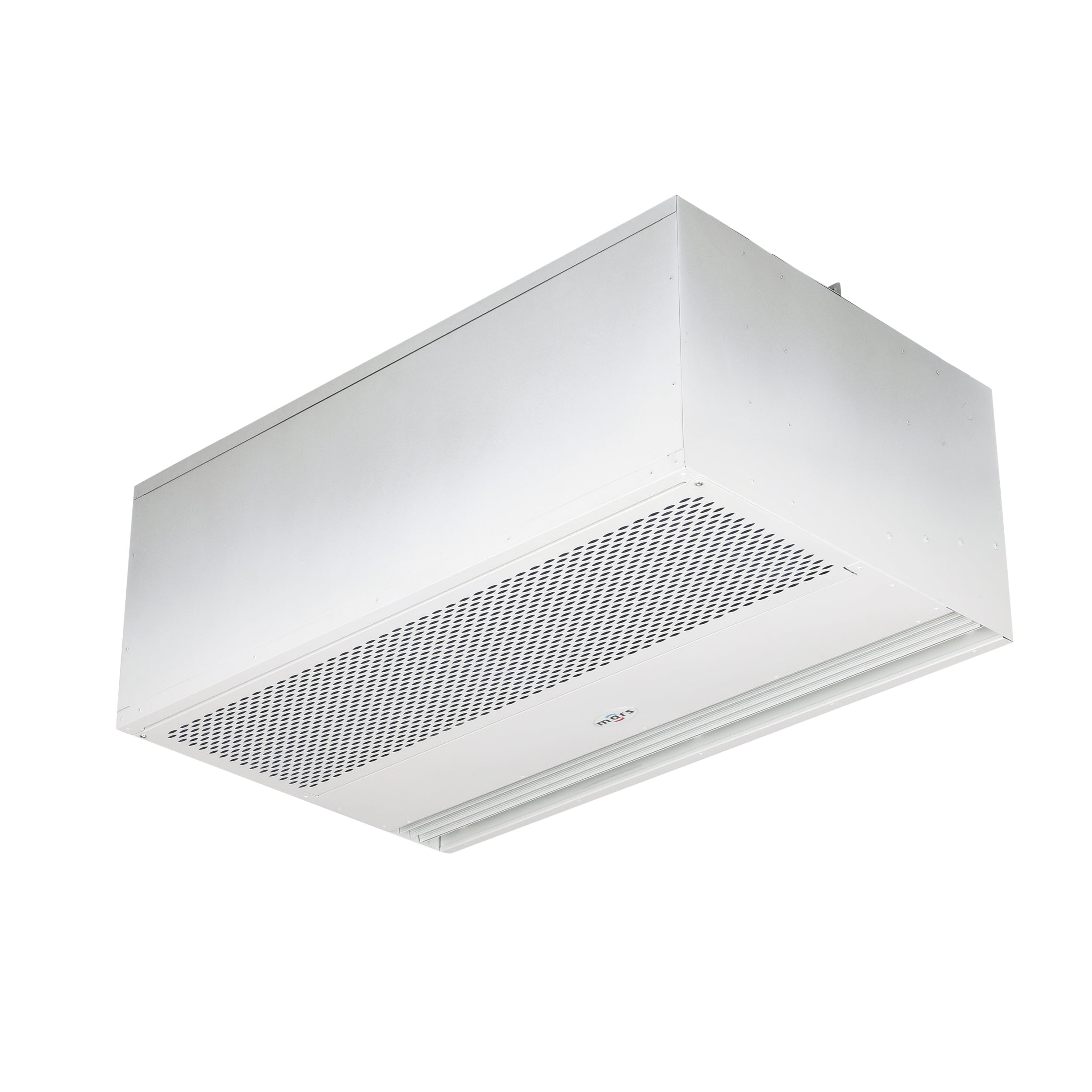

Mars PH1042-1UG-PW Phantom Series Air Curtain 42 inches Wide Unheated 208-230/3/60

Product Description

The MARS PH1042-1UG-PW Phantom Series Air Curtain is 42" wide and unheated, operating at 208-230V, 3 Phase. Designed for architects and designers, this air curtain can be concealed and recess-mounted into a ceiling. It features top-performing internal components and a durable aluminum construction with a pearl white finish. It provides environmental separation while maintaining a consistent interior temperature.

• 1/2 HP Continuous Duty TEAO Motors
• Recessed mounted in ceiling for invisible coverage
• ETL Certified to conform to UL 2021 (US) and CSA 22.2 (Canada) Standards

Product Highlights

Ideal for spaces needing effective environmental separation with a seamless appearance, this air curtain minimizes dirt, dust, and fumes while allowing unobstructed views.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1042-1UG-PW
• Country of Origin: USA

Technical Specifications

• Width (Inches): 42
• Max Door Height: 12'
• Construction: Aluminum
• CFM High: 2550
• Voltage: 208-230/3/60
• FLA 1 Phase-115V: 5.1
• FLA 1 Phase-208V/230V: 2.5 / 2.5
• FLA 3 Phase-208V/230V: 1.8 / 1.6
• FLA 3 Phase-460V: 0.8
• Horsepower: 1/2
• Heating Option: Unheated
• Series: Phantom
• Decibels (DB): 66
• Country of Origin: USA
• Material: Aluminum
• Phase: 3
• Type: Unheated
• Max Volume (CFM): 2550
• Environmental - Max Height (feet): 12
• Insect - Max Height (feet): 10
• Nozzle Width (inches): 42
• Unit Width (inches): 42
• Unit Height (inches): 17
• Wind Stopping Capability (MPH): 12
• Motors: 1
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 208-230/3/60
• Voltage Code: G
• Air Curtain Air Volume (CFM): 1580
• Amps: 1.8/1.6
• Uniformity (%): 89
• dBA: 66
• Model Number: MRS-PH1042-1UG-PW
• MAX. OPENING HEIGHT (WINDOW/DOOR): 10 Ft
• Application: Main Entrances
• ETL Listed: Yes
• HP: 1/2 HP
• Max Environmental Separation Height: 12 Feet
• Max Insect Blocking Height: 10 Feet
• Power: Electric
• Volts: 208/230 Volts
• Wattage: 500 Watts
• Product Type: Unheated
• FLA (Ampacity): 1.8Amps
• Door Width (Inches): 42
• Door Height: 10'
• Number of Poles: 3
• Max Velocity: 2925
• Frequency (Hertz): 60
• # of Motors: 1
• Sound dBA: 66
• Length (in.): 42
• Certifications: ETL Listed, AMCA
