Product Description

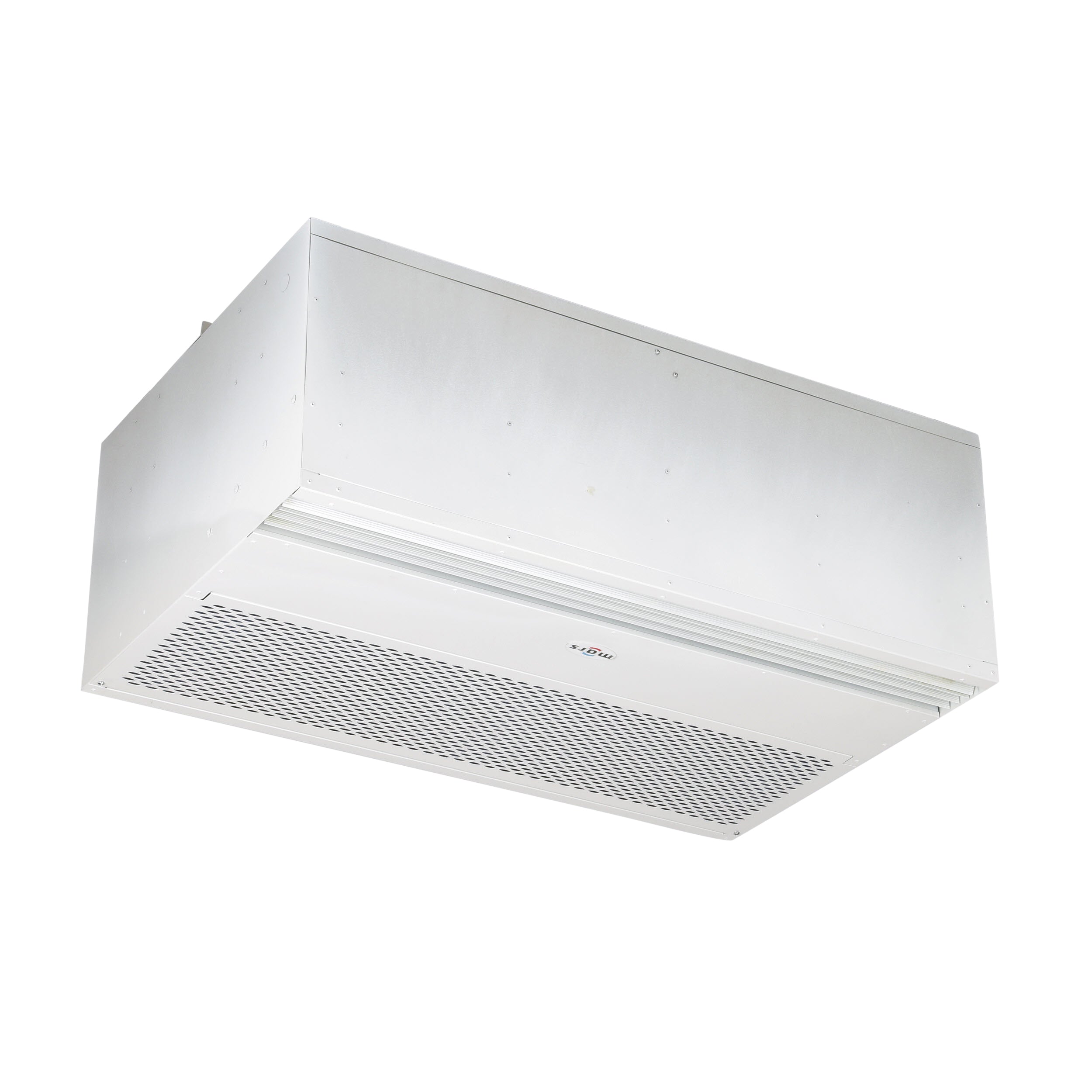

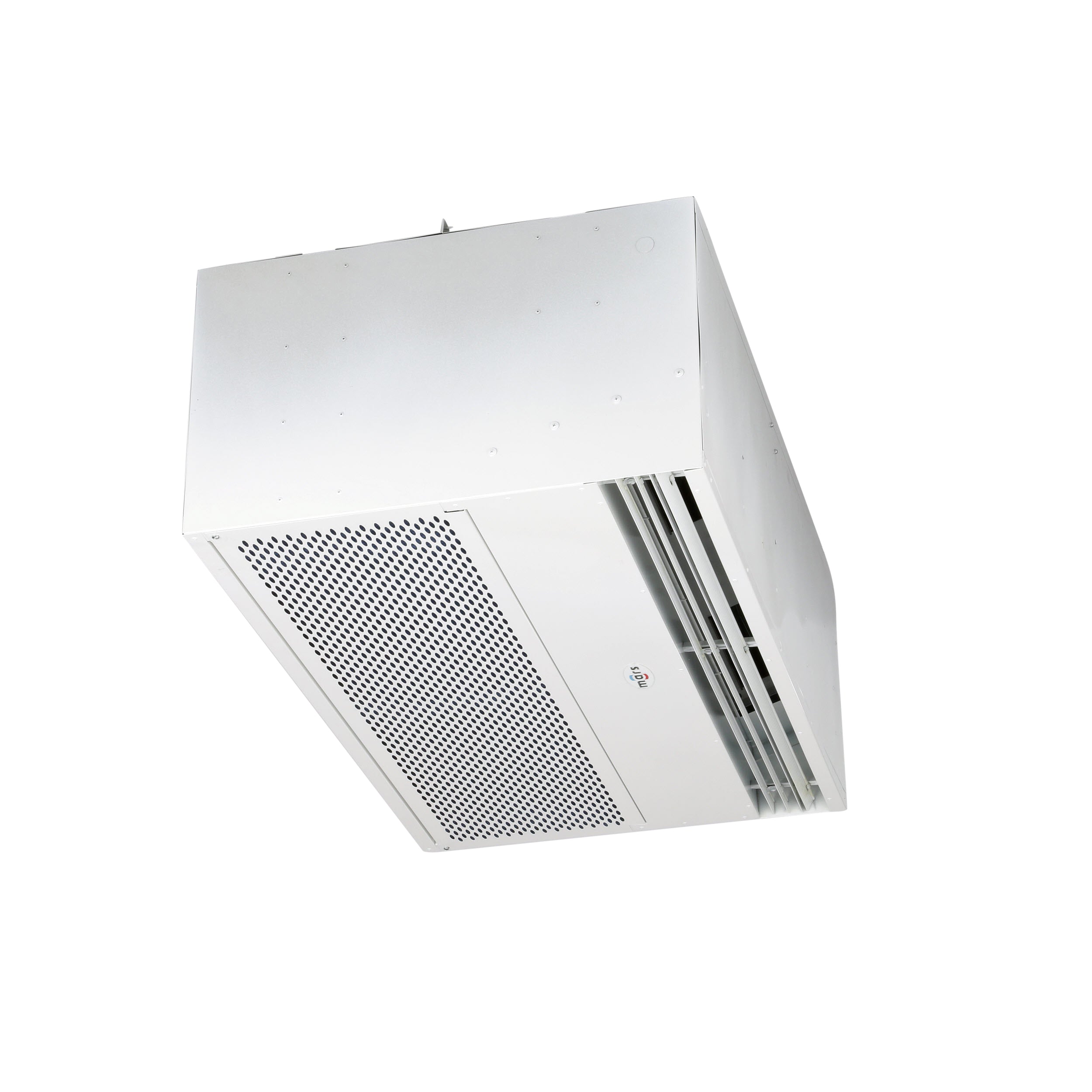

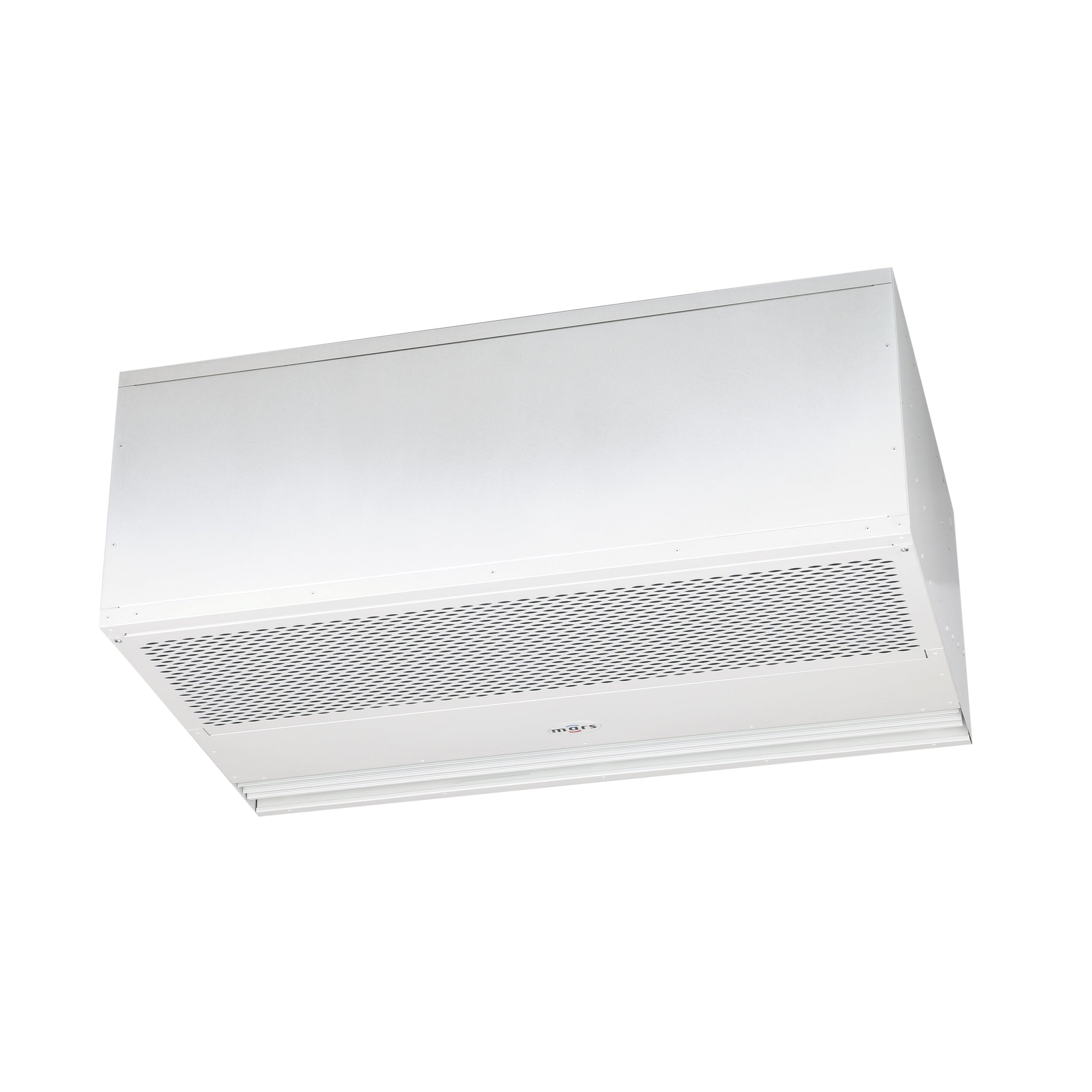

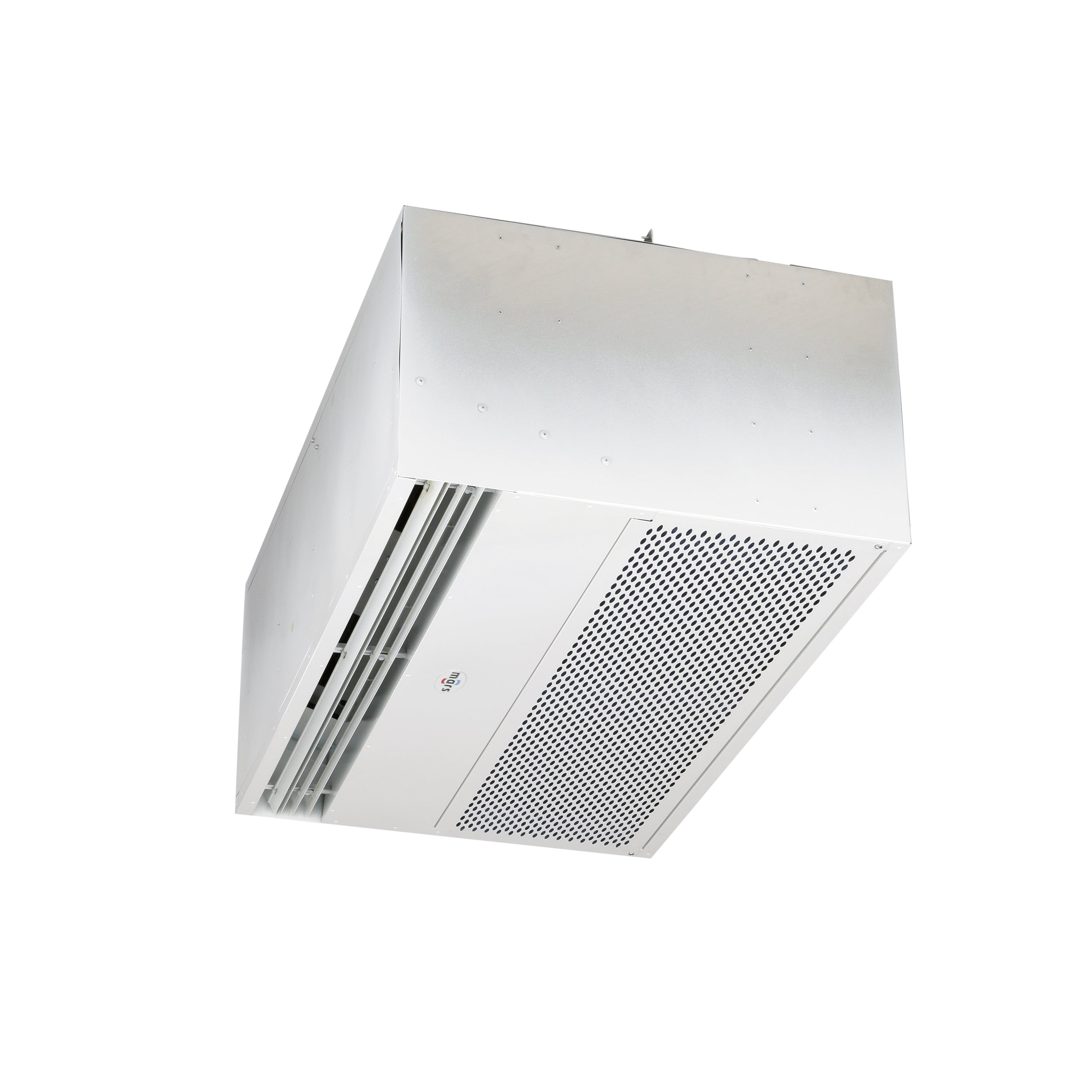

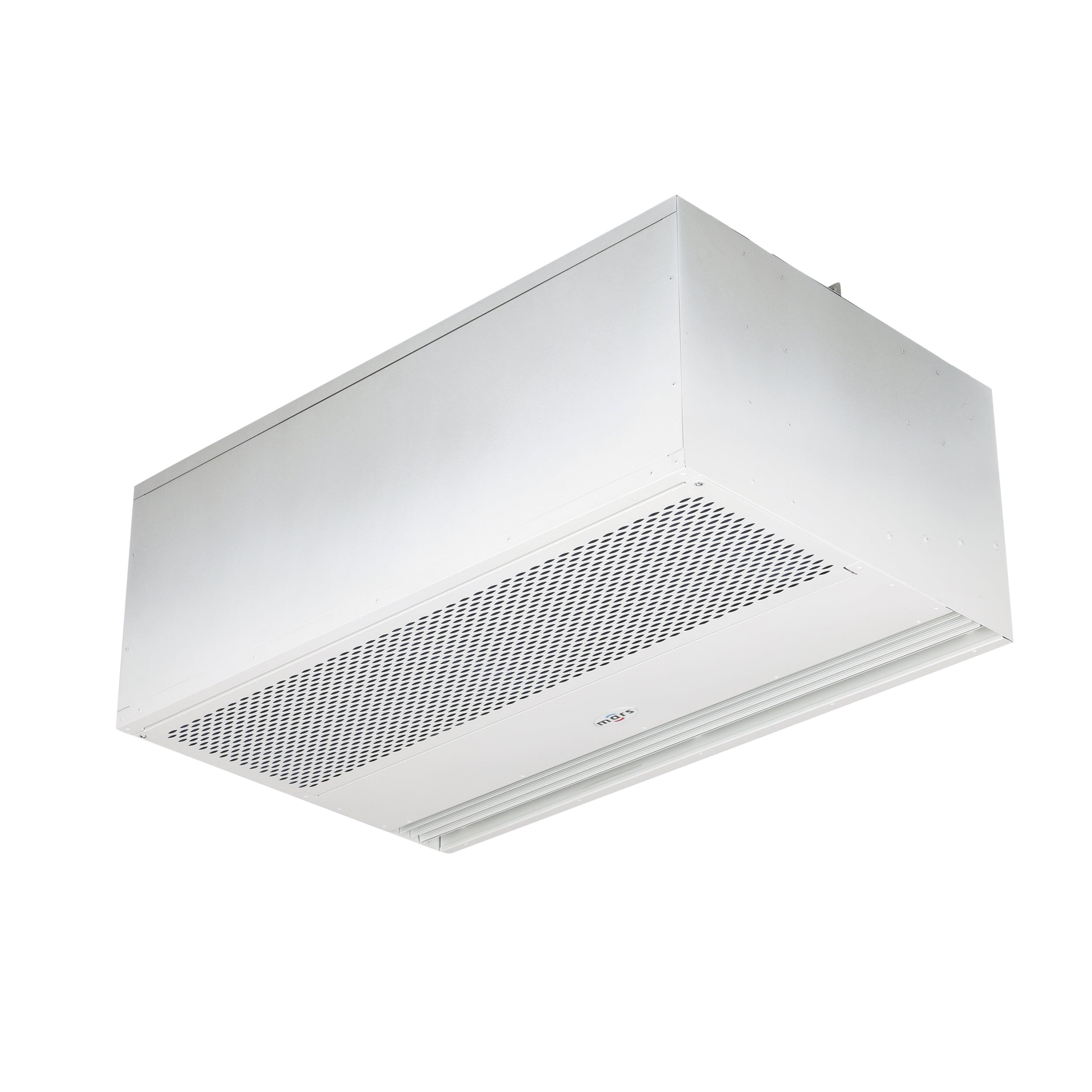

The MARS PH1042-1UA-PW Phantom Series air curtain is designed for architects needing a unit that blends with the building's aesthetics. Featuring top-performing internal components like the 1/2 HP motor, it can be concealed and recess-mounted into a ceiling. It provides environmental separation up to 12 feet and insect control up to 10 feet.
- Recessed capabilities for blending into building aesthetics
- Quieter and less conspicuous operation
- Top-performing internal components
Product Highlights
The Phantom series is quieter and less conspicuous, without sacrificing its ability to do the job required.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: PH1042-1UA-PW
-
Country of Origin: USA
Technical Specifications
-
MPN: PH1042-1UA-PW
-
Environmental - Max Height (feet): 12
-
Insect - Max Height (feet): 10
-
Series: PH (Phantom) Series
-
Heating Mode: Unheated
-
Nozzle Width (inches): 42
-
Unit Width (inches): 42
-
Unit Height (inches): 17
-
Wind Stopping Capability (MPH): 12
-
Horsepower: 1/2
-
Motors: 1
-
Air Flow Certified (AMCA): Yes
-
Voltage Rating: 115/1/60
-
Voltage Code: A
-
Air Curtain Air Volume (CFM): 1580
-
Amps: 5.1
-
dBA: 66
-
Manufacturer: Mars Air Systems
-
HORSEPOWER PER MOTOR: 1/2
-
TYPE: Un-heated
-
Motor: 1 Motor
-
Voltage: 115v
-
Phase: 1PH
-
Hertz: 60Hz
-
Heating: Unheated
-
Depth (in.): 26
-
Length (in.): 42
-
Product Type: Unheated
-
Air Curtain Air Velocity: 2925 fpm
-
Air Curtain dBA @ 10 Feet: 66 dBA
-
Air Curtain Heated: No
-
Air Curtain Housing Material: Aluminum
-
Standards: AMCA Certified
-
Motor Type: Permanent Split Capacitor
-
Includes: Filters
-
Number of Speeds: 1
-
Requires: Door Limit Switch
-
Motor HP: 1/2 hp
-
Air Curtain Item: Recessed Air Curtain
-
Motor Enclosure: Totally Enclosed Air Over
-
Housing Color: White
-
Max. RPM: 1,750 RPM
-
Control Type: Door Limit Switch
-
Finish: Powder Coated
-
Housing Material: Aluminum
-
Profile Type: Recessed
-
Washdown: No
-
Nameplate Voltage: 115V AC
-
Sanitation Certified: No
-
Sound Level @ 10 ft: 66 dBA
-
Frequency: 60 Hz
-
Motor Horsepower per Motor: 1/2 hp
-
Maximum Air Velocity: 4,150 fpm
-
Grille Material: Aluminum
-
HEPA Air Cleaning: No
-
Electrical Connection: Not Available
-
Power Consumption: 500 W
-
Assembly: Not Available
-
Maximum Operating Temperature: Not Available
-
Maximum Speed: 1,750 RPM
-
Minimum Operating Temperature: Not Available
-
Ultraviolet Air Cleaning: No
-
Full Load Current: 5.1 A
-
Maximum Air Volume: 1,460 cfm
-
Drive Type: Direct Drive
-
Number of Motors: 1
