Mars PH1036-1UH-PW Phantom Series Air Curtain 36 inches Wide Unheated

Product Description

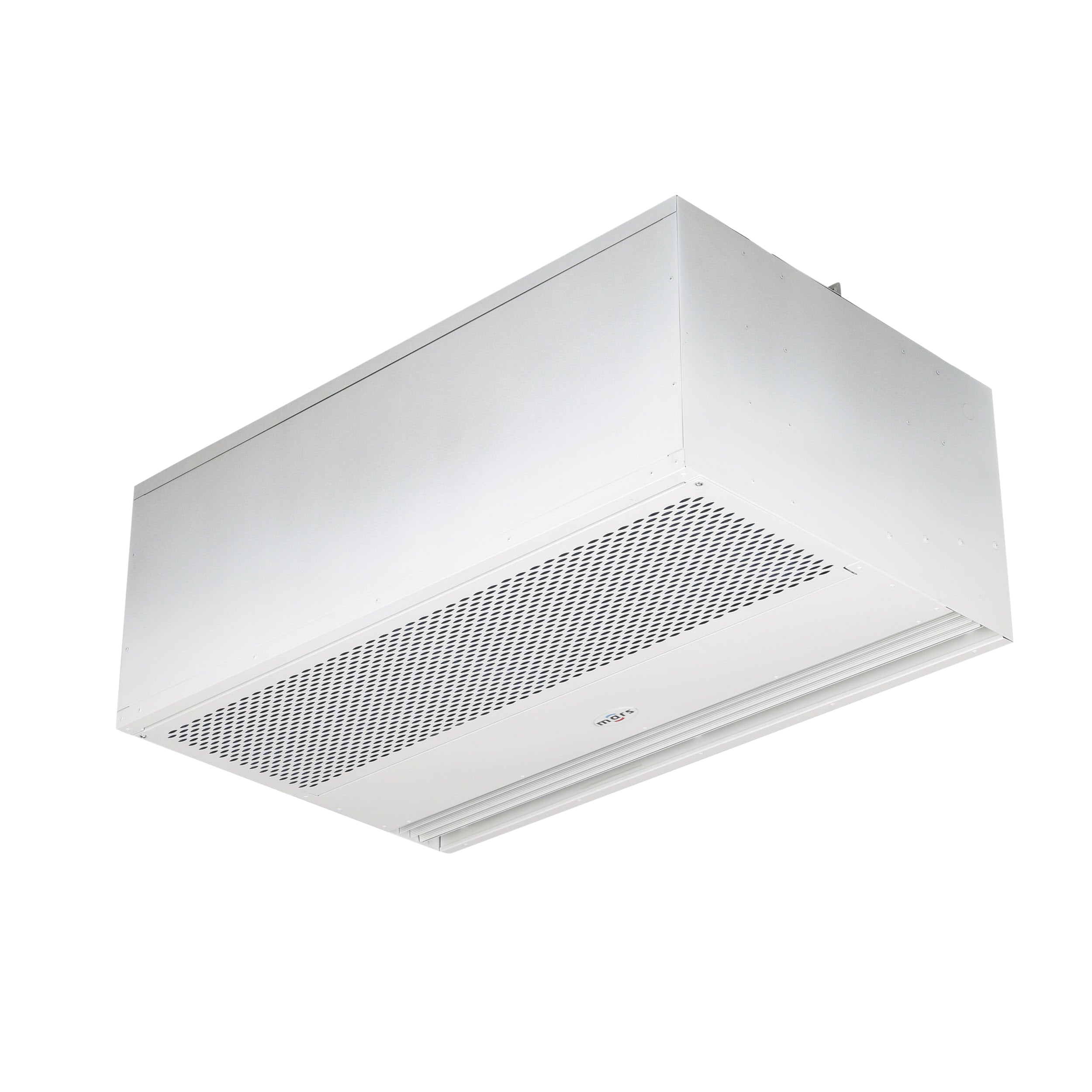

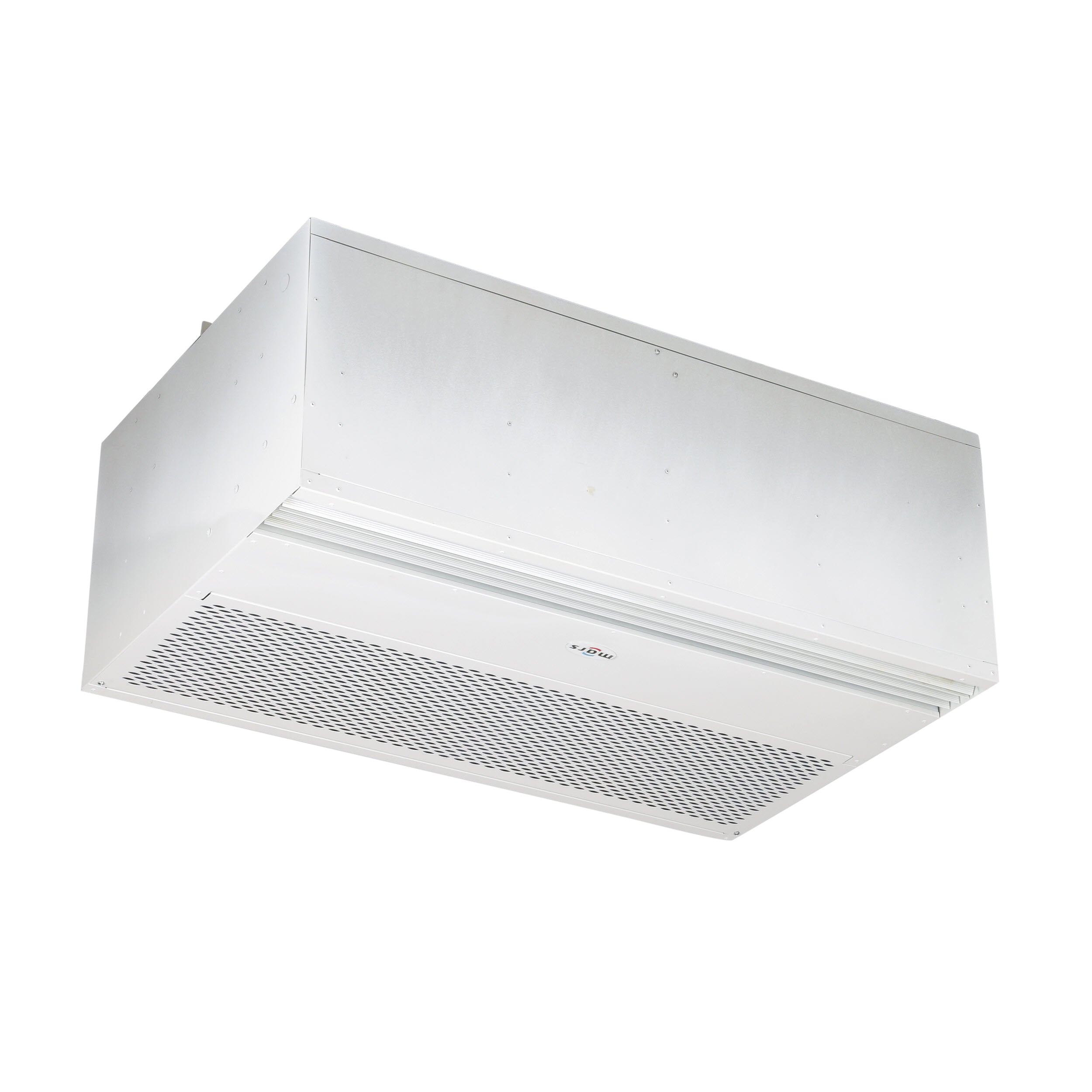

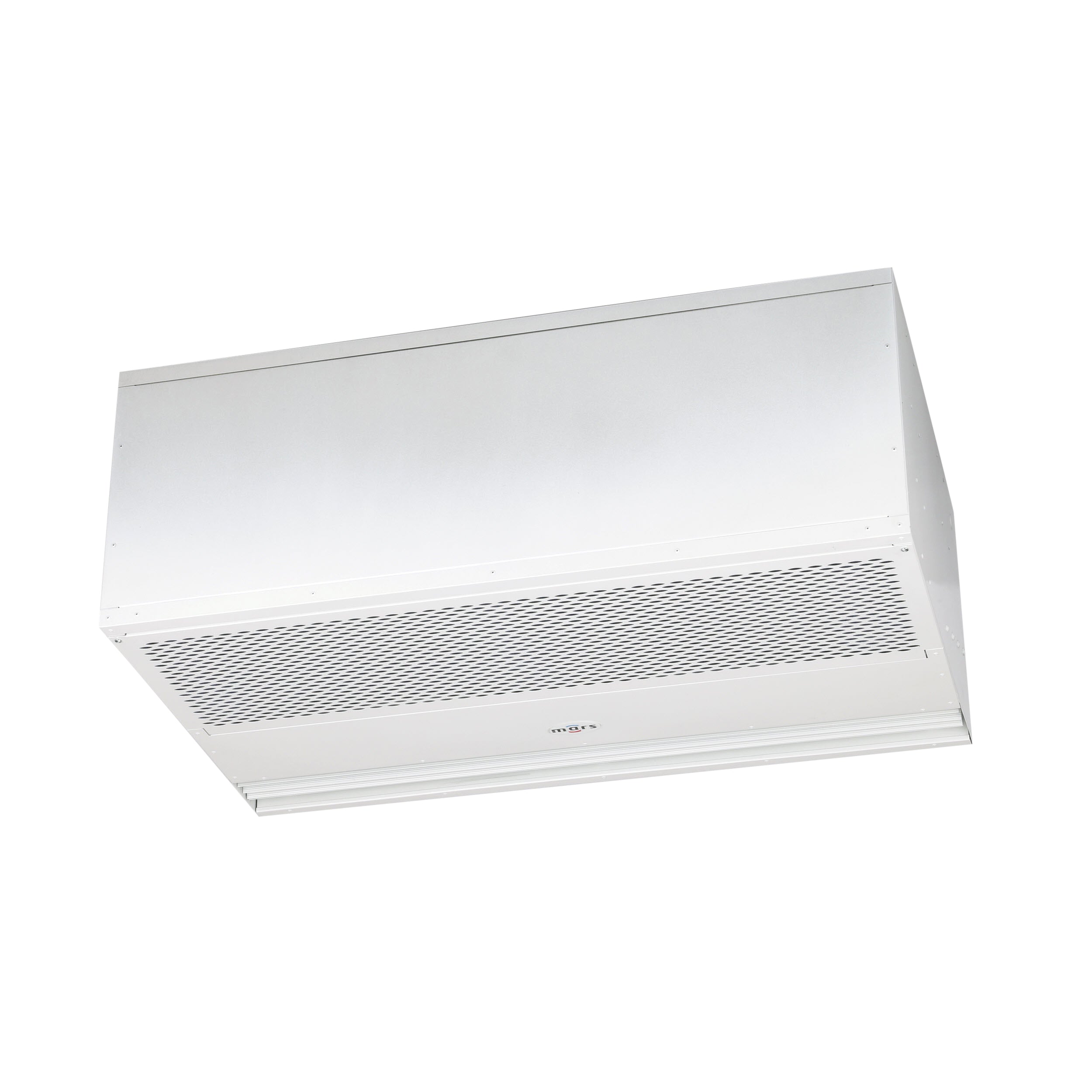

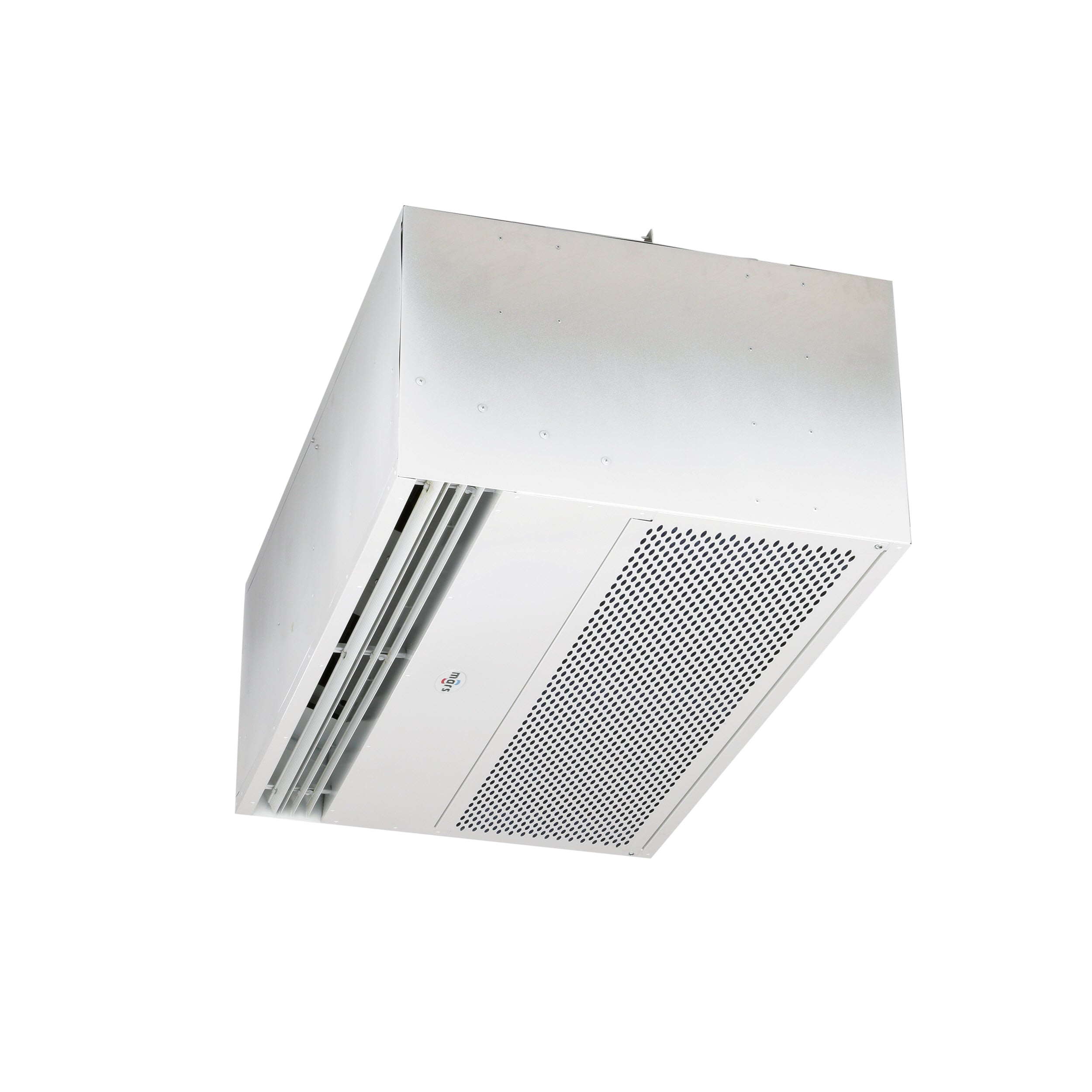

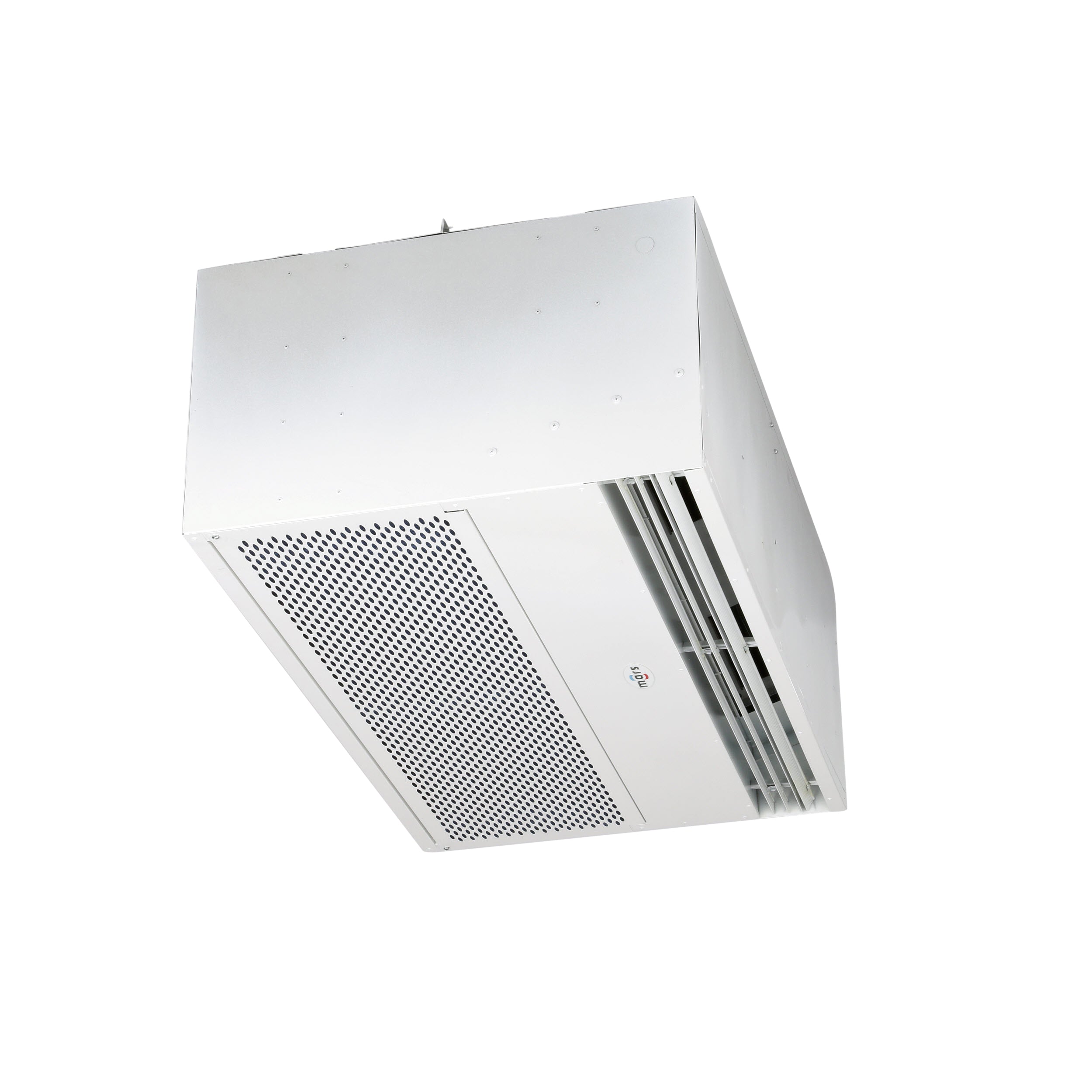

The MARS PH1036-1UH-PW Phantom Series Air Curtain is 36" wide and unheated. Designed for recess mounting in ceilings, it provides effective environmental separation while maintaining a consistent interior temperature. It minimizes dirt, dust, and fumes, allowing for unobstructed views and enhancing safety. The unit features durable aluminum construction and adjustable air directional vanes.

• 1/2 HP Continuous Duty TEAO Motor
• Recessed mounted in ceiling for invisible coverage
• ETL Certified to conform to UL 2021 (US) and CSA 22.2 (Canada) Standards

Product Highlights

This commercial air curtain is designed to provide effective environmental separation while creating a seamless appearance. It is ideal for maintaining interior temperature and controlling flying insects.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1036-1UH-PW
• Country of Origin: USA

Technical Specifications

• Width (Inches): 36
• Max Door Height: 12'
• Construction: Aluminum
• CFM High: 2550
• Voltage: 460v
• FLA 1 Phase-115V: 5.1
• FLA 1 Phase-208V/230V: 2.5 / 2.5
• FLA 3 Phase-208V/230V: 1.8 / 1.6
• FLA 3 Phase-460V: 0.8
• Horsepower: 1/2
• Heating Option: Unheated
• Series: Phantom
• Decibels (DB): 66
• Country of Origin: USA
• Material: Aluminum
• Phase: 3
• Type: Unheated
• Max Volume (CFM): 2550
• Environmental - Max Height (feet): 12
• Insect - Max Height (feet): 10
• Nozzle Width (inches): 36
• Unit Width (inches): 36
• Unit Height (inches): 17
• Wind Stopping Capability (MPH): 12
• Motors: 1
• Air Flow Certified (AMCA): Yes
• Air Curtain Air Volume (CFM): 1460
• Amps: 0.8
• Uniformity (%): 91
• dBA: 66
• Air Volume (CFM): 1460
• Application: Main Entrances
• ETL Listed: Yes
• HP: 1/2 HP
• Max Environmental Separation Height: 12 Feet
• Max Insect Blocking Height: 10 Feet
• Power: Electric
• Volts: 460 Volts
• Wattage: 460 Watts
• Depth (in.): 26
• Height (in.): 17
• Length (in.): 36
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Horse Power Per Motor: 1/2 hp
• Max Opening Height Window Door: 8 ft
• Hertz: 60
• Width (side - side): 36" - 39"
