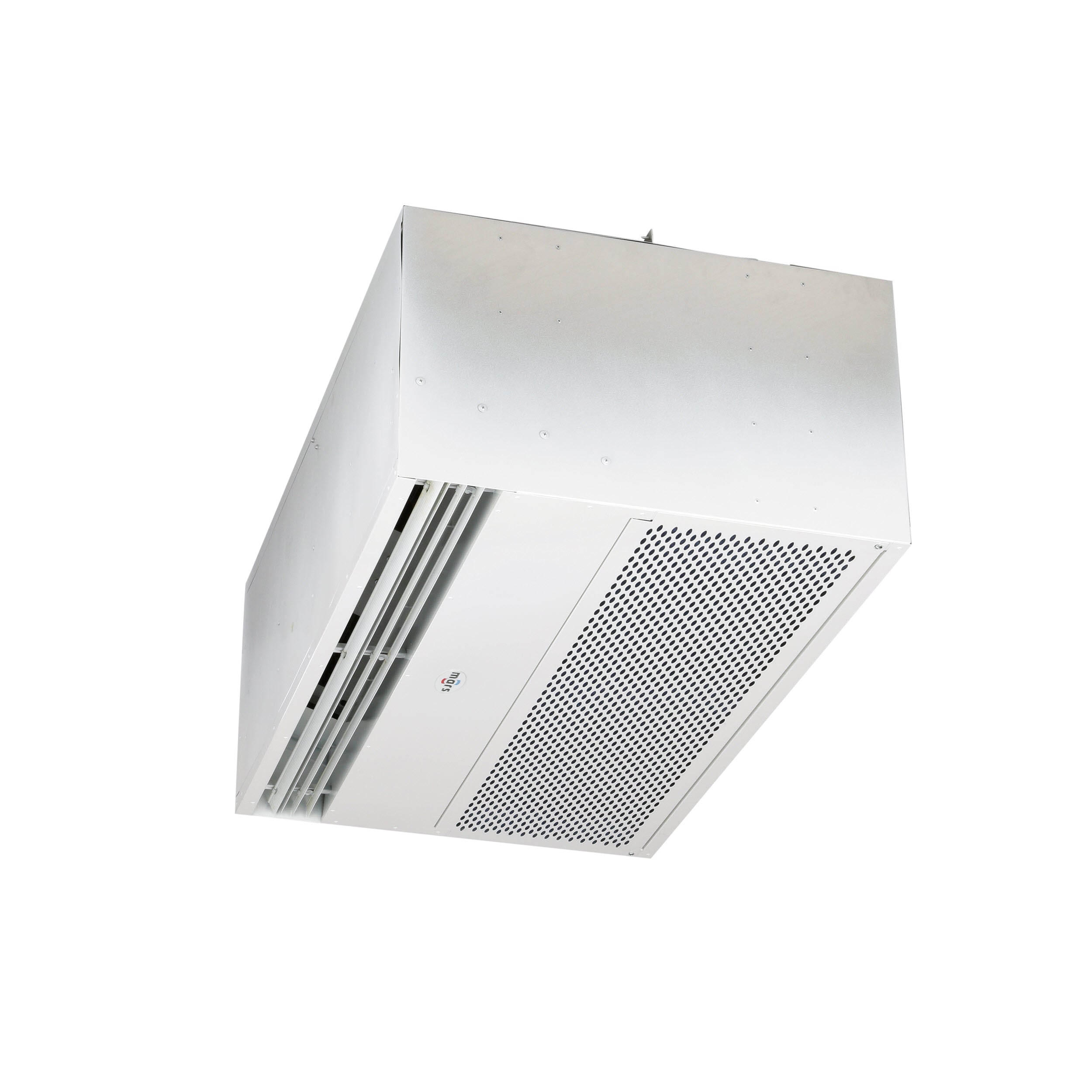

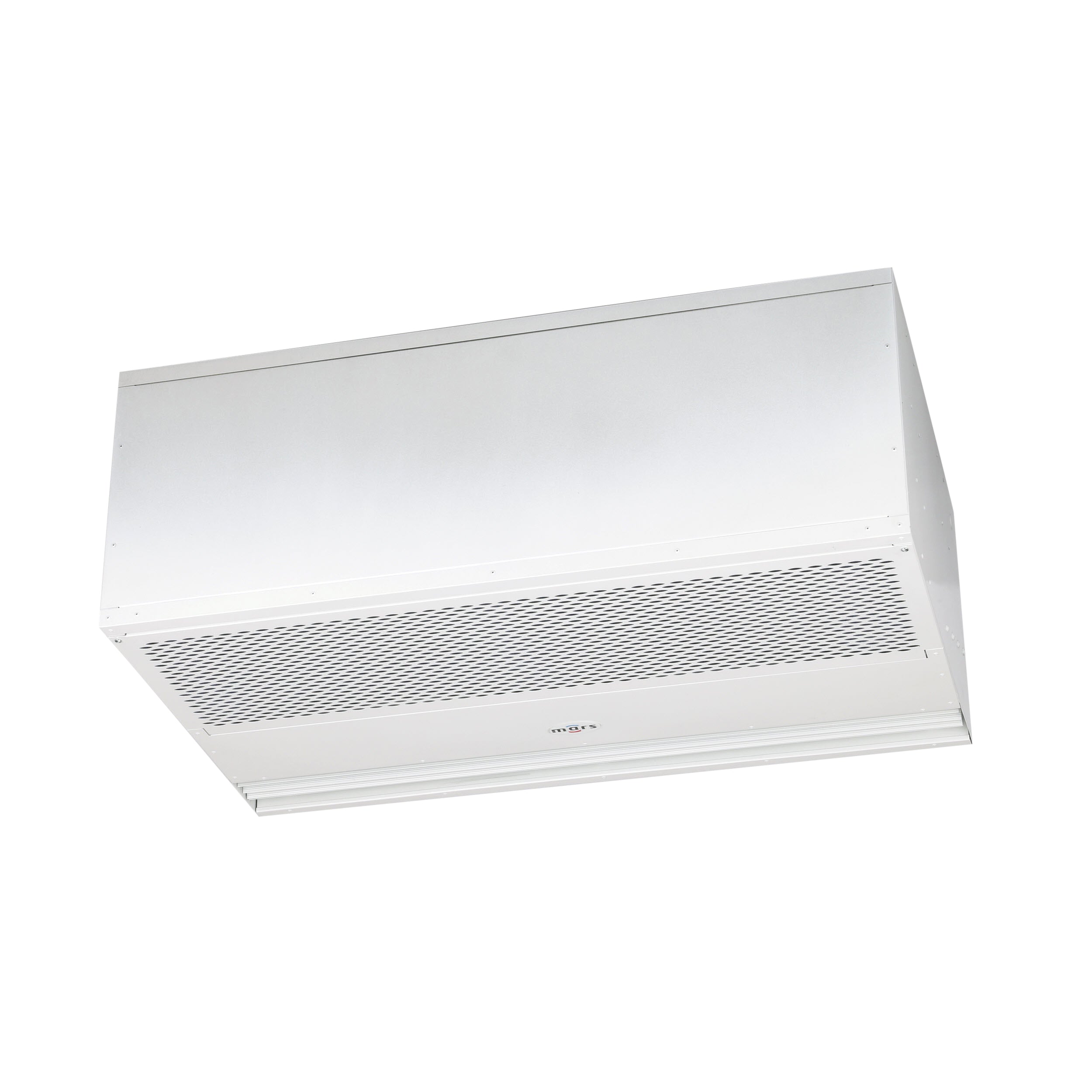

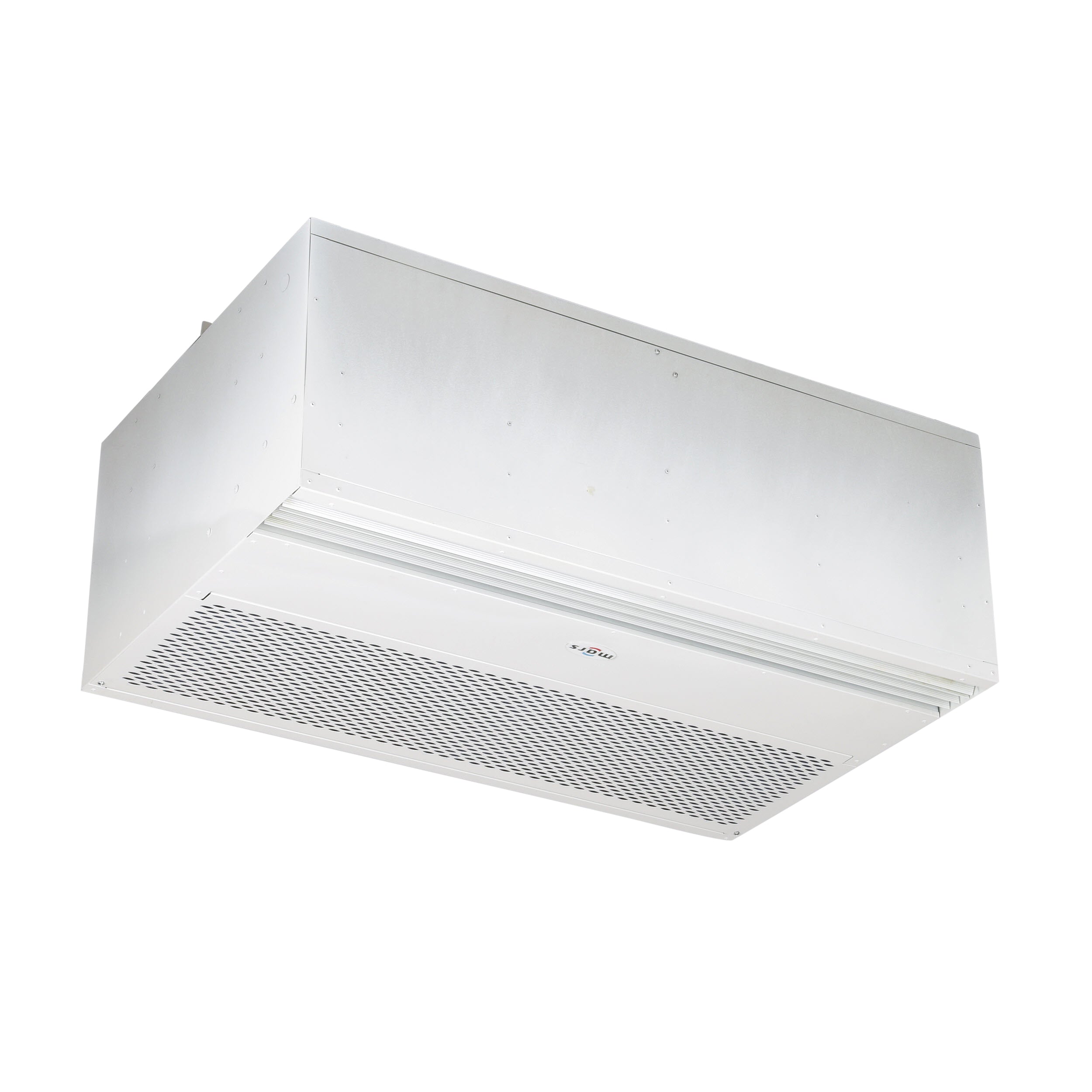

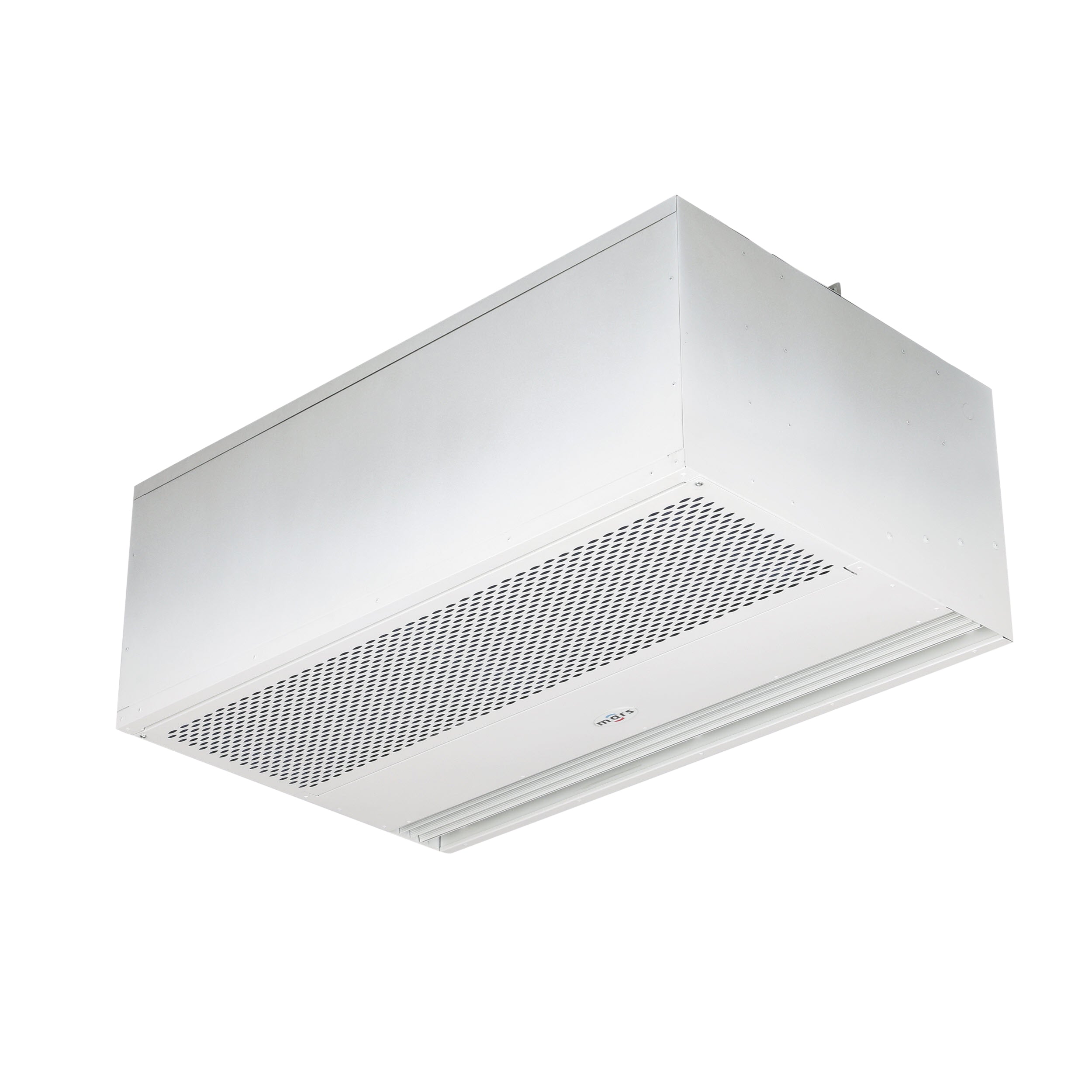

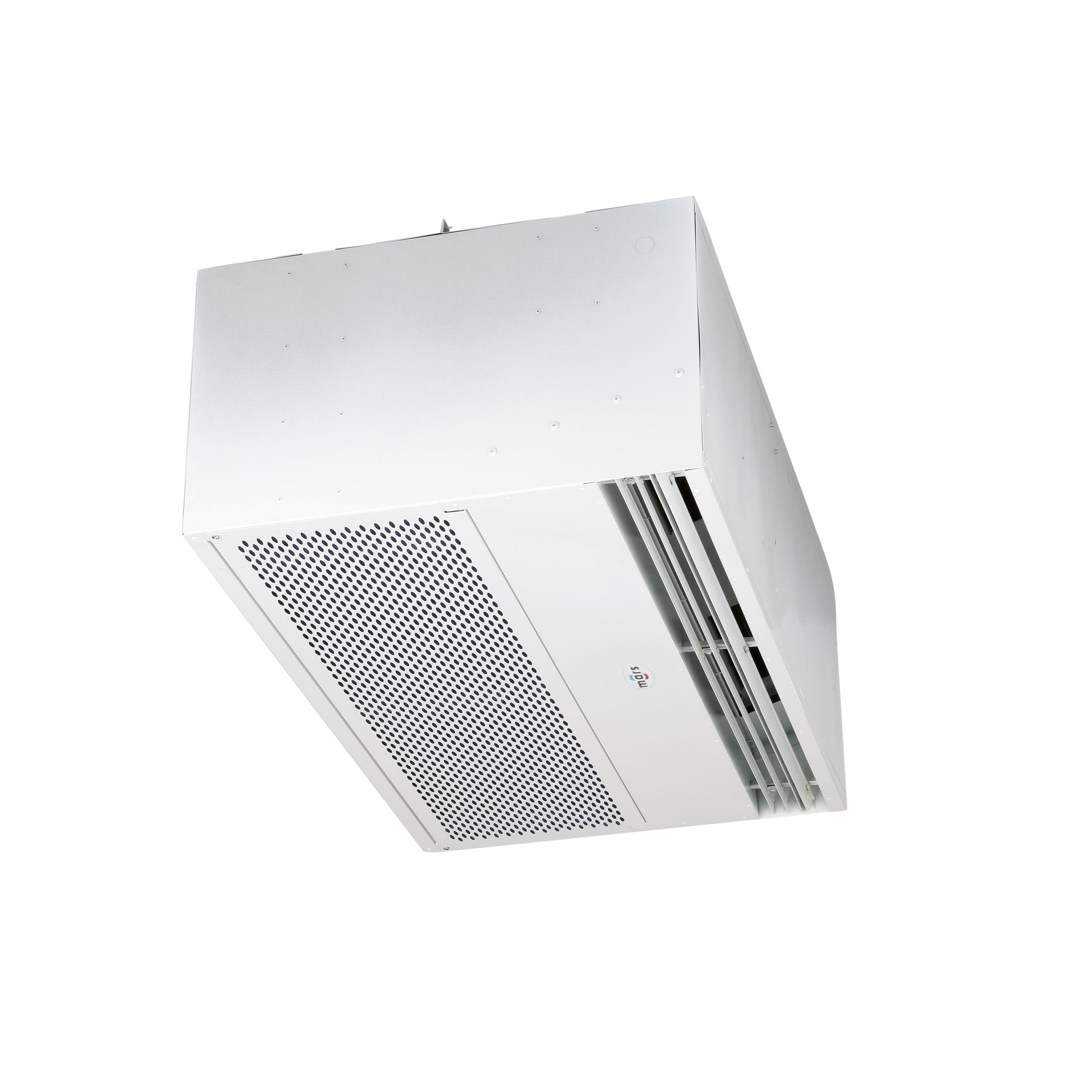

Mars PH1036-1UG-PW Phantom Series Air Curtain 36 inches Wide Unheated 208-230/3/60

Product Description

The MARS PH1036-1UG-PW Phantom Series Air Curtain is 36" wide and unheated, operating at 208-230/3/60. Designed for architects and designers, this air curtain can be concealed and recess-mounted into a ceiling. It features top-performing internal components and durable aluminum construction. It provides environmental separation while maintaining a consistent interior temperature.

• 1/2 HP Continuous Duty TEAO Motors
• Recessed mounted in ceiling for invisible coverage
• ETL Certified to conform to UL 2021 (US) and CSA 22.2 (Canada) Standards
• Durable aluminum construction

Product Highlights

This unheated air curtain is designed for effective environmental separation and is suitable for use in premium design concepts. It minimizes dirt, dust, and fumes.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1036-1UG-PW
• Country of Origin: USA

Technical Specifications

• Width (Inches): 36
• Max Door Height: 12'
• Construction: Aluminum
• CFM High: 2550
• Voltage: 208-230/3/60
• FLA 1 Phase-115V: 5.1
• FLA 1 Phase-208V/230V: 2.5 / 2.5
• FLA 3 Phase-208V/230V: 1.8 / 1.6
• FLA 3 Phase-460V: 0.8
• Horsepower: 1/2
• Heating Option: Unheated
• Series: Phantom
• Decibels (DB): 66
• Material: Aluminum
• Phase: 3
• Type: Unheated
• Max Volume (CFM): 2550
• MPN: PH1036-1UG-PW
• Environmental - Max Height (feet): 12
• Insect - Max Height (feet): 10
• Nozzle Width (inches): 36
• Unit Width (inches): 36
• Unit Height (inches): 17
• Wind Stopping Capability (MPH): 12
• Motors: 1
• ETL sanitation certified to ANSI/NSF 37 standards: No
• Air Flow Certified (AMCA): Yes
• Voltage Code: G
• Air Curtain Air Volume (CFM): 1460
• Amps: 1.8/1.6
• Uniformity (%): 91
• dBA: 66
• Model Number: PH1036-1UG-PW
• Horse Power Per Motor: 1/2 hp
• Max Opening Height Window Door: 8 ft
• Certifications: ETL
• Hertz: 60
• Air Volume (CFM): 1460
• Application: Main Entrances
• ETL Listed: Yes
• HP: 1/2 HP
• Max Environmental Separation Height: 12 Feet
• Max Insect Blocking Height: 10 Feet
• Power: Electric
• Volts: 208/230 Volts
• Wattage: 460 Watts
• Depth (in.): 26
• Length (in.): 36
• Product Type: Unheated
