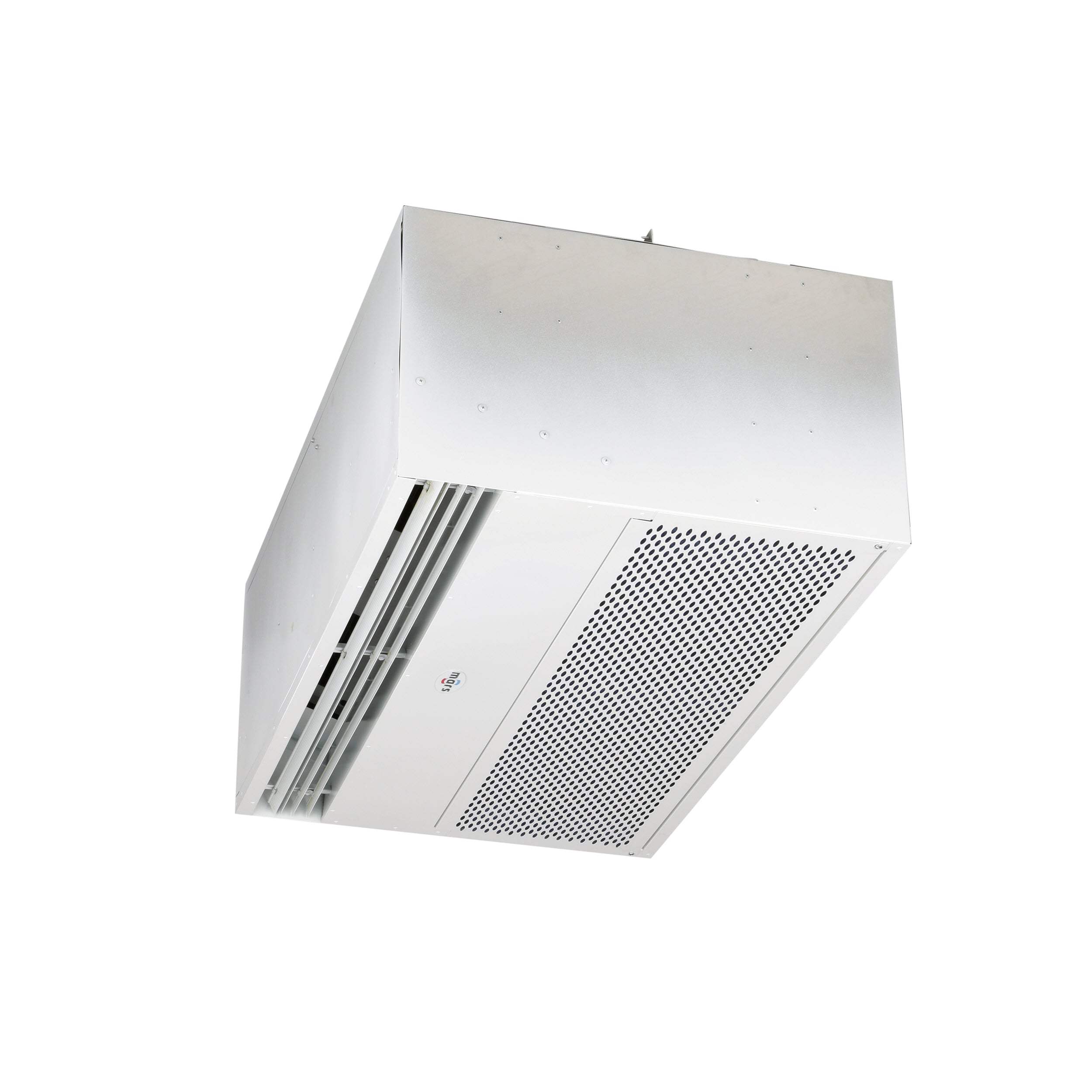

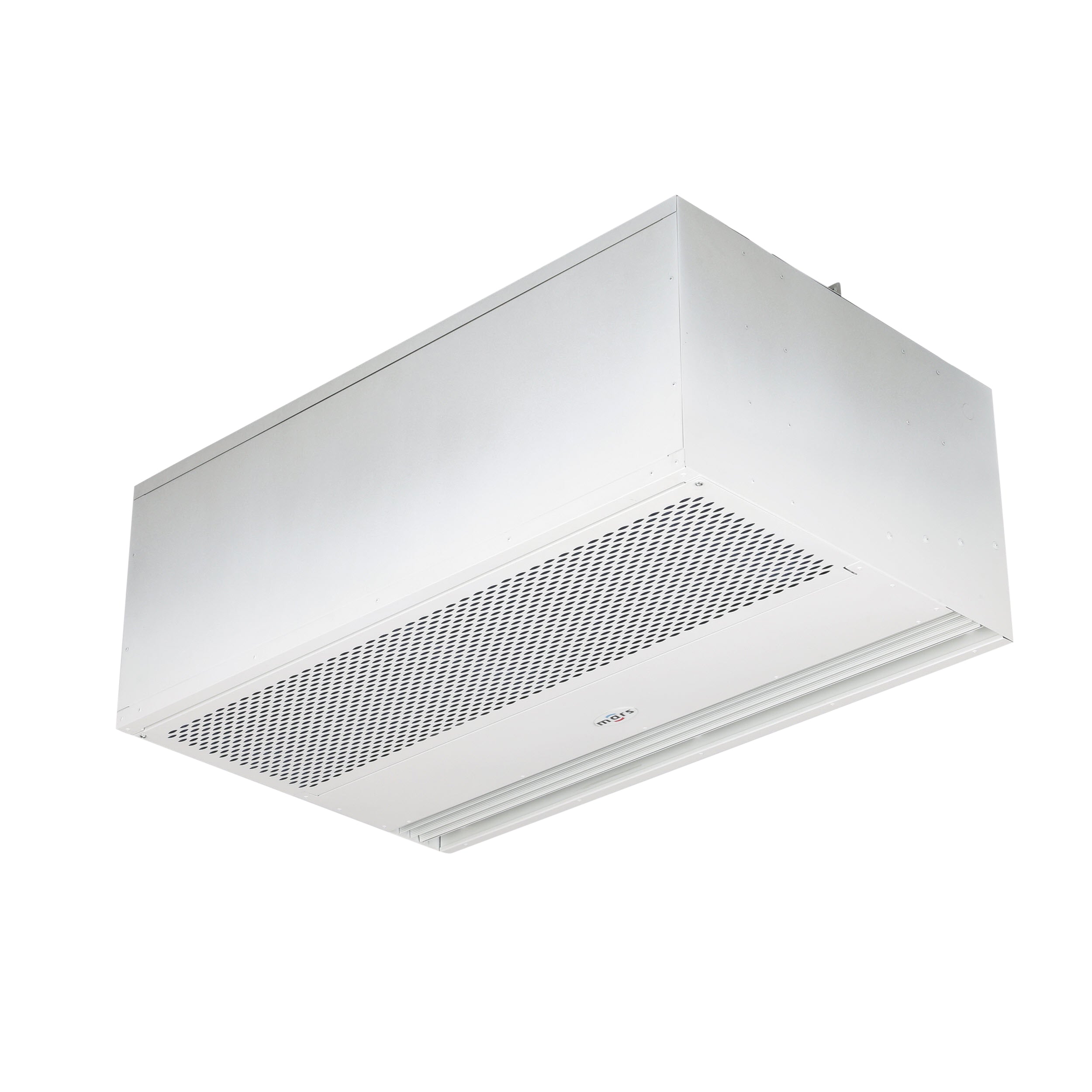

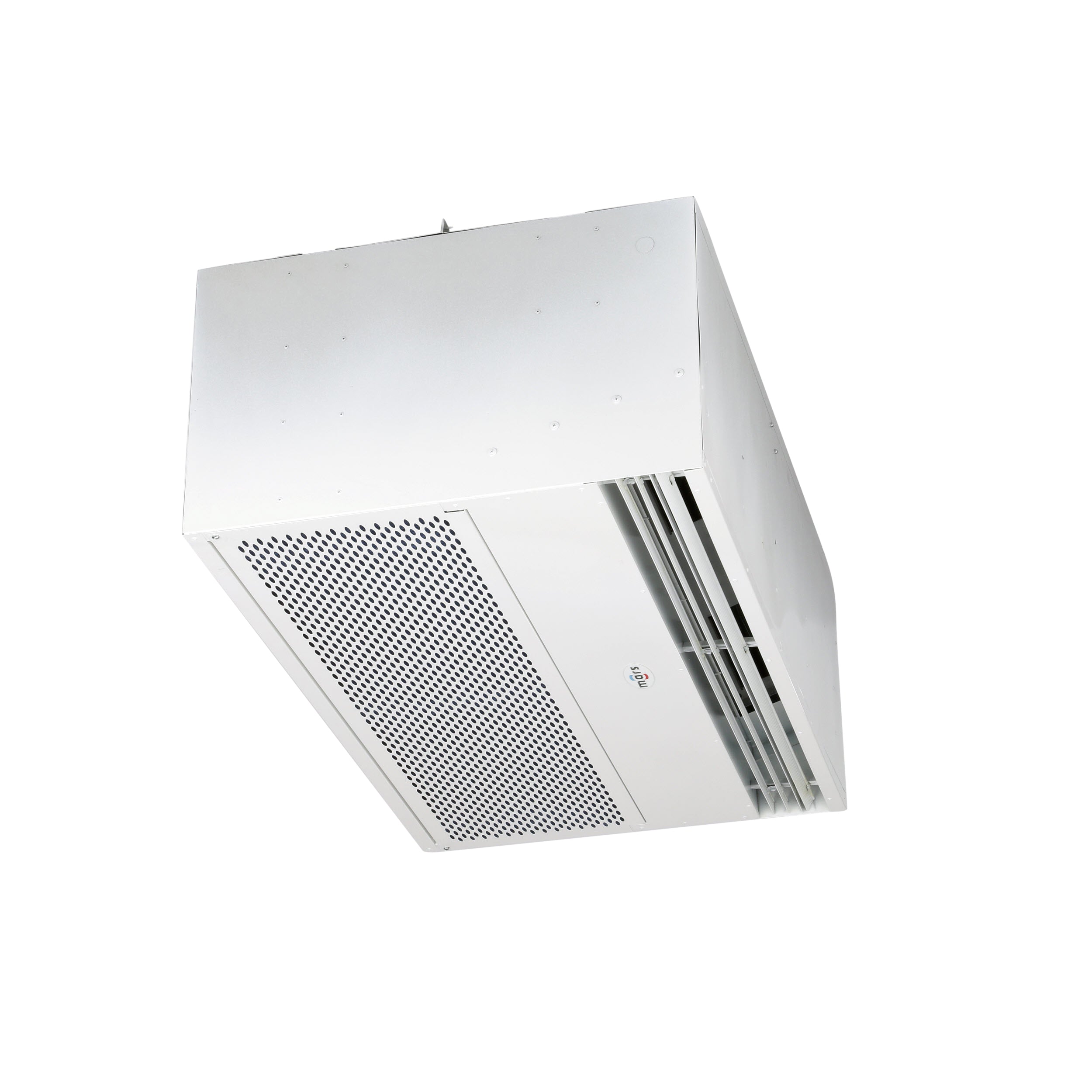

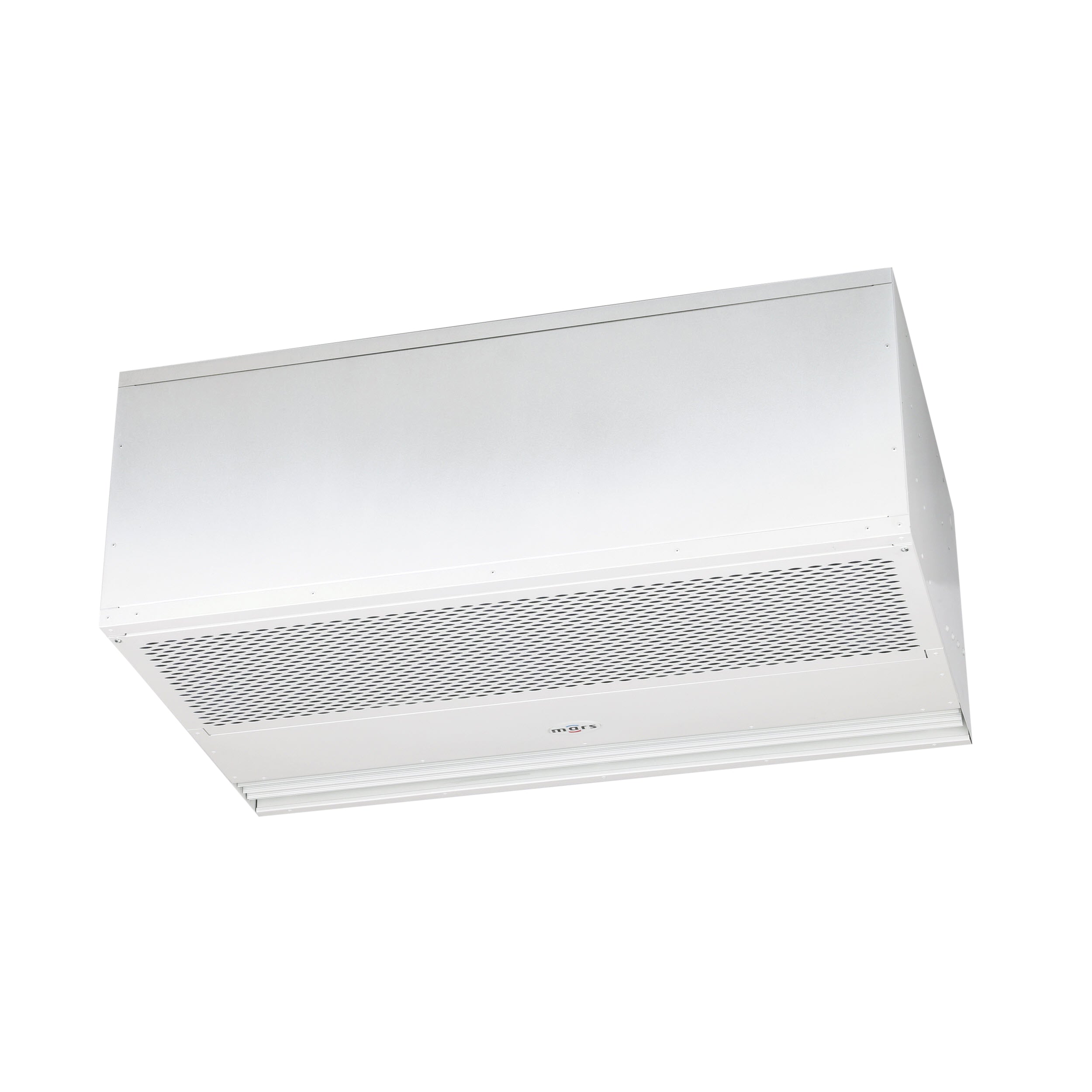

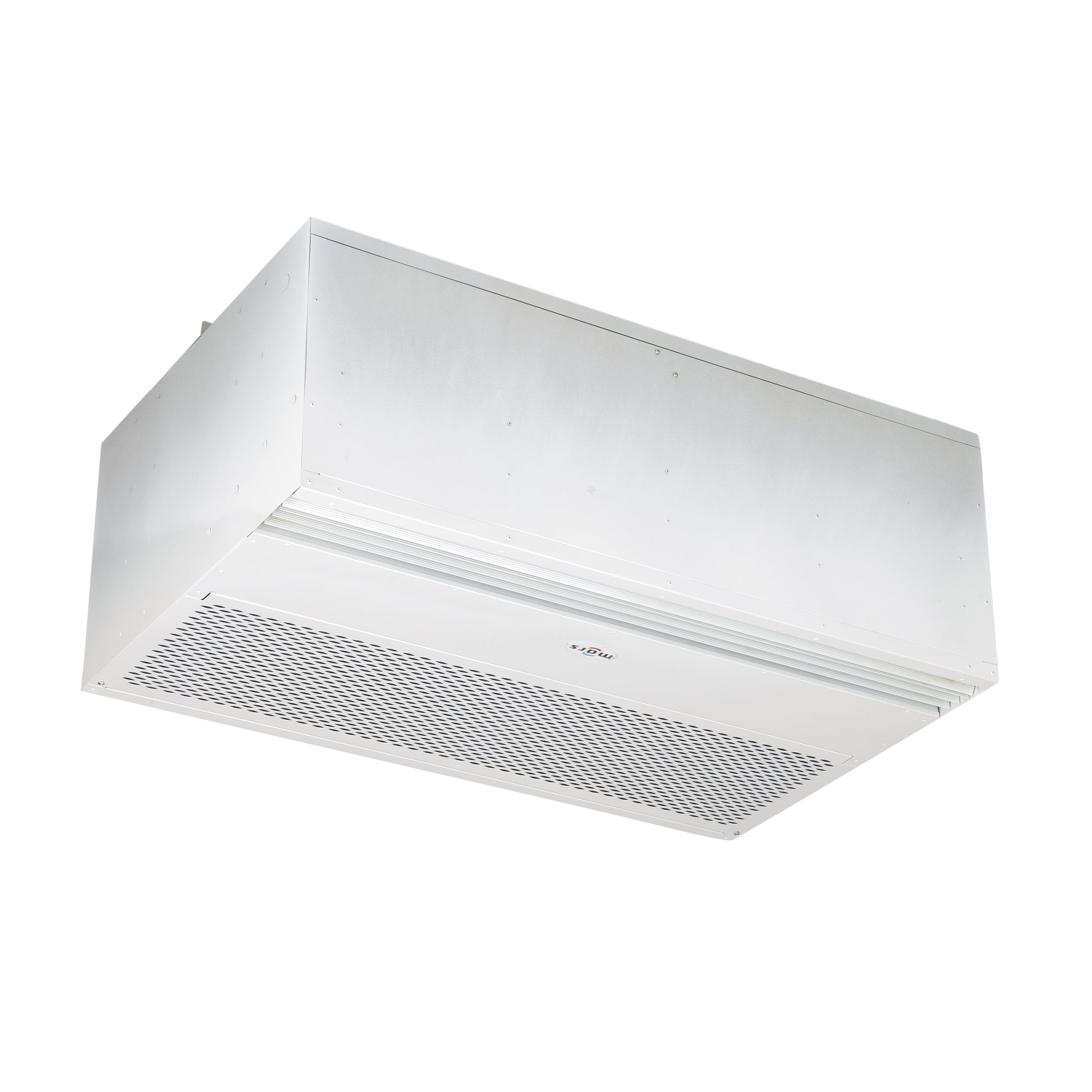

Mars PH1036-1UD-PW Recessed Air Curtain 3400 fpm

Product Description

The MARS PH1036-1UD-PW recessed air curtain features an air velocity of 3400 fpm. Designed for temperature and insect control, this unit is suitable for a 3 ft opening width. Constructed with an aluminum housing and a powder-coated finish, it includes filters. Operates at 208/230V AC and 60 Hz, with a 1/2 hp motor.

• Recessed design
• Suitable for temperature and insect control
• Aluminum housing

Product Highlights

This air curtain provides effective environmental separation while creating a seamless appearance. It is designed to be recess-mounted in ceilings for invisible coverage.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH1036-1UD-PW
• Country of Origin: USA

Technical Specifications

• Frequency: 60 Hz
• Item: Air Curtain
• Depth: 26 in
• Phase: 1
• Width: 36.125 in
• Finish: Powder Coated
• Height: 16.5 in
• Series: PH10
• Voltage: 208/230
• Included: Filters
• Max. RPM: 1,750 RPM
• Motor HP: 1/2 hp
• Requires: Door Limit Switch
• Washdown: No
• Max. Amps: 2.5
• Standards: ETL
• Drive Type: Direct Drive
• Motor Type: Permanent Split Capacitor
• Nozzle Width: 36 in
• Profile Type: Recessed
• Housing Color: White
• Maximum Speed: 1,750 RPM
• Grille Material: Aluminum
• Motor Enclosure: Totally Enclosed Air Over
• Voltage - Phase: 208/230V AC - 1 Phase
• Air Curtain Item: Recessed Air Curtain
• Air Curtain Type: Ambient Air
• Number of Motors: 1
• Number of Speeds: 1
• Full Load Current: 2.5 A
• HEPA Air Cleaning: No
• Heated/Not Heated: Not Heated
• Nameplate Voltage: 208/230V AC
• Power Consumption: 460 W
• Air Curtain Heated: No
• Maximum Air Volume: 1,460 cfm
• Sound Level @ 10 ft: 66 dBA
• Air Temperature Rise: Not Applicable
• Max. Mounting Height: 10 ft
• Maximum Air Velocity: 3,950 fpm
• Sanitation Certified: No
• Air Curtain Air Volume: 1460 cfm
• For Frame Opening Width: 3 ft
• Air Curtain Air Velocity: 3400 fpm
• Heater Power Consumption: Not Applicable
• Ultraviolet Air Cleaning: No
• Air Curtain dBA @ 10 Feet: 66
• Motor Horsepower per Motor: 1/2 hp
• Air Curtain Max. Door Width: 3 ft
• Air Curtain Housing Material: Aluminum
• Overall Dimensions W x H x D: 36 in x 17 in x 26 in
• Maximum Operating Temperature: Not Available
• Minimum Operating Temperature: Not Available
• Mounting Height for Insect Control: 10 ft
• Country of Origin (subject to change): United States
• Max. Mounting Height Environment/Insect: 12 ft / 10 ft
• Mounting Height for Temperature Control: 12 ft
• Width (Inches): 36
• Max Door Height: 12'
• CFM High: 2550
• Horsepower: 1/2
• Heating Option: Unheated
• Unit Width (inches): 36
• Unit Height (inches): 17
• Wind Stopping Capability (MPH): 12
• Motors: 1
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 208-230/1/60
• Voltage Code: D
• Amps: 2.5
• Uniformity (%): 91
• dBA: 66
• Dimensions Width: 36 Inches
• Dimensions Depth: 26 Inches
• Dimensions Height: 15.5 Inches
• Air Volume (CFM): 1460
• Application: Main Entrances
• ETL Listed: Yes
• Exterior Color: White
• Exterior Summary: Aluminum
• HP: 1/2 HP
• Max Environmental Separation Height: 12 Feet
• Max Insect Blocking Height: 10 Feet
• Power: Electric
• Type: Unheated Air Curtains
• Volts: 208/230 Volts
• Wattage: 460 Watts
• Horse Power Per Motor: 1/2 hp
• Max Opening Height Window Door: 8 ft
• Max. Door/Window Height (ft.): 12
• Max. Height Insect Block (ft.): 10
• Heat: No
• Depth (in.): 26
• Height (in.): 17
• Length (in.): 36
• Certifications: ETL Listed, AMCA
• Product Type: Unheated
• Air Velocity: 3400 FPM
• Air Volume: 2550 CFM
• Control Type: Door Limit Switch
• Dba @ 10 Ft.: 66 dBA
• Overall Depth: 26"
• Overall Height: 17"
• Overall Width: 36"
• Number Of Motors: 1
• Number Of Speeds: 1
• Manufacturer: Mars Air Systems
• Model Number: PH1036-1UD-PW
