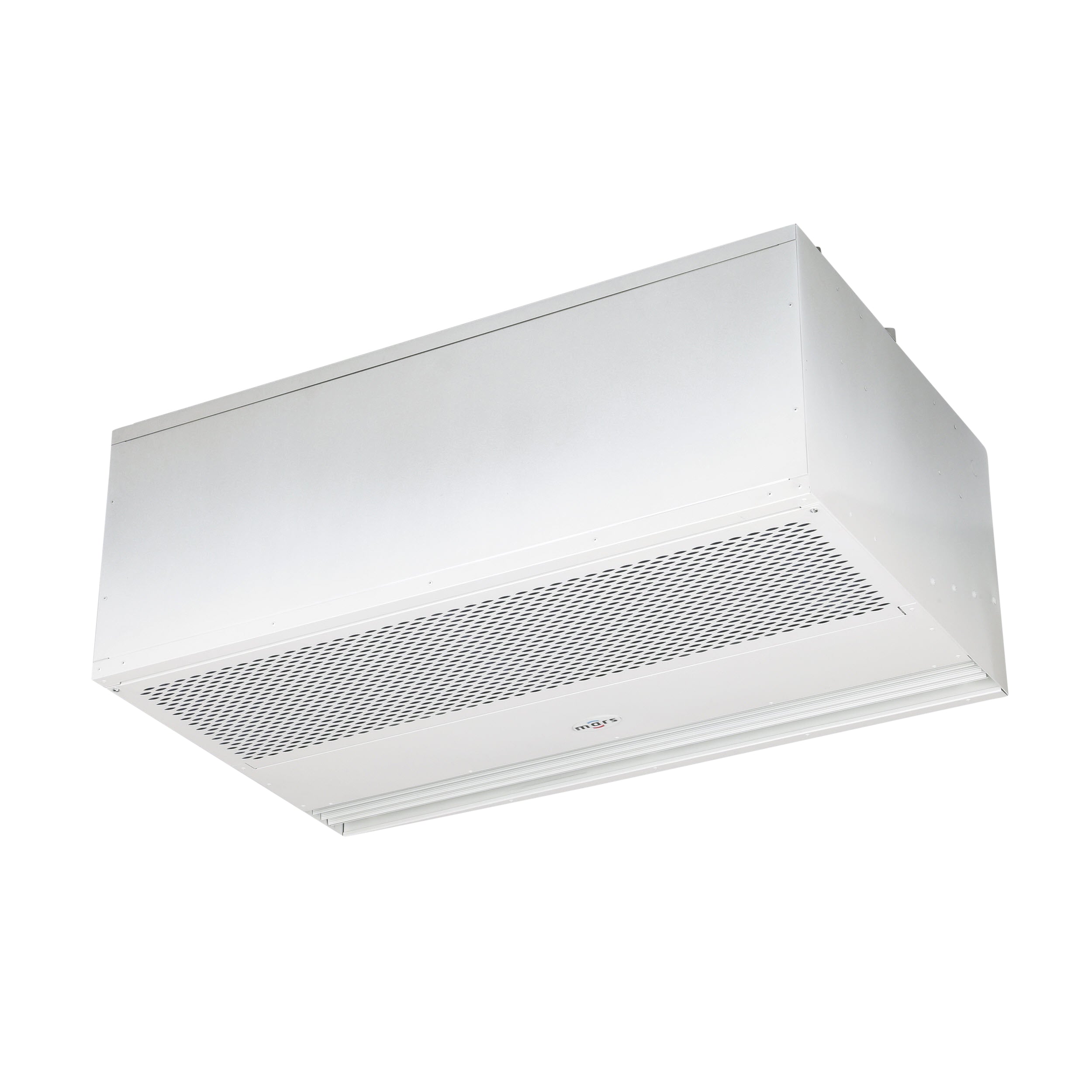

Mars PH10144-4UG-PW Phantom 10 Air Curtain For 144 inchesW Door, Unheated

Product Description

The MARS PH10144-4UG-PW Phantom 10 air curtain is designed for a 144"W door and is unheated. It features an aluminum cabinet with a Pearl White powder coat finish and (4) 1/2 HP motors. Operates on 208-230v/60/3-ph and is cETLus certified. The Phantom series is designed to blend in with the building's aesthetics and can be recess-mounted into a ceiling.

• Designed for effective environmental separation with a seamless appearance.
• Recess mounts in ceilings for invisible coverage.
• Maintains consistent interior temperature and minimizes dirt, dust, and fumes.

Product Highlights

The MARS PH10144-4UG-PW air curtain provides environmental separation while maintaining a pleasing aesthetic. It is easy to install, has low maintenance costs, and contributes to LEED points.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH10144-4UG-PW
• Country of Origin: USA

Technical Specifications

• Manufacturer: Mars Air Systems
• Model Number: PH10144-4UG-PW
• Type: Unheated Air Curtains
• Horse Power Per Motor: 1/2 hp
• Motors: 4 motors
• Max Opening Height Window Door: 8 ft
• Certifications: ETL
• Air Volume (CFM): 5840
• Application: Main Entrances
• ETL Listed: Yes
• Exterior Color: White
• Exterior Summary: Aluminum
• HP: 1/2 HP
• Max Environmental Separation Height: 12 Feet
• Max Insect Blocking Height: 10 Feet
• Phase: Three Phase
• Power: Electric
• Series: Phantom 10
• Volts: 208/230 Volts
• Wattage: 1,840 Watts
• Product Condition: New
• Heat: No
• Horsepower: 1/2 (per motor)
• Voltage: 208-230V
• Depth (in.): 26
• Height (in.): 17
• Length (in.): 144
• Product Type: Unheated
• Full load amps: 7.2 A
• Sound pressure level: 71 dBA
• Average velocity: 1947 fpm
• Volume: 5840 cfm
