Mars PH10144-4UD-PW Phantom 10 Air Curtain For 144 inchesW Door, Unheated

Product Description

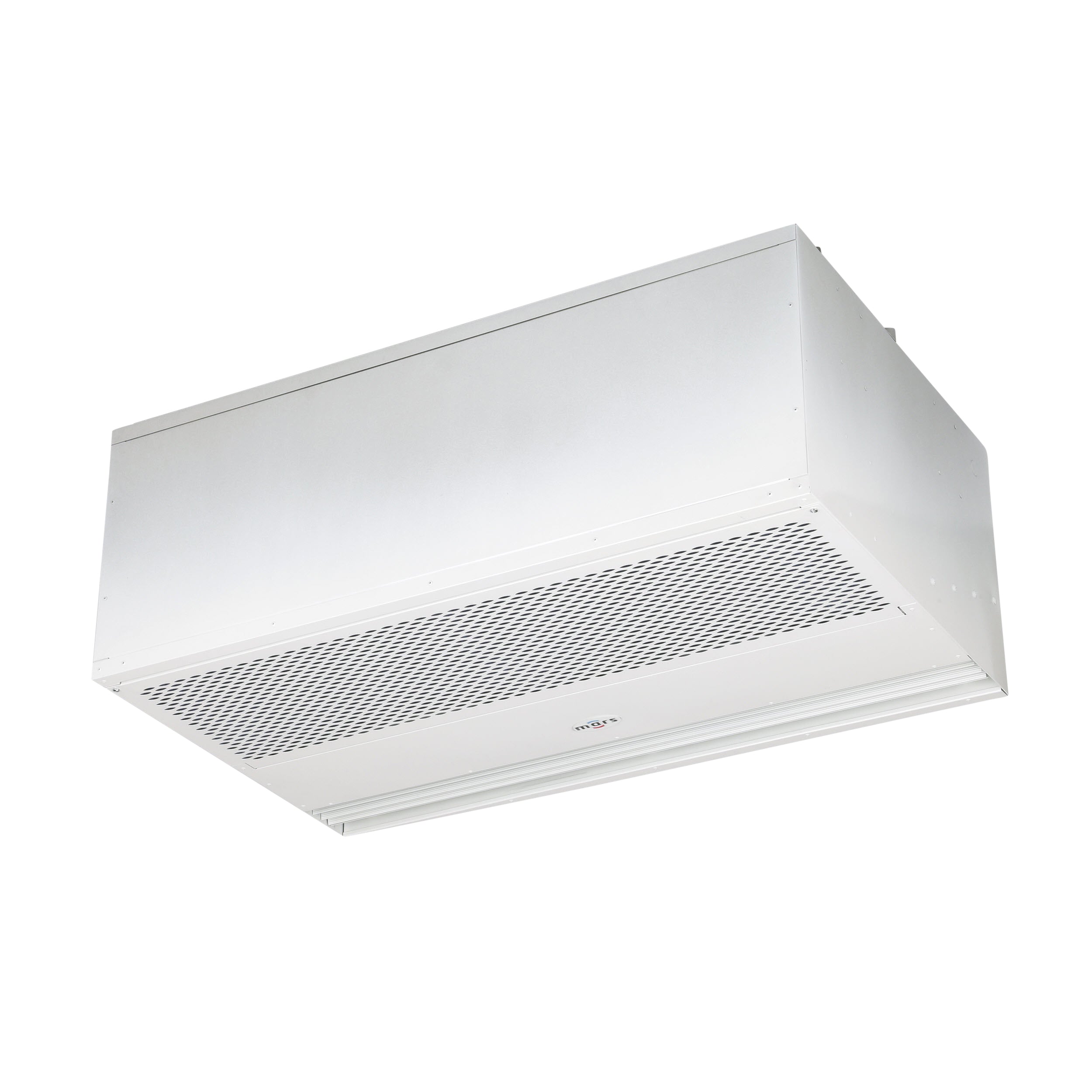

The MARS PH10144-4UD-PW Phantom 10 air curtain is designed for a 144"W door and is unheated. It features an aluminum cabinet with a Pearl White powder coat finish and (4) 1/2 HP motors. Operates on 208-230v/60/1-ph and is cETLus certified. Ideal for environmental separation up to 12' and insect control up to 10'.

• Provides an environmental barrier up to 12 feet
• Protects your space from insects up to 10 feet
• Recessed into the ceiling for a seamless look

Product Highlights

The PH10 series offers a cost-efficient barrier that blends into any environment. Its durable metal construction is finished in a powder-coated pearl white finish.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH10144-4UD-PW

Technical Specifications

• Manufacturer: Mars Air Systems
• Model Number: PH10144-4UD-PW
• Type: Unheated
• Horse Power Per Motor: 1/2 hp
• Motors: 4 motors
• Max Opening Height Window Door: 8 ft
• Certifications: ETL Listed, AMCA
• Max. Door/Window Height (ft.): 12
• Max. Height Insect Block (ft.): 10
• Heat: No
• Voltage: 208-230V
• Depth (in.): 26
• Height (in.): 17
• Length (in.): 144
• Product Type: Unheated
• Full load amps: 10 A
• Sound pressure level: 71 dBA
• Average velocity: 1947 fpm
• Volume: 5840 cfm
