Mars PH10120-4UD-PW Phantom 10 Series Air Curtain 120 inches

Product Description

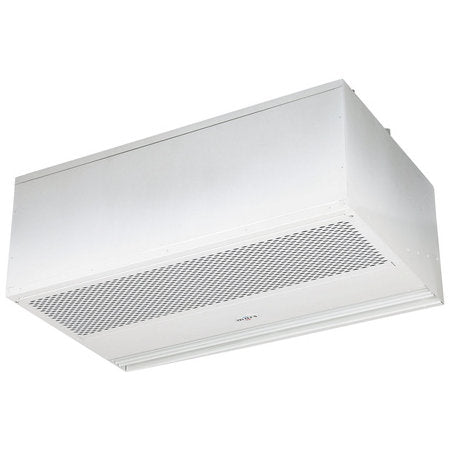

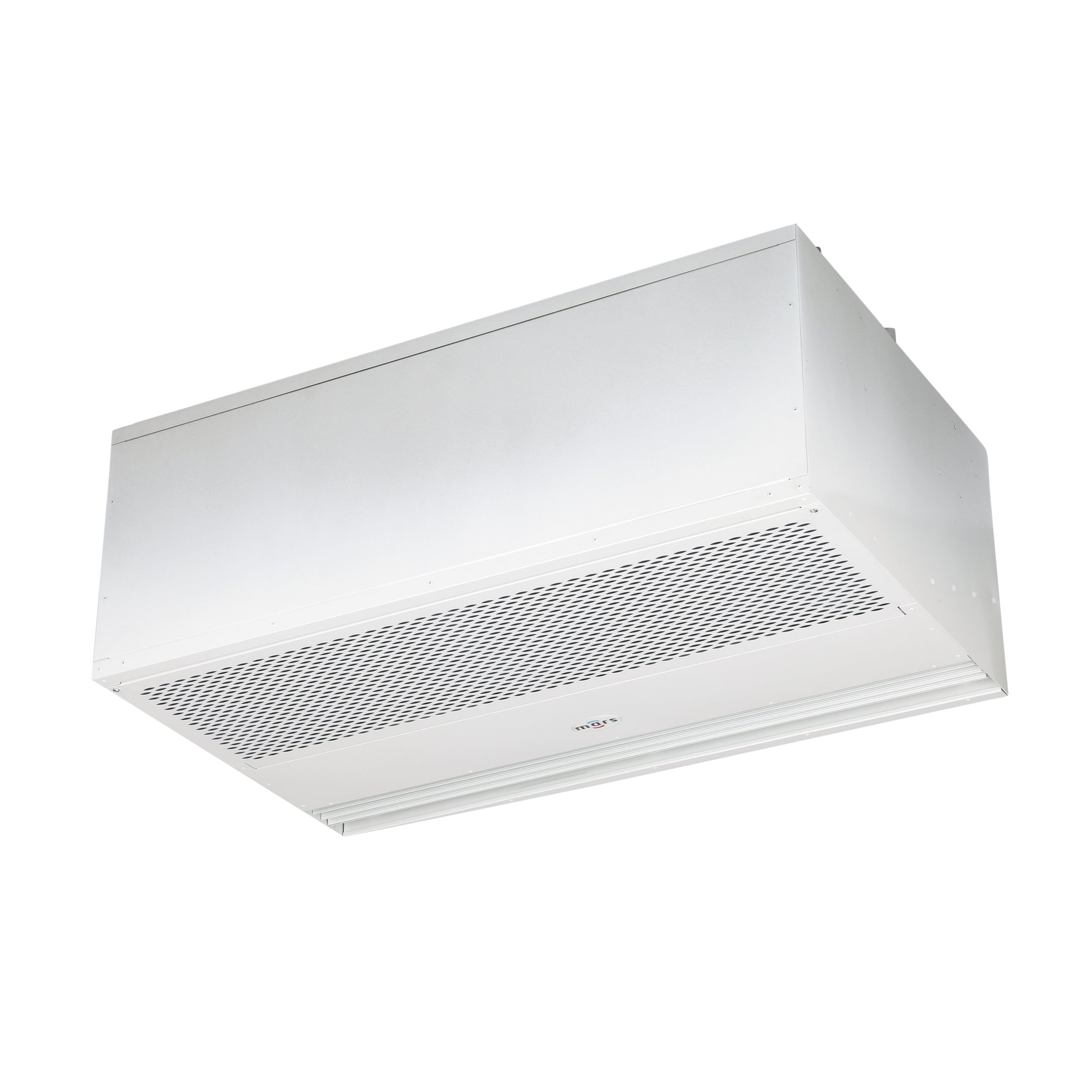

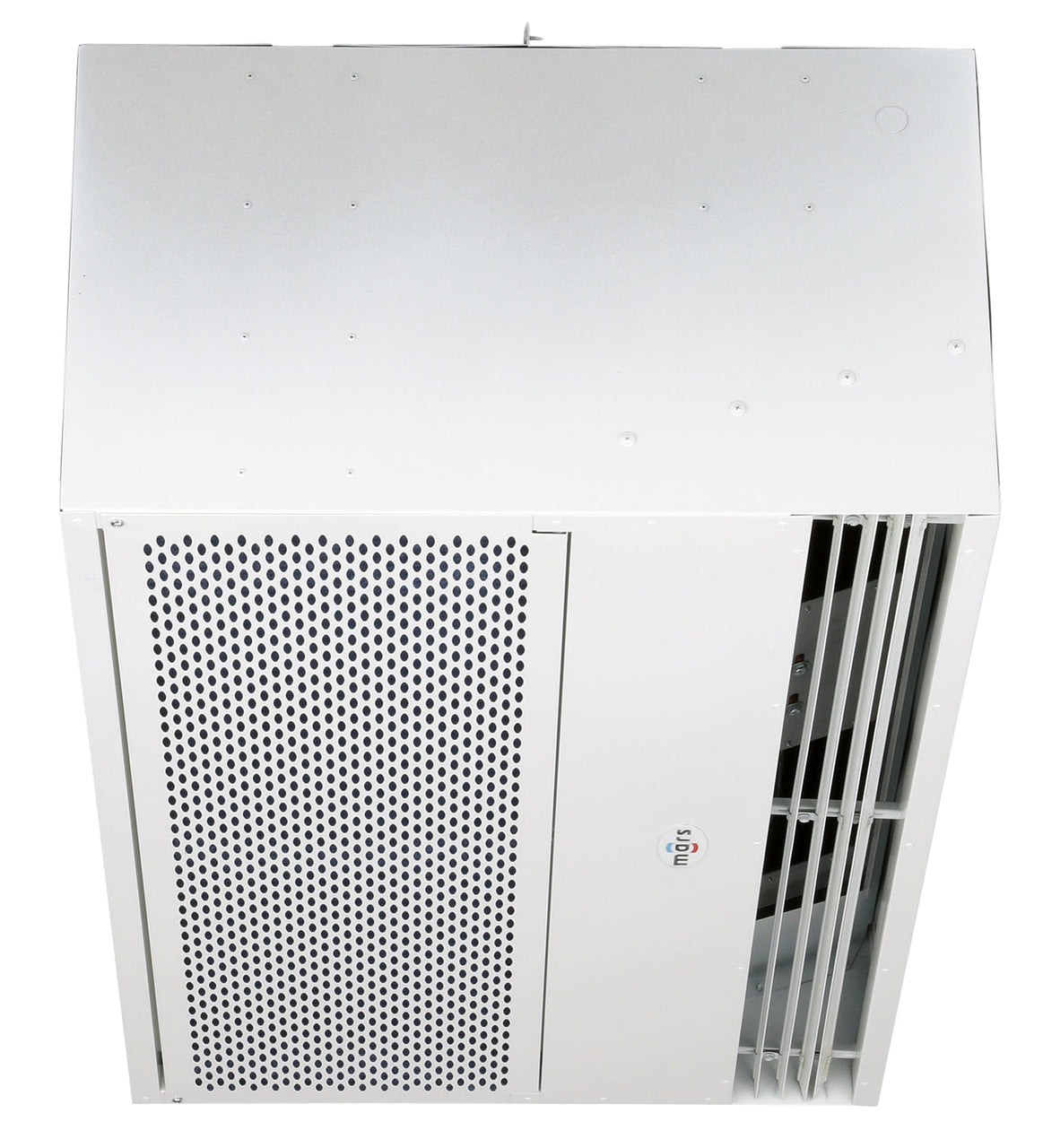

The MARS PH10120-4UD-PW Phantom 10 Series air curtain is designed for 120" wide doors and provides an environmental barrier up to 12 feet and insect protection up to 10 feet. This unheated air door features (4) 1/2 HP motors and operates at 208/230V single phase power. It is ETL and AMCA certified and has an aluminum cabinet with a Pearl White powder coat finish.

• Designed for 120" wide doors
• Features (4) 1/2 HP motors
• ETL and AMCA certified

Product Highlights

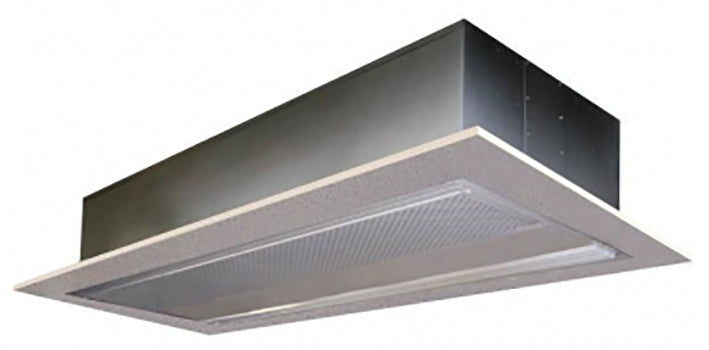

The PH10 series provides effective environmental separation while creating a seamless appearance. It is recess mounted in ceilings for invisible coverage and maintains a consistent interior temperature.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH10120-4UD-PW
• Country of Origin: USA

Technical Specifications

• Manufacturer: Mars
• Model Number: PH10120-4UD-PW
• MAX. OPENING HEIGHT (WINDOW/DOOR): 10 Ft
• TYPE: Un-heated
• MOTORS: 4
• HORSEPOWER PER MOTOR: 1/2
• WIDTH (SIDE - SIDE): 120"
• Width: 120.00"
• Depth: 26.00"
• Horse Power Per Motor: 1/2 hp
• Max Opening Height Window Door: 8 ft
• Certifications: ETL Listed, AMCA
• Max. Door/Window Height (ft.): 12
• Max. Height Insect Block (ft.): 10
• Heat: No
• Horsepower: 1/2 (per motor)
• Voltage: 208-230V
• Height (in.): 17
• Length (in.): 120
• Product Type: Unheated
• Dimensions Width: 120 Inches
• Dimensions Depth: 26 Inches
• Dimensions Height: 15.5 Inches
• Air Volume (CFM): 5541
• Application: Main Entrances
• ETL Listed: Yes
• Exterior Color: White
• Exterior Summary: Aluminum
• HP: 1/2 HP
• Max Environmental Separation Height: 12 Feet
• Max Insect Blocking Height: 10 Feet
• Phase: Single Phase
• Power: Electric
• Series: Phantom 10
• Type: Unheated Air Curtains
• Volts: 208/230 Volts
• Wattage: 1,730 Watts
• Door width: 120"
• Door height: 8'-10'
• Full load amps: 10 A
• Sound pressure level: 71 dBA
• Average velocity: 2217 fpm
• Volume: 5541 cfm
