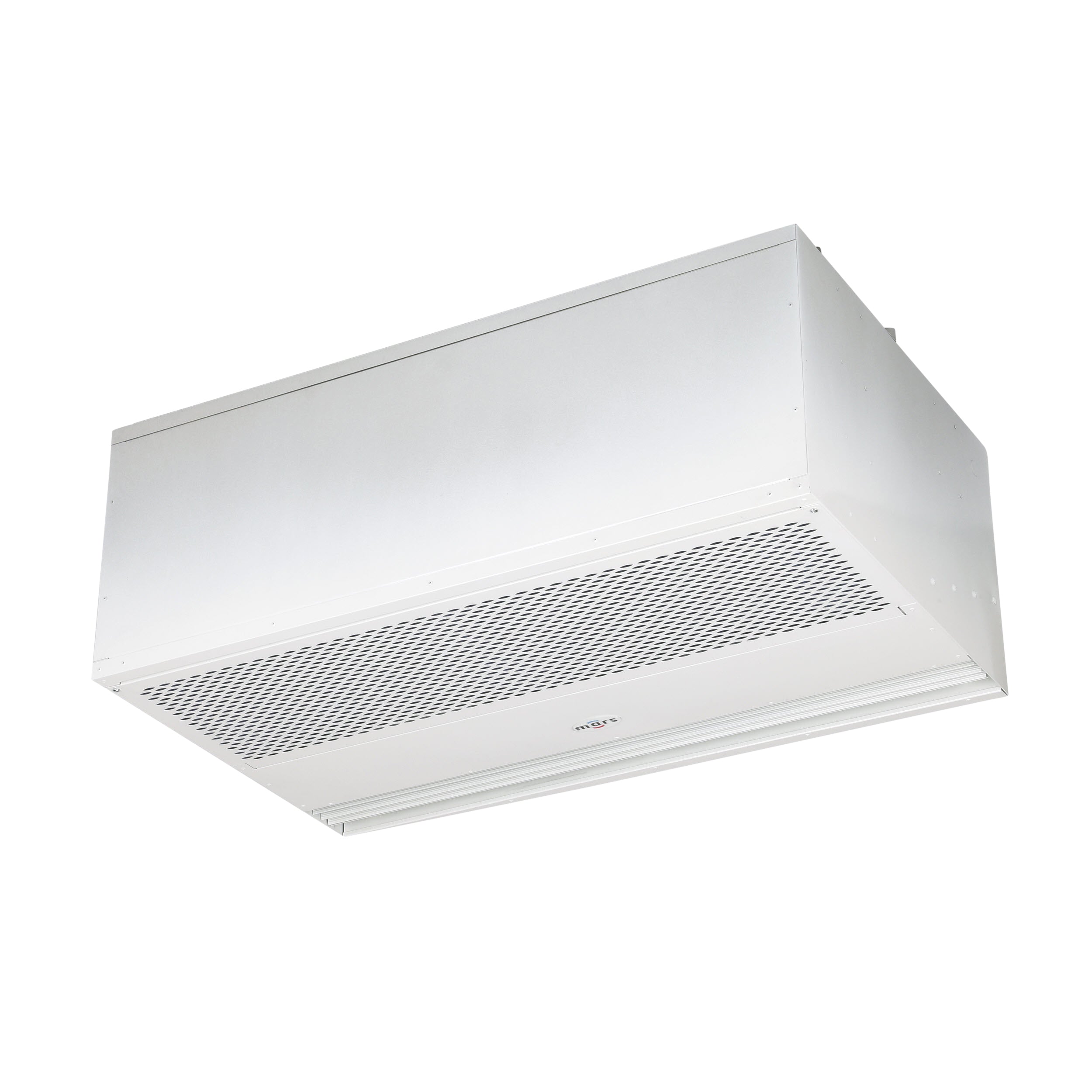

Mars PH10120-4UA-PW Phantom 10 Air Curtain For 120 inchesW Door, Unheated

Product Description

The MARS PH10120-4UA-PW Phantom 10 air curtain is designed for a 120"W door and is unheated. It features an aluminum cabinet with a Pearl White powder coat finish and four 1/2 HP motors. This air curtain operates at 115v/60/1-ph and is cETLus certified. It provides environmental separation while blending in with the building's aesthetics.

• Designed for 120"W doors
• Features durable aluminum construction with Pearl White powder coat finish
• Equipped with four 1/2 HP motors

Product Highlights

The Phantom 10 series provides effective environmental separation with a seamless design, maintaining interior temperature and minimizing dust and fumes.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH10120-4UA-PW
• Country of Origin: USA

Technical Specifications

• Manufacturer: Mars Air Systems
• Model Number: PH10120-4UA-PW
• Depth: 26 in.
• Height: 17 in.
• Type: Unheated Air Curtains
• Horse Power Per Motor: 1/2 hp
• Motors: 4 motors
• Max Opening Height Window Door: 8 ft
• Certifications: ETL Listed, AMCA
• Air Volume (CFM): 5541
• Application: Main Entrances
• Exterior Color: White
• Exterior Summary: Aluminum
• HP: 1/2 HP
• Max Environmental Separation Height: 12 Feet
• Max Insect Blocking Height: 10 Feet
• Phase: Single Phase
• Power: Electric
• Series: Phantom 10
• Volts: 115 Volts
• Wattage: 1,730 Watts
• Max. Door/Window Height (ft.): 12
• Max. Height Insect Block (ft.): 10
• Heat: No
• Horsepower: 1/2 (per motor)
• Voltage: 110-120V
• Length (in.): 120
• Product Type: Unheated
• Door width: 120"
• Door height: 8'-10'
• Full load amps: 20.4 A
• Sound pressure level: 71 dBA
• Average velocity: 2217 fpm
• Volume: 5541 cfm
