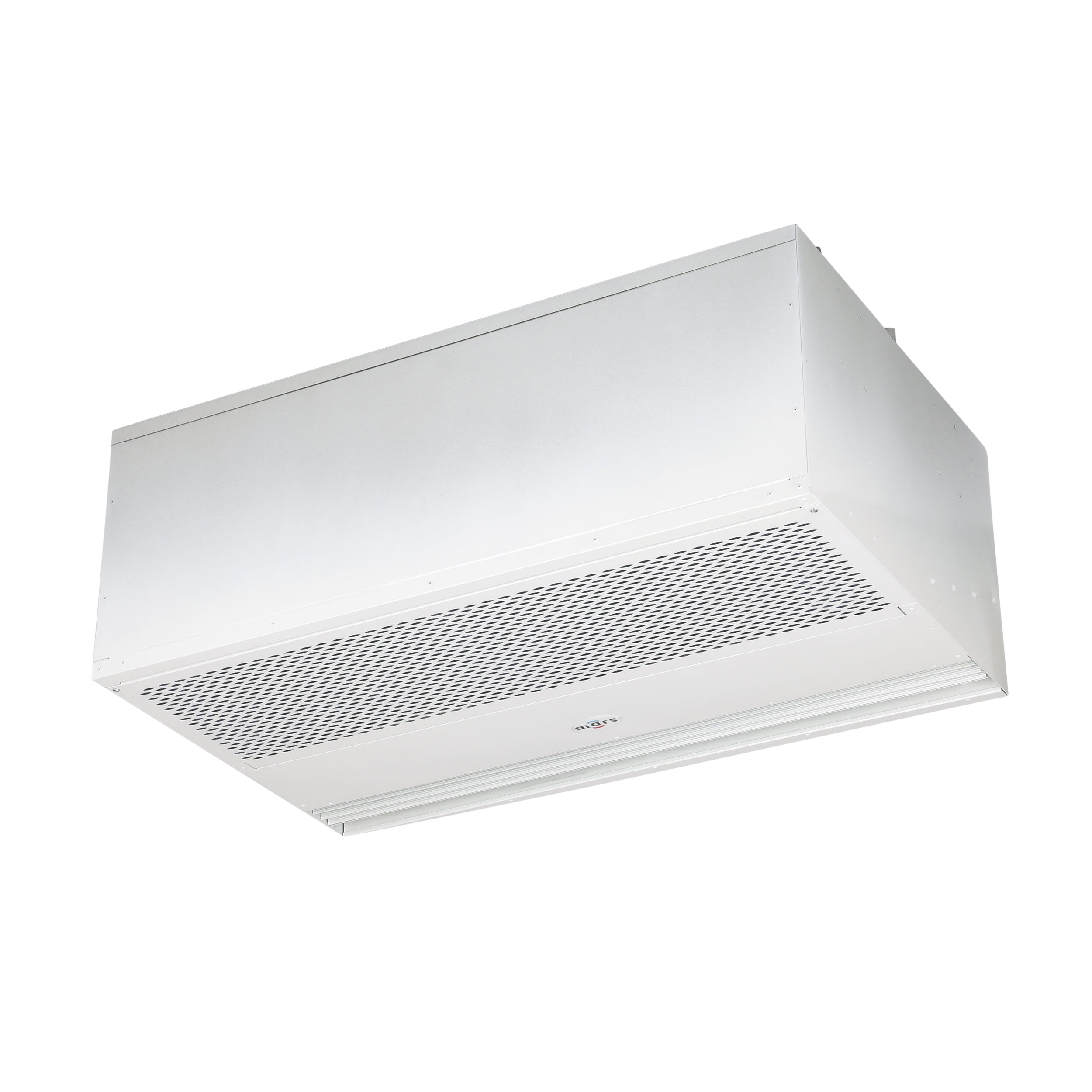

Mars PH10108-3UH-PW Phantom 10 Series Air Door 108 inch Unheated

Product Description

The MARS PH10108-3UH-PW Phantom Recessed Series (PH10) is designed for insect control up to 8 feet and temperature/environmental separation up to 10 feet. This air curtain is only 15 1/2" high X 26" deep with a 108" width. Available in Ambient, Electric, Steam and Hot Water configurations. Great for Restaurants & Food Service, Retail & Office, or Healthcare & Hospitals.

• Insect control up to 8 feet
• Temperature/environmental separation up to 10 feet
• Concealed design
• Available in Ambient, Electric, Steam and Hot Water configurations
• Suitable for Restaurants & Food Service, Retail & Office, Convenience & Grocery, Healthcare & Hospitals, Pest Control, Transportation & Terminals

Product Highlights

The PH10 series is an excellent choice for architects and designers wanting to completely conceal the product in a ceiling. The unit maintains consistent interior temperature and minimizes dirt, dust, and fumes.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: PH10108-3UH-PW
• Country of Origin: USA

Technical Specifications

• Manufacturer: Mars Air Systems
• Model Number: PH10108-3UH-PW
• Width: 108 Inches
• Depth: 26 Inches
• Height: 15.5 Inches
• Type: un-heated
• Horse Power Per Motor: 1/2 hp
• Motors: 3 motors
• Max Opening Height Window Door: 8 ft
• Certifications: ETL
• Air Volume (CFM): 4380
• Application: Main Entrances
• ETL Listed: Yes
• Exterior Summary: Aluminum
• HP: 1/2 HP
• Max Environmental Separation Height: 12 Feet
• Max Insect Blocking Height: 10 Feet
• Phase: Three Phase
• Power: Electric
• Series: Phantom 10
• Volts: 460 Volts
• Wattage: 1,380 Watts
• Max. Door/Window Height (ft.): 12
• Heat: No
• Voltage: 460V
• Length (in.): 108
• Product Type: Unheated
• Hertz: 60
