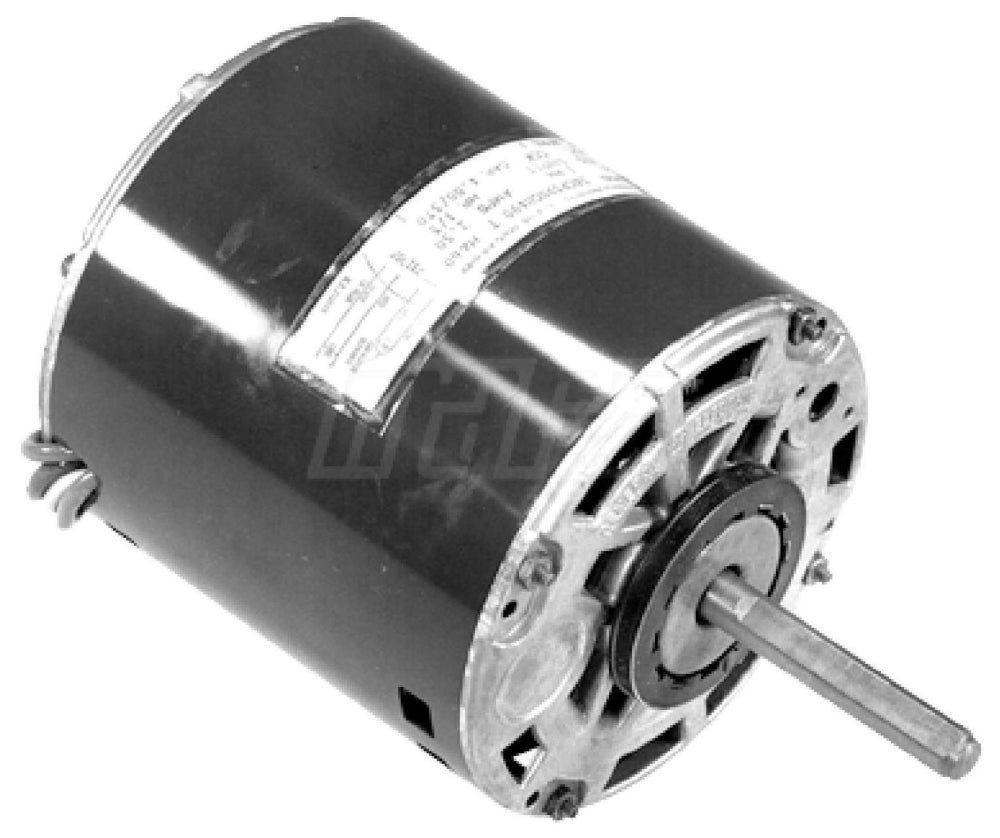

Mars Motors & Armatures, Inc. 03005 1/3 HP 230 VAC 1-Phase Refrigeration Fan Motor

Product Description

The Mars Motors & Armatures model 03005 is a refrigeration fan motor with a power rating of one-third horsepower at two hundred thirty volts AC. The motor operates on a single phase and a frequency of sixty hertz. It draws a current of two point fifty-nine amps and spins at eight hundred twenty-five RPM. This motor is designed for refrigeration applications and features a shell enclosure for protection.

• One-speed motor design
• Shell enclosed for durability
• Compatible with NEMA Frame Size 48

Product Highlights

Developed for refrigeration use, this fan motor is efficient and robust, supporting installation in various setups due to its mounting capabilities.

Product Information

Standard Information

• Manufacturer: Mars Motors & Armatures
• Power Rating: 1/3 HP

Technical Specifications

• Voltage Rating: 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 2.59 Amp
• Speed Rating: 825 RPM
• NEMA Frame Size: 48
• Insulation Class: B
• Mounting: All Angle/Band
• Application: Refrigeration
