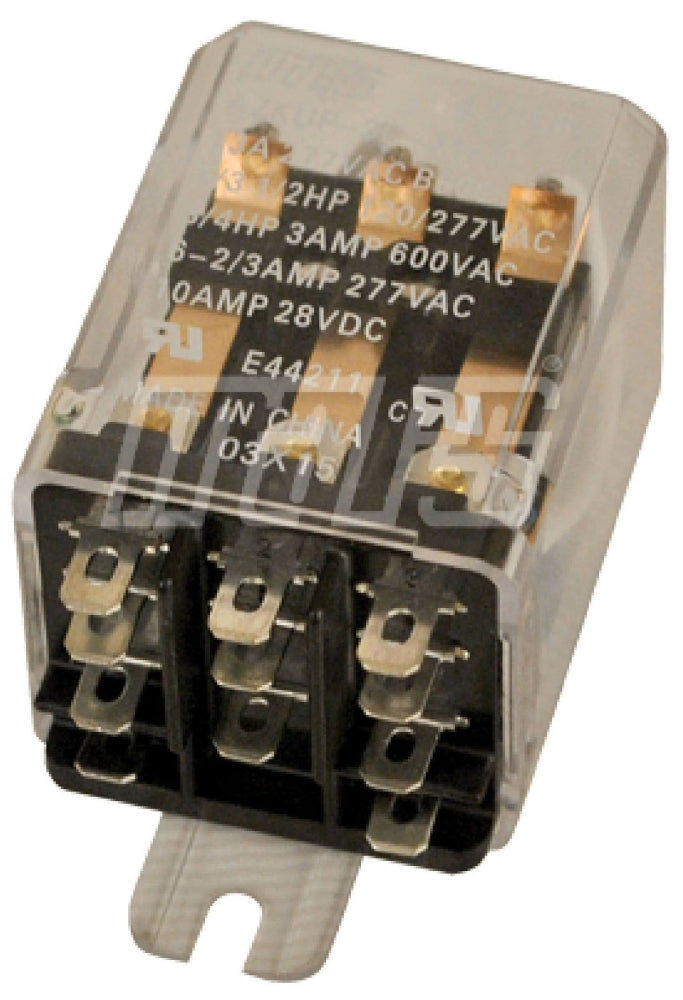

Mars Motors & Armatures 43068 Enclosed Switching Relay 240 VAC 3PDT

Product Description

The Mars Motors & Armatures 43068 is an enclosed switching relay designed for general purpose applications. It operates at a coil voltage of two hundred forty volts AC and has a contact configuration of three-pole double-throw (3PDT). This relay is suitable for various uses, including heating, air conditioning, vending machines, and office machines.

• Coil Voltage: 240 VAC, 50/60 Hz
• Contact Rating: 13 A at 120 VAC
• Overall Dimensions: 2 inches x 1.5 inches x 1.375 inches

Product Highlights

This relay features a heavy-duty design suitable for many applications and is protected by a durable polycarbonate cover to keep out dust and dirt.

Product Information

Standard Information

• Manufacturer: Mars Motors & Armatures
• UPC: 685744430681

Technical Specifications

• Voltage Ratings: 204 VAC (Pick-Up), 204 VAC (Hold), 72 VAC (Drop-Out)
• Power Ratings: 1/3 HP at 120 VAC, 1 HP at 277 VAC
• Frequency: 60 Hz
• Contact Material: Silver Alloy
• Approval: UL, CSA
• Mounting Type: Plug-In
• Terminal Type: Plug-In/Solder
