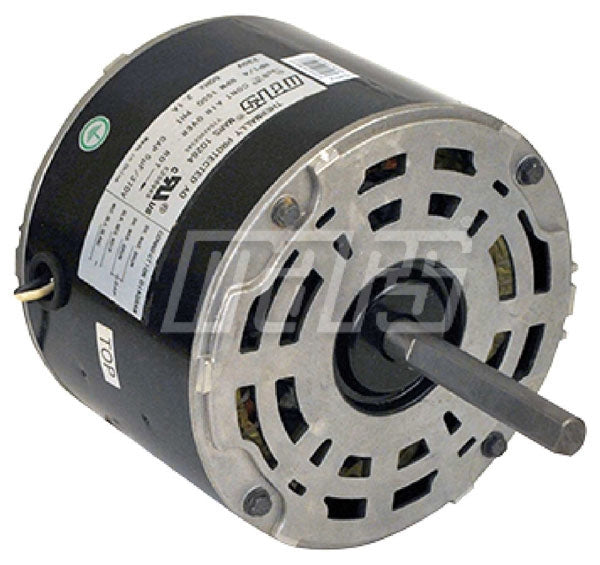

Mars Motors & Armatures 10264 1/4 HP 230 VAC 1-Phase Refrigeration Fan Motor

Product Description

The Mars Motors & Armatures 10264 is a refrigeration fan motor designed for effective cooling in HVAC systems. This motor operates at 1/4 horsepower and is suitable for both 50 and 60 Hertz electrical systems. It is optimized for 230 Volt AC, 1-Phase applications, making it versatile for various refrigeration needs.

• Power rating of 1/4 HP
• Features an NEMA frame size of 48
• Operates at 2.1 Amps with a speed of 1550 RPM

Product Highlights

This motor is equipped with a permanent split capacitor and is rated for environments with an ambient temperature of up to sixty degrees Celsius. The open drip proof enclosure protects the motor from moisture, enhancing its durability in refrigeration applications.

Product Information

Standard Information

• Brand: Mars Motors & Armatures
• MPN: 10264

Technical Specifications

• Power Rating: 1/4 HP
• Voltage Rating: 230 Volt AC 1-Phase
• Speed Rating: 1550 RPM
• Number of Speeds: 1
• Motor FLA: 2.1 Amp
• NEMA Frame Size: 48
• Frequency Rating: 50/60 Hertz
• Enclosure Type: Open Drip Proof
• Insulation Class: B
• Mounting Type: Through Bolt/Belly Band Bracket
• Rotation Type: Clockwise Lead End
• Shaft Size: 1/2 Inch Diameter x 3 Inch Length
• Approval: CUL
